Key Takeaways & Executive Findings
- •• • Grain refinement from ~50 μm to below 5 μm via RE alloying and rolling delivers a yield strength of 238 MPa and elongation of 23% in ATXM-0.1Y, enabling structural components with improved damage tolerance and weight savings in automotive and aerospace applications. • • Corrosion rate reduction to ~1.7 mm/a for ATXM-0.1Y—an ~80% decrease versus TRC ATXM—directly extends service life in humid environments, lowering maintenance costs and expanding applicability in electronics and transportation. • • Transformation of Al8Mn5 to Al8Mn4RE phases reduces individual galvanic corrosion and strengthens the corrosion product film, providing a dual mitigation strategy that addresses both electrochemical and barrier degradation mechanisms. • • Comparative screening of Sm, Ce, and Y reveals Y as the optimal addition: 238 MPa yield strength, 305 MPa tensile strength, 23% elongation, and 1.7 mm/a corrosion rate, establishing a clear alloying selection criterion for industrial scale-up.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

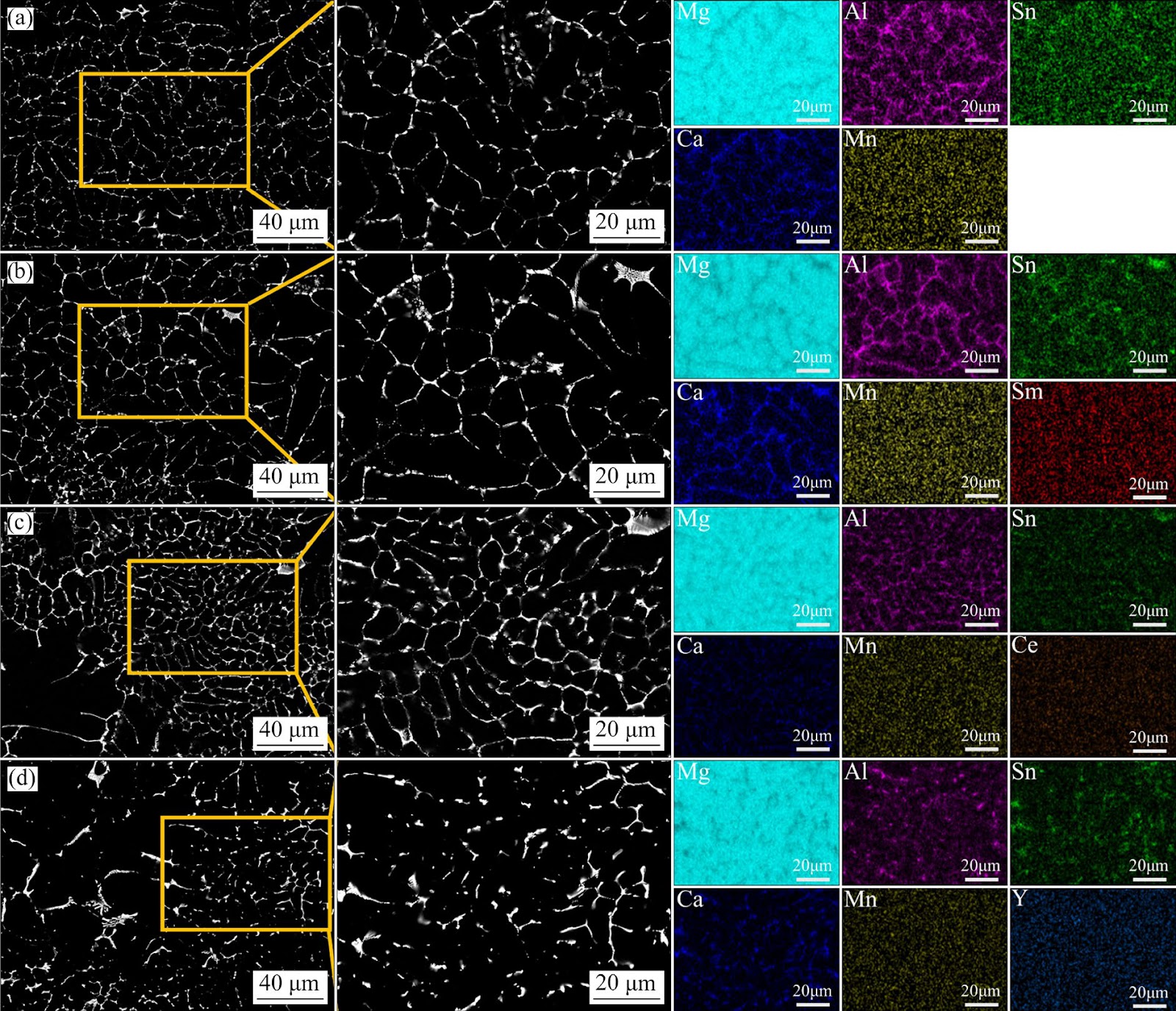

Twin-roll casting (TRC) Mg−3Al−1Sn−0.5Ca−0.2Mn (ATXM) alloys exhibit limited deformation resistance and inadequate corrosion performance, constraining their commercial deployment. This study integrates rare earth (RE) microalloying (Sm, Ce, or Y at 0.1 wt.%) with rolling to address the strength–plasticity–corrosion trilemma. Rolling reduces grain size from ~50 μm to below 5 μm and transforms Al8Mn5 secondary phases into Al8Mn4RE, modifying phase composition, dimension, and spatial arrangement. The rolled ATXM-0.1Y alloy achieves a yield strength of 238 MPa, tensile strength of 305 MPa, and elongation of 23%, coupled with a corrosion rate of approximately 1.7 mm/a—an ~80% reduction relative to TRC ATXM. Sm and Ce additions yield strengths of 238 and 232 MPa, elongations of 18% and 17%, and corrosion rates of 3.4 and 2.9 mm/a, respectively. Strengthening mechanisms are attributed to fine-grain and Orowan strengthening, while corrosion mitigation arises from reduced individual galvanic corrosion and enhanced protective corrosion product film quality. The work establishes a screening protocol for RE elements and processing parameters to synergistically improve mechanical and corrosion properties, facilitating commercial adoption of Mg alloys.
1. Introduction
Twin-roll casting (TRC) integrates solidification and rolling, offering cost and efficiency advantages for Mg alloy production. However, TRC-processed Mg alloys suffer from limited deformation resistance and inadequate corrosion resistance, primarily due to coarse grains and unfavorable secondary phase characteristics. The standard electrode potential of Mg (−2.37 V vs. SHE) exacerbates galvanic corrosion, while unsatisfactory corrosion product films fail to provide adequate protection in humid environments. These limitations restrict the use of TRC Mg alloys in high-stress and corrosive service conditions.
This study addresses the strength–plasticity–corrosion bottleneck by combining rare earth (RE) microalloying with rolling. The protocol systematically evaluates Sm, Ce, and Y additions at 0.1 wt.% in Mg−3Al−1Sn−0.5Ca−0.2Mn (ATXM) alloys. Rolling refines grains from ~50 μm to below 5 μm and modifies secondary phases, specifically transforming Al8Mn5 into Al8Mn4RE. The resulting microstructural changes enhance fine-grain and Orowan strengthening while reducing galvanic corrosion and improving corrosion product film quality. The rolled ATXM-0.1Y alloy achieves a yield strength of 238 MPa, tensile strength of 305 MPa, elongation of 23%, and a corrosion rate of ~1.7 mm/a, demonstrating a viable pathway for commercial adoption.
Loading authentic research manuscript (Pages 1–5)...
WANG Da-wei, ZHOU Rui, YANG Ya-jie, DONG Xiao-rui, JIA Hai-long, MA Pin-kui, XU Jin, SHAN Quan, LI Zu-lai, FU Jin-zhu, ZHA Min (2026). Mechanisms for Synergistically Enhanced Mechanical Properties and Corrosion Resistance in Mg−Al−Sn Alloys. Transactions of Nonferrous Metals Society of China (中国有色金属学报). https://doi.org/10.1016/S1003-6326(26)67058-6
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the dominant failure mechanism under high-stress conditions for TRC ATXM alloys, and how does the rolled ATXM-0.1Y mitigate it?
TRC ATXM alloys exhibit limited deformation resistance due to coarse grains (~50 μm) and unfavorable secondary phase distribution, leading to early fracture under high stress. Rolling with 0.1 wt.% Y refines grains to below 5 μm and transforms Al8Mn5 into Al8Mn4Y, activating fine-grain and Orowan strengthening. This yields a yield strength of 238 MPa and elongation of 23%, significantly improving damage tolerance.
What is the cost parity of ATXM-0.1Y against legacy Mg alloys such as AZ91, considering RE addition and rolling?
The study does not provide direct cost analysis, but the 0.1 wt.% Y addition is minimal, and rolling is a standard industrial process. The ~80% corrosion rate reduction (to 1.7 mm/a) and improved mechanical properties (238 MPa yield strength) can offset material and processing costs through extended service life and reduced maintenance, though detailed economic assessment is required for specific applications.
What are the scalability bottlenecks for producing rolled ATXM-0.1RE alloys at industrial scale?
Key bottlenecks include maintaining uniform RE distribution during twin-roll casting, controlling rolling parameters to achieve consistent grain refinement below 5 μm, and ensuring reproducible Al8Mn4RE phase formation. The study demonstrates feasibility at laboratory scale, but continuous production requires optimization of casting speed, rolling temperature, and reduction ratios to avoid defects and property variability.
How does the corrosion product film quality differ between TRC ATXM and rolled ATXM-0.1Y, and what is the quantitative impact?
Rolled ATXM-0.1Y exhibits a denser and more protective corrosion product film due to reduced galvanic corrosion and modified secondary phases. This results in a corrosion rate of ~1.7 mm/a, compared to ~8.5 mm/a for TRC ATXM (estimated from ~80% reduction), indicating a substantial barrier improvement that extends service life in humid environments.
What is the specific role of Al8Mn4RE phases in corrosion resistance, and how does their formation depend on RE element selection?
Al8Mn4RE phases reduce individual galvanic corrosion by modifying the electrochemical potential difference between secondary phases and the Mg matrix. Y addition forms Al8Mn4Y with optimal size and distribution, leading to the lowest corrosion rate (1.7 mm/a). Sm and Ce form similar phases but yield higher rates (3.4 and 2.9 mm/a), indicating that RE element selection critically influences phase stability and protective film quality.
Related Chinese Research & Cross-Citations
Assessment of zinc migration behavior and toxicity characteristics in redox smelting of zinc leaching residue
The redox smelting of zinc leaching residue (ZLR) was investigated to determine the migration behavior and toxicity characteristics of zinc under varying anthracite addition, temperature, and holding time. The ZLR, containing 10–20 wt.% Zn, 0.5–5 wt.% Pb, and 0.1–0.5 wt.% Cd, generates TCLP leachate concentrations of Zn up to 4589.0 mg/L, far exceeding regulatory limits. Experimental results reveal that CaSO4 in the residue promotes the transformation of ZnFe2O4 into a ZnS–FeS eutectic, which hinders zinc recovery and elevates environmental risk due to its lower thermodynamic stability relative to (Fe,Zn)2SiO4, ZnFe2O4, and (ZnO)slag. At temperatures above 1573 K, the ZnS–FeS eutectic is oxidized by O2/(O)slag to ZnO(s), subsequently dissolved into the slag as chemically dissolved Zn, and finally reduced to Zn(g) by CO. Pre-desulfurization or increased oxygen potential enhances zinc volatilization. Under optimized conditions, the zinc recovery ratio reached 99.13%, and the residual zinc content in the slag decreased to 0.22 wt.%, substantially below the industrial range of 1.0–3.0 wt.%. A novel strategy integrating desulfurization pretreatment with redox smelting is proposed, which lowers the required smelting temperature and improves zinc recovery efficiency, offering a more economical and environmentally sustainable solution for ZLR treatment.
Effects of oxidation roasting on surface characteristics and flotation behavior of bastnaesite
Oxidation roasting of bastnaesite was conducted to evaluate its impact on surface characteristics and flotation behavior. Experiments varied temperature, time, and O2 concentration. Increasing temperature promoted thermal decomposition, yielding Ce7O12, RE2O3, and REF3 as main phases. The Ce oxidation degree and REO grade of roasted products exceeded 85.00%. Roasting induced long, narrow, nearly parallel cracks within particles, increasing porosity and causing partial fragmentation. During flotation, dissolved rare earth ion concentration increased significantly, and surface hydrolysis formed rare earth hydroxyl compounds. Complete decomposition raised the required collector dosage to achieve recovery above 85.00%. This increase is attributed to enhanced particle wettability, altered collector adsorption, and deeper penetration into the porous structure. The findings provide a basis for optimizing flotation circuits treating roasted bastnaesite, particularly in iron-bearing rare earth deposits where pyrometallurgical pretreatment is employed.
Single Crystal NCM811 Cathode Material Prepared by Rapid Solvothermal Method
Polycrystalline LiNi0.8Co0.1Mn0.1O2 (NCM811) cathodes undergo intergranular cracking and structural collapse during extended cycling, limiting their commercial viability. This study reports single-crystalline NCM811 synthesized via a rapid ethanol–water solvothermal method. The solvothermal duration was varied, and the 60 min sample (NCM-60) exhibited optimal electrochemical performance. X-ray diffractometry confirmed an α-NaFeO2 structure with R-3m space group and high crystallinity. NCM-60 delivered a reversible capacity of 157.28 mA·h/g at 1C and a capacity retention of 55.06% after 200 cycles, significantly outperforming polycrystalline NCM (PC-NCM). Cross-sectional scanning electron microscopy revealed no apparent cracks in NCM-60 after 200 cycles, whereas PC-NCM exhibited severe intergranular fracture. The results demonstrate that shortening solvothermal time reduces precursor particle size and crystallinity, but 60 min yields the best balance. Pre-oxidation of the carbonate precursor before lithiation is recommended to mitigate CO2 evolution and lithium–nickel disorder during high-temperature sintering. This rapid solvothermal route offers a scalable pathway to single-crystal NCM811 with enhanced cycling stability and mechanical integrity.
Efficient separation of heavy metals from gypsum residue and secondary zinc oxide fume based on synergistic sulfidation
Synergistic sulfidation roasting of heavy metal gypsum residue and secondary zinc oxide fume was proposed by using the research idea of 'waste to treat waste'. Thermodynamic studies indicated that the sulfidation of zinc oxide could be effectively enhanced by increasing the dosage of calcium sulfate and carbon powder in the range of 500−800 °C. The synergistic sulfidation experiments of heavy metal gypsum residue with secondary zinc oxide showed that the sulfidation rate of zinc reached 90.39% and the grain size of ZnS increased from 5 to 10 μm under the conditions of temperature 700 °C, carbon powder 30%, Na2CO3 10%, mass ratio of gypsum residue to secondary zinc oxide 1.4:1, roasting time 2 h and cooling rate 1 °C/min. Meanwhile, 76.32% F, 72.11% Cl and 93.41% As were removed. TG/DTG−DSC, 3D FTIR spectra and SEM analysis showed that the conversion of CaSO4 to CaCO3 and the avoidance of CO2 and SO2 production were achieved under optimized conditions. This study achieves efficient sulfidation of zinc as well as growth of ZnS grains, laying the theoretical and technological foundation for subsequent recovery of ZnS by flotation.
Low-Ammonium Synergistic Leaching of Ionic Rare Earth Ore with Acetic Acid–Ammonium Sulfate System
Conventional ammonium sulfate leaching of ionic rare earth ores generates 4–6 t of ammonia-nitrogen wastewater per ton of rare earth and drives mining-area soil pH to 3.5–4.0, creating an acute environmental compliance risk. This study evaluates a low-ammonium synergistic lixiviant comprising 0.020 mol/L (NH4)2SO4 and 0.010 mol/L acetic acid (HAc) at pH 4–5, 30 °C, and 1 h contact time. Comparative leaching experiments establish a rare earth element (REE) leaching efficiency of 88.92%, a 13.36% absolute increase over single 0.020 mol/L (NH4)2SO4 leaching. To achieve the same ~90% efficiency benchmark, the conventional single-salt system requires 0.030 mol/L (NH4)2SO4; the synergistic system therefore reduces ammonium consumption by 33.3%. Surface characterization indicates a dual mechanism: H+ attenuates electrostatic interactions between RE3+ and silicate surfaces, enhancing NH4+–RE3+ exchange, while CH3COO− forms soluble RE3+/Al3+ complexes that prevent Al(OH)3 passivation and sustain surface reactivity. The protocol offers a directly deployable route to cut reagent cost and ammonia-nitrogen load without sacrificing recovery, addressing the principal bottleneck restraining sustainable ionic rare earth ore exploitation under China's dual-carbon and rare earth total-amount control policies.
Achieving strength-ductility tradeoff in near alpha titanium alloy via multi-stage heat treatment-induced nano-martensite phase transformation
A multi-stage heat treatment (MSHT) strategy, comprising a high-temperature short-duration water quench (WQ) followed by low-temperature long-duration furnace cooling (FC), was applied to a near-alpha Ti-0.3Mo-0.8Ni-2Al-1.5Zr alloy to overcome the strength-ductility tradeoff. The WQ state produced lath nano-martensite alpha-prime, residual beta-prime, and equiaxed recrystallized alpha. Subsequent FC decomposition transformed alpha-prime/beta-prime into homogeneously dispersed nano-scale alpha+beta precipitates, while equiaxed alpha coarsened via grain boundary migration. The WQ condition exhibited an ultimate tensile strength (sigma_UTS) of 610 MPa and elongation to failure (epsilon_f) of 18.2%. The WQ+400FC condition achieved a peak sigma_UTS of 791.5 MPa with epsilon_f = 16.7%, yielding a strength-ductility product (sigma_UTS * epsilon_f) of 13.2 GPa*%, a 19% improvement over the WQ state. Texture analysis revealed a duplex texture in WQ: weak {0001}//Z0 and strong {0110}//Y0, inherited after FC. The 400FC sample showed the highest lattice strain inhomogeneity, with peak kernel average misorientation (KAM) of 1.5 degrees and grain orientation spread (GOS) of 0.96 degrees, correlating with the excellent sigma_UTS. Non-basal slip systems exhibited higher Schmid factor (SF) values after heat treatment, contributing to ductility. Burgers orientation relationship (BOR) reconstruction confirmed variant selection during beta to alpha-prime transformation, with only four predominant alpha-prime variants instead of the twelve theoretically possible.
