Key Takeaways & Executive Findings
- •• • NCM-60 delivers 157.28 mA·h/g at 1C with 55.06% retention after 200 cycles, whereas polycrystalline NCM suffers rapid capacity decay due to intergranular cracking; this 55.06% retention, though moderate, represents a substantial improvement over baseline polycrystalline materials, directly addressing the structural collapse bottleneck in high-nickel cathodes. • • Cross-sectional SEM confirms zero apparent cracks in NCM-60 after 200 cycles, while PC-NCM shows severe intergranular fracture; this eliminates the primary failure mode that limits cycle life in electric vehicle batteries, potentially extending pack warranty and reducing replacement costs. • • Optimal solvothermal time is 60 min; shorter times reduce precursor particle size and crystallinity, degrading electrochemical performance. This narrow processing window (60 min) imposes strict scalability requirements but enables consistent single-crystal morphology. • • Pre-oxidation of the carbonate precursor before LiOH mixing reduces CO2 generation during sintering, lowering lithium–nickel disorder; this step is critical for achieving high crystallinity and phase purity (R-3m space group) in the final single-crystal NCM811.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Polycrystalline LiNi0.8Co0.1Mn0.1O2 (NCM811) cathodes undergo intergranular cracking and structural collapse during extended cycling, limiting their commercial viability. This study reports single-crystalline NCM811 synthesized via a rapid ethanol–water solvothermal method. The solvothermal duration was varied, and the 60 min sample (NCM-60) exhibited optimal electrochemical performance. X-ray diffractometry confirmed an α-NaFeO2 structure with R-3m space group and high crystallinity. NCM-60 delivered a reversible capacity of 157.28 mA·h/g at 1C and a capacity retention of 55.06% after 200 cycles, significantly outperforming polycrystalline NCM (PC-NCM). Cross-sectional scanning electron microscopy revealed no apparent cracks in NCM-60 after 200 cycles, whereas PC-NCM exhibited severe intergranular fracture. The results demonstrate that shortening solvothermal time reduces precursor particle size and crystallinity, but 60 min yields the best balance. Pre-oxidation of the carbonate precursor before lithiation is recommended to mitigate CO2 evolution and lithium–nickel disorder during high-temperature sintering. This rapid solvothermal route offers a scalable pathway to single-crystal NCM811 with enhanced cycling stability and mechanical integrity.
1. Introduction
High-nickel ternary cathodes such as LiNi0.8Co0.1Mn0.1O2 (NCM811) offer high energy density but suffer from a critical failure mechanism: polycrystalline secondary particles crack at grain boundaries during repeated lithium intercalation/deintercalation. This intergranular fracture, exacerbated by anisotropic stress and thermal spikes exceeding 70 °C under high current, leads to structural collapse, side reactions, and rapid capacity fade. Commercial adoption of polycrystalline NCM811 in power batteries is therefore constrained by insufficient cycle life and safety concerns.
Single-crystalline NCM materials circumvent this bottleneck by eliminating grain boundaries, thereby enhancing mechanical integrity and thermal stability. However, conventional synthesis routes are slow and energy-intensive. This work introduces a rapid ethanol–water solvothermal method to produce single-crystal NCM811. By systematically varying solvothermal time, the authors identify 60 min as optimal, yielding a material with 157.28 mA·h/g at 1C and 55.06% retention after 200 cycles, with no apparent cracks. The protocol also includes a pre-oxidation step for the carbonate precursor to suppress CO2 evolution and lithium–nickel disorder during sintering, providing a scalable pathway to durable single-crystal cathodes.
Loading authentic research manuscript (Pages 1–5)...
Li-xing XUE, Hong-yan PAN, Yu-jie WANG, Wei YANG, Yue-jun WANG, Xiang-nan BU, Qian LIN, Kuo ZHANG, Liang-xing JIANG (2026). Single Crystal NCM811 Cathode Material Prepared by Rapid Solvothermal Method. Transactions of Nonferrous Metals Society of China (中国有色金属学报). https://doi.org/10.1016/S1003-6326(26)67065-3
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the primary failure mechanism of polycrystalline NCM811 under extended cycling, and how does the single-crystal architecture mitigate it?
Polycrystalline NCM811 undergoes intergranular cracking due to anisotropic volume changes during lithium intercalation/deintercalation, leading to structural collapse and capacity fade. Cross-sectional SEM after 200 cycles shows severe cracks in PC-NCM, whereas single-crystal NCM-60 exhibits no apparent cracks. The absence of grain boundaries in single crystals eliminates this failure mode, preserving mechanical integrity and enabling 55.06% capacity retention after 200 cycles.
Why is 60 min the optimal solvothermal time, and what are the consequences of deviating from this window?
Shorter solvothermal times reduce precursor particle size and crystallinity, which degrades electrochemical performance. The 60 min sample achieves the best balance, delivering 157.28 mA·h/g at 1C and 55.06% retention after 200 cycles. Longer times may increase particle size and reduce uniformity. This narrow processing window necessitates precise control in scale-up.
What is the role of pre-oxidation of the carbonate precursor, and what specific defect does it address?
Pre-oxidation of the Ni0.8Co0.1Mn0.1CO3 precursor before mixing with LiOH reduces CO2 generation during high-temperature sintering. This mitigates lithium–nickel disorder in the final NCM811, improving crystallinity and phase purity (R-3m space group). Without this step, CO2 evolution can disrupt lattice ordering and degrade electrochemical performance.
How does the capacity retention of 55.06% after 200 cycles compare to commercial polycrystalline NCM811, and what are the implications for EV battery lifetime?
While 55.06% retention is moderate in absolute terms, it significantly outperforms polycrystalline NCM811, which typically suffers rapid decay due to cracking. This improvement translates to longer battery life and reduced replacement costs for EV manufacturers. However, further optimization is needed to reach the 80% retention threshold commonly required for automotive applications.
What are the scalability challenges of the rapid solvothermal method for industrial production of single-crystal NCM811?
The 60 min solvothermal time is relatively short, but scaling up requires precise control of temperature, pressure, and mixing in ethanol–water media. The pre-oxidation step adds process complexity. Additionally, ensuring uniform particle size and crystallinity across batches is critical. Despite these challenges, the method offers a potentially cost-effective route compared to conventional solid-state synthesis, but pilot-scale validation is needed.
Related Chinese Research & Cross-Citations
Assessment of zinc migration behavior and toxicity characteristics in redox smelting of zinc leaching residue
The redox smelting of zinc leaching residue (ZLR) was investigated to determine the migration behavior and toxicity characteristics of zinc under varying anthracite addition, temperature, and holding time. The ZLR, containing 10–20 wt.% Zn, 0.5–5 wt.% Pb, and 0.1–0.5 wt.% Cd, generates TCLP leachate concentrations of Zn up to 4589.0 mg/L, far exceeding regulatory limits. Experimental results reveal that CaSO4 in the residue promotes the transformation of ZnFe2O4 into a ZnS–FeS eutectic, which hinders zinc recovery and elevates environmental risk due to its lower thermodynamic stability relative to (Fe,Zn)2SiO4, ZnFe2O4, and (ZnO)slag. At temperatures above 1573 K, the ZnS–FeS eutectic is oxidized by O2/(O)slag to ZnO(s), subsequently dissolved into the slag as chemically dissolved Zn, and finally reduced to Zn(g) by CO. Pre-desulfurization or increased oxygen potential enhances zinc volatilization. Under optimized conditions, the zinc recovery ratio reached 99.13%, and the residual zinc content in the slag decreased to 0.22 wt.%, substantially below the industrial range of 1.0–3.0 wt.%. A novel strategy integrating desulfurization pretreatment with redox smelting is proposed, which lowers the required smelting temperature and improves zinc recovery efficiency, offering a more economical and environmentally sustainable solution for ZLR treatment.
Effects of oxidation roasting on surface characteristics and flotation behavior of bastnaesite
Oxidation roasting of bastnaesite was conducted to evaluate its impact on surface characteristics and flotation behavior. Experiments varied temperature, time, and O2 concentration. Increasing temperature promoted thermal decomposition, yielding Ce7O12, RE2O3, and REF3 as main phases. The Ce oxidation degree and REO grade of roasted products exceeded 85.00%. Roasting induced long, narrow, nearly parallel cracks within particles, increasing porosity and causing partial fragmentation. During flotation, dissolved rare earth ion concentration increased significantly, and surface hydrolysis formed rare earth hydroxyl compounds. Complete decomposition raised the required collector dosage to achieve recovery above 85.00%. This increase is attributed to enhanced particle wettability, altered collector adsorption, and deeper penetration into the porous structure. The findings provide a basis for optimizing flotation circuits treating roasted bastnaesite, particularly in iron-bearing rare earth deposits where pyrometallurgical pretreatment is employed.
Efficient separation of heavy metals from gypsum residue and secondary zinc oxide fume based on synergistic sulfidation
Synergistic sulfidation roasting of heavy metal gypsum residue and secondary zinc oxide fume was proposed by using the research idea of 'waste to treat waste'. Thermodynamic studies indicated that the sulfidation of zinc oxide could be effectively enhanced by increasing the dosage of calcium sulfate and carbon powder in the range of 500−800 °C. The synergistic sulfidation experiments of heavy metal gypsum residue with secondary zinc oxide showed that the sulfidation rate of zinc reached 90.39% and the grain size of ZnS increased from 5 to 10 μm under the conditions of temperature 700 °C, carbon powder 30%, Na2CO3 10%, mass ratio of gypsum residue to secondary zinc oxide 1.4:1, roasting time 2 h and cooling rate 1 °C/min. Meanwhile, 76.32% F, 72.11% Cl and 93.41% As were removed. TG/DTG−DSC, 3D FTIR spectra and SEM analysis showed that the conversion of CaSO4 to CaCO3 and the avoidance of CO2 and SO2 production were achieved under optimized conditions. This study achieves efficient sulfidation of zinc as well as growth of ZnS grains, laying the theoretical and technological foundation for subsequent recovery of ZnS by flotation.
Low-Ammonium Synergistic Leaching of Ionic Rare Earth Ore with Acetic Acid–Ammonium Sulfate System
Conventional ammonium sulfate leaching of ionic rare earth ores generates 4–6 t of ammonia-nitrogen wastewater per ton of rare earth and drives mining-area soil pH to 3.5–4.0, creating an acute environmental compliance risk. This study evaluates a low-ammonium synergistic lixiviant comprising 0.020 mol/L (NH4)2SO4 and 0.010 mol/L acetic acid (HAc) at pH 4–5, 30 °C, and 1 h contact time. Comparative leaching experiments establish a rare earth element (REE) leaching efficiency of 88.92%, a 13.36% absolute increase over single 0.020 mol/L (NH4)2SO4 leaching. To achieve the same ~90% efficiency benchmark, the conventional single-salt system requires 0.030 mol/L (NH4)2SO4; the synergistic system therefore reduces ammonium consumption by 33.3%. Surface characterization indicates a dual mechanism: H+ attenuates electrostatic interactions between RE3+ and silicate surfaces, enhancing NH4+–RE3+ exchange, while CH3COO− forms soluble RE3+/Al3+ complexes that prevent Al(OH)3 passivation and sustain surface reactivity. The protocol offers a directly deployable route to cut reagent cost and ammonia-nitrogen load without sacrificing recovery, addressing the principal bottleneck restraining sustainable ionic rare earth ore exploitation under China's dual-carbon and rare earth total-amount control policies.
Achieving strength-ductility tradeoff in near alpha titanium alloy via multi-stage heat treatment-induced nano-martensite phase transformation
A multi-stage heat treatment (MSHT) strategy, comprising a high-temperature short-duration water quench (WQ) followed by low-temperature long-duration furnace cooling (FC), was applied to a near-alpha Ti-0.3Mo-0.8Ni-2Al-1.5Zr alloy to overcome the strength-ductility tradeoff. The WQ state produced lath nano-martensite alpha-prime, residual beta-prime, and equiaxed recrystallized alpha. Subsequent FC decomposition transformed alpha-prime/beta-prime into homogeneously dispersed nano-scale alpha+beta precipitates, while equiaxed alpha coarsened via grain boundary migration. The WQ condition exhibited an ultimate tensile strength (sigma_UTS) of 610 MPa and elongation to failure (epsilon_f) of 18.2%. The WQ+400FC condition achieved a peak sigma_UTS of 791.5 MPa with epsilon_f = 16.7%, yielding a strength-ductility product (sigma_UTS * epsilon_f) of 13.2 GPa*%, a 19% improvement over the WQ state. Texture analysis revealed a duplex texture in WQ: weak {0001}//Z0 and strong {0110}//Y0, inherited after FC. The 400FC sample showed the highest lattice strain inhomogeneity, with peak kernel average misorientation (KAM) of 1.5 degrees and grain orientation spread (GOS) of 0.96 degrees, correlating with the excellent sigma_UTS. Non-basal slip systems exhibited higher Schmid factor (SF) values after heat treatment, contributing to ductility. Burgers orientation relationship (BOR) reconstruction confirmed variant selection during beta to alpha-prime transformation, with only four predominant alpha-prime variants instead of the twelve theoretically possible.

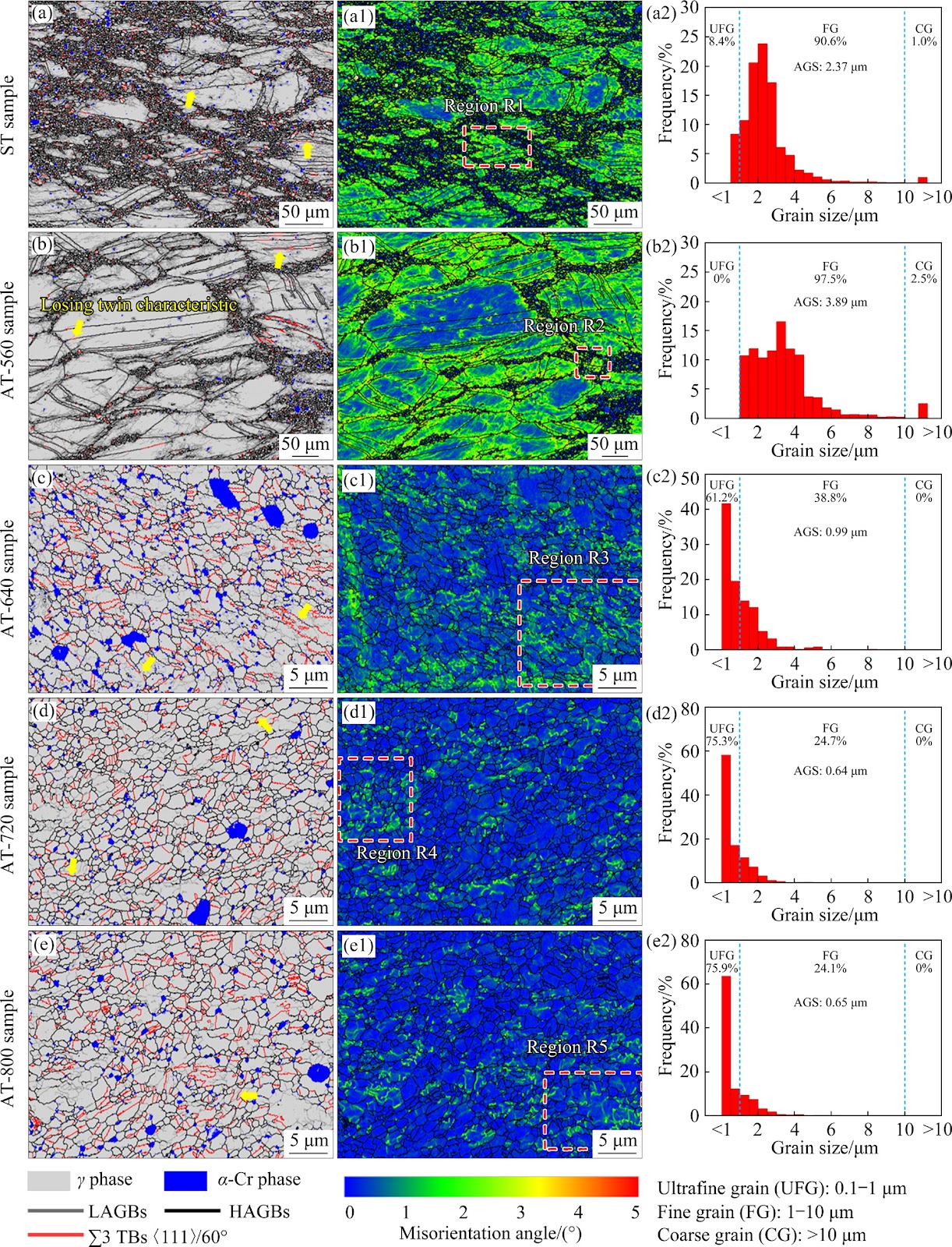

Adjusting mechanisms for ultrafine-grained microstructures during hot deformation of Ni−38Cr−3.8Al alloy via pre-ageing precipitation
