Key Takeaways & Executive Findings
- •• • Deposition rate reaches 1.32 × 10^4 nm/s, a 2,600-fold increase over non-continuous vacuum evaporation (5 nm/s), enabling industrial-scale throughput without sacrificing coating quality. • • Coating density improves from 86.3% to 97.4% and adhesion critical load rises from 24,316 mN to 34,618 mN (+42%), directly reducing delamination risk in forming and stamping operations. • • Corrosion current density drops from 66.4 µA/cm² to 27.8 µA/cm² (−58%) and neutral salt spray red-rust time extends from 48 h to 72 h, meeting automotive and construction durability requirements. • • The (102) preferred orientation and microcrystalline structure act as a chloride diffusion barrier and promote a protective corrosion product layer, extending service life in aggressive environments.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Traditional continuous galvanizing of steel strips faces escalating energy consumption, wettability limitations on advanced high-strength steels, and hydrogen embrittlement risks. This study establishes and experimentally validates a coupled Hertz-Knudsen evaporation and choked-flow jet deposition model for a continuous thermal jet physical vapor deposition (PVD) process. Using SPCC cold-rolled steel strips at a substrate temperature of 160 °C, zinc vapor generated in a crucible (913–943 K) is transported through a vapor distribution box and accelerated to supersonic velocity (Mach > 1) via a Laval nozzle. Theoretical coating thicknesses (9.49–15.42 µm) agree with measured values (9.22 ± 0.2 to 13.2 ± 0.6 µm), confirming model validity. Compared with non-continuous vacuum evaporation, the continuous thermal jet-PVD process increases deposition rate from 5 nm/s to 1.32 × 10^4 nm/s (2,600-fold), coating density from 86.3% to 97.4%, gloss from 3.7 GU to 30 GU (8-fold), and adhesion critical load from 24,316 mN to 34,618 mN (42% increase). Corrosion current density decreases from 66.4 µA/cm² to 27.8 µA/cm² (58% reduction), and neutral salt spray red-rust time extends from 48 h to 72 h. Microstructural analysis reveals a transition from hexagonal crystallites with random orientation to a microcrystalline structure with a dominant (102) texture. This dense (102)-oriented coating acts as a physical barrier against chloride ion penetration and promotes a protective corrosion product layer, offering a high-speed, clean alternative to conventional hot-dip and electro-galvanizing.
1. Introduction
Continuous galvanizing of steel strips via hot-dip and electro-galvanizing routes has long been constrained by high energy consumption, poor wettability on advanced high-strength steels (AHSS), and hydrogen embrittlement risks. These limitations are not incremental; they threaten the viability of conventional lines as AHSS adoption accelerates in automotive lightweighting. Physical vapor deposition (PVD) offers an environmentally benign alternative, but batch PVD systems exhibit deposition rates of approximately 5 nm/s, rendering them economically uncompetitive for continuous strip production.

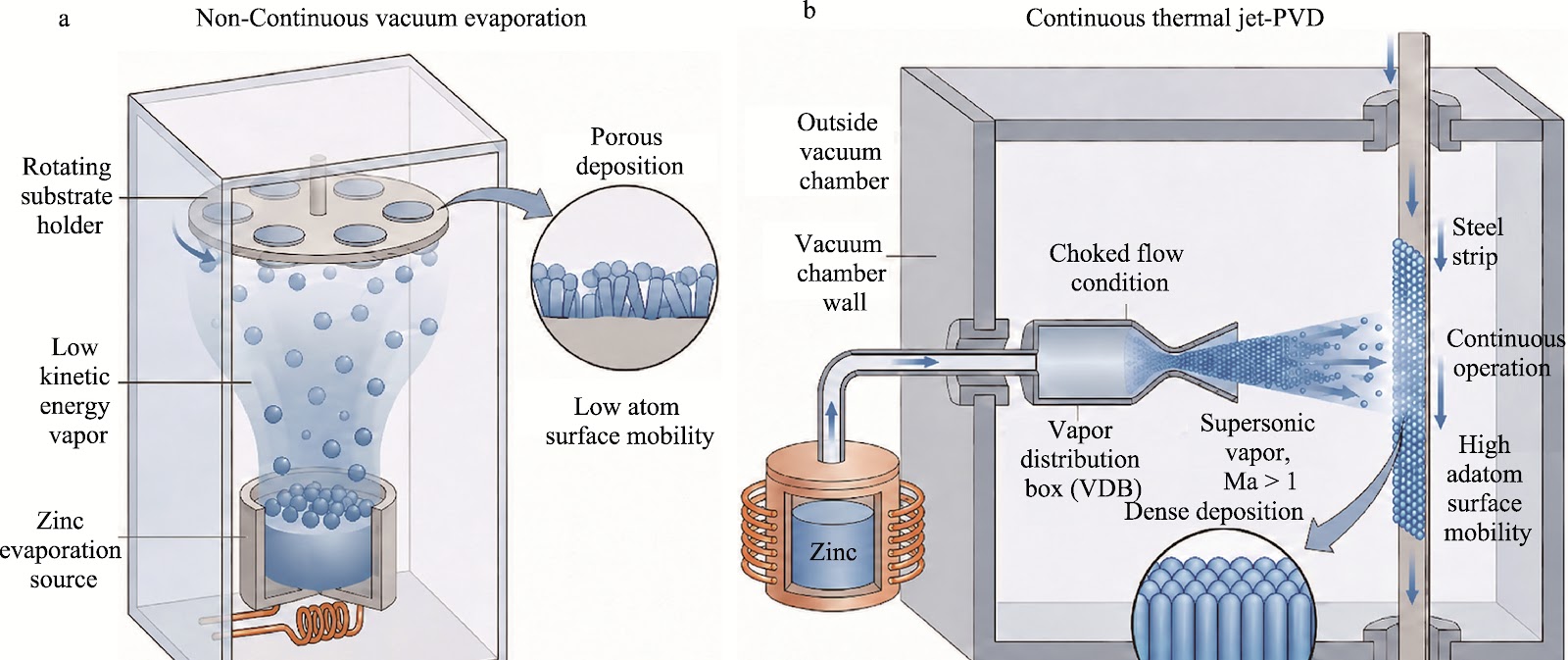

This work addresses the throughput bottleneck by coupling Hertz-Knudsen evaporation kinetics with choked-flow fluid dynamics to model a continuous thermal jet-PVD process. Zinc vapor generated at 913–943 K is stabilized in a vapor distribution box and accelerated to supersonic velocity (Mach > 1) through a Laval nozzle, delivering high kinetic energy to the substrate at 160 °C. The model predicts coating thicknesses of 9.49–15.42 µm, validated against measured values of 9.22 ± 0.2 to 13.2 ± 0.6 µm. The resulting dense, (102)-textured coating achieves a 2,600-fold increase in deposition rate while improving density, adhesion, and corrosion resistance relative to vacuum evaporation.
Loading authentic research manuscript (Pages 1–5)...
ZHAO Xingyuan, ZHANG Ziyue, LIU Xin, LIU Qiuyuan, ZHANG Qifu (2026). Process, Microstructure, and Properties of Continuous Thermal Jet-PVD Zinc Coatings on Steel Strips. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.10.008
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the dominant failure mechanism of the coating under mechanical stress, and how does the (102) texture mitigate it?
The primary failure mode is interfacial delamination driven by residual stresses and chloride-induced undercutting. The (102) preferred orientation and microcrystalline structure increase adhesion critical load from 24,316 mN to 34,618 mN (+42%) by promoting columnar grain boundaries that distribute shear stresses more uniformly. This texture also reduces through-thickness porosity, limiting chloride ingress pathways.
How does the continuous thermal jet-PVD process achieve a 2,600-fold deposition rate increase without degrading coating density?
The rate increase stems from supersonic jet delivery (Mach > 1) that supplies high kinetic energy to adatoms, enhancing surface diffusion and densification. Coating density rises from 86.3% to 97.4% because the high-energy impact suppresses shadowing effects and void formation typical of low-energy vacuum evaporation. The choked-flow condition (pressure ratio < 0.53) ensures stable mass flux.
What are the scalability bottlenecks for industrial implementation, and what process windows are required?
The critical bottleneck is maintaining a uniform supersonic jet across wide strip widths (>1,500 mm) while preventing viscous dissipation in the transport piping. The validated process window is crucible temperature 913–943 K and substrate temperature 160 °C, yielding thicknesses of 9.22–13.2 µm. Deviations between theoretical (9.49–15.42 µm) and measured values arise from non-ideal Rayleigh flow effects, which must be compensated by nozzle geometry optimization.
How does the corrosion performance compare to conventional hot-dip galvanizing in neutral salt spray testing?
Neutral salt spray red-rust time extends from 48 h (vacuum evaporation baseline) to 72 h, a 50% improvement. Corrosion current density decreases from 66.4 µA/cm² to 27.8 µA/cm² (−58%). The dense (102)-oriented coating acts as a physical barrier and promotes a protective corrosion product layer, outperforming porous granular coatings but not yet matching the 100+ h typical of thick hot-dip coatings.
What is the economic trade-off between the increased deposition rate and the added complexity of the Laval nozzle and vapor distribution box?
The 2,600-fold rate increase reduces per-unit coating cost by enabling continuous strip processing at line speeds compatible with industrial galvanizing lines. While the Laval nozzle and vapor distribution box add capital cost, the elimination of hydrogen embrittlement risk and the 58% reduction in corrosion current density lower downstream scrap and warranty costs. A full techno-economic assessment is required to quantify parity with hot-dip lines.
