Key Takeaways & Executive Findings
- •• • The optimized PDMS:Cu mass ratio of 2:1 yields a condensation HTC of 5.85× smooth copper at ΔT = 1 K, a 2.76× improvement over pure PDMS, directly addressing interfacial thermal resistance in condensers. Industrial adoption could reduce heat exchanger surface area by ~40% for equivalent duty, lowering capital expenditure. • • Mechanical durability: after 45 sandpaper abrasion cycles (800# grit, 90 g load), WCA remains 149°, and after 240 g sand impact, WCA is 147.7° with WSA 18.5°. This exceeds typical polymer coatings that fail below 20 cycles, enabling deployment in abrasive steam environments such as power plant condensers. • • Thermal stability: 300 °C for 12 h maintains WCA >151.8° and WSA <9°, attributed to PDMS pyrolysis forming SiO2 and siloxane oligomers. This permits integration into high-temperature processes (e.g., industrial drying, waste heat recovery) without degradation. • • Steam exposure for 9 h maintains superhydrophobicity (WCA >151.4°, WSA <9°); after 12 h, WCA drops to 124.2° but recovers to >151° via 100 °C for 2 h. This self-healing-like recovery reduces maintenance downtime and extends operational lifetime in condensing steam applications.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Conventional polydimethylsiloxane (PDMS) coatings for condensation heat transfer suffer from insufficient mechanical durability and high interfacial thermal resistance, limiting their industrial deployment. This study introduces a one-step, fluorine-free infrared nanosecond laser ablation strategy to fabricate superhydrophobic copper surfaces with integrated thermal conductivity. An H62 brass substrate was pre-coated with a PDMS/copper powder mixture and directly ablated in air. Orthogonal optimization identified scan spacing 200 μm, 20 passes, scan speed 150 mm/s, and PDMS:Cu mass ratio 2:1 as optimal. The resulting surface (SHS-Cu) exhibited a hierarchical micro/nanostructure with coral-reef-like micro-skeletons and nano-flocculent features, achieving a water contact angle (WCA) of 158.4° and sliding angle (WSA) of 6°. Mechanical stability tests showed WCA of 149° after 45 sandpaper abrasion cycles and 147.7° after 240 g sand impact. Thermal stability at 300 °C for 12 h maintained WCA >151.8° and WSA <9°. Continuous steam exposure for over 9 h preserved superhydrophobicity (WCA >151.4°), with full recovery after 100 °C heat treatment for 2 h. Condensation heat transfer coefficient (HTC) at ΔT = 1 K reached 2.12 times that of smooth copper for pure PDMS, and 5.85 times for the composite coating (2.76 times that of pure PDMS). The copper powder network reduces interfacial thermal resistance, synergizing with dropwise condensation. This method offers a scalable, environmentally benign route for high-performance condensation surfaces.
1. Introduction
Condensation heat transfer is pivotal in energy generation, water harvesting, and electronics thermal management. Dropwise condensation on superhydrophobic surfaces can enhance heat transfer coefficients by up to an order of magnitude compared to filmwise condensation. However, commercial adoption has stalled due to two persistent bottlenecks: (1) poor mechanical robustness of low-surface-energy coatings, which delaminate under steam shear or particulate impact, and (2) high interfacial thermal resistance of polymer coatings, which offsets the thermal benefit of dropwise condensation. Conventional fabrication routes often involve multi-step processes, fluorinated reagents, or precious metal catalysts, raising cost and environmental concerns.

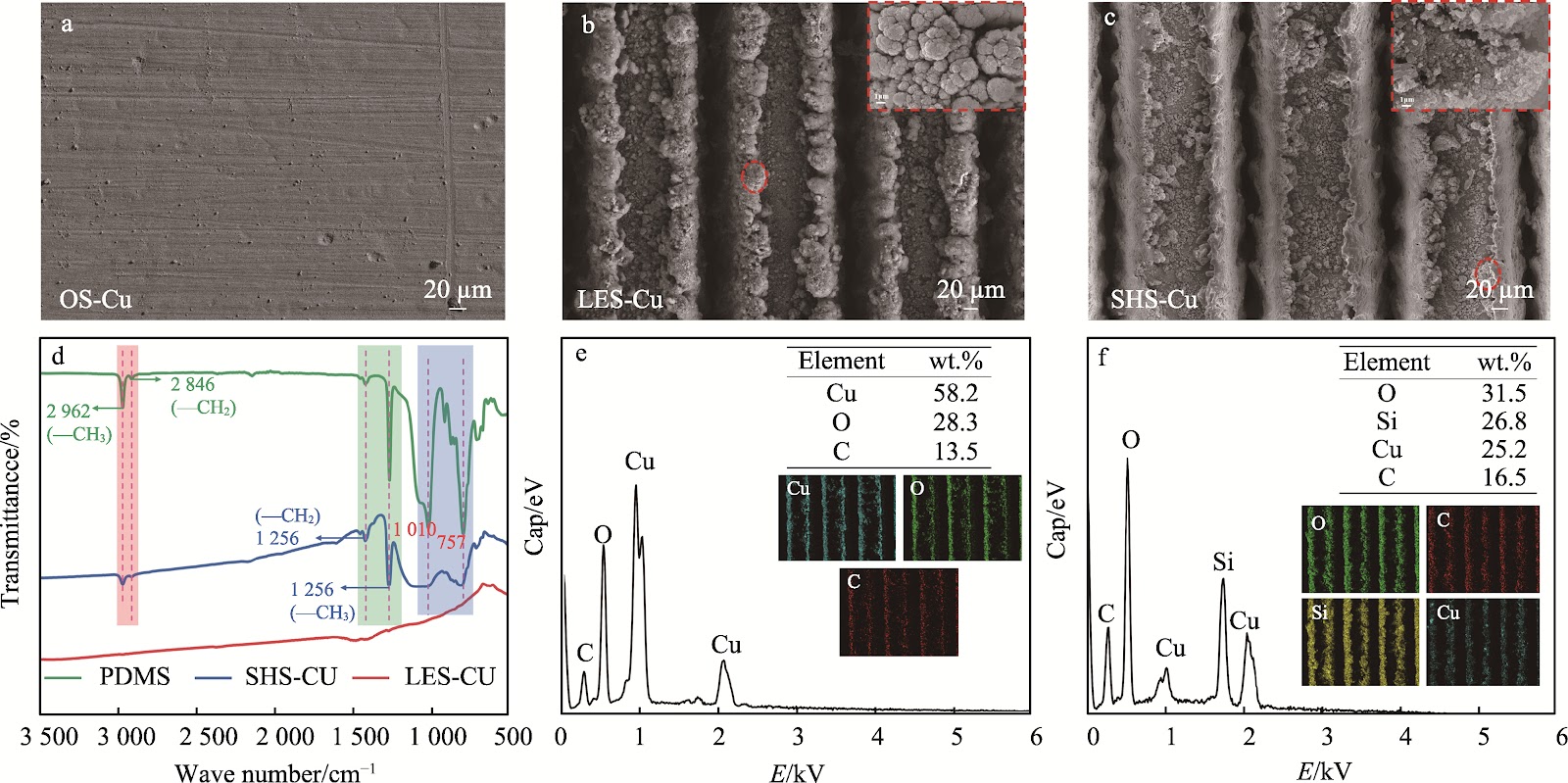

This work addresses both bottlenecks via a one-step infrared nanosecond laser ablation of a pre-coated PDMS/copper powder mixture on H62 brass. The laser simultaneously etches the substrate and cures the coating, creating a hierarchical micro/nanostructure that entraps air and promotes dropwise condensation. The embedded copper powder forms a continuous three-dimensional thermal network that reduces interfacial resistance. Orthogonal experiments optimized laser parameters and PDMS:Cu ratio, yielding a surface with WCA 158.4°, WSA 6°, and an HTC 5.85 times that of smooth copper at ΔT = 1 K. The protocol eliminates fluorine, reduces processing steps, and demonstrates recovery after steam-induced degradation, offering a viable path for industrial condenser retrofits.
Loading authentic research manuscript (Pages 1–5)...
LU Ziming, YANG Xiaohong, YE Xia, FAN Zhenmin, LI Surong, Musinguzi Deo (2026). Laser-ablated PDMS/Copper Powder Superhydrophobic Copper Surfaces for Enhanced Condensation Heat Transfer. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.10.011
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the failure mechanism under prolonged steam exposure, and how does the surface recover?
After 12 h of continuous steam exposure, WCA decreases to 124.2° and WSA increases to 78.8°, indicating loss of superhydrophobicity due to gradual adsorption of water molecules and possible hydrolysis of surface siloxane groups. However, a 100 °C heat treatment for 2 h fully restores WCA >151° and WSA <9°, likely by desorbing water and reorienting low-surface-energy methyl groups. This recovery mechanism is critical for industrial maintenance, as it allows in-situ regeneration without recoating.
How does the copper powder network reduce interfacial thermal resistance quantitatively?
The composite coating with PDMS:Cu = 2:1 achieves an HTC of 5.85× smooth copper at ΔT = 1 K, compared to 2.12× for pure PDMS. This 2.76× enhancement over pure PDMS is attributed to the formation of a continuous 3D copper network that provides thermally conductive pathways through the insulating polymer matrix. The network reduces the effective thermal resistance of the coating, as evidenced by the increased HTC, without compromising superhydrophobicity (WCA 158.4°).
What are the scalability bottlenecks for this laser ablation process?
The process uses a single-step infrared nanosecond laser ablation over pre-coated H62 brass. Key scalability factors include laser scan speed (150 mm/s), scan spacing (200 μm), and 20 passes. For large-area surfaces, the total processing time scales linearly with area; a 1 m² surface would require approximately 20 passes at 150 mm/s with 200 μm spacing, translating to ~11 hours of laser time. However, the method avoids vacuum or toxic precursors, and the copper powder is inexpensive, making it amenable to roll-to-roll integration with high-power laser systems.
How does the mechanical durability compare to commercial superhydrophobic coatings?
After 45 sandpaper abrasion cycles (800# grit, 90 g load), WCA remains 149°, and after 240 g sand impact, WCA is 147.7° with WSA 18.5°. Typical commercial polymer-based superhydrophobic coatings lose superhydrophobicity after 10–20 abrasion cycles. The enhanced durability here stems from the hard metallic micro-skeleton formed by laser melting and the embedded copper powder, which protect the low-surface-energy PDMS. This suggests suitability for harsh environments such as steam condensers with particulate carryover.
What is the cost and environmental impact compared to fluorinated coatings?
The process is fluorine-free, using only PDMS and copper powder, which are low-cost and widely available. No fluorinated solvents or reagents are required, eliminating persistent organic pollutants. The one-step laser ablation reduces processing steps and energy consumption compared to multi-step etching or chemical vapor deposition. While laser equipment has capital cost, the operational cost per area is competitive for high-value applications such as power plant condensers, where a 5.85× HTC improvement can yield significant energy savings.
