Key Takeaways & Executive Findings
- •• • As-deposited films are amorphous; coercivity decreases and saturation magnetization increases with thickness, stabilizing at 400 nm, which is optimal for device integration. • • Annealing at 773 K and 873 K precipitates nanocrystalline α-Fe; exchange coupling between nanocrystals and amorphous matrix enhances soft magnetic properties. • • Film annealed at 873 K for 30 min with heating rate 25 K/s achieves coercivity of 0.8 A/m and saturation magnetization of 1.45 T, enabling high-frequency operation with low eddy current losses. • • Rapid thermal processing controls thermal gradient to produce smaller nanocrystals, reducing coercivity without additional transition metals, offering a cost-effective route for high-performance inductors.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

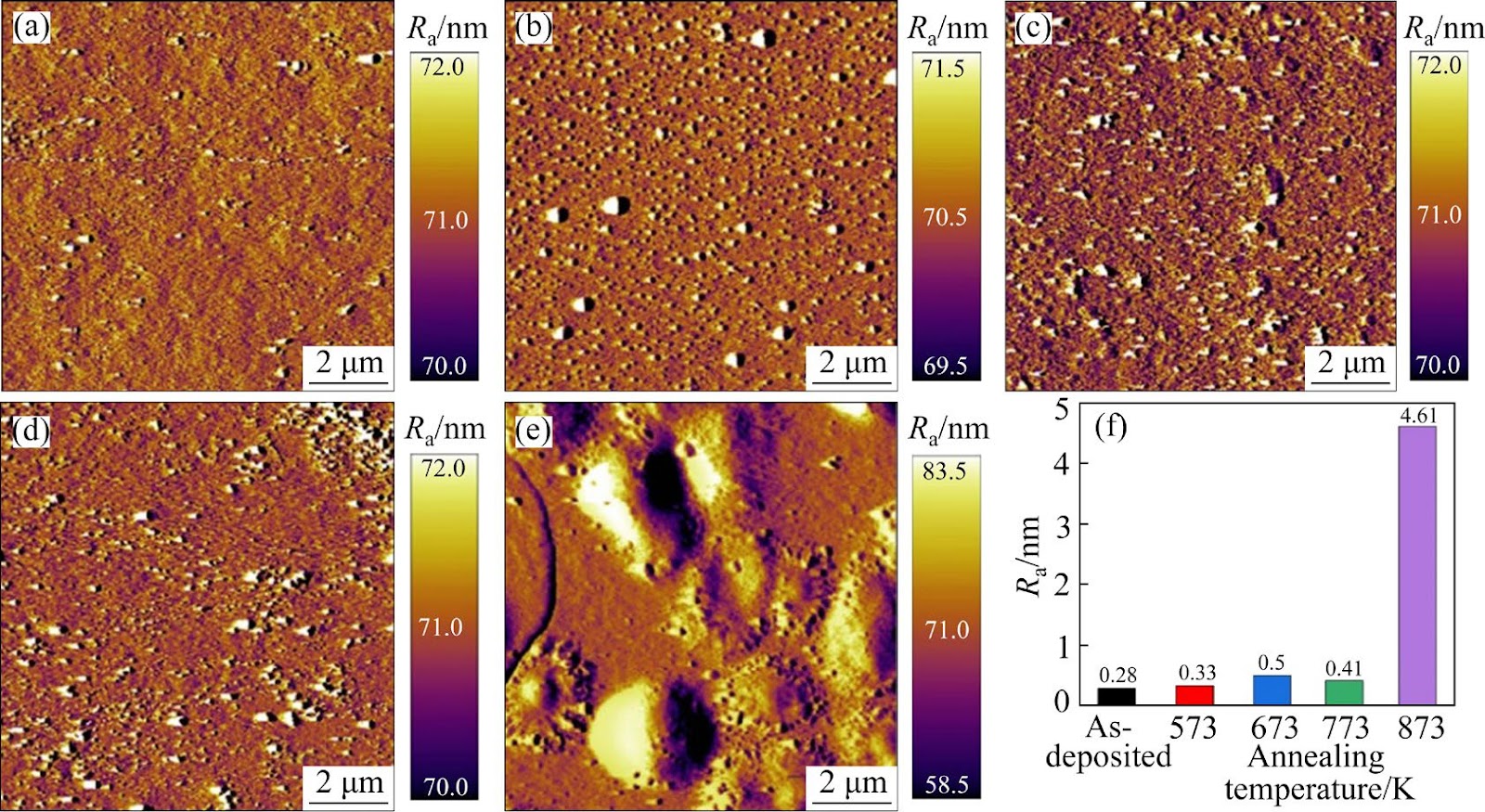

The influence of thickness and annealing treatment on the microstructure and soft magnetic properties of Fe−Si−B−Cu−Nb alloy (Finemet) thin films prepared by magnetron sputtering was systematically investigated. As-deposited films are amorphous; coercivity decreases and saturation magnetization increases with thickness, stabilizing at 400 nm. Annealing at 773 K and 873 K precipitates nanocrystalline α-Fe within the amorphous matrix. Exchange coupling between nanocrystals and the amorphous matrix enhances soft magnetic properties. Rapid thermal processing (RTP) controls the heating rate to minimize grain size and optimize nanocrystal distribution, achieving low coercivity and high saturation magnetization without additional transition metals. The film annealed at 873 K for 30 min with a heating rate of 25 K/s exhibits a coercivity of 0.8 A/m and saturation magnetization of 1.45 T. Compared to the 773 K annealed film, the 873 K annealed film shows significantly lower coercivity due to smaller precipitated nanocrystals. RTP with controlled thermal gradient enables even smaller nanocrystals, further enhancing magnetic properties. These results demonstrate that RTP-treated Finemet films are promising for high-frequency, miniaturized, and integrated electronic devices.
1. Introduction
High-frequency, miniaturized, and integrated electronic devices demand soft magnetic thin films with low coercivity and high saturation magnetization. Conventional wound and laminated inductors are bulky and incompatible with silicon integration. Amorphous alloys offer low coercivity due to lack of grain boundary pinning and high resistivity for reduced eddy current losses, but their saturation magnetization is limited. Nanocrystalline alloys like Finemet (Fe73.5Si13.5B9Cu1Nb3) combine high saturation magnetization with low coercivity, yet achieving optimal nanocrystal size and distribution remains challenging.
Existing annealing methods often require transition metal additions or prolonged thermal treatments that coarsen grains and degrade soft magnetic properties. This study employs rapid thermal processing (RTP) to control heating rate and thermal gradient, minimizing grain size and optimizing nanocrystal distribution. The resulting Fe−Si−B−Nb−Cu thin film exhibits a coercivity of 0.8 A/m and saturation magnetization of 1.45 T, demonstrating a scalable route for high-performance integrated inductors.
Loading authentic research manuscript (Pages 1–5)...
Jun-jie LIU, Zhao-guo QIU, Yi-ming ZENG, Zhi-gang ZHENG, Gang WANG, Zhi-peng HOU, Hao-liang LIU, De-chang ZENG, Ping LIU (2026). High-Performance Finemet Alloy Thin Film with Amorphous/Nanocrystalline Structure Treated by Rapid-Thermal Process. Transactions of Nonferrous Metals Society of China (中国有色金属学报). https://doi.org/10.1016/S1003-6326(26)67064-1
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the optimal film thickness for maximizing soft magnetic properties?
The film with thickness of 400 nm demonstrates superior magnetic performance, as coercivity decreases and saturation magnetization increases with thickness until stabilizing at this value.
How does rapid thermal processing (RTP) improve magnetic properties compared to conventional annealing?
RTP controls the heating rate (e.g., 25 K/s) to minimize grain size and optimize nanocrystal distribution, achieving lower coercivity (0.8 A/m) and higher saturation magnetization (1.45 T) without additional transition metals.
What is the role of exchange coupling in enhancing soft magnetic properties?
Exchange coupling between nanocrystalline α-Fe precipitates and the amorphous matrix significantly enhances soft magnetic properties by averaging out magnetocrystalline anisotropy.
Why does annealing at 873 K yield lower coercivity than at 773 K?
Annealing at 873 K produces smaller-sized nanocrystals, which reduces coercivity due to more effective exchange coupling and reduced domain wall pinning.
Can these films be scaled for industrial production of integrated inductors?
Yes, the magnetron sputtering and RTP processes are compatible with semiconductor fabrication, and the achieved properties (0.8 A/m coercivity, 1.45 T saturation magnetization) meet requirements for high-frequency inductors.
Related Chinese Research & Cross-Citations
Assessment of zinc migration behavior and toxicity characteristics in redox smelting of zinc leaching residue
The redox smelting of zinc leaching residue (ZLR) was investigated to determine the migration behavior and toxicity characteristics of zinc under varying anthracite addition, temperature, and holding time. The ZLR, containing 10–20 wt.% Zn, 0.5–5 wt.% Pb, and 0.1–0.5 wt.% Cd, generates TCLP leachate concentrations of Zn up to 4589.0 mg/L, far exceeding regulatory limits. Experimental results reveal that CaSO4 in the residue promotes the transformation of ZnFe2O4 into a ZnS–FeS eutectic, which hinders zinc recovery and elevates environmental risk due to its lower thermodynamic stability relative to (Fe,Zn)2SiO4, ZnFe2O4, and (ZnO)slag. At temperatures above 1573 K, the ZnS–FeS eutectic is oxidized by O2/(O)slag to ZnO(s), subsequently dissolved into the slag as chemically dissolved Zn, and finally reduced to Zn(g) by CO. Pre-desulfurization or increased oxygen potential enhances zinc volatilization. Under optimized conditions, the zinc recovery ratio reached 99.13%, and the residual zinc content in the slag decreased to 0.22 wt.%, substantially below the industrial range of 1.0–3.0 wt.%. A novel strategy integrating desulfurization pretreatment with redox smelting is proposed, which lowers the required smelting temperature and improves zinc recovery efficiency, offering a more economical and environmentally sustainable solution for ZLR treatment.
Effects of oxidation roasting on surface characteristics and flotation behavior of bastnaesite
Oxidation roasting of bastnaesite was conducted to evaluate its impact on surface characteristics and flotation behavior. Experiments varied temperature, time, and O2 concentration. Increasing temperature promoted thermal decomposition, yielding Ce7O12, RE2O3, and REF3 as main phases. The Ce oxidation degree and REO grade of roasted products exceeded 85.00%. Roasting induced long, narrow, nearly parallel cracks within particles, increasing porosity and causing partial fragmentation. During flotation, dissolved rare earth ion concentration increased significantly, and surface hydrolysis formed rare earth hydroxyl compounds. Complete decomposition raised the required collector dosage to achieve recovery above 85.00%. This increase is attributed to enhanced particle wettability, altered collector adsorption, and deeper penetration into the porous structure. The findings provide a basis for optimizing flotation circuits treating roasted bastnaesite, particularly in iron-bearing rare earth deposits where pyrometallurgical pretreatment is employed.
Single Crystal NCM811 Cathode Material Prepared by Rapid Solvothermal Method
Polycrystalline LiNi0.8Co0.1Mn0.1O2 (NCM811) cathodes undergo intergranular cracking and structural collapse during extended cycling, limiting their commercial viability. This study reports single-crystalline NCM811 synthesized via a rapid ethanol–water solvothermal method. The solvothermal duration was varied, and the 60 min sample (NCM-60) exhibited optimal electrochemical performance. X-ray diffractometry confirmed an α-NaFeO2 structure with R-3m space group and high crystallinity. NCM-60 delivered a reversible capacity of 157.28 mA·h/g at 1C and a capacity retention of 55.06% after 200 cycles, significantly outperforming polycrystalline NCM (PC-NCM). Cross-sectional scanning electron microscopy revealed no apparent cracks in NCM-60 after 200 cycles, whereas PC-NCM exhibited severe intergranular fracture. The results demonstrate that shortening solvothermal time reduces precursor particle size and crystallinity, but 60 min yields the best balance. Pre-oxidation of the carbonate precursor before lithiation is recommended to mitigate CO2 evolution and lithium–nickel disorder during high-temperature sintering. This rapid solvothermal route offers a scalable pathway to single-crystal NCM811 with enhanced cycling stability and mechanical integrity.
Efficient separation of heavy metals from gypsum residue and secondary zinc oxide fume based on synergistic sulfidation
Synergistic sulfidation roasting of heavy metal gypsum residue and secondary zinc oxide fume was proposed by using the research idea of 'waste to treat waste'. Thermodynamic studies indicated that the sulfidation of zinc oxide could be effectively enhanced by increasing the dosage of calcium sulfate and carbon powder in the range of 500−800 °C. The synergistic sulfidation experiments of heavy metal gypsum residue with secondary zinc oxide showed that the sulfidation rate of zinc reached 90.39% and the grain size of ZnS increased from 5 to 10 μm under the conditions of temperature 700 °C, carbon powder 30%, Na2CO3 10%, mass ratio of gypsum residue to secondary zinc oxide 1.4:1, roasting time 2 h and cooling rate 1 °C/min. Meanwhile, 76.32% F, 72.11% Cl and 93.41% As were removed. TG/DTG−DSC, 3D FTIR spectra and SEM analysis showed that the conversion of CaSO4 to CaCO3 and the avoidance of CO2 and SO2 production were achieved under optimized conditions. This study achieves efficient sulfidation of zinc as well as growth of ZnS grains, laying the theoretical and technological foundation for subsequent recovery of ZnS by flotation.
Low-Ammonium Synergistic Leaching of Ionic Rare Earth Ore with Acetic Acid–Ammonium Sulfate System
Conventional ammonium sulfate leaching of ionic rare earth ores generates 4–6 t of ammonia-nitrogen wastewater per ton of rare earth and drives mining-area soil pH to 3.5–4.0, creating an acute environmental compliance risk. This study evaluates a low-ammonium synergistic lixiviant comprising 0.020 mol/L (NH4)2SO4 and 0.010 mol/L acetic acid (HAc) at pH 4–5, 30 °C, and 1 h contact time. Comparative leaching experiments establish a rare earth element (REE) leaching efficiency of 88.92%, a 13.36% absolute increase over single 0.020 mol/L (NH4)2SO4 leaching. To achieve the same ~90% efficiency benchmark, the conventional single-salt system requires 0.030 mol/L (NH4)2SO4; the synergistic system therefore reduces ammonium consumption by 33.3%. Surface characterization indicates a dual mechanism: H+ attenuates electrostatic interactions between RE3+ and silicate surfaces, enhancing NH4+–RE3+ exchange, while CH3COO− forms soluble RE3+/Al3+ complexes that prevent Al(OH)3 passivation and sustain surface reactivity. The protocol offers a directly deployable route to cut reagent cost and ammonia-nitrogen load without sacrificing recovery, addressing the principal bottleneck restraining sustainable ionic rare earth ore exploitation under China's dual-carbon and rare earth total-amount control policies.
Achieving strength-ductility tradeoff in near alpha titanium alloy via multi-stage heat treatment-induced nano-martensite phase transformation
A multi-stage heat treatment (MSHT) strategy, comprising a high-temperature short-duration water quench (WQ) followed by low-temperature long-duration furnace cooling (FC), was applied to a near-alpha Ti-0.3Mo-0.8Ni-2Al-1.5Zr alloy to overcome the strength-ductility tradeoff. The WQ state produced lath nano-martensite alpha-prime, residual beta-prime, and equiaxed recrystallized alpha. Subsequent FC decomposition transformed alpha-prime/beta-prime into homogeneously dispersed nano-scale alpha+beta precipitates, while equiaxed alpha coarsened via grain boundary migration. The WQ condition exhibited an ultimate tensile strength (sigma_UTS) of 610 MPa and elongation to failure (epsilon_f) of 18.2%. The WQ+400FC condition achieved a peak sigma_UTS of 791.5 MPa with epsilon_f = 16.7%, yielding a strength-ductility product (sigma_UTS * epsilon_f) of 13.2 GPa*%, a 19% improvement over the WQ state. Texture analysis revealed a duplex texture in WQ: weak {0001}//Z0 and strong {0110}//Y0, inherited after FC. The 400FC sample showed the highest lattice strain inhomogeneity, with peak kernel average misorientation (KAM) of 1.5 degrees and grain orientation spread (GOS) of 0.96 degrees, correlating with the excellent sigma_UTS. Non-basal slip systems exhibited higher Schmid factor (SF) values after heat treatment, contributing to ductility. Burgers orientation relationship (BOR) reconstruction confirmed variant selection during beta to alpha-prime transformation, with only four predominant alpha-prime variants instead of the twelve theoretically possible.
