Key Takeaways & Executive Findings
- •• • Maximum DIPSWT of 3.84×10−8 occurs at 38.59 mm from the lower gauge face corner, matching field-observed RCF crack locations between 35–45 mm, enabling targeted inspection and grinding schedules. • • Critical plane orientation of 35–37° relative to rolling direction and 33–44° to rail surface agrees with experimental measurements by Szablewski et al., validating the predictive capability for crack orientation. • • The loaded locomotive configuration yields the highest DIPSWT among all vehicle types, indicating that axle load and traction profile dominate RCF initiation under heavy haul operations. • • The multi-variable sampling technique reduces full loading spectra to representative traction profiles, cutting computational cost while preserving critical damage drivers for efficient RCF assessment.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Rolling contact fatigue (RCF) crack initiation in rails remains a critical failure mode under increasing axle loads and line capacities. Existing predictive methods struggle to capture the combined influence of fluctuating creepage, contact positions, and load spectra on crack location and orientation. This study proposes a computational framework integrating multi-body simulations (MBS), finite element analysis (FEA), and critical plane approaches. A novel multi-variable sampling technique reduces complex loading spectra into representative traction profiles, which are then analyzed using the Smith–Watson–Topper damage indicator parameter (DIPSWT). The maximum DIPSWT identifies the critical plane and potential crack orientation. A case study on the Swedish heavy haul line Malmbanan, specifically a 384 m section of a R=450 m curve, incorporates measured traffic and loading conditions. Results show the highest DIPSWT for the locomotive with loaded payload configuration, reaching a cumulative maximum of 3.84×10−8 at 38.59 mm from the lower gauge face corner. The DIPSWT critical plane orientation (35–37° to rolling direction, 33–44° to rail surface) aligns with experimental measurements of RCF cracks near the gauge corner. This method enables efficient identification of RCF-prone conditions and crack orientations, complementing existing predictive tools.
1. Introduction
Rolling contact fatigue (RCF) cracking threatens rail network reliability as axle loads, line capacities, and speeds escalate. Predictive methods have historically been stymied by the multiscale nature of RCF: macroscale load variations from locomotive and wagon sets interact with nanoscale material inhomogeneities, producing crack initiation sites that are difficult to pinpoint. Existing commercial approaches often rely on simplified loading assumptions or empirical thresholds, failing to capture the combined effects of creepage, contact position, and load history on crack orientation and location.

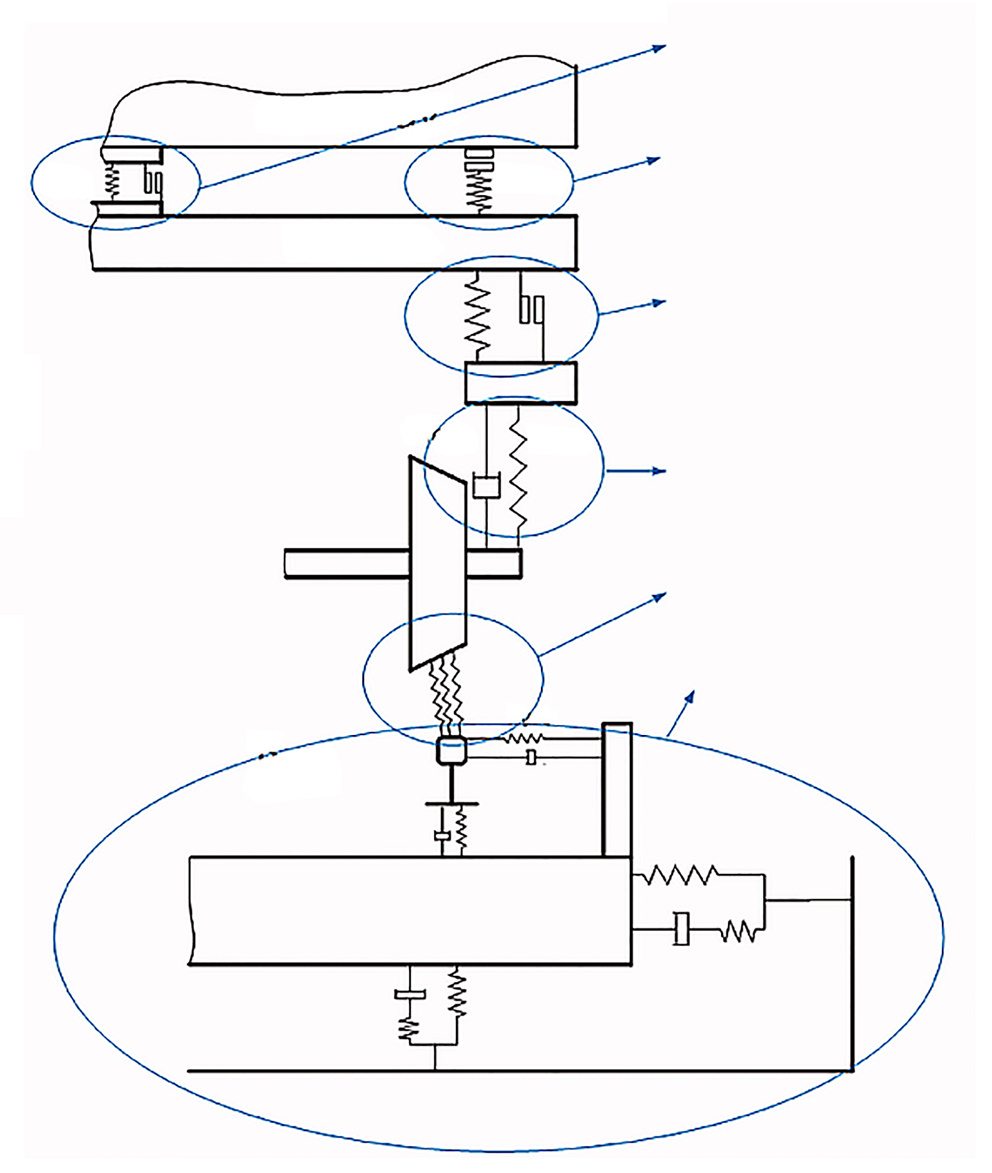

This study addresses the bottleneck by integrating multi-body simulations, finite element analysis, and critical plane approaches with a novel multi-variable sampling technique. The method simplifies complex loading spectra into representative traction profiles, then applies the Smith–Watson–Topper damage indicator parameter (DIPSWT) to identify critical planes and potential crack orientations. A case study on the Swedish heavy haul line Malmbanan, using measured traffic and loading conditions, demonstrates that the predicted DIPSWT hot spots and crack orientations align with experimental observations, offering a computationally efficient tool for RCF risk assessment.
Loading authentic research manuscript (Pages 1–5)...
Jonathan Leung, Saeed Hossein-Nia, Mårten Olsson, Carlos Casanueva (2026). Computational methods to predict RCF crack initiation hot spots in rails using critical plane SWT damage indicator parameter. Railway Engineering Science (铁道工程科学). https://doi.org/10.1007/s40534-025-00405-4
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the maximum DIPSWT value and its location, and how does it compare to field observations?
The maximum cumulative DIPSWT is 3.84×10−8, located at 38.59 mm from the lower gauge face corner. This falls within the experimentally observed RCF crack zone of 35–45 mm, confirming the method's accuracy for hot spot prediction.
How does the predicted critical plane orientation compare with experimental measurements?
The DIPSWT critical plane is oriented at 35–37° to the rolling direction and 33–44° to the rail surface, which agrees with experimental measurements of RCF cracks near the gauge corner by Szablewski et al., validating the orientation prediction.
Which vehicle configuration produces the highest RCF damage, and what are the implications for heavy haul operations?
The loaded locomotive configuration yields the highest DIPSWT, indicating that higher axle loads and traction forces drive RCF initiation. This suggests that operational limits should account for locomotive payload and traction profiles to mitigate rail damage.
What computational advantages does the multi-variable sampling technique offer over conventional full-spectrum analysis?
The technique reduces complex loading spectra into representative traction profiles, significantly lowering computational cost while preserving critical damage drivers. This enables efficient parametric studies and integration with existing predictive maintenance frameworks.
What are the limitations of the current study, and what future work is planned?
Limitations include the focus on a single curve radius and track geometry. Future work will explore shear stress-driven crack initiation, incorporate more comprehensive selector variable algorithms, and simulate varied track conditions to enhance generalizability.
