Key Takeaways & Executive Findings

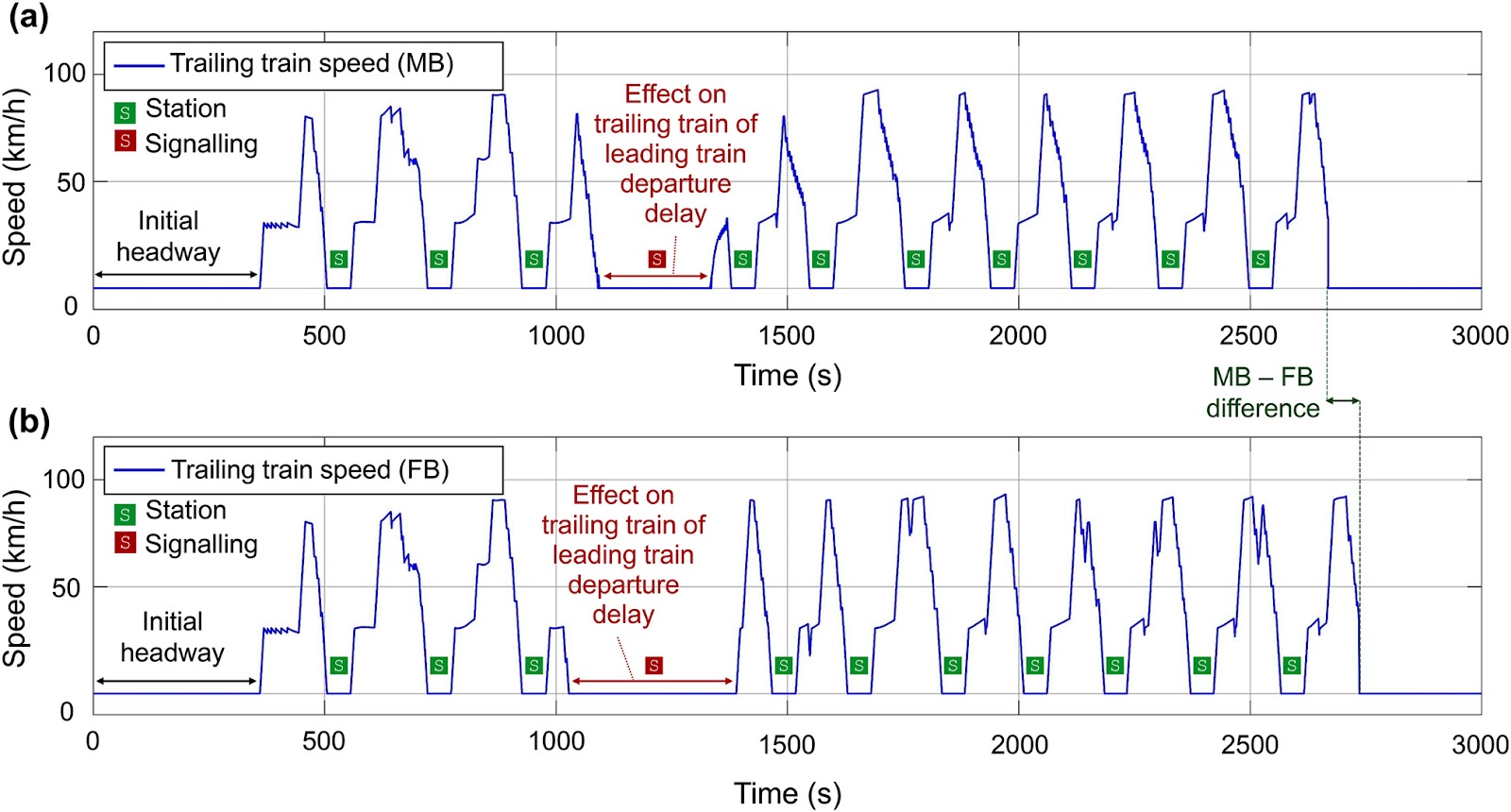

- •• • MB signalling reduced trailing train travel time by 70 s (2.5% of total time) relative to FB under an injected 5th-station departure delay, demonstrating tangible throughput gains for high-density corridors where headway recovery directly impacts schedule adherence and operational cost. • • The aggressive driver model in simulation B elicited a more significant signalling intervention, with MB producing a more jagged speed profile due to frequent activation; this underscores the trade-off between travel time reduction and energy consumption or passenger comfort, necessitating careful tuning of control laws. • • The modular tool integrates RBC, OBU, vehicle dynamics, and driver behaviour, enabling time-efficient simulation of diverse scenarios; this reduces reliance on costly on-site testing, potentially cutting commissioning timelines and costs for signalling upgrades by enabling virtual validation. • • Findings are explicitly limited to the two case studies (simulations A and B) on a 12-station line with two trains; generalisation requires parametric investigation across parameters such as headway, delay magnitude, and driver aggressiveness, highlighting the need for sensitivity analyses before deployment decisions.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
This paper presents a time-based modular simulation tool implemented in MATLAB® and Simulink® for evaluating fixed block (FB) and moving block (MB) railway signalling systems. The simulator integrates the Radio Block Centre (RBC), On-Board Unit (OBU), vehicle longitudinal dynamics, and a driver behavioural model to replicate realistic train operations. Two case studies are conducted on a main railway line with twelve stations, involving a leading and a trailing train with identical mechanical characteristics. An unexpected departure delay of the leading train at the fifth station reduces the headway, forcing the signalling system to intervene. Simulation A employs identical driver parameters for both trains, while simulation B assigns an aggressive and less responsive driver to the trailing train, resulting in a more pronounced signalling action. Results indicate that MB signalling reduces the trailing train's travel time by 70 s (2.5% of total time) compared to FB, albeit with a more jagged speed profile due to frequent activations. The authors caution that these findings are limited to the two case studies and that a comprehensive parametric investigation is necessary for generalised conclusions. The tool aims to reduce on-site testing of railway signalling systems by providing a flexible platform for scenario analysis.
1. Introduction
Existing commercial signalling systems, particularly fixed block (FB) architectures, impose rigid separation distances that constrain capacity on increasingly congested rail networks. While moving block (MB) systems theoretically overcome these limitations by enabling absolute distance separation, their deployment has been hindered by the lack of validated simulation tools capable of replicating the complex interactions between ground control, on-board equipment, and human driver behaviour. This gap forces reliance on expensive and time-consuming on-site testing, delaying the adoption of MB technology.
This work addresses the bottleneck by developing a modular time-based simulation tool that integrates the Radio Block Centre, On-Board Unit, vehicle longitudinal dynamics, and a driver behavioural model. The tool is implemented in MATLAB® and Simulink® and is validated through two case studies on a realistic 12-station line with a leading and trailing train. By injecting a departure delay and varying driver aggressiveness, the authors demonstrate the tool's capability to capture signalling interventions and quantify performance differences between FB and MB, providing a foundation for reducing physical testing and accelerating signalling system assessment.
Loading authentic research manuscript (Pages 1–5)...
M. Barbaro, I. La Paglia, L. Bernardini, G. Bucca, R. Corradi, M. Bocciolone, A. Collina (2026). A modular simulation tool for fixed block and moving block railway signalling systems. Railway Engineering Science (铁道工程科学). https://doi.org/10.1007/s40534-025-00401-8
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the quantified travel time benefit of moving block over fixed block under the tested delay scenario?
In simulation B, moving block reduced the trailing train's total travel time by 70 seconds, equivalent to 2.5% of the total time, compared to fixed block. This improvement stems from MB's ability to maintain shorter safe distances, allowing faster recovery from the injected departure delay.
How does driver behaviour affect signalling system performance in the simulations?
Assigning an aggressive and less responsive driver to the trailing train (simulation B) caused the train to approach the leading vehicle more rapidly, triggering a more significant signalling intervention. This resulted in a more jagged speed profile under MB due to frequent accelerations and decelerations, highlighting the sensitivity of signalling performance to human factors.
What are the limitations of the presented results, and what further work is required?
The results are confined to two case studies (simulations A and B) on a 12-station line with two trains. The authors explicitly state that generalised conclusions require a comprehensive parametric investigation across variables such as headway, delay magnitude, and driver parameters, which is identified as a primary future target.
What are the key components integrated into the simulation tool?
The tool incorporates the Radio Block Centre for communication, the On-Board Unit for generating reference speed profiles, vehicle longitudinal dynamics, and a driver behavioural model. This modular architecture enables simulation of both fixed block and moving block signalling logics under various operational conditions.
What is the potential industrial impact of this simulation tool?
By providing a time-efficient platform for testing signalling systems, the tool can reduce reliance on on-site testing, which is costly and disruptive. This may accelerate the validation and deployment of advanced signalling systems like moving block, ultimately improving railway capacity and schedule reliability.
Related Chinese Research & Cross-Citations
Punching test for mechanical characterization of asphalt railway sub-ballast

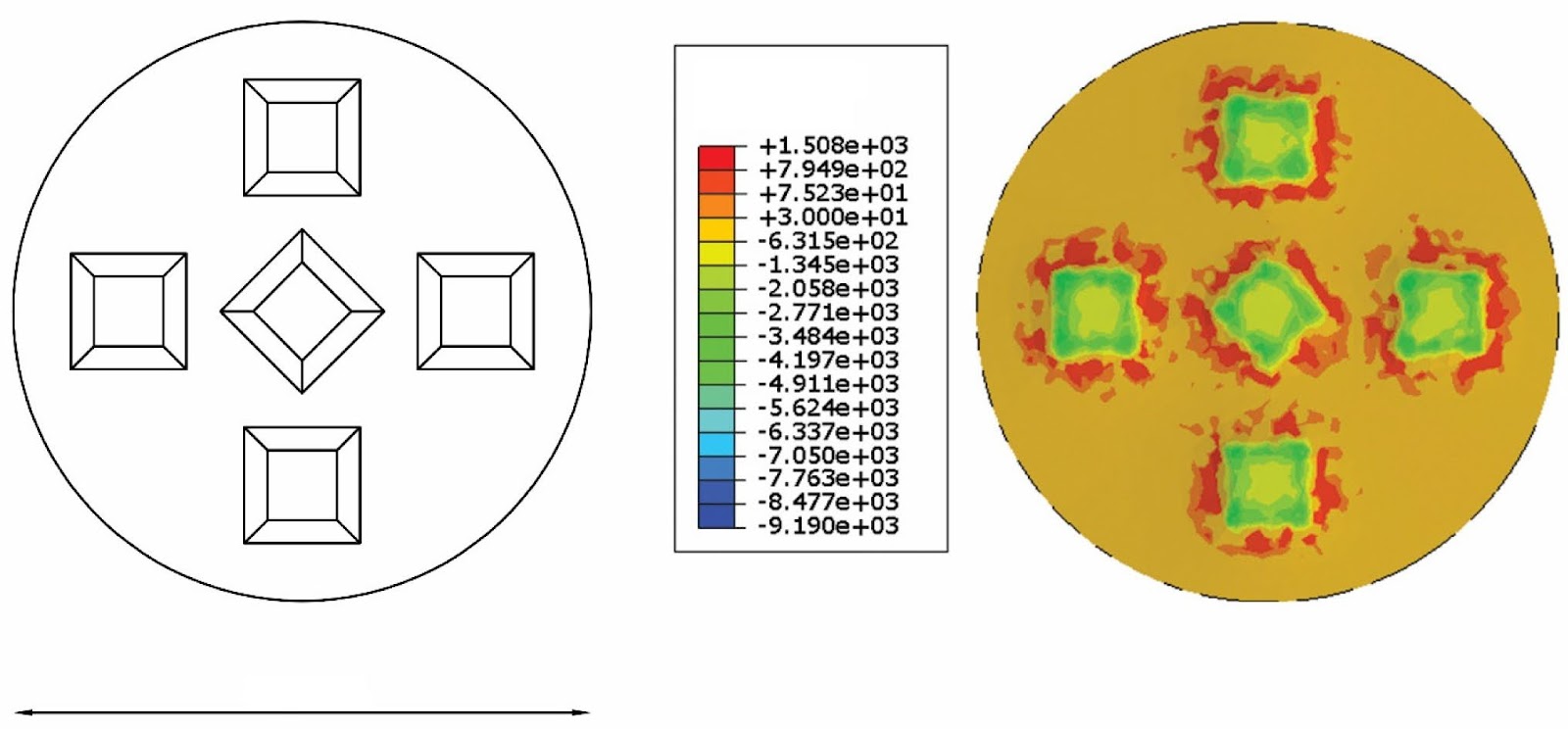

The adoption of asphalt sub-ballast layers in high-speed and high-capacity railway lines has gained traction across Europe and the United States, driven by structural, functional, and economic advantages. However, current mechanical characterization methods, inherited from road paving practice, fail to capture railway-specific interactions, particularly the ballast/sub-ballast interface and the granular behavior of the overlying unbound layer. This study introduces a novel punching test employing an adaptive indentation plate (AIP) to replicate the contact between ballast particles and the sub-ballast. Cylindrical asphalt specimens (150 mm diameter) were subjected to vertical point loads via the AIP at temperatures of 5, 20, and 35 °C and deformation rates of 5.08, 25.4, and 50.8 mm/min. Two asphalt mixes compliant with Italian sub-ballast standards—one with conventional B50/70 binder (SSB) and one with polymer-modified PmB 45/80-65 (HSB)—were tested to validate the procedure. Force–displacement curves revealed three interaction phases, and key parameters such as peak force (Fmax), displacement at peak force (uy,*), force at 1.5 mm deflection (Fu,1.5), and secant slope (m) between 1.25 and 1.75 mm were extracted. Results demonstrate that the punching test effectively evaluates resistance to plastic deformation and indentation behavior, offering insights beyond existing specifications. The lowest deformation rate (5.08 mm/min) best captures viscoelastic properties. This methodology provides a valuable tool for assessing bituminous sub-ballast performance under simulated railway interface conditions.
Dynamic Models and Analysis of Key Factors Influencing Stick–Slip Vibration in Disc Brake Systems

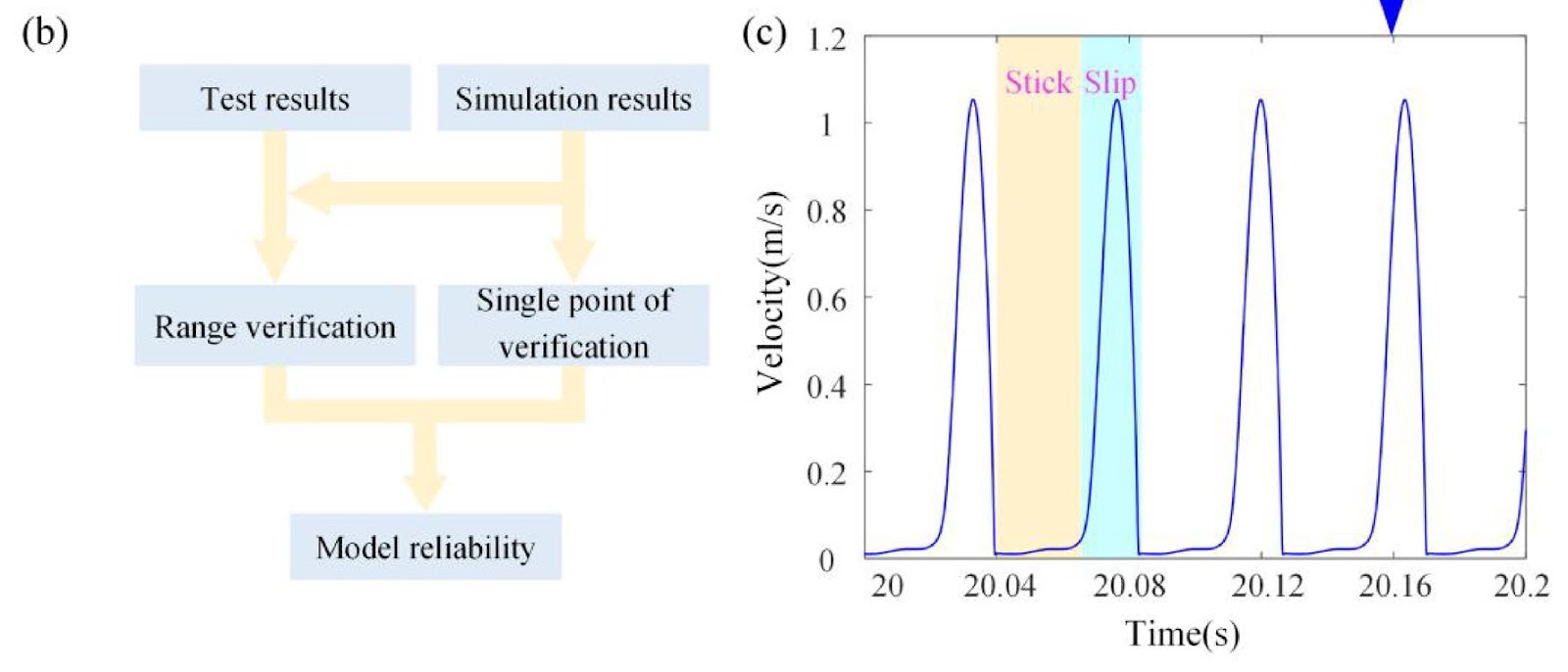

Stick–slip vibration in disc brake systems at low speeds arises from the interaction of multiple factors, posing persistent challenges for high-speed train safety and passenger comfort. This study establishes three- and four-degree-of-freedom (DOF) dynamic models that incorporate wheel–rail adhesion and nonlinear friction, validated through line testing. System stability, stick–slip bifurcation characteristics, and key influencing factors are analyzed via numerical simulation. Results demonstrate that the four-DOF model, by accounting for normal motion, avoids the over-evaluation of system stability inherent in the three-DOF model. In the three-DOF model, tangential stiffness is the primary factor inducing chaotic stick–slip vibration. In the four-DOF model, tangential stiffness predominantly affects vibration amplitude, while normal stiffness governs the onset of chaos. Damping exhibits minimal influence on chaotic stick–slip occurrence. Optimal parameter ranges are identified: brake disc rotational inertia of 5–9 kg·m² and 11–22 kg·m², and friction pad mass of 7–17 kg, which effectively mitigate chaotic stick–slip vibration. These findings provide quantitative guidelines for brake system design, enhancing operational reliability and reducing wear-related failures in high-speed rail applications.
Acoustic characteristic optimal design for railway steel–concrete composite bridge based on the RBFNN-NSGA-II algorithm
Structure-borne noise from railway steel–concrete composite (SCC) bridges presents a persistent challenge due to high sound pressure levels across both low and high frequency ranges. This study establishes a hybrid finite element–statistical energy analysis (FE-SEA) numerical model to predict acoustic radiation from an SCC bridge. Field measurements validate the model with discrepancies of only 0.4 dB and 1.1 dB in overall sound pressure levels. Using uniform design sampling, a high-accuracy radial basis function neural network (RBFNN) surrogate is trained to map cross-sectional parameters to acoustic and cost objectives. The non-dominated sorting genetic algorithm (NSGA-II) then performs multi-objective constrained optimization, generating a Pareto frontier for sound power level (SWL) and material cost. The technique for order preference by similarity to an ideal solution (TOPSIS) selects the optimal parameter combination, achieving a 5 dB reduction in SWL and a 23.9% decrease in material cost. These results demonstrate that strategic cross-sectional adjustments can simultaneously mitigate noise and reduce expenditure, offering a practical framework for acoustic optimization in railway bridge design.
Investigation on the Rolling Contact Fatigue Cracks Initiation of Subway Fixed Frogs Based on Transient Dynamics

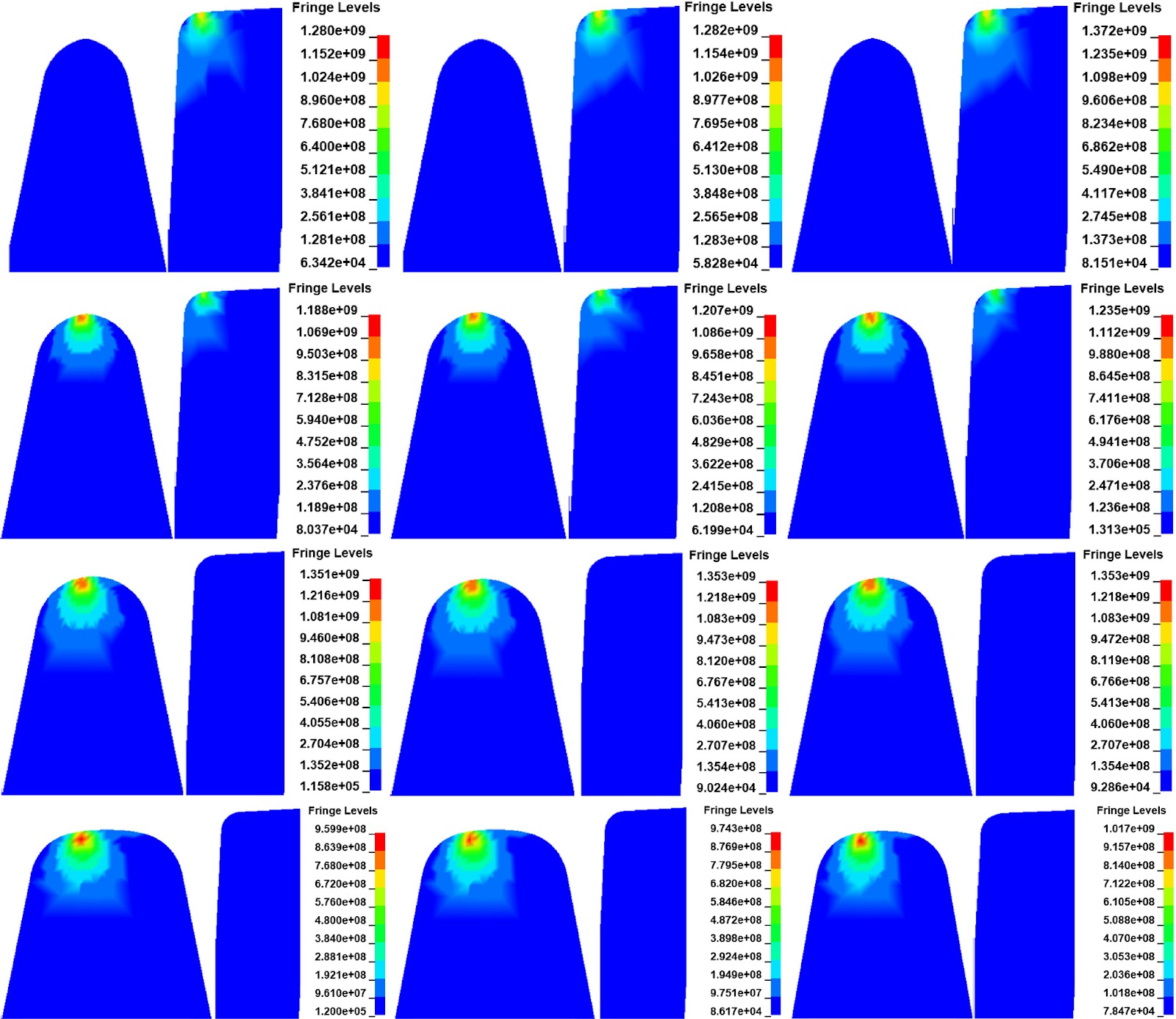

The escalating traffic density and operational speeds of subway systems have intensified fatigue damage in turnout rails, particularly within the hazardous space of fixed frogs where wheel–rail dynamic interaction is exacerbated. This study addresses the rolling contact fatigue (RCF) crack initiation behavior of a No. 9 turnout fixed frog, a configuration widely deployed in subway networks. A three-dimensional explicit transient rolling contact finite element model was developed to simulate wheel–rail interaction under varying vehicle speeds and fastener vertical stiffness conditions. The analysis focused on crack initiation locations, angles, and fatigue life. Results demonstrate that the 30 mm top width cross-section of the nose rail is the most susceptible to fatigue cracking, with cracks initiating on the rail surface. The angle between the crack initiation surface and the lateral direction ranges from 70° to 95°, while the angle relative to the vertical direction remains difficult to predict. Higher vehicle speeds significantly reduce fatigue life, whereas fastener vertical stiffness exerts a minor influence. The calculated RCF crack initiation life is approximately 24,000 cycles across three stiffness conditions. Simulation outcomes align with field survey findings, validating the model's fidelity. The established methodology provides theoretical support for optimizing fixed frog structures and predicting fatigue life in subway turnouts.
Performance-based comprehensive functional damage probability assessment framework for high-speed railway bridge under earthquake
Current seismic damage assessments for high-speed railway (HSR) bridges primarily focus on overall structural safety, lacking evaluations from multiple performance perspectives, which affects post-earthquake traffic decision-making. This study proposes a performance-based comprehensive functional damage probability assessment framework for high-speed railway simply supported bridges (HSRSSBs) under earthquakes. The framework categorizes bridge functions into three levels: post-earthquake traffic function (PTF), structural bearing function (SBF), and collapse resistance function (CRF), corresponding to operational, structural safety, and structural integrity requirements, respectively. By analyzing damage states of key bridge components during earthquakes, functional damage probability assessment indicators and classification thresholds are established according to various performance requirements. Damage probability calculations are conducted using the probability density evolution method and vulnerability method. Based on the relationship between damage probabilities at different functional levels, a comprehensive damage probability assessment framework considering the three-level performance requirements of HSRSSBs is developed, and the influence of varying pier heights on the functional damage probability relationship is examined. Results indicate that current HSRSSB designs meet all performance requirements under frequent earthquakes. Under design-level earthquake conditions, the SBF remains in a slight damage state, while the PTF exhibits varying degrees of damage, which worsens as pier height increases. The pier structure satisfies seismic demands even under rare earthquake conditions.
Numerical study on aerodynamic noise reduction of high-speed pantograph using base-frame fairing

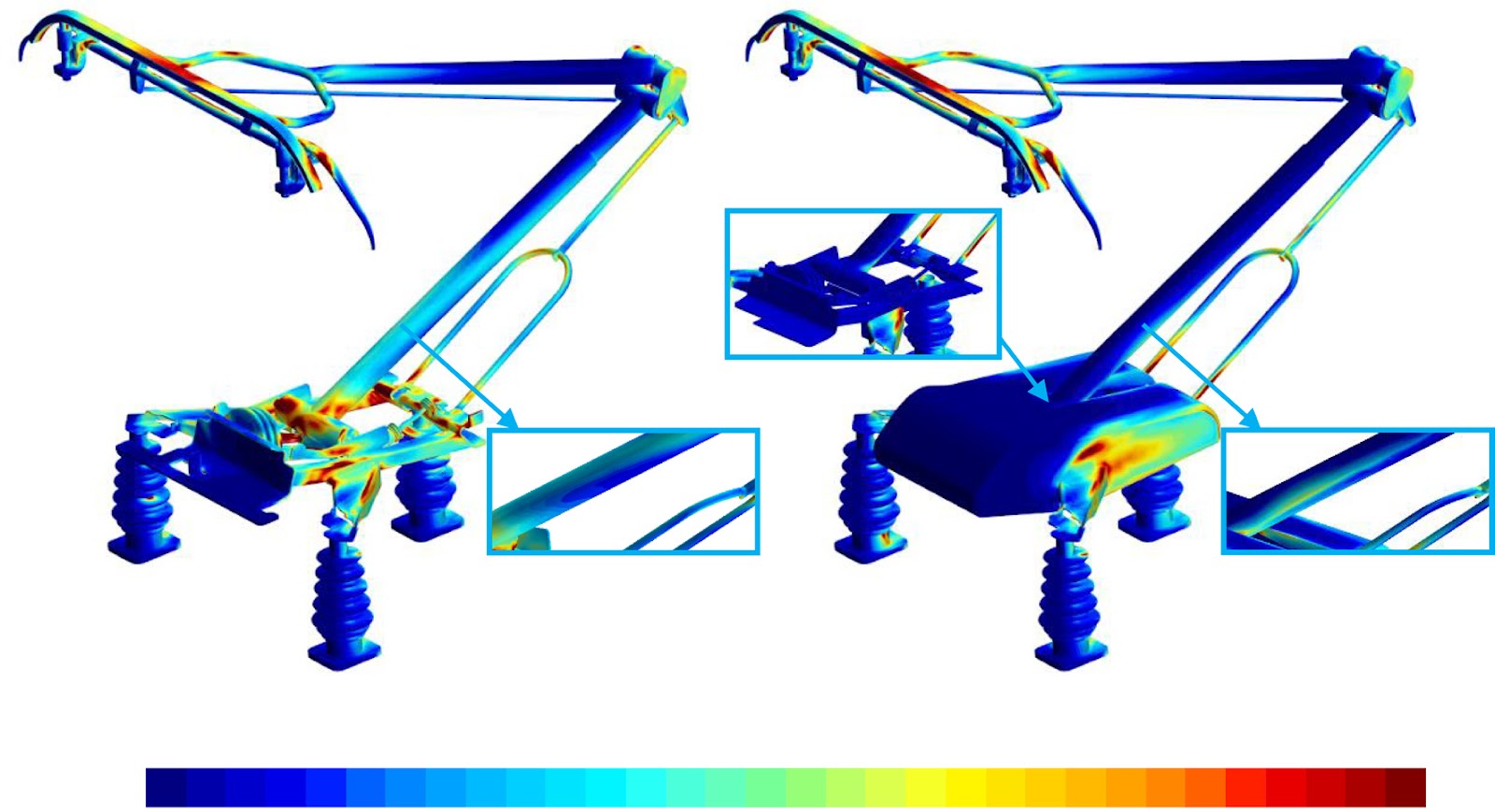

A hybrid improved delayed detached eddy simulation (IDDES) and Ffowcs Williams–Hawkings (FW-H) acoustic analogy framework is applied to quantify the aerodynamic noise mitigation potential of base-frame fairings on a high-speed pantograph operating at 400 km/h. Two fairing configurations—solid and perforated—are evaluated without altering the pantograph's bottom structural architecture. The solid fairing effectively shields the base-frame and suppresses flow separation at the pantograph bottom, yet it introduces flow deflection and acceleration that elevate noise generation in the top and mid regions. A previously underreported self-noise mechanism is identified: wake impingement from unshielded insulator beams onto the fairing side surface generates high-amplitude pressure fluctuations, compromising net noise reduction. Smoothing the insulator beams mitigates this effect. The perforated fairing outperforms the solid variant by providing an additional airflow pathway through small holes, which reduces lateral and upward flow acceleration and promotes wake vortex suppression. Airflow ejected from leeward holes pushes vortex structures downstream, forming a stable, low-fluctuation region near the fairing tail and significantly reducing dipole source strength. Aerodynamic drag is reduced by 21.8% with fairing installation, though lift fluctuation of the strip is exacerbated by flow deflection. These findings establish perforated base-frame fairings as a superior noise-control strategy for high-speed pantograph systems.
