Key Takeaways & Executive Findings
- •• • Silane modification with VTEO and KH550 yielded homogeneous CeO2 nanosheet dispersion in epoxy, eliminating aggregation-induced defects; FT-IR and XRD confirmed covalent grafting, which is critical for consistent barrier performance in aerospace coatings where a single microcrack can accelerate chloride-induced pitting. • • After 168 h UV accelerated aging, the VTEO−CeO2/Epoxy coating maintained a corrosion current density of 3.175×10−7 A/cm2, two orders of magnitude lower than pure epoxy and unmodified CeO2/Epoxy controls, directly extending the service interval for aluminum-lithium airframe components exposed to solar radiation. • • UV-Vis and fluorescence spectroscopy demonstrated that modified CeO2 converts absorbed UV energy into heat, suppressing photodegradation of aromatic ether and CH3−C bonds; this mechanism prevents the chalking and gloss loss that typically reduce coating barrier integrity within 500 h of QUV exposure. • • The self-healing mechanism relies on Ce3+ reacting with H2O and O2 to form insoluble CeO2 and Ce(OH)3 at damage sites, blocking micropores; this autonomous repair reduces the need for manual inspection and touch-up, lowering maintenance costs for aerospace and automotive aluminum structures.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Aluminum-lithium alloys are critical aerospace structural materials but suffer localized corrosion in chloride environments, necessitating protective coatings that also resist ultraviolet degradation. Conventional epoxy coatings are brittle, prone to microcracking, and photodegrade under UV radiation, leading to chalking, discoloration, and loss of barrier properties. This study synthesizes sheet-like CeO2 nanoparticles via reverse precipitation and functionalizes them with vinyl triethoxysilane (VTEO) and γ-aminopropyl triethoxysilane (KH550) to enhance interfacial compatibility and dispersion in an epoxy matrix. The resulting VTEO−CeO2/Epoxy and KH550−CeO2/Epoxy composite coatings are systematically characterized using FT-IR, XRD, and TEM, confirming successful silane grafting. UV-Vis and fluorescence spectroscopy reveal that modified CeO2 absorbs UV radiation more strongly and converts it to harmless heat, delaying photoxidative degradation of aromatic ether and CH3−C bonds in the epoxy. After 168 h of UV accelerated aging, the VTEO−CeO2/Epoxy coating exhibits the lowest corrosion current density (3.175×10−7 A/cm2) and larger capacitive arc radius, indicating superior and stable corrosion resistance. Contact angle tests show minimal hydrophilicity change after aging. The self-healing mechanism involves Ce3+ reacting with water and oxygen at damage sites to form insoluble CeO2 and Ce(OH)3, blocking micropores and inhibiting corrosive media ingress. This work provides a viable strategy for multifunctional epoxy coatings with integrated UV shielding, corrosion inhibition, and autonomous self-healing for aerospace applications.
1. Introduction
Aluminum-lithium alloys offer exceptional strength-to-weight ratio and fatigue resistance, making them indispensable for airframe and wing components. However, their susceptibility to localized corrosion in chloride-containing environments, particularly under atmospheric exposure, severely limits long-term serviceability. Organic epoxy coatings are widely applied as barrier layers due to strong adhesion and chemical resistance, but conventional formulations are brittle, prone to microcracking, and critically vulnerable to ultraviolet radiation. Photodegradation causes chalking, discoloration, and gloss loss, ultimately destroying the coating's barrier function and accelerating substrate corrosion.
Existing approaches to enhance UV resistance and corrosion protection often rely on separate additives or multi-layer systems, which introduce compatibility issues, increase cost, and fail to address self-healing. This study synthesizes sheet-like CeO2 nanoparticles and functionalizes them with two silane coupling agents—VTEO and KH550—to improve dispersion and interfacial bonding within an epoxy matrix. The resulting composite coatings integrate UV absorption, physical shielding, and autonomous self-healing via Ce3+ redox chemistry. By systematically comparing modified, unmodified, and pure epoxy coatings under 168 h UV accelerated aging, the work establishes a multifunctional protection strategy that directly addresses the coupled degradation mechanisms limiting aluminum-lithium alloy applications.
Loading authentic research manuscript (Pages 1–5)...
YANG Yanli, SHEN Shitai, HAO Kailang, LUO Jiatao, ZHAO Kailiang, WEI Guoying, ZHU Benfeng (2026). Ultraviolet Aging Resistance and Corrosion Protection Performance of Silane-modified CeO2/Epoxy Composite Coatings. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.12.006
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the specific corrosion current density of the VTEO−CeO2/Epoxy coating after 168 h UV aging, and how does it compare to pure epoxy?
The VTEO−CeO2/Epoxy coating exhibits a corrosion current density of 3.175×10−7 A/cm2 after 168 h UV accelerated aging. This is significantly lower than pure epoxy and unmodified CeO2/Epoxy coatings, which show degradation-related increases in current density. The two-order-of-magnitude reduction indicates that silane modification preserves barrier integrity by preventing UV-induced microcrack formation and maintaining hydrophobic surface characteristics.
How does the self-healing mechanism of Ce3+ function under corrosive conditions, and what insoluble species are formed?
When the coating is damaged, exposed Ce3+ ions react with environmental water and oxygen to in situ form insoluble CeO2 and Ce(OH)3. These precipitates block defect micropores and physically obstruct corrosive media ingress. This redox-driven passivation provides active protection to the underlying aluminum-lithium substrate, reducing localized corrosion at scratch sites without external intervention.
What evidence confirms that silane coupling agents successfully grafted onto CeO2 nanosheets, and why is this critical for coating performance?

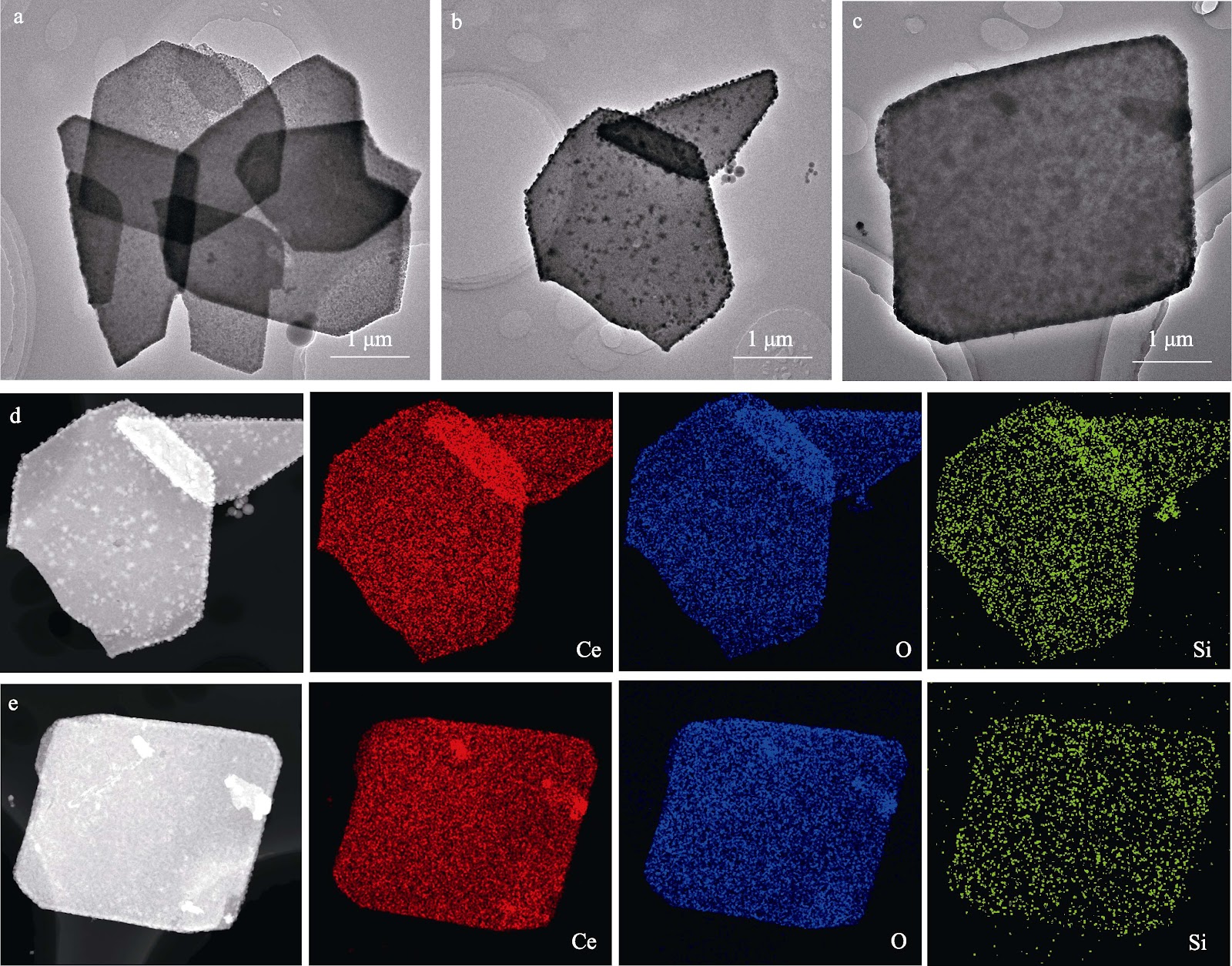

FT-IR, XRD, and TEM characterization confirm successful grafting of VTEO and KH550 onto CeO2 nanosheet surfaces. The silane layers improve interfacial compatibility with the epoxy matrix, preventing nanoparticle aggregation. Homogeneous dispersion is essential because agglomerates create stress concentrators and pathways for UV penetration and electrolyte diffusion, which would otherwise accelerate coating failure.
How does modified CeO2 mitigate photodegradation of the epoxy matrix under UV exposure?
UV-Vis and fluorescence spectroscopy show that modified CeO2/Epoxy coatings possess stronger and broader UV absorption capacity. The CeO2 converts absorbed UV energy into harmless heat through altered photoluminescent behavior, delaying the photooxidative cleavage of aromatic ether and CH3−C bonds in the epoxy network. Contact angle measurements further confirm minimal hydrophilicity change after aging, indicating preserved surface stability.
What are the scalability and cost implications of incorporating silane-modified CeO2 nanosheets into epoxy coatings for aerospace applications?
The synthesis uses reverse precipitation for CeO2 nanosheets followed by silane functionalization, which are scalable wet-chemical processes compatible with existing coating manufacturing. While silane coupling agents add material cost, the low loading required for effective UV shielding and corrosion inhibition—combined with extended service intervals and reduced maintenance—offsets upfront expenses. The elimination of separate UV stabilizers and self-healing additives further simplifies formulation and reduces overall system cost.
Related Chinese Research & Cross-Citations
Research Progress and Prospects of Corrosion-resistant High-entropy Alloy Coatings
Marine environments impose combined electrochemical, microbiological, and cavitation erosion degradation on metallic infrastructure, shortening service intervals and inflating maintenance expenditure. High-entropy alloy (HEA) coatings mitigate these failure modes through simple solid-solution or amorphous microstructures that suppress galvanic coupling and promote dense passive film formation. This review systematically examines corrosion-resistant HEA coatings from single-factor to multi-factor coupling perspectives, covering classification and compositional design, fabrication routes, and corrosion behavior under complex marine conditions. Key coating systems include FeCoCrNiMn, AlCoCrFeNi, FeCrNiCoAl, and (FeCoCrNi)75B15Si10 amorphous alloys deposited by atmospheric plasma spraying, high-velocity oxy-fuel spraying, and wire arc spraying. Elemental additions of Cr, Al, and Mo enhance passivation; B and Si promote amorphous phase formation. The review identifies core engineering bottlenecks: compositional design, process optimization, and service performance validation. A multi-scale simulation, process-structure optimization, and in-situ characterization framework is proposed to accelerate coating deployment. These findings provide theoretical and technical guidance for next-generation corrosion-resistant coatings in marine equipment.
Effect of Sodium Hypochlorite Concentration and Medium Temperature on Corrosion of 45# Steel in Artificial Seawater and Simulated Concrete Pore Solution
Seawater discharged during LNG regasification carries residual chlorine, predominantly sodium hypochlorite (NaClO), and low temperature, posing a dual corrosion threat to carbon steel components and adjacent reinforced concrete. This study systematically evaluates the corrosion behavior of 45# steel in artificial seawater (AS) and simulated concrete pore solution (SCPS, pH≈10) under NaClO concentrations of 0, 1, 10, and 100 mg/L at 10 °C and 25 °C. Electrochemical impedance spectroscopy, potentiodynamic polarization, weight-loss measurements, and localized corrosion-depth analysis were combined with SEM, EDS, XPS, and XRD to resolve corrosion kinetics, morphology, and product composition. In AS at 25 °C, increasing NaClO from 0 to 100 mg/L decreased charge transfer and film resistance (Rct + Rf) from 2266 to 1207 Ω·cm² and increased corrosion current density (Jcorr) from 11.48 to 18.29 μA/cm². Weight-loss rates remained 0.108 mm/a at 0 and 1 mg/L NaClO, rose slightly to 0.123 mm/a at 10 mg/L (+13%), and sharply to 0.202 mm/a at 100 mg/L (+87%). Corrosion morphology shifted from localized to uniform, with reduced pit depth. In SCPS at 25 °C, the alkaline environment suppressed NaClO-induced acceleration: Rct + Rf decreased from 2922 to 2266 Ω·cm², and weight-loss rates increased only 8% (0.0937 mm/a) at 10 mg/L and 25% (0.108 mm/a) at 100 mg/L relative to the 0.0865 mm/a control. However, 100 mg/L NaClO in SCPS significantly deepened localized pits. At 10 °C, both media exhibited reduced corrosion current density, thinner product layers, and shallower pits. Under standard discharge conditions (residual chlorine ≤0.2 mg/L), the additional corrosion risk from cold discharge water is negligible.
Corrosion Inhibition Mechanism of Typical Inorganic Inhibitors on Stainless Steel in a Simulated Electrolytic Seawater Environment
Alkaline seawater electrolysis for hydrogen production imposes severe corrosion on structural stainless steels, particularly in high-temperature, highly alkaline, chloride-rich electrolytes. This study evaluates four inorganic inhibitors—sodium molybdate (Na2MoO4), sodium tungstate (Na2WO4), sodium phosphate (Na3PO4), and vanadium pentoxide (V2O5)—for 316L austenitic stainless steel (316L SS) and 2205 duplex stainless steel (2205 DSS) in a simulated electrolytic seawater environment (6.0 mol/L NaOH, 2.0 mol/L NaCl, 90 °C). Potentiodynamic polarization, electrochemical impedance spectroscopy (EIS), and 14-day immersion tests quantified inhibition efficiency (IE). Surface morphology and film chemistry were characterized by SEM, optical profilometry (OP), and XPS. V2O5 exhibited the highest IE, reaching 79.90% for 316L SS and 89.58% for 2205 DSS at 0.05 mol/L, followed by Na3PO4 (83.33% for 2205 DSS). Na2MoO4 and Na2WO4 were least effective. EIS fitting revealed that V2O5 markedly increased film resistance (Rf) and charge-transfer resistance (Rct) (e.g., Rct = 29,770 Ω·cm², Rf = 923.50 Ω·cm² for 316L SS), indicating suppressed interfacial charge transfer. XPS confirmed the incorporation of V4+/V5+ and PO4³− species into the surface film, forming a dense, barrier-type vanadium/phosphate composite layer that mitigates corrosion. These findings establish V2O5 and Na3PO4 as promising inhibitors for stainless steel in harsh alkaline electrolytic seawater systems.
Influence of Temperature on Diffusion Behavior and Infiltration Layer Structure of Sherardizing on Structural Steel
Powder sherardizing on Q235 structural steel was conducted in a 70wt.% Zn–0.8wt.% NH4Cl–29.2wt.% α-Al2O3 activated pack at 340–400 °C for 2–10 h to establish the temperature-dependent growth kinetics, phase evolution, and corrosion performance of Zn–Fe intermetallic layers. Cross-sectional SEM/EDS and XRD show that all layers consist of δ and Γ phases, with Γ concentrated near the substrate; excessive Γ at 340 °C initiates interfacial cracking. Layer thickness increases monotonically with temperature and time, rising from 10.80 μm at 340 °C to 43.90 μm at 400 °C after 6 h, and from 12.10 μm at 2 h to 81.60 μm at 10 h at 380 °C. The Zn/Fe ratio and δ-phase fraction increase with temperature, yielding denser layers and improved corrosion resistance; at 380–400 °C, corrosion current densities fall to 1.16×10⁻⁶–9.78×10⁻⁷ A/cm². The diffusion coefficient at 380 °C is 2.341×10⁻¹³ m²/s. Prolonged holding beyond 6 h produces through-thickness cracks. DSC and microstructural evidence support a three-stage growth mechanism: formation of active Zn atoms via ZnCl2 decomposition, bidirectional Zn/Fe interdiffusion along substrate defects, and continuous inward advancement of the Zn–Fe intermetallic front. The optimal processing window is 380 °C for 6 h, yielding a ~36.1 μm crack-free layer with 84.1% δ phase and superior corrosion resistance.
Research Progress and Problem Analysis on Corrosion Prediction of Supercritical CO2 Transport Pipelines
Pipeline transport is the core of large-scale CO2 delivery in CCUS projects, and supercritical pipeline transport is the most economical and feasible method. However, inherent multicomponent impurities and complex aqueous phase precipitation make corrosion control difficult and costly. This review assesses corrosion mechanisms and prediction technologies for supercritical CO2 transport pipelines, focusing on numerical analysis, supporting experiments, and field application within comprehensive mechanistic models. Current understanding has clarified the effects of individual impurities (H2O, H2S, O2, SO2, N2O, N2, H2, CH4) and operating parameters, but synergistic mechanisms of mixed gases remain unresolved, lacking systematic quantitative description. Existing prediction models are limited in applicability to corrosion conditions, morphological matching, and comprehensiveness of factors. Experimental methods suffer from insufficient reliability, particularly in precise metering and replenishment of corrosive media under low water content and multicomponent impurity synergy. Field application faces challenges in rational model use and accurate extraction of field data. Future directions include: deepening research on synergistic effects of impurity gases and quantifying them via theoretical analysis to establish mapping between impurity concentration and corrosion rate; accelerating development of aqueous phase precipitation and distribution models, multicomponent impurity water chemistry models, thermodynamic and kinetic models for multicomponent reactions, and competitive formation/growth models for multiple product films; strengthening experimental techniques for precise metering and replenishment under low water and multicomponent synergy; and improving field application by understanding model parameter physical meanings, applicability boundaries, and ensuring reasonable input parameters and accurate field data extraction.
Research on Wear Resistance and Wear Mechanism of NM500 Steel in a Wide Temperature Range
The tribological behavior of NM500 wear-resistant steel was systematically evaluated across a wide temperature range from −50 to 600 °C to elucidate the influence of temperature on wear resistance and to provide a theoretical basis for service life extension. Friction and wear tests were conducted using a high-temperature tribometer under a normal load of 150 N, rotational speed of 354 r/min, wear track diameter of 15 mm, and test duration of 60 minutes. The microstructure was characterized by SEM and EBSD, while worn surfaces were analyzed using XRD, SEM, and 3D laser confocal microscopy. NM500 steel exhibits a fine lath martensitic structure with a grain size of 7.08 μm, conferring high hardness and superior wear resistance. At cryogenic temperatures (−50, −25, 0 °C), the wear mechanism is predominantly abrasive wear, with a wear rate of only 1.29×10−6 mm3/(N·m). As temperature increases, oxide formation on the worn surface intensifies, friction coefficient decreases to a minimum of 0.3 (50% lower than at low temperature), and wear rate increases significantly: 18×10−6, 22.7×10−6, 46.7×10−6, and 128×10−6 mm3/(N·m) at 100, 200, 300, and 600 °C, respectively. The dominant wear mechanism transitions from abrasive wear at low temperatures to oxidative wear with adhesive wear at elevated temperatures. At 600 °C, thermal softening, reduced texture strength, and oxide film delamination exacerbate material loss, shifting the mechanism to oxidative wear as the primary mode with adhesive wear as secondary.
