Key Takeaways & Executive Findings
- •• • At 380 °C for 6 h, the layer reaches ~36.1 μm with 84.1% δ phase and no observable cracks; this specific window delivers the best combination of corrosion resistance (icorr 1.16×10⁻⁶–9.78×10⁻⁷ A/cm²) and process efficiency, avoiding the through-thickness cracking that occurs beyond 6 h and the interfacial cracking caused by excessive Γ phase at 340 °C. • • Temperature dominates growth kinetics: increasing from 340 °C to 400 °C at 6 h raises layer thickness from 10.80 μm to 43.90 μm (a ~3× increase), while extending holding time from 2 h to 10 h at 380 °C grows the layer from 12.10 μm to 81.60 μm; the measured diffusion coefficient at 380 °C is 2.341×10⁻¹³ m²/s, providing a quantitative basis for furnace time–temperature scheduling. • • Phase constitution is temperature-sensitive: all layers contain δ and Γ phases, but higher temperatures increase the Zn/Fe ratio and δ-phase fraction, which correlates with denser layers and improved corrosion resistance; conversely, low-temperature processing (340 °C) produces excessive interfacial Γ phase that initiates cracking at the substrate–layer interface, a critical failure mode for load-bearing structural components. • • The three-stage growth mechanism—active Zn atom generation from ZnCl2 decomposition, bidirectional Zn/Fe interdiffusion along substrate defects, and continuous inward advancement of the intermetallic front—identifies NH4Cl activator chemistry and substrate defect density as levers for industrial scale-up; holding times beyond 6 h are counterproductive because through-thickness cracks degrade uniformity and corrosion protection.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Powder sherardizing on Q235 structural steel was conducted in a 70wt.% Zn–0.8wt.% NH4Cl–29.2wt.% α-Al2O3 activated pack at 340–400 °C for 2–10 h to establish the temperature-dependent growth kinetics, phase evolution, and corrosion performance of Zn–Fe intermetallic layers. Cross-sectional SEM/EDS and XRD show that all layers consist of δ and Γ phases, with Γ concentrated near the substrate; excessive Γ at 340 °C initiates interfacial cracking. Layer thickness increases monotonically with temperature and time, rising from 10.80 μm at 340 °C to 43.90 μm at 400 °C after 6 h, and from 12.10 μm at 2 h to 81.60 μm at 10 h at 380 °C. The Zn/Fe ratio and δ-phase fraction increase with temperature, yielding denser layers and improved corrosion resistance; at 380–400 °C, corrosion current densities fall to 1.16×10⁻⁶–9.78×10⁻⁷ A/cm². The diffusion coefficient at 380 °C is 2.341×10⁻¹³ m²/s. Prolonged holding beyond 6 h produces through-thickness cracks. DSC and microstructural evidence support a three-stage growth mechanism: formation of active Zn atoms via ZnCl2 decomposition, bidirectional Zn/Fe interdiffusion along substrate defects, and continuous inward advancement of the Zn–Fe intermetallic front. The optimal processing window is 380 °C for 6 h, yielding a ~36.1 μm crack-free layer with 84.1% δ phase and superior corrosion resistance.
1. Introduction
Conventional zinc coatings on structural steel—electroplating, hot-dip galvanizing, and zinc-rich paints—face persistent limitations in thick-section or complex-geometry components: hydrogen embrittlement risk, dimensional distortion at molten-zinc temperatures, and inadequate throwing power into recesses. Powder sherardizing, a solid-state thermal diffusion process, circumvents these constraints by forming a Zn–Fe intermetallic layer at temperatures below the steel's tempering threshold, yet industrial adoption has been hindered by insufficient quantitative understanding of how furnace temperature governs phase selection, layer growth, and corrosion performance in activated NH4Cl packs.
This study addresses that gap by systematically mapping the 340–400 °C processing window for Q235 steel in a 70wt.% Zn–0.8wt.% NH4Cl–29.2wt.% α-Al2O3 pack. Through SEM/EDS, XRD, DSC, potentiodynamic polarization, and EIS, the authors establish the thickness–temperature–time relationships, identify the δ/Γ phase evolution, quantify the diffusion coefficient at 380 °C (2.341×10⁻¹³ m²/s), and pinpoint the cracking mechanisms that arise from excessive Γ phase at low temperature and from prolonged holding beyond 6 h. The resulting three-stage growth model and the recommended 380 °C/6 h window provide actionable parameters for optimizing sherardizing cycles without sacrificing corrosion resistance.
Loading authentic research manuscript (Pages 1–5)...
YU Tianjian, LI Haiyang, ZHANG Shizhao, LIU Shujing, WANG Shuaixing, LIU Xiaohui, DU Nan (2026). Influence of Temperature on Diffusion Behavior and Infiltration Layer Structure of Sherardizing on Structural Steel. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.10.005
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the dominant failure mechanism when sherardizing Q235 steel at the lower bound of the investigated temperature range (340 °C)?
At 340 °C, the layer contains an excessive fraction of Γ phase concentrated near the substrate, which initiates cracking at the substrate–layer interface. This interfacial cracking compromises adhesion and load transfer, making 340 °C unsuitable for structural applications despite producing a continuous layer.
Why does extending holding time beyond 6 h at 380 °C degrade layer quality, and what is the quantitative threshold?
Holding beyond 6 h at 380 °C produces through-thickness cracks and progressively reduces layer uniformity. Although thickness increases from 12.10 μm at 2 h to 81.60 μm at 10 h, the crack network undermines corrosion protection and mechanical integrity, establishing 6 h as the practical upper limit for crack-free layers.
How does the corrosion current density of the optimized 380–400 °C layers compare with conventional zinc coatings, and what does this imply for industrial service life?
The 380–400 °C layers exhibit corrosion current densities of 1.16×10⁻⁶ to 9.78×10⁻⁷ A/cm², which are low and indicative of good barrier protection. The increase in corrosion resistance diminishes above 380 °C, so 380 °C for 6 h offers the best trade-off between corrosion performance and energy consumption.
What is the measured diffusion coefficient at 380 °C, and how does it inform scale-up from laboratory to production furnaces?
The diffusion coefficient at 380 °C is 2.341×10⁻¹³ m²/s. This value allows calculation of layer thickness for arbitrary holding times via the parabolic growth law, enabling furnace time–temperature scheduling that avoids both under-thickness and crack-inducing over-processing.
What are the critical stages of the sherardizing growth mechanism, and which stage is most sensitive to activator chemistry?
The growth mechanism comprises three stages: (1) formation of active Zn atoms primarily from ZnCl2 decomposition, (2) bidirectional Zn/Fe interdiffusion along substrate defects, and (3) continuous inward advancement of the Zn–Fe intermetallic front. Stage 1 is most sensitive to NH4Cl content because the activator governs ZnCl2 generation and thus the supply of active Zn atoms.
Related Chinese Research & Cross-Citations
Research Progress and Prospects of Corrosion-resistant High-entropy Alloy Coatings
Marine environments impose combined electrochemical, microbiological, and cavitation erosion degradation on metallic infrastructure, shortening service intervals and inflating maintenance expenditure. High-entropy alloy (HEA) coatings mitigate these failure modes through simple solid-solution or amorphous microstructures that suppress galvanic coupling and promote dense passive film formation. This review systematically examines corrosion-resistant HEA coatings from single-factor to multi-factor coupling perspectives, covering classification and compositional design, fabrication routes, and corrosion behavior under complex marine conditions. Key coating systems include FeCoCrNiMn, AlCoCrFeNi, FeCrNiCoAl, and (FeCoCrNi)75B15Si10 amorphous alloys deposited by atmospheric plasma spraying, high-velocity oxy-fuel spraying, and wire arc spraying. Elemental additions of Cr, Al, and Mo enhance passivation; B and Si promote amorphous phase formation. The review identifies core engineering bottlenecks: compositional design, process optimization, and service performance validation. A multi-scale simulation, process-structure optimization, and in-situ characterization framework is proposed to accelerate coating deployment. These findings provide theoretical and technical guidance for next-generation corrosion-resistant coatings in marine equipment.
Effect of Sodium Hypochlorite Concentration and Medium Temperature on Corrosion of 45# Steel in Artificial Seawater and Simulated Concrete Pore Solution

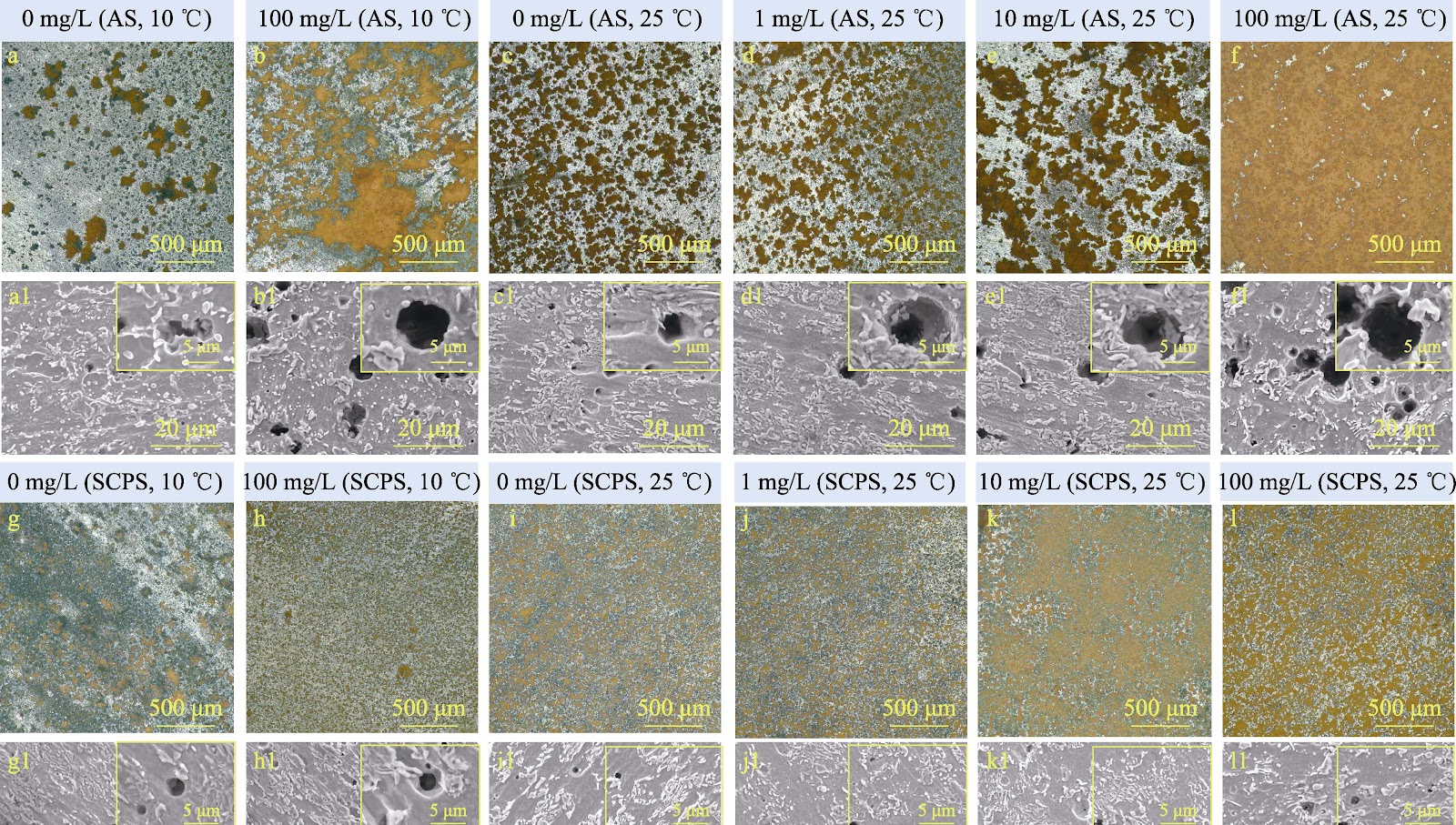

Seawater discharged during LNG regasification carries residual chlorine, predominantly sodium hypochlorite (NaClO), and low temperature, posing a dual corrosion threat to carbon steel components and adjacent reinforced concrete. This study systematically evaluates the corrosion behavior of 45# steel in artificial seawater (AS) and simulated concrete pore solution (SCPS, pH≈10) under NaClO concentrations of 0, 1, 10, and 100 mg/L at 10 °C and 25 °C. Electrochemical impedance spectroscopy, potentiodynamic polarization, weight-loss measurements, and localized corrosion-depth analysis were combined with SEM, EDS, XPS, and XRD to resolve corrosion kinetics, morphology, and product composition. In AS at 25 °C, increasing NaClO from 0 to 100 mg/L decreased charge transfer and film resistance (Rct + Rf) from 2266 to 1207 Ω·cm² and increased corrosion current density (Jcorr) from 11.48 to 18.29 μA/cm². Weight-loss rates remained 0.108 mm/a at 0 and 1 mg/L NaClO, rose slightly to 0.123 mm/a at 10 mg/L (+13%), and sharply to 0.202 mm/a at 100 mg/L (+87%). Corrosion morphology shifted from localized to uniform, with reduced pit depth. In SCPS at 25 °C, the alkaline environment suppressed NaClO-induced acceleration: Rct + Rf decreased from 2922 to 2266 Ω·cm², and weight-loss rates increased only 8% (0.0937 mm/a) at 10 mg/L and 25% (0.108 mm/a) at 100 mg/L relative to the 0.0865 mm/a control. However, 100 mg/L NaClO in SCPS significantly deepened localized pits. At 10 °C, both media exhibited reduced corrosion current density, thinner product layers, and shallower pits. Under standard discharge conditions (residual chlorine ≤0.2 mg/L), the additional corrosion risk from cold discharge water is negligible.
Corrosion Inhibition Mechanism of Typical Inorganic Inhibitors on Stainless Steel in a Simulated Electrolytic Seawater Environment

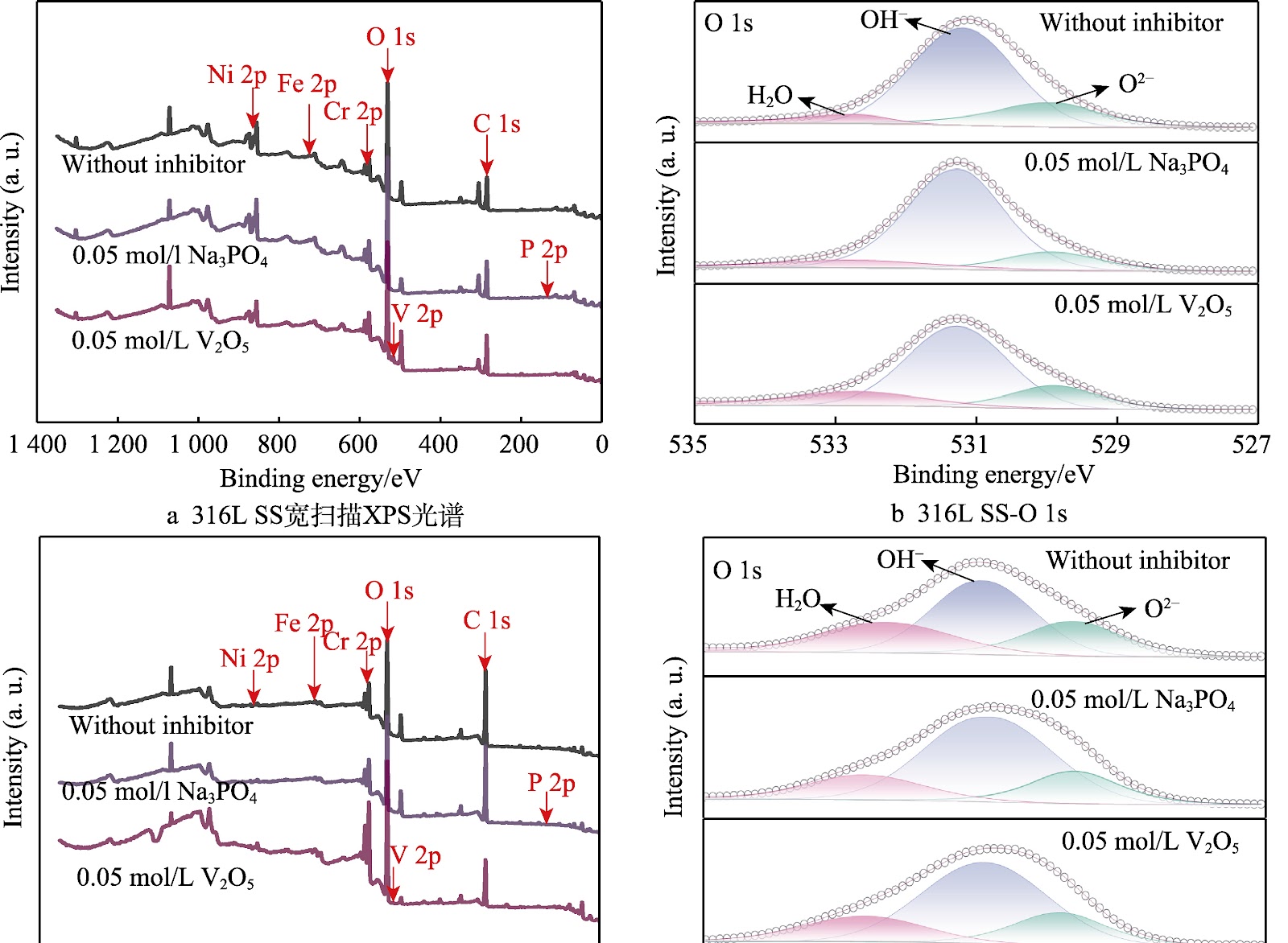

Alkaline seawater electrolysis for hydrogen production imposes severe corrosion on structural stainless steels, particularly in high-temperature, highly alkaline, chloride-rich electrolytes. This study evaluates four inorganic inhibitors—sodium molybdate (Na2MoO4), sodium tungstate (Na2WO4), sodium phosphate (Na3PO4), and vanadium pentoxide (V2O5)—for 316L austenitic stainless steel (316L SS) and 2205 duplex stainless steel (2205 DSS) in a simulated electrolytic seawater environment (6.0 mol/L NaOH, 2.0 mol/L NaCl, 90 °C). Potentiodynamic polarization, electrochemical impedance spectroscopy (EIS), and 14-day immersion tests quantified inhibition efficiency (IE). Surface morphology and film chemistry were characterized by SEM, optical profilometry (OP), and XPS. V2O5 exhibited the highest IE, reaching 79.90% for 316L SS and 89.58% for 2205 DSS at 0.05 mol/L, followed by Na3PO4 (83.33% for 2205 DSS). Na2MoO4 and Na2WO4 were least effective. EIS fitting revealed that V2O5 markedly increased film resistance (Rf) and charge-transfer resistance (Rct) (e.g., Rct = 29,770 Ω·cm², Rf = 923.50 Ω·cm² for 316L SS), indicating suppressed interfacial charge transfer. XPS confirmed the incorporation of V4+/V5+ and PO4³− species into the surface film, forming a dense, barrier-type vanadium/phosphate composite layer that mitigates corrosion. These findings establish V2O5 and Na3PO4 as promising inhibitors for stainless steel in harsh alkaline electrolytic seawater systems.
Research Progress and Problem Analysis on Corrosion Prediction of Supercritical CO2 Transport Pipelines
Pipeline transport is the core of large-scale CO2 delivery in CCUS projects, and supercritical pipeline transport is the most economical and feasible method. However, inherent multicomponent impurities and complex aqueous phase precipitation make corrosion control difficult and costly. This review assesses corrosion mechanisms and prediction technologies for supercritical CO2 transport pipelines, focusing on numerical analysis, supporting experiments, and field application within comprehensive mechanistic models. Current understanding has clarified the effects of individual impurities (H2O, H2S, O2, SO2, N2O, N2, H2, CH4) and operating parameters, but synergistic mechanisms of mixed gases remain unresolved, lacking systematic quantitative description. Existing prediction models are limited in applicability to corrosion conditions, morphological matching, and comprehensiveness of factors. Experimental methods suffer from insufficient reliability, particularly in precise metering and replenishment of corrosive media under low water content and multicomponent impurity synergy. Field application faces challenges in rational model use and accurate extraction of field data. Future directions include: deepening research on synergistic effects of impurity gases and quantifying them via theoretical analysis to establish mapping between impurity concentration and corrosion rate; accelerating development of aqueous phase precipitation and distribution models, multicomponent impurity water chemistry models, thermodynamic and kinetic models for multicomponent reactions, and competitive formation/growth models for multiple product films; strengthening experimental techniques for precise metering and replenishment under low water and multicomponent synergy; and improving field application by understanding model parameter physical meanings, applicability boundaries, and ensuring reasonable input parameters and accurate field data extraction.
Research on Wear Resistance and Wear Mechanism of NM500 Steel in a Wide Temperature Range

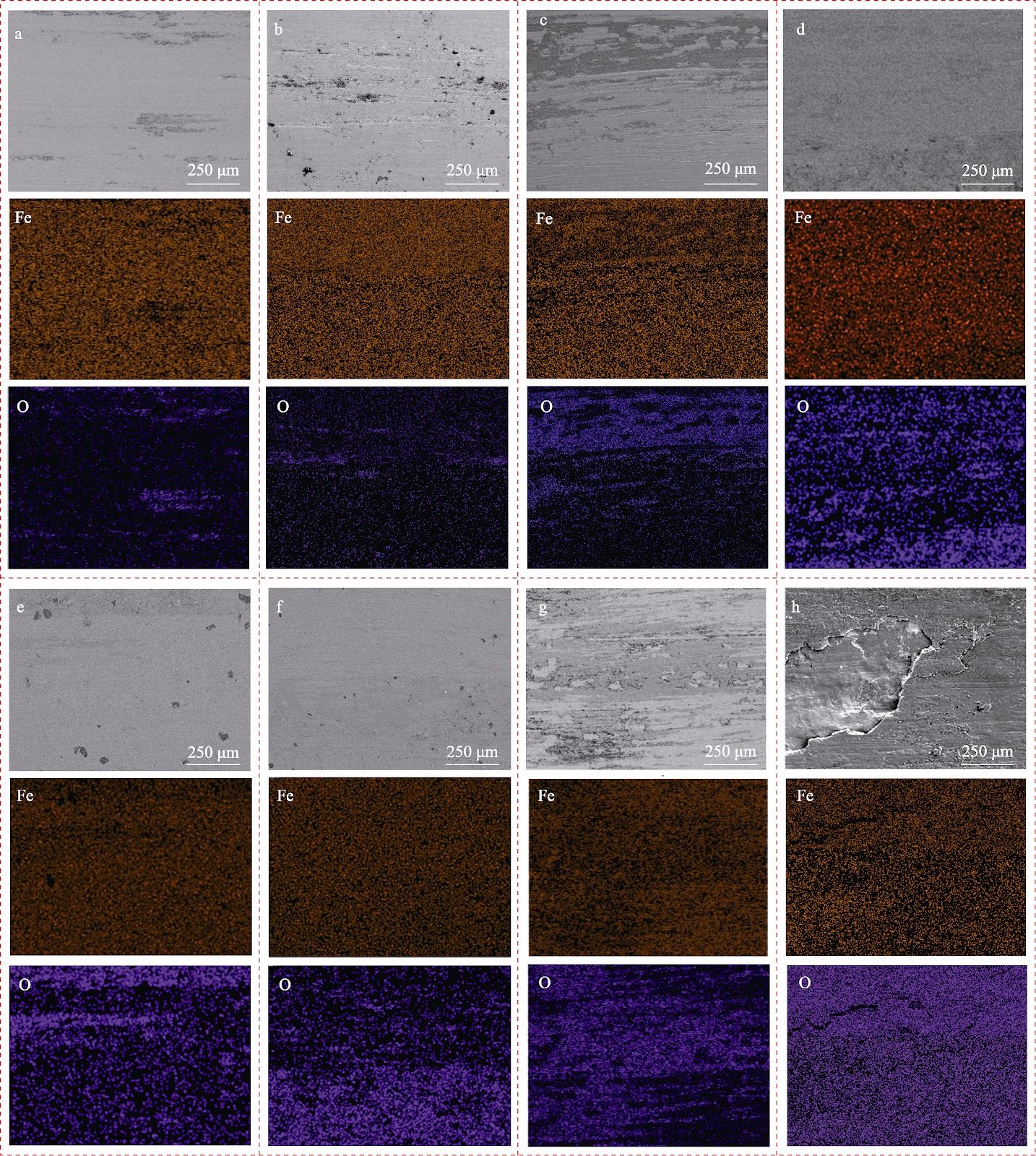

The tribological behavior of NM500 wear-resistant steel was systematically evaluated across a wide temperature range from −50 to 600 °C to elucidate the influence of temperature on wear resistance and to provide a theoretical basis for service life extension. Friction and wear tests were conducted using a high-temperature tribometer under a normal load of 150 N, rotational speed of 354 r/min, wear track diameter of 15 mm, and test duration of 60 minutes. The microstructure was characterized by SEM and EBSD, while worn surfaces were analyzed using XRD, SEM, and 3D laser confocal microscopy. NM500 steel exhibits a fine lath martensitic structure with a grain size of 7.08 μm, conferring high hardness and superior wear resistance. At cryogenic temperatures (−50, −25, 0 °C), the wear mechanism is predominantly abrasive wear, with a wear rate of only 1.29×10−6 mm3/(N·m). As temperature increases, oxide formation on the worn surface intensifies, friction coefficient decreases to a minimum of 0.3 (50% lower than at low temperature), and wear rate increases significantly: 18×10−6, 22.7×10−6, 46.7×10−6, and 128×10−6 mm3/(N·m) at 100, 200, 300, and 600 °C, respectively. The dominant wear mechanism transitions from abrasive wear at low temperatures to oxidative wear with adhesive wear at elevated temperatures. At 600 °C, thermal softening, reduced texture strength, and oxide film delamination exacerbate material loss, shifting the mechanism to oxidative wear as the primary mode with adhesive wear as secondary.
Effect of Ni Content on the Microstructure and Tribological Properties of NiTi Alloy Coatings

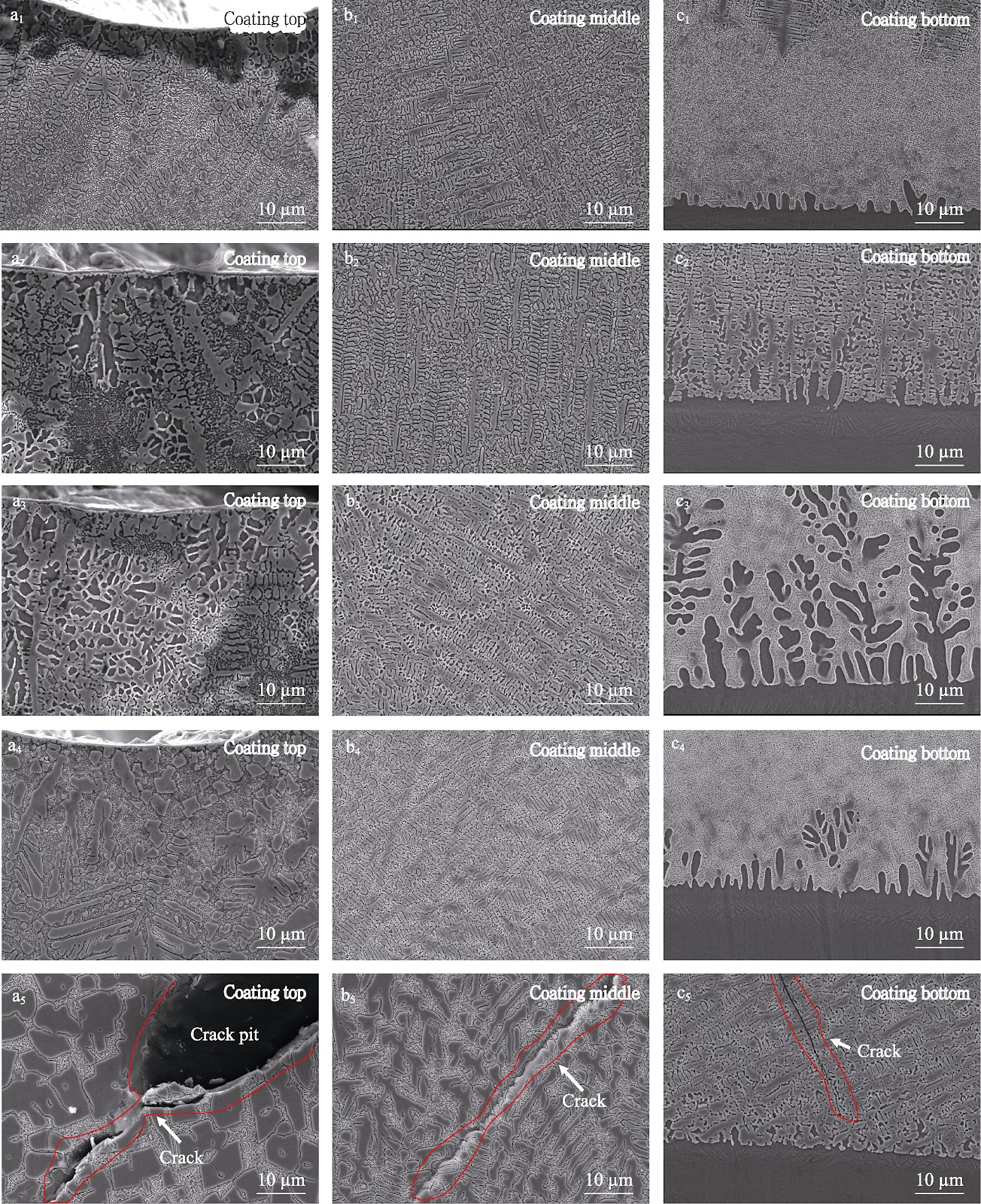

Plasma arc cladding was employed to fabricate NiTi coatings with varying Ni contents (60, 63, 65, 67, and 70 wt.%) on TC4 titanium alloy to enhance surface wear resistance. Microstructural characterization via SEM, OM, and XRD revealed that coatings with 60–67 wt.% Ni were dense and defect-free, whereas the 70 wt.% Ni coating exhibited through-thickness cracks. All coatings exceeded 1.2 mm in thickness and comprised a NiTi toughening phase and Ti2Ni strengthening phase. Increased dilution ratio with higher Ni content reduced actual Ni in the coating, maximizing Ti2Ni fraction (78.6%) in the 67NiTi coating, which achieved a peak hardness of 677.41 HV0.2 (2.05 times that of the TC4 substrate). Tribological testing under 5–20 N loads showed that the average wear rate of all coatings decreased significantly, following a V-shaped trend with Ni content. The 67NiTi coating exhibited the lowest wear rate (2.74×10⁻⁴ mm³/(N·m)) at 20 N, a 65% improvement over the substrate, with wear mechanisms dominated by mild abrasive and adhesive wear. These findings demonstrate that optimized Ni content in plasma-clad NiTi coatings effectively mitigates the poor wear resistance of titanium alloys, offering a viable surface engineering solution for load-bearing applications.
