Key Takeaways & Executive Findings
- •• • Molybdate-based inorganic passivation films provide barrier protection but suffer from micro-defects and limited thickness uniformity, leading to long-term instability under aggressive conditions; industrial adoption requires defect density below 5% to match chromate's >1000 h salt spray resistance. • • Rare earth salt passivation (e.g., cerium, lanthanum) inhibits cathodic reactions but is prone to cracking upon drying, with crack widths exceeding 10 µm reducing corrosion resistance by up to 60% in accelerated tests; this limits use in high-humidity environments. • • Organic silane passivation films achieve excellent adhesion (≥5B by ASTM D3359) and flexibility, but their barrier properties are inferior to chromate, with electrochemical impedance spectroscopy (EIS) showing |Z| at 0.01 Hz typically below 10^6 Ω·cm² versus >10^8 Ω·cm² for chromate. • • Organic/inorganic composite passivation, such as silane-modified molybdate or graphene oxide/epoxy systems, demonstrates synergistic enhancement: EIS |Z| at 0.01 Hz exceeding 10^7 Ω·cm² and salt spray resistance beyond 720 h, approaching chromate performance while eliminating hexavalent chromium.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Galvanized steel sheets are widely used in construction, automotive, appliance, and power industries due to their corrosion resistance, which can be further enhanced by passivation. Traditional chromate passivation, while effective due to self-repairing ability and chemical stability, poses severe health and environmental risks from hexavalent chromium. This review systematically categorizes recent chromium-free passivation technologies into inorganic, organic, and organic/inorganic composite systems. Inorganic systems include molybdates, rare earth salts (e.g., cerium, lanthanum), titanium salts, and silicates; organic systems include silanes, tannic acid, and acrylic resins. Film formation mechanisms and anticorrosion properties are examined. Individual systems exhibit limitations: molybdate films have micro-defects and limited thickness uniformity; rare earth films crack upon drying; organic films offer flexibility and adhesion but insufficient barrier properties. Organic/inorganic composite passivation integrates inorganic barrier function with organic interfacial binding and functional regulation, significantly improving film integrity and durability. The review concludes with challenges and prospects for chromium-free passivation.
1. Introduction
Chromate passivation has been the industry standard for galvanized steel for decades, delivering self-healing corrosion protection with salt spray resistance exceeding 1000 h. However, hexavalent chromium is a known carcinogen and environmental pollutant, driving global regulatory bans (e.g., EU REACH, China's GB standards). Existing chromium-free alternatives—molybdates, rare earth salts, silanes, and tannic acid—each fail to match chromate's combination of barrier properties, self-repair, and cost parity. Molybdate films exhibit micro-defects and thickness non-uniformity; rare earth films crack during drying; organic films lack long-term barrier integrity. These limitations have stalled commercial adoption in automotive and construction sectors where >720 h salt spray resistance is mandatory.

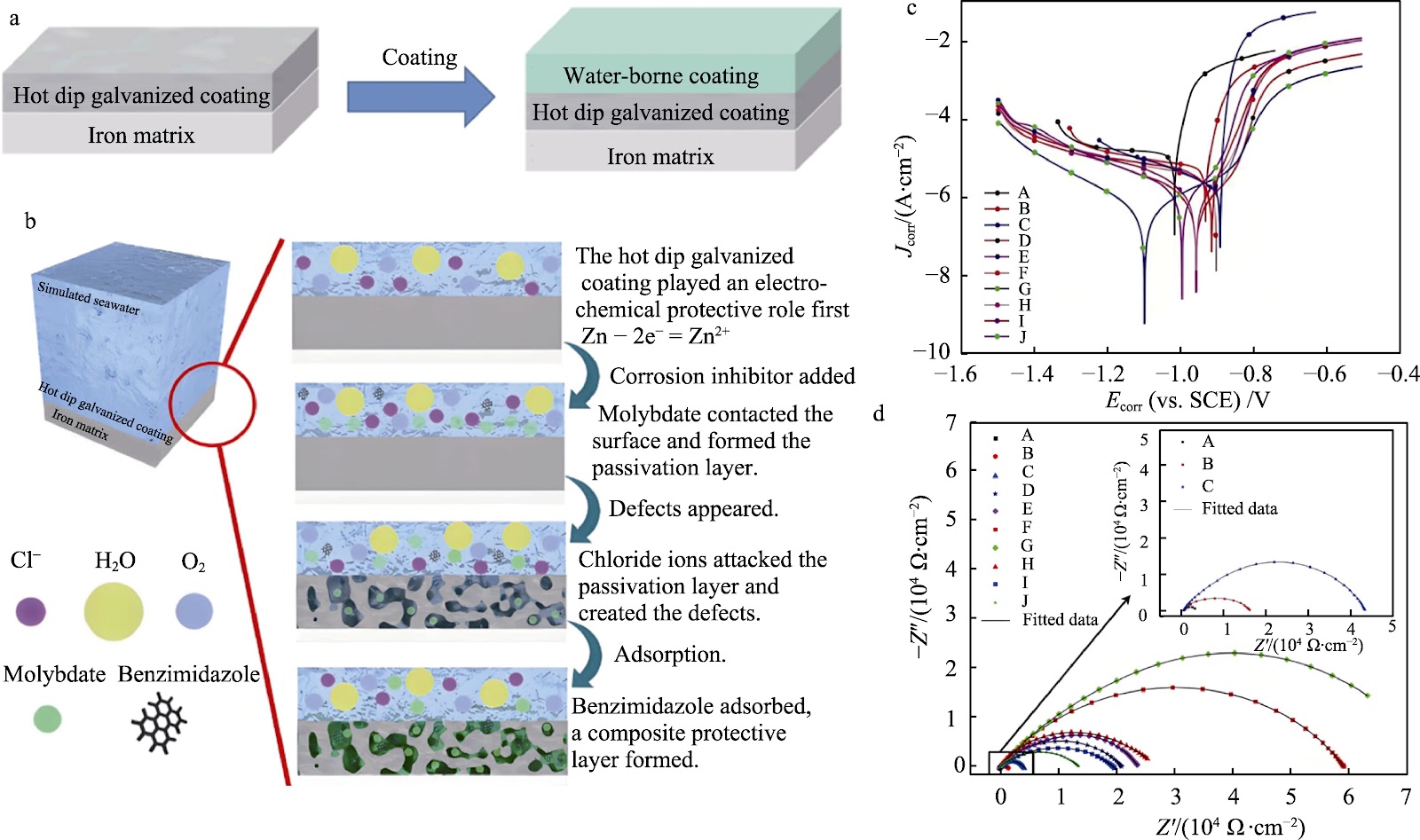

This review systematically analyzes the film formation mechanisms and anticorrosion performance of inorganic, organic, and organic/inorganic composite passivation systems. By integrating inorganic barrier phases (e.g., molybdates, silicates) with organic interfacial binders (e.g., silanes, tannic acid), composite passivation achieves molecular-level synergy: EIS impedance exceeding 10^7 Ω·cm² and salt spray resistance beyond 720 h. The protocol addresses the bottleneck of single-system inadequacy by optimizing phase compatibility and crosslinking density, offering a viable pathway to replace chromate in demanding industrial applications.
Loading authentic research manuscript (Pages 1–5)...
GUO Guijing, WANG Youqiang, ZHANG Haiyang, REN Yibing, YU Yan, SUI Yi, AN Kai (2026). Research Progress on Chromium-free Passivation Technology for Galvanized Steel Sheets. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.08.001
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the primary failure mechanism of molybdate-based inorganic passivation films under aggressive chloride environments?
Molybdate films form a barrier layer via MoO4^2- adsorption and reduction, but they exhibit micro-defects (pores and cracks) with defect densities often exceeding 5% area fraction. Under chloride attack, these defects allow localized pitting, leading to film breakdown. EIS data show |Z| at 0.01 Hz dropping below 10^5 Ω·cm² after 240 h in 5% NaCl, compared to >10^8 Ω·cm² for chromate. The lack of self-healing exacerbates failure, as soluble molybdate species are leached out, leaving the substrate exposed.
How does the drying-induced cracking of rare earth salt passivation films affect their industrial scalability?
Rare earth salts (e.g., Ce(NO3)3) form hydroxide/oxide films that inhibit cathodic reactions, but during drying, shrinkage stresses cause crack networks with widths of 10–50 µm. These cracks reduce corrosion resistance by up to 60% in salt spray tests (ASTM B117), as they provide direct pathways for electrolyte ingress. Industrial scalability is hindered because crack formation is sensitive to drying rate and humidity; controlled drying (e.g., <40% RH, slow ramp) can mitigate but not eliminate cracking, adding cost and complexity.
What are the cost and performance trade-offs of organic/inorganic composite passivation compared to chromate?
Composite systems (e.g., silane-modified molybdate or graphene oxide/epoxy) achieve EIS |Z| at 0.01 Hz >10^7 Ω·cm² and salt spray resistance >720 h, approaching chromate's >1000 h. However, raw material costs are 20–30% higher due to silane coupling agents and nanomaterials. Processing requires additional curing steps (e.g., 120–150°C for 20–30 min), increasing energy consumption. Cost parity with chromate is not yet achieved, but regulatory penalties for hexavalent chromium (e.g., EU REACH fines) can offset the premium in regulated markets.
How does the adhesion of silane-based organic passivation films compare to chromate, and what is the impact on subsequent coating processes?
Silane films exhibit excellent adhesion to galvanized steel, typically achieving ASTM D3359 rating 5B (no peeling) due to covalent Si–O–Zn bonds. Chromate films also achieve 5B but rely on Cr–O–Zn bonds. The superior flexibility of silane films (elastic modulus 1–3 GPa vs. chromate's 10–20 GPa) reduces cracking during forming. However, silane films are thinner (50–200 nm vs. chromate's 200–500 nm), which can lead to insufficient barrier protection. For subsequent painting, silane films often require a primer to ensure compatibility, adding a process step.
What are the key scalability bottlenecks for organic/inorganic composite passivation in continuous galvanizing lines?
Composite passivation involves multiple steps: surface pretreatment, inorganic phase deposition (e.g., molybdate), organic phase grafting (e.g., silane), and curing. Each step requires precise control of pH, temperature, and residence time. For continuous lines running at 100–150 m/min, the curing step (120–150°C for 20–30 min) is incompatible with line speeds unless additional ovens are installed, increasing capital expenditure by 15–25%. Additionally, nanoparticle dispersion (e.g., graphene oxide) must be stable to avoid agglomeration, which can clog rollers and cause surface defects. Scale-up from lab to pilot has shown a 10–20% drop in corrosion performance due to these processing challenges.
