Key Takeaways & Executive Findings
- •• • Optimal microcapsule synthesis parameters—400 r/min stirring, 3 h reaction, 0.5% EMA—yield DCF and TO loadings of 1.3% and 35.82%, respectively; these values directly determine reporting sensitivity and healing capacity, with TO loading above 35% ensuring sufficient healing agent for crack filling. • • DP9wt.% coating achieves an impedance modulus of 2.88×10^5 Ω·cm^2 after 240 h seawater immersion, one order of magnitude higher than the EP coating, indicating that 9 wt.% microcapsules provide the best balance between barrier enhancement and microcapsule-induced defects. • • Wet adhesion loss for DP9wt.% is only 37.7%, the lowest among all formulations, demonstrating that the healing reaction of TO at the interface mitigates coating delamination, a critical failure mode in marine immersion service. • • DCF released from ruptured microcapsules reacts with residual amine groups to form a red precipitate under natural light and yellow fluorescence under UV, enabling dual-mode visual detection of damage; this self-reporting function operates without external power or instrumentation, offering a practical inspection tool for field applications.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Organic barrier coatings fail prematurely under synergistic marine corrosion factors, necessitating autonomous damage reporting and repair. This study synthesizes DT@PU/UF microcapsules via one-step in-situ polymerization, encapsulating 2′,7′-dichlorofluorescein (DCF) as a reporting agent and tung oil (TO) as a healing agent within a polyurethane/urea-formaldehyde hybrid shell. Single-variable experiments established optimal processing parameters: stirring speed 400 r/min, reaction time 3 h, and emulsifier (EMA) dosage 0.5 wt.%. The resulting microcapsules achieved DCF and TO loading capacities of 1.3% and 35.82%, respectively. Incorporating these microcapsules into an epoxy matrix yielded DP coatings. Electrochemical impedance spectroscopy, adhesion testing, and optical microscopy revealed that a 9 wt.% microcapsule loading (DP9wt.%) delivered optimal performance. After 240 h of seawater immersion, DP9wt.% exhibited an impedance modulus of 2.88×10^5 Ω·cm^2, one order of magnitude higher than the neat epoxy (EP) coating, and a wet adhesion loss of only 37.7%. Scratch tests confirmed that microcapsule rupture releases DCF, which reacts with residual amine groups to form a red precipitate under natural light and yellow fluorescence under UV, enabling dual-mode damage reporting. Simultaneously, TO fills cracks and crosslinks with oxygen to restore barrier integrity. This dual-action mechanism offers a viable route for extending the service life of epoxy coatings in marine environments.
1. Introduction
Organic barrier coatings are widely deployed to isolate metal substrates from corrosive marine environments, yet their long-term reliability is compromised by mechanical damage and hydrolytic degradation. Once the coating is breached, localized corrosion initiates and propagates undetected, leading to premature structural failure. Conventional epoxy coatings lack intrinsic mechanisms to signal damage or autonomously restore barrier properties, necessitating costly and labor-intensive inspection and repair cycles.
Existing self-healing strategies often rely on external triggers or single-function microcapsules that either report or heal, but not both. This study addresses that limitation by engineering a dual-functional microcapsule system that encapsulates both a fluorescent reporter and a crosslinkable healing agent. The one-step synthesis of polyurethane/urea-formaldehyde (PU/UF) microcapsules containing 2′,7′-dichlorofluorescein and tung oil enables simultaneous damage visualization and crack sealing. By systematically optimizing processing parameters and microcapsule loading, the work establishes a quantitative link between microcapsule content, electrochemical impedance, and adhesion retention, providing a scalable route for next-generation smart coatings in marine infrastructure.
Loading authentic research manuscript (Pages 1–5)...
GUO Zanhong, ZENG Xiaotong, ZHANG Kai, LU Qinghong, YANG Xiaokui, LIU Jie (2026). Preparation and Corrosion Resistance of Microcapsule-based Self-reporting and Self-healing Epoxy Coating. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.08.005
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the optimal microcapsule loading in the epoxy coating for maximum corrosion resistance, and how does it compare to the neat epoxy baseline?

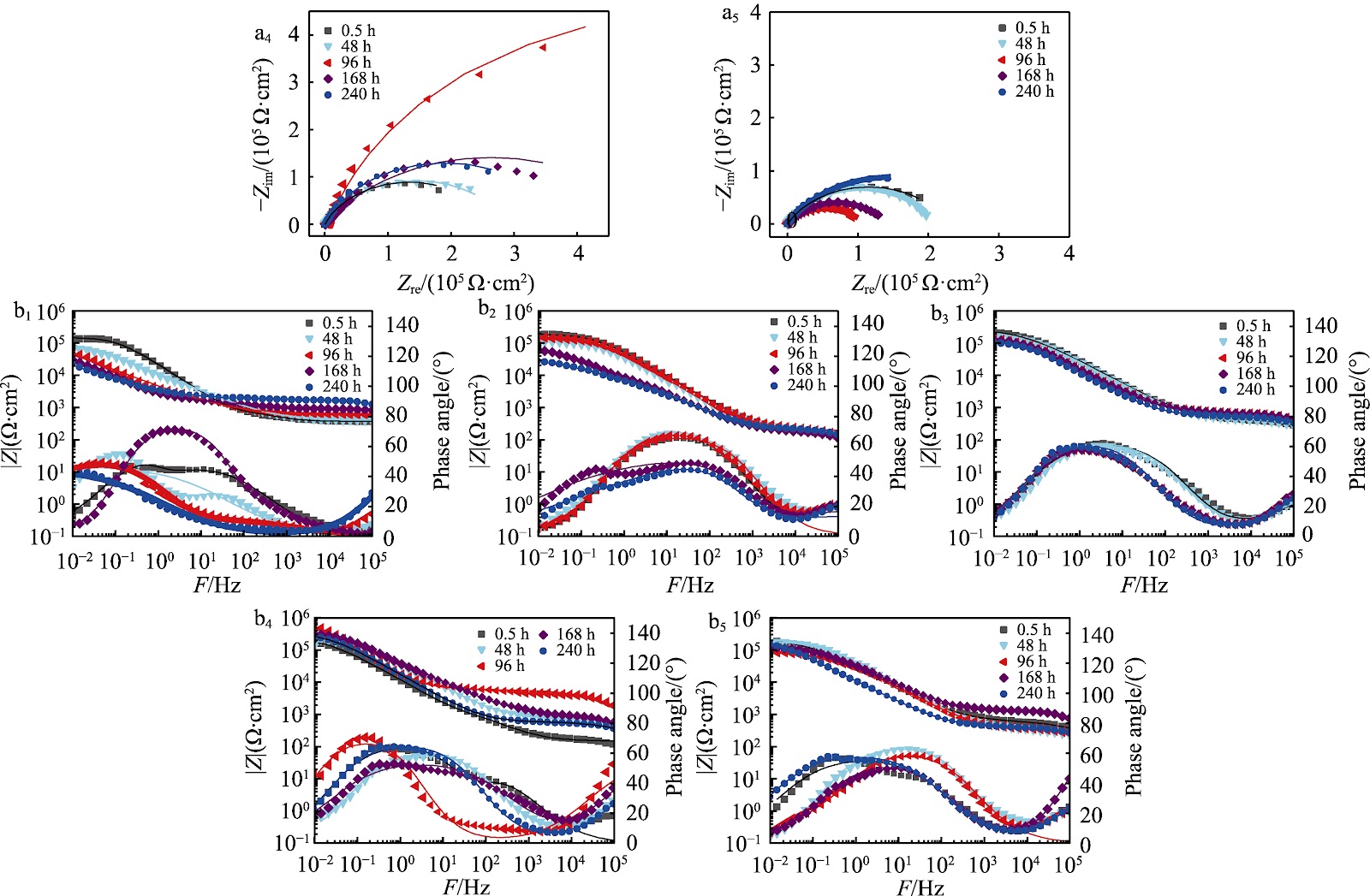

The optimal loading is 9 wt.% (DP9wt.%). After 240 h of seawater immersion, DP9wt.% exhibits an impedance modulus of 2.88×10^5 Ω·cm^2, which is one order of magnitude higher than that of the neat epoxy (EP) coating. Higher loadings (12 wt.%) do not further improve performance, likely due to agglomeration and increased defect density.
How does the self-reporting mechanism function, and what are the detection limits?
When the coating is scratched, microcapsules rupture and release DCF, which reacts with residual amine groups in the epoxy matrix to form a DCF ion precipitate. This precipitate appears red under natural light and exhibits yellow fluorescence under UV light. The dual-mode signal is visually detectable at scratch sites, with the intensity increasing with microcapsule content up to 9 wt.%. The detection is qualitative but provides clear indication of damage location.
What is the healing mechanism and its quantified efficiency?
Tung oil released from ruptured microcapsules fills the crack and undergoes oxidative crosslinking with atmospheric oxygen, forming a new protective film. Healing efficiency is evidenced by the impedance recovery and adhesion retention: DP9wt.% shows a wet adhesion loss of only 37.7%, compared to significantly higher losses for other formulations. The impedance modulus remains an order of magnitude above the EP baseline after 240 h, confirming effective barrier restoration.
What are the key processing parameters for microcapsule synthesis, and how do they affect loading?
The optimal parameters are stirring speed 400 r/min, reaction time 3 h, and emulsifier (EMA) dosage 0.5 wt.%. Under these conditions, DCF and TO loadings reach 1.3% and 35.82%, respectively. Deviations in stirring speed or EMA dosage lead to irregular morphology, agglomeration, or reduced encapsulation efficiency, directly impacting the self-reporting and self-healing performance.
What are the scalability and cost implications of this microcapsule-based coating technology?
The one-step in-situ polymerization process is amenable to scale-up, and the raw materials (DCF, tung oil, PU/UF precursors) are commercially available at moderate cost. The 9 wt.% loading is relatively low, minimizing the cost penalty. However, long-term stability of the microcapsules in the epoxy matrix and under UV exposure requires further validation. The dual-functionality eliminates the need for separate sensors and healing agents, potentially reducing overall maintenance costs in marine applications.
