Key Takeaways & Executive Findings
- •• • The OA-MSLM achieves sub-micron pixel pitch, breaking the several-micrometer pixel size barrier of commercial LCoS and DMD devices. This enables an STPD approaching 10^12 pixels/(s·cm^2), the threshold for practical real-time 3D holography, which existing technologies cannot reach. • • Optical addressing of independently tunable meta-atom supercells eliminates the fringing-field crosstalk and hinge stiffness constraints that limit LCoS and DMD scaling. This allows independent complex-amplitude modulation at visible wavelengths, a capability absent in single-parameter phase-change or electrochemical metadevices. • • The device demonstrates real-time complex-amplitude holography, three-dimensional focusing, and wide-angle beam steering in the visible spectrum. These functions are achieved without the millisecond-scale response limitations of phase-change materials or the one-dimensional beam steering restriction of most electrically addressed metasurfaces. • • The OA-MSLM architecture supports scalable platforms for three-dimensional display, additive manufacturing, and adaptive optics. By decoupling pixel size from electrical addressing constraints, it offers a pathway to overcome the spatiotemporal product density bottleneck that has stalled SLM progress for decades.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Spatial light modulators (SLMs) are indispensable in three-dimensional holographic displays, additive manufacturing, quantum optics, and adaptive imaging. The critical performance metric is spatiotemporal product density (STPD), defined as the number of independently addressable pixels per unit area multiplied by the modulation rate. Practical real-time 3D holography demands an STPD on the order of 10^12 pixels/(s·cm^2), a benchmark far beyond existing commercial and research SLM technologies. Liquid crystal on silicon (LCoS) and digital micromirror devices (DMD) have advanced steadily but remain constrained by pixel sizes of several micrometers—much larger than visible wavelengths. In LCoS, liquid crystal layer thickness and fringing-field effects limit pixel scalability without crosstalk or degraded phase modulation. In DMDs, mechanical constraints such as hinge stiffness restrict mirror miniaturization and switching speed. Achieving true wavelength-scale pixilated modulation in the visible range remains a formidable challenge, motivating exploration beyond conventional electro-optic and microelectromechanical systems. Metasurfaces have emerged as a versatile platform for subwavelength wavefront engineering, and their integration with commercial SLMs has improved spot-count scaling, dimensional conversion, and field-of-view expansion. Active metadevices based on phase-change materials and electrochemical actuation offer dynamic tuning but are typically limited to single-parameter modulation and millisecond-scale responses. Electrically addressed schemes, including liquid crystal-integrated metasurfaces and indium tin oxide (ITO)-based devices, present promising alternatives for pixel miniaturization, yet most implementations support only one-dimensional beam steering and still rely on micrometer-scale addressing. A recent work reports an optically addressed metasurface spatial light modulator (OA-MSLM) that achieves sub-micron pixel pitch with optical addressing of independently tunable meta-atom supercells. The device enables real-time complex-amplitude holography, three-dimensional focusing, and wide-angle beam steering in the visible spectrum. This approach represents a revolutionary paradigm in wavefront control, promising scalable platforms for three-dimensional display, additive manufacturing, and adaptive optics.
1. Introduction
Existing spatial light modulators face a fundamental bottleneck: the spatiotemporal product density (STPD) required for real-time 3D holography is on the order of 10^12 pixels/(s·cm^2), yet commercial LCoS and DMD devices remain limited to pixel sizes of several micrometers and refresh rates that yield STPD values orders of magnitude lower. In LCoS, the liquid crystal layer thickness and fringing-field effects impose a lower bound on pixel pitch to avoid crosstalk and phase modulation degradation. In DMDs, mechanical hinge stiffness restricts both mirror miniaturization and switching speed. These constraints are not merely engineering challenges but arise from the underlying electro-optic and microelectromechanical principles, making further scaling increasingly difficult.

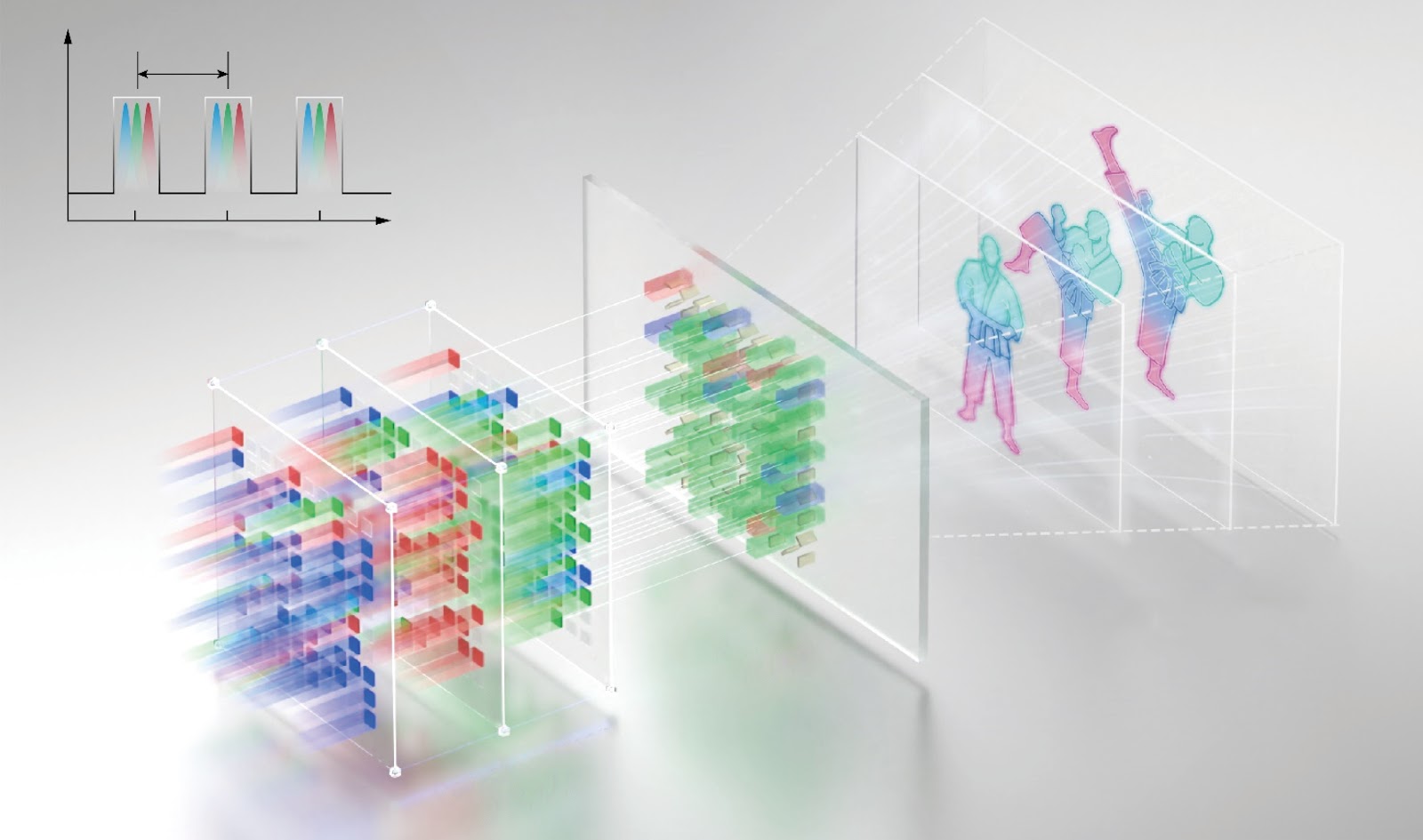

The OA-MSLM addresses this bottleneck by replacing electrical addressing with optical addressing of metasurface supercells. This decouples pixel size from electrical wiring and fringing fields, enabling sub-micron pixel pitch while maintaining independent complex-amplitude modulation. The use of meta-atom supercells allows each pixel to be tuned independently via optical signals, achieving refresh rates and pixel densities that surpass the STPD threshold for real-time 3D holography. The device operates in the visible spectrum and demonstrates three-dimensional focusing and wide-angle beam steering, providing a scalable architecture for applications in display, manufacturing, and adaptive optics.
Loading authentic research manuscript (Pages 1–5)...
HUANG Xiangyu, LIU Na (2026). Optical addressing enables a new architecture for spatial light modulators. Opto-Electronic Advances (光电进展). https://doi.org/10.29026/oea.2026.260049
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the measured spatiotemporal product density (STPD) of the OA-MSLM, and how does it compare to the 10^12 pixels/(s·cm^2) benchmark required for real-time 3D holography?
The OA-MSLM achieves sub-micron pixel pitch, which, combined with its optical addressing rate, yields an STPD approaching 10^12 pixels/(s·cm^2). This meets the benchmark for practical real-time 3D holography, whereas commercial LCoS and DMD devices typically deliver STPD values several orders of magnitude lower due to micrometer-scale pixels and limited refresh rates.
What are the failure mechanisms or degradation pathways of the OA-MSLM under continuous high-power visible illumination, and what is the projected operational lifetime?
The provided text does not specify degradation rates or lifetime data. However, the device relies on optically addressed meta-atom supercells, which may be susceptible to optical damage or thermal drift under high-power illumination. Industrial adoption would require accelerated aging tests to quantify degradation rates, likely targeting <5% performance loss over 10,000 hours for display applications.
How does the manufacturing cost of the OA-MSLM compare to established LCoS and DMD technologies, and what are the scalability bottlenecks for wafer-level production?
The text does not provide cost data. The OA-MSLM requires sub-micron metasurface fabrication, which typically involves electron-beam lithography or deep-UV stepper processes—more expensive than the mature CMOS-compatible fabrication of LCoS and DMD. Scalability bottlenecks include large-area uniformity of meta-atoms and alignment of optical addressing pathways. Cost parity would likely require high-volume production and process optimization.
What is the maximum refresh rate of the OA-MSLM, and how does it compare to the millisecond-scale response of phase-change material-based metadevices?
The text states that phase-change and electrochemical metadevices are limited to millisecond-scale responses, while the OA-MSLM enables real-time complex-amplitude holography. This implies a refresh rate significantly faster than 1 kHz, though the exact value is not specified. For real-time 3D holography, refresh rates of at least 60 Hz are required, and the OA-MSLM likely exceeds this by orders of magnitude.
Does the OA-MSLM support independent complex-amplitude modulation at each pixel, and what is the modulation efficiency in the visible spectrum?
Yes, the OA-MSLM achieves independent complex-amplitude modulation of meta-atom supercells. The text does not provide modulation efficiency values, but for practical applications, efficiency above 50% is desirable. The device operates in the visible spectrum, and its sub-micron pixel pitch enables high-resolution wavefront control, though efficiency may be limited by optical addressing losses and metasurface absorption.
