Key Takeaways & Executive Findings
- •• • Optimal hydrogenation at 550 °C, 0.25 MPa H2 for 2 h yields hydride powder with D50 = 11.13 μm, H = 1.823%, O = 0.111%, enabling efficient mechanical crushing due to hydrogen embrittlement. • • Vacuum dehydrogenation at 450 °C for 1.5 h reduces hydrogen to 0.028% while limiting oxygen increase to 0.121%, achieving single-phase BCC structure essential for mechanical properties. • • The HDH process reduces average particle size from 11.13 μm to 5.67 μm, narrowing size distribution, which enhances sintering activity and densification in powder metallurgy. • • The process achieves low oxygen contamination (0.121%) compared to mechanical alloying or gas atomization, critical for preserving ductility and energy release performance in structural applications.
Abstract

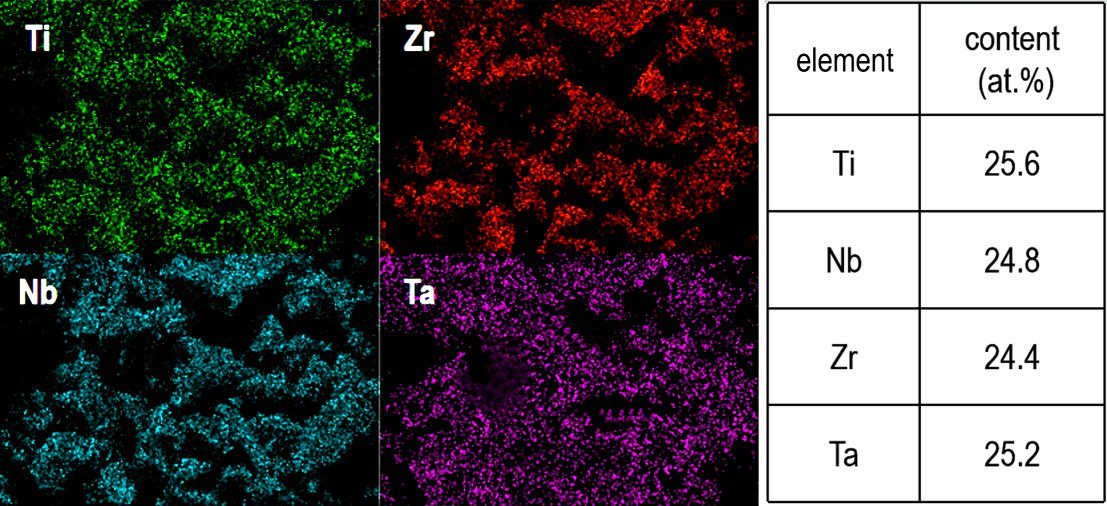

TiZrNbTa refractory high-entropy alloy (RHEA) is an active alloy with excellent mechanical properties and energy release characteristics. However, its high and disparate melting points of constituent elements and wide liquid-solid two-phase region hinder large-scale forming via conventional casting. Powder metallurgy offers a viable route, but obtaining suitable powder is critical. This study systematically investigated the hydrogenation-dehydrogenation (HDH) process for preparing equimolar TiZrNbTa RHEA powder. The as-cast alloy was hydrogenated at 550 °C under 0.25 MPa hydrogen pressure for 2 h, transforming the BCC solid solution into metal hydrides (ZrH2, TiH2, and (Nb,Ta)H). Mechanical crushing yielded irregular hydride powder with an average particle size (D50) of 11.13 μm, and hydrogen and oxygen contents of 1.823% and 0.111%, respectively. Subsequent vacuum dehydrogenation at 450 °C for 1.5 h produced single-phase BCC TiZrNbTa powder with significantly reduced hydrogen (0.028%) and slightly increased oxygen (0.121%) contents, and a narrower particle size distribution with D50 reduced to 5.67 μm. The results demonstrate that the HDH process is an effective method for producing low-oxygen TiZrNbTa RHEA powder with suitable particle size for powder metallurgy applications.
1. Introduction
TiZrNbTa refractory high-entropy alloys (RHEAs) exhibit a unique combination of high mechanical strength and exothermic energy release, making them promising for energetic structural materials in penetrator warheads. However, their high melting points and wide solidification range cause casting defects, limiting large-scale production. Powder metallurgy offers an alternative, but conventional powder fabrication methods such as mechanical alloying or gas atomization suffer from high oxygen pickup or poor yield for these reactive alloys.
Hydrogenation-dehydrogenation (HDH) exploits the reversible hydrogen absorption of Ti, Zr, and Nb to induce embrittlement, enabling efficient crushing, followed by vacuum dehydrogenation to restore the alloy. This study systematically optimizes HDH parameters for equimolar TiZrNbTa, achieving low-oxygen powder with fine particle size, thereby addressing the bottleneck of producing high-quality RHEA powder for large-component manufacturing.
Loading authentic research manuscript (Pages 1–5)...
CHEN Xing-yi, YAO Xin-wei, ZHANG Zhou-ran, TANG Yu, LI Shun (2026). Hydrogenation-Dehydrogenation Preparation of TiZrNbTa Refractory High-Entropy Alloy Powder. Chinese Journal of Energetic Materials (含能材料). https://doi.org/10.11943/CJEM2026026
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the optimal hydrogenation temperature and pressure to achieve complete hydride formation without excessive oxygen pickup?
The optimal hydrogenation condition is 550 °C under 0.25 MPa hydrogen pressure for 2 h. This yields hydride powder with hydrogen content of 1.823% and oxygen content of 0.111%, indicating complete transformation to ZrH2, TiH2, and (Nb,Ta)H while limiting oxidation.
How does the dehydrogenation step affect particle size and oxygen content, and what are the trade-offs?
Dehydrogenation at 450 °C for 1.5 h reduces hydrogen to 0.028% but increases oxygen slightly to 0.121%. The particle size decreases from D50 = 11.13 μm to 5.67 μm, likely due to further fragmentation during vacuum treatment. Higher temperatures or longer times would reduce hydrogen further but increase oxygen, so 450 °C/1.5 h balances residual hydrogen and oxygen.
What is the scalability potential of this HDH process for industrial production of TiZrNbTa powder?
The process uses standard vacuum arc melting and vacuum hydrogenation furnaces, which are scalable. The achieved oxygen content (0.121%) is acceptable for powder metallurgy, and the fine particle size (5.67 μm) enhances sintering. However, batch-to-batch consistency and handling of reactive powders require controlled atmospheres, but the method is industrially viable.
How does the oxygen content of HDH powder compare to other methods, and what is its impact on mechanical properties?
The final oxygen content is 0.121%, which is lower than typical mechanical alloying (often >0.5%) and comparable to gas atomization but with finer particles. Low oxygen is critical to avoid embrittlement and maintain ductility in the final consolidated alloy, as oxygen interstitials can degrade fracture toughness.
What are the failure mechanisms if hydrogenation is performed at higher temperatures or pressures?
Higher temperatures or pressures increase hydrogen content and hydride formation, but also accelerate oxygen diffusion, leading to higher oxygen contamination. For example, at 0.4 MPa and higher temperatures, the oxygen content rises, which could compromise the mechanical properties of the final powder. Thus, 550 °C/0.25 MPa is optimal to balance hydride formation and oxidation.
Related Technical Papers & Translations
Thermal–environmental effects on degradation of railway ballast aggregates: a climate change perspective
Climate change imposes multifaceted stresses on railway infrastructure, particularly ballasted tracks, where ballast degradation drives maintenance costs. This study quantifies the durability of ballast aggregates under simulated thermal and environmental conditions representative of climate change scenarios. Laboratory tests subjected aggregates to temperature extremes from −20°C to +100°C, freeze–thaw cycles, and sulfate attacks. Durability was assessed via Los Angeles abrasion, micro-Deval wear, crushing resistance, impact performance, and breakage potential. Results demonstrate that sulfate attacks, freeze–thaw cycles, extreme cold, and extreme warm conditions degrade durability by averages of 50%, 20%, 40%, and 35%, respectively. Empirical formulations were derived to estimate degradation indices as functions of thermal and environmental stressors. These findings underscore the critical influence of climate-driven conditions on ballast longevity and provide a basis for climate-adaptive railway design and maintenance planning.
Research Progress on Design, Fabrication, Mechanical Properties, and Shock-Induced Energy Release Characteristics of Reactive Tungsten Alloys
Reactive tungsten alloys (RTAs) are a class of metallic energetic structural materials that combine a high-density tungsten skeleton with reactive elements such as Zr and Ti, offering synergistic capabilities of high-strength load bearing, kinetic penetration, and shock-induced energy release. This review systematically examines the composition design and fabrication methods of RTAs, detailing their typical microstructural characteristics and the structure–mechanical property relationships. It summarizes penetration behavior and energy release characterization under high-velocity impact, and outlines future directions including machine-learning-assisted multi-objective design, development of large-scale component forming technologies, and establishment of multi-scale constitutive models to elucidate penetration and energy release mechanisms. The review highlights that RTAs can achieve dynamic compressive strengths exceeding 2 GPa and densities above 10 g·cm−3, while the addition of elements such as Ti and Nb suppresses the formation of brittle W2Zr intermetallics, improving ductility. Challenges remain in balancing strength, energy release, and processability, particularly in solid-state sintering above 1500 °C. The paper provides a comprehensive foundation for the design and engineering application of high-density reactive tungsten alloys.
Effect of Particle Size on Ignition and Combustion Performance of Al-Li-Mg Alloys
To elucidate the influence mechanism of particle size on the ignition and combustion behavior of Al-Li-Mg alloys, four alloy powders with median diameters of 9, 13, 16, and 24 μm were systematically investigated. Physicochemical properties were characterized by laser diffraction, scanning electron microscopy, X-ray diffraction, simultaneous thermal analysis, and oxygen bomb calorimetry. Ignition and combustion behaviors were assessed using a laser ignition test bench equipped with high-speed photography and fiber-optic spectrometry. Results show that with increasing particle size, ignition delay time first decreases sharply then stabilizes, dropping from 135 ms (9 μm) to 51 ms (13 μm), then to 15 ms (16 μm) and 18 ms (24 μm). Combustion intensity, indicated by maximum spectral intensity, decreases from 7300.4 (9 μm) to 1721.6 (24 μm). Combustion duration initially extends slightly then stabilizes, from 857 ms (9 μm) to 928 ms (13 μm) and approximately 920 ms for larger sizes. Notably, the 13 μm alloy achieves an optimal balance among ignition delay (51 ms), combustion duration (928 ms), and combustion intensity (6041.8). The study reveals a critical size effect: between 13 and 16 μm, ignition delay drops by 71% while combustion intensity decreases by 54%, indicating a transition from surface-diffusion-controlled to micro-explosion-dominated combustion. This mechanism arises from competition between heat conduction and elemental diffusion: larger particles restrict heat transfer, promoting Li and Mg surface enrichment and temperature gradients that induce micro-explosions, thereby shortening ignition delay but reducing combustion efficiency and intensity.
