Key Takeaways & Executive Findings

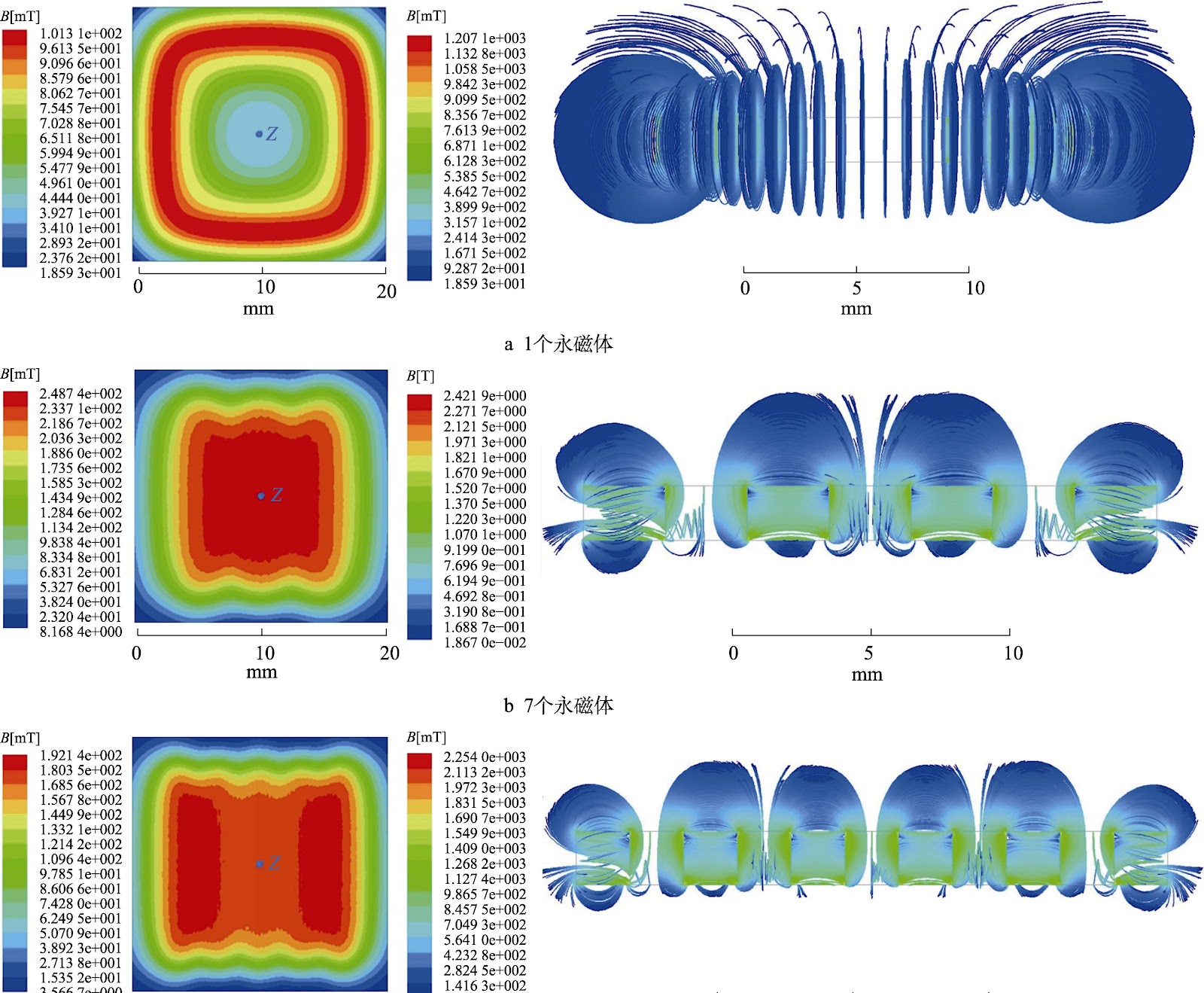

- •• • Halbach array with 11 permanent magnets generates a maximum magnetic induction of 192 mT and uniform central field distribution, with measured average of 150.2 mT, ensuring uniform force on ZrO2 during polishing and reducing edge defects. • • Magnetic shear thickening polishing slurry with 4% carbonyl iron powder at 150 mT exhibits the highest peak viscosity and broadest stable thickening range, optimizing the synergistic magnetorheological-shear thickening effect for enhanced material removal. • • Polishing speed increase raises shear rate and forms more abrasive-containing particle clusters, boosting MRR; excessive or insufficient polishing angle disrupts slurry flow, while workpiece rotation at moderate speed ensures uniform force but excessive rotation diverts slurry and weakens shear thickening. • • After 60 min of HMSTP, ZrO2 surface roughness Ra decreased from 601 nm to 11 nm and MRR reached 7.26 μm/h; compared to conventional STP without magnetic field, Ra reduced by 85.6% and MRR increased by 1.33 times, demonstrating significant industrial potential for high-efficiency, low-damage ceramic polishing.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Zirconia (ZrO2) ceramics are extensively utilized in aerospace, automotive, and biomedical sectors due to exceptional mechanical properties and favorable biocompatibility. However, inherent high hardness and brittleness pose significant challenges for conventional polishing tools in achieving effective surface removal. This study proposes a Halbach-array magnetic-field-assisted shear thickening polishing (HMSTP) method to achieve high-efficiency, low-damage, and low-cost precision polishing of ZrO2 ceramics. Magnetic-field rheological tests were conducted on magnetic shear thickening slurries prepared with carbonyl iron powder at different mass fractions. A slurry containing 4% carbonyl iron powder at a magnetic induction of 150 mT was selected as optimal, demonstrating the most pronounced synergistic enhancement between magnetorheological and shear thickening properties. The Halbach array magnetic field was designed comprising 11 magnets, characterized by a maximum magnetic induction of 192 mT and uniform central distribution. Experimental measurements confirmed an average magnetic induction of 150.2 mT, consistent with simulation. Polishing experiments revealed that increased polishing speed enhances shear rate and material removal rate (MRR), while excessive or insufficient polishing angle impairs slurry flow. Workpiece rotation ensures uniform force distribution but excessive rotation speed diverts slurry, weakening shear thickening. After 60 min of HMSTP, surface roughness (Ra) decreased from 601 nm to 11 nm, and MRR reached 7.26 μm/h. Compared to conventional shear thickening polishing without magnetic field, Ra was reduced by 85.6% and MRR increased by 1.33 times. The HMSTP method effectively improves surface quality and material removal rate of zirconia ceramics, achieving efficient, low-damage, and low-cost processing.
1. Introduction
Zirconia ceramics are indispensable in aerospace, automotive, and biomedical applications due to their high hardness, wear resistance, and biocompatibility. However, their inherent brittleness and chemical inertness render conventional polishing methods ineffective, often causing subsurface damage, high tool wear, and excessive costs. Existing shear thickening polishing (STP) techniques, while capable of achieving nanoscale surface finishes, suffer from low material removal rates and non-uniform material removal, particularly for hard and brittle ceramics. The absence of active control over the polishing slurry's rheological properties further limits their industrial adoption.
This study introduces a Halbach-array magnetic-field-assisted shear thickening polishing (HMSTP) method to overcome these bottlenecks. By integrating a Halbach array magnetic field with magnetic shear thickening slurries, the polishing process achieves active modulation of slurry viscosity and abrasive particle clustering. The optimized 4% carbonyl iron powder slurry under 150 mT magnetic induction exhibits a broader stable thickening range and higher peak viscosity, enabling efficient material removal while maintaining low surface damage. The 11-magnet Halbach array provides a uniform magnetic field (192 mT maximum, 150.2 mT average), ensuring consistent polishing forces across the ZrO2 surface. This approach addresses the trade-off between material removal rate and surface quality, offering a scalable, low-cost solution for precision ceramic polishing.
Loading authentic research manuscript (Pages 1–5)...
ZHANG Yangyang, WANG Yingshuai, FENG Longlong, YUAN Yujie, LI Xiaojing, LIU Xiaofeng, HU Liang (2026). Experimental Study on Halbach Array-based Magnetic-field-assisted Shear Thickening Polishing of Zirconia Ceramics. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.09.008
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the primary failure mechanism of conventional shear thickening polishing (STP) when applied to zirconia ceramics, and how does the Halbach array mitigate it?
Conventional STP suffers from insufficient and non-uniform shear stress at the workpiece-s slurry interface, leading to low material removal rates (MRR) and edge rounding. The Halbach array generates a uniform magnetic field (150.2 mT average) that aligns magnetic particles in the slurry, increasing peak viscosity and broadening the stable thickening range. This enhances abrasive particle clustering and shear stress, resulting in a 1.33-fold increase in MRR and an 85.6% reduction in surface roughness (Ra) compared to STP without magnetic field.
How does the carbonyl iron powder concentration affect the rheological properties and polishing performance, and why is 4% optimal?
Rheological tests show that all magnetic shear thickening polishing slurries (MSTPS) exhibit three stages: shear thinning, thickening, and thinning. Increasing carbonyl iron powder mass fraction raises initial viscosity. At 4% concentration under 150 mT, the slurry achieves the highest peak viscosity and the broadest stable thickening range, indicating optimal synergistic magnetorheological and shear thickening effects. Higher concentrations lead to excessive viscosity and particle agglomeration, reducing flowability and polishing efficiency, while lower concentrations provide insufficient magnetic response.
What are the scalability bottlenecks for industrial adoption of HMSTP, particularly regarding magnetic field generation and slurry stability?
The Halbach array design with 11 permanent magnets achieves a compact, energy-efficient magnetic field source (192 mT maximum) without external power, reducing operational costs. However, scaling to larger workpieces requires careful magnet arrangement to maintain field uniformity over extended areas. Slurry stability is another bottleneck: carbonyl iron particles may settle over time, requiring periodic agitation or stabilizers. The 4% concentration balances magnetic responsiveness and sedimentation resistance, but long-term recirculation systems must be validated for production-scale runs exceeding 60 minutes.
How does workpiece rotation speed influence the polishing uniformity and material removal rate, and what is the optimal range?
Workpiece rotation ensures uniform force distribution across the ZrO2 surface, enhancing edge polishing strength. However, excessive rotation speed causes the slurry to be diverted by the fixture, disrupting flow field distribution and weakening the shear thickening effect, which reduces MRR. Experimental analysis indicates that moderate rotation speeds (specific range not disclosed in the abstract) optimize uniformity without compromising slurry flow. The optimal parameters yielded Ra 11 nm and MRR 7.26 μm/h after 60 min, demonstrating a balance between uniform material removal and shear thickening efficiency.
What is the cost-benefit advantage of HMSTP over conventional polishing methods for zirconia ceramics, considering consumables and processing time?
HMSTP utilizes a low-cost magnetic shear thickening slurry (4% carbonyl iron powder) and a passive Halbach array (no external power supply), reducing consumable and energy costs. The process achieves a high MRR of 7.26 μm/h and Ra of 11 nm in 60 minutes, significantly shortening polishing time compared to multi-step conventional methods. The 85.6% reduction in Ra and 1.33-fold MRR increase translate to fewer rework cycles and lower abrasive consumption, offering a cost-effective route for precision ceramic finishing.
