Key Takeaways & Executive Findings
- •• • The 3# dislocation-type regular hexagonal texture achieved a mass wear rate of 0.0823 mg/min, only 20.1% of the untextured substrate's 0.4084 mg/min, representing an 79.9% reduction in material loss. This directly extends component service life in defense and aerospace moving assemblies where AF1410 is specified. • • The 2# dislocation groove texture reduced wear rate to 42.8% of baseline (0.1748 mg/min), while the 1# simple groove texture achieved 82.7% (0.3377 mg/min). The non-linear dislocation arrangement outperforms linear grooves by a factor of 2.1 in wear reduction, validating stress dispersion and debris entrapment as primary functional mechanisms. • • All textured surfaces exhibited ploughing cutting and abrasive wear as dominant mechanisms, with minor adhesive wear; oxidative wear was absent across all specimens. The untextured substrate showed severe plastic cutting and deep ploughing, indicating that texture-induced contact stress redistribution suppresses severe material removal modes. • • Texture density varied: 1# groove at ~66.7%, 2# dislocation groove at ~59.6%, and 3# hexagonal at a lower effective density. Despite lower density, the 3# hexagonal pattern delivered superior wear resistance, proving that geometric arrangement and dislocation architecture, not density alone, govern tribological performance under dry sliding.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Ultra-high strength steel AF1410 is widely used in moving components of advanced equipment due to its excellent strength, wear resistance, and corrosion resistance. However, increasingly severe service conditions demand higher sliding wear resistance than traditional surface treatments can provide. This study employed ultrafast laser texturing to fabricate three distinct surface patterns on AF1410: groove texture (1#), dislocation groove texture (2#), and dislocation-type regular hexagonal texture (3#). Dry friction wear tests were conducted to evaluate mass wear rates and wear mechanisms. The mass wear rates of textured surfaces were 82.7%, 42.8%, and 20.1% of the untextured substrate, respectively. The 3# dislocation-type regular hexagonal texture exhibited the lowest wear rate (0.0823 mg/min) versus 0.4084 mg/min for the untextured substrate. Wear mechanisms for textured surfaces were dominated by ploughing cutting and abrasive wear with minor adhesive wear; no oxidative wear occurred. The untextured substrate suffered severe plastic cutting, deep ploughing, and mixed abrasive-adhesive wear. Dislocation arrangements improved stress distribution and debris storage. Texture morphology and distribution affect actual contact area, friction force dispersion, and debris retention capacity. The results demonstrate that dislocation-type regular hexagonal texturing offers the most significant enhancement in sliding wear resistance for AF1410 under the tested conditions.
1. Introduction
AF1410 ultra-high strength steel provides exceptional strength, wear resistance, and corrosion resistance, making it a specified material for moving components in advanced defense and aerospace equipment. As operational loads and service conditions intensify, the sliding wear resistance of AF1410 surfaces has become a critical bottleneck. Traditional surface processing methods—such as thermal spraying, chemical vapor deposition, and conventional laser surface melting—fail to deliver the required combination of low friction coefficient and high wear resistance without compromising substrate integrity or introducing thermal distortion. The absence of a scalable, precise surface engineering solution for AF1410 has stalled progress in extending component lifetimes under dry friction conditions.
This study addresses the bottleneck by applying ultrafast laser texturing to fabricate three distinct surface architectures on AF1410: a simple groove texture (1#), a dislocation groove texture (2#), and a dislocation-type regular hexagonal texture (3#). The experimental protocol systematically varies groove width (200 µm), depth (50 µm), and inter-groove spacing (100 µm) while introducing non-linear dislocation arrangements and hexagonal geometries. Dry friction wear tests quantify mass wear rates and identify wear mechanisms. The results establish that dislocation-type regular hexagonal texturing reduces mass wear rate to 20.1% of the untextured substrate, providing a validated surface engineering pathway for enhancing AF1410 component durability under severe sliding conditions.
Loading authentic research manuscript (Pages 1–5)...
LI Shuqing, CONG Dalong, PENG Dong, YANG Bingdong, MA Guojia (2026). Effects of Three Types of Textures on Wear Resistance and Mechanisms of Ultra-high Strength Steel Surfaces. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.11.010
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the quantitative wear rate reduction achieved by the dislocation-type regular hexagonal texture compared to the untextured AF1410 substrate?
The 3# dislocation-type regular hexagonal texture achieved a mass wear rate of 0.0823 mg/min, which is 20.1% of the untextured substrate's 0.4084 mg/min. This represents a 79.9% reduction in material loss under dry friction conditions.
Why did the dislocation-type groove texture (2#) outperform the simple groove texture (1#) despite similar groove dimensions?
The 2# dislocation groove texture reduced wear rate to 42.8% of baseline (0.1748 mg/min), while the 1# simple groove achieved only 82.7% (0.3377 mg/min). The non-linear, staggered arrangement in 2# promotes more uniform stress distribution and better debris entrapment, reducing ploughing severity and abrasive particle circulation.
What wear mechanisms were identified, and did oxidative wear occur under the tested dry friction conditions?

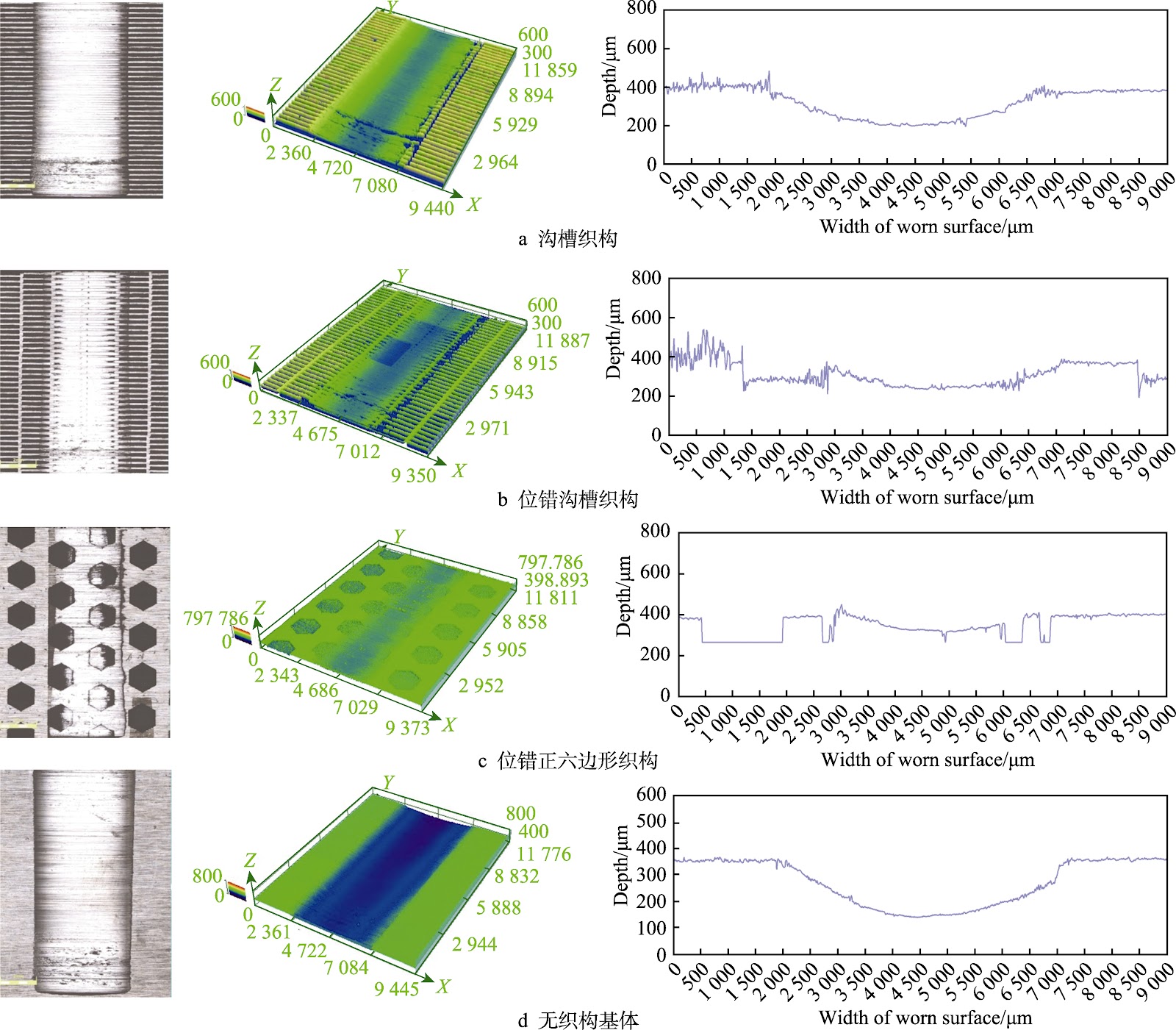

Wear mechanisms included ploughing cutting, abrasive wear, and minor adhesive wear. No oxidative wear occurred on any specimen, textured or untextured. The untextured substrate exhibited severe plastic cutting and deep ploughing, while textured surfaces showed shallower ploughing and fewer abrasive particles.
What role does texture density play in wear performance, and why did the 3# hexagonal texture with lower density outperform higher-density groove textures?
The 1# groove texture had ~66.7% density, 2# dislocation groove ~59.6%, and 3# hexagonal a lower effective density. Despite lower density, the 3# hexagonal pattern delivered the lowest wear rate (0.0823 mg/min). This indicates that geometric arrangement and dislocation architecture—specifically stress dispersion and debris storage capacity—govern tribological performance more than absolute texture density.
What are the limitations of this study regarding texture dimensions and their impact on industrial scalability?
The study explicitly notes that texture dimensions were selected within a limited range (groove width 200 µm, depth 50 µm, spacing 100 µm), and results are valid only within this parameter window. Industrial scalability requires further optimization of laser processing speed, texture uniformity over large areas, and cost parity against legacy surface treatments, which were not addressed in this experimental protocol.
Related Chinese Research & Cross-Citations
Research Progress and Prospects of Corrosion-resistant High-entropy Alloy Coatings
Marine environments impose combined electrochemical, microbiological, and cavitation erosion degradation on metallic infrastructure, shortening service intervals and inflating maintenance expenditure. High-entropy alloy (HEA) coatings mitigate these failure modes through simple solid-solution or amorphous microstructures that suppress galvanic coupling and promote dense passive film formation. This review systematically examines corrosion-resistant HEA coatings from single-factor to multi-factor coupling perspectives, covering classification and compositional design, fabrication routes, and corrosion behavior under complex marine conditions. Key coating systems include FeCoCrNiMn, AlCoCrFeNi, FeCrNiCoAl, and (FeCoCrNi)75B15Si10 amorphous alloys deposited by atmospheric plasma spraying, high-velocity oxy-fuel spraying, and wire arc spraying. Elemental additions of Cr, Al, and Mo enhance passivation; B and Si promote amorphous phase formation. The review identifies core engineering bottlenecks: compositional design, process optimization, and service performance validation. A multi-scale simulation, process-structure optimization, and in-situ characterization framework is proposed to accelerate coating deployment. These findings provide theoretical and technical guidance for next-generation corrosion-resistant coatings in marine equipment.
Effect of Sodium Hypochlorite Concentration and Medium Temperature on Corrosion of 45# Steel in Artificial Seawater and Simulated Concrete Pore Solution
Seawater discharged during LNG regasification carries residual chlorine, predominantly sodium hypochlorite (NaClO), and low temperature, posing a dual corrosion threat to carbon steel components and adjacent reinforced concrete. This study systematically evaluates the corrosion behavior of 45# steel in artificial seawater (AS) and simulated concrete pore solution (SCPS, pH≈10) under NaClO concentrations of 0, 1, 10, and 100 mg/L at 10 °C and 25 °C. Electrochemical impedance spectroscopy, potentiodynamic polarization, weight-loss measurements, and localized corrosion-depth analysis were combined with SEM, EDS, XPS, and XRD to resolve corrosion kinetics, morphology, and product composition. In AS at 25 °C, increasing NaClO from 0 to 100 mg/L decreased charge transfer and film resistance (Rct + Rf) from 2266 to 1207 Ω·cm² and increased corrosion current density (Jcorr) from 11.48 to 18.29 μA/cm². Weight-loss rates remained 0.108 mm/a at 0 and 1 mg/L NaClO, rose slightly to 0.123 mm/a at 10 mg/L (+13%), and sharply to 0.202 mm/a at 100 mg/L (+87%). Corrosion morphology shifted from localized to uniform, with reduced pit depth. In SCPS at 25 °C, the alkaline environment suppressed NaClO-induced acceleration: Rct + Rf decreased from 2922 to 2266 Ω·cm², and weight-loss rates increased only 8% (0.0937 mm/a) at 10 mg/L and 25% (0.108 mm/a) at 100 mg/L relative to the 0.0865 mm/a control. However, 100 mg/L NaClO in SCPS significantly deepened localized pits. At 10 °C, both media exhibited reduced corrosion current density, thinner product layers, and shallower pits. Under standard discharge conditions (residual chlorine ≤0.2 mg/L), the additional corrosion risk from cold discharge water is negligible.
Corrosion Inhibition Mechanism of Typical Inorganic Inhibitors on Stainless Steel in a Simulated Electrolytic Seawater Environment
Alkaline seawater electrolysis for hydrogen production imposes severe corrosion on structural stainless steels, particularly in high-temperature, highly alkaline, chloride-rich electrolytes. This study evaluates four inorganic inhibitors—sodium molybdate (Na2MoO4), sodium tungstate (Na2WO4), sodium phosphate (Na3PO4), and vanadium pentoxide (V2O5)—for 316L austenitic stainless steel (316L SS) and 2205 duplex stainless steel (2205 DSS) in a simulated electrolytic seawater environment (6.0 mol/L NaOH, 2.0 mol/L NaCl, 90 °C). Potentiodynamic polarization, electrochemical impedance spectroscopy (EIS), and 14-day immersion tests quantified inhibition efficiency (IE). Surface morphology and film chemistry were characterized by SEM, optical profilometry (OP), and XPS. V2O5 exhibited the highest IE, reaching 79.90% for 316L SS and 89.58% for 2205 DSS at 0.05 mol/L, followed by Na3PO4 (83.33% for 2205 DSS). Na2MoO4 and Na2WO4 were least effective. EIS fitting revealed that V2O5 markedly increased film resistance (Rf) and charge-transfer resistance (Rct) (e.g., Rct = 29,770 Ω·cm², Rf = 923.50 Ω·cm² for 316L SS), indicating suppressed interfacial charge transfer. XPS confirmed the incorporation of V4+/V5+ and PO4³− species into the surface film, forming a dense, barrier-type vanadium/phosphate composite layer that mitigates corrosion. These findings establish V2O5 and Na3PO4 as promising inhibitors for stainless steel in harsh alkaline electrolytic seawater systems.
Influence of Temperature on Diffusion Behavior and Infiltration Layer Structure of Sherardizing on Structural Steel
Powder sherardizing on Q235 structural steel was conducted in a 70wt.% Zn–0.8wt.% NH4Cl–29.2wt.% α-Al2O3 activated pack at 340–400 °C for 2–10 h to establish the temperature-dependent growth kinetics, phase evolution, and corrosion performance of Zn–Fe intermetallic layers. Cross-sectional SEM/EDS and XRD show that all layers consist of δ and Γ phases, with Γ concentrated near the substrate; excessive Γ at 340 °C initiates interfacial cracking. Layer thickness increases monotonically with temperature and time, rising from 10.80 μm at 340 °C to 43.90 μm at 400 °C after 6 h, and from 12.10 μm at 2 h to 81.60 μm at 10 h at 380 °C. The Zn/Fe ratio and δ-phase fraction increase with temperature, yielding denser layers and improved corrosion resistance; at 380–400 °C, corrosion current densities fall to 1.16×10⁻⁶–9.78×10⁻⁷ A/cm². The diffusion coefficient at 380 °C is 2.341×10⁻¹³ m²/s. Prolonged holding beyond 6 h produces through-thickness cracks. DSC and microstructural evidence support a three-stage growth mechanism: formation of active Zn atoms via ZnCl2 decomposition, bidirectional Zn/Fe interdiffusion along substrate defects, and continuous inward advancement of the Zn–Fe intermetallic front. The optimal processing window is 380 °C for 6 h, yielding a ~36.1 μm crack-free layer with 84.1% δ phase and superior corrosion resistance.
Research Progress and Problem Analysis on Corrosion Prediction of Supercritical CO2 Transport Pipelines
Pipeline transport is the core of large-scale CO2 delivery in CCUS projects, and supercritical pipeline transport is the most economical and feasible method. However, inherent multicomponent impurities and complex aqueous phase precipitation make corrosion control difficult and costly. This review assesses corrosion mechanisms and prediction technologies for supercritical CO2 transport pipelines, focusing on numerical analysis, supporting experiments, and field application within comprehensive mechanistic models. Current understanding has clarified the effects of individual impurities (H2O, H2S, O2, SO2, N2O, N2, H2, CH4) and operating parameters, but synergistic mechanisms of mixed gases remain unresolved, lacking systematic quantitative description. Existing prediction models are limited in applicability to corrosion conditions, morphological matching, and comprehensiveness of factors. Experimental methods suffer from insufficient reliability, particularly in precise metering and replenishment of corrosive media under low water content and multicomponent impurity synergy. Field application faces challenges in rational model use and accurate extraction of field data. Future directions include: deepening research on synergistic effects of impurity gases and quantifying them via theoretical analysis to establish mapping between impurity concentration and corrosion rate; accelerating development of aqueous phase precipitation and distribution models, multicomponent impurity water chemistry models, thermodynamic and kinetic models for multicomponent reactions, and competitive formation/growth models for multiple product films; strengthening experimental techniques for precise metering and replenishment under low water and multicomponent synergy; and improving field application by understanding model parameter physical meanings, applicability boundaries, and ensuring reasonable input parameters and accurate field data extraction.
Research on Wear Resistance and Wear Mechanism of NM500 Steel in a Wide Temperature Range
The tribological behavior of NM500 wear-resistant steel was systematically evaluated across a wide temperature range from −50 to 600 °C to elucidate the influence of temperature on wear resistance and to provide a theoretical basis for service life extension. Friction and wear tests were conducted using a high-temperature tribometer under a normal load of 150 N, rotational speed of 354 r/min, wear track diameter of 15 mm, and test duration of 60 minutes. The microstructure was characterized by SEM and EBSD, while worn surfaces were analyzed using XRD, SEM, and 3D laser confocal microscopy. NM500 steel exhibits a fine lath martensitic structure with a grain size of 7.08 μm, conferring high hardness and superior wear resistance. At cryogenic temperatures (−50, −25, 0 °C), the wear mechanism is predominantly abrasive wear, with a wear rate of only 1.29×10−6 mm3/(N·m). As temperature increases, oxide formation on the worn surface intensifies, friction coefficient decreases to a minimum of 0.3 (50% lower than at low temperature), and wear rate increases significantly: 18×10−6, 22.7×10−6, 46.7×10−6, and 128×10−6 mm3/(N·m) at 100, 200, 300, and 600 °C, respectively. The dominant wear mechanism transitions from abrasive wear at low temperatures to oxidative wear with adhesive wear at elevated temperatures. At 600 °C, thermal softening, reduced texture strength, and oxide film delamination exacerbate material loss, shifting the mechanism to oxidative wear as the primary mode with adhesive wear as secondary.
