Key Takeaways & Executive Findings
- •• • Amino-rich carbon dots (NCDs) achieve 91.2% inhibition efficiency on Q235 carbon steel in 1 mol/L HCl at 100 mg/L, outperforming thiol-rich SCDs (86.6%) and carboxyl-rich OCDs (79.0%), establishing a clear ranking for surface group selection in acid pickling formulations. • • The 12.2 percentage-point IE gap between NCDs and OCDs translates directly to reduced acid consumption and lower hydrogen embrittlement risk in industrial pickling lines, where even a 5% improvement in inhibitor performance can cut steel loss by hundreds of tons annually. • • Parallel adsorption configuration and binding energy are the controlling factors: NCDs and SCDs adsorb parallel to the steel surface, while OCDs cannot, resulting in the lowest binding energy and least dense protective film—a mechanistic threshold that dictates whether a functional group is viable for inhibitor design. • • The post-modification strategy successfully isolates surface chemistry as the sole variable while holding particle size and carbon core structure constant, providing a validated experimental protocol that eliminates the confounding effects that have historically obscured structure–property relationships in nanomaterial inhibitors.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

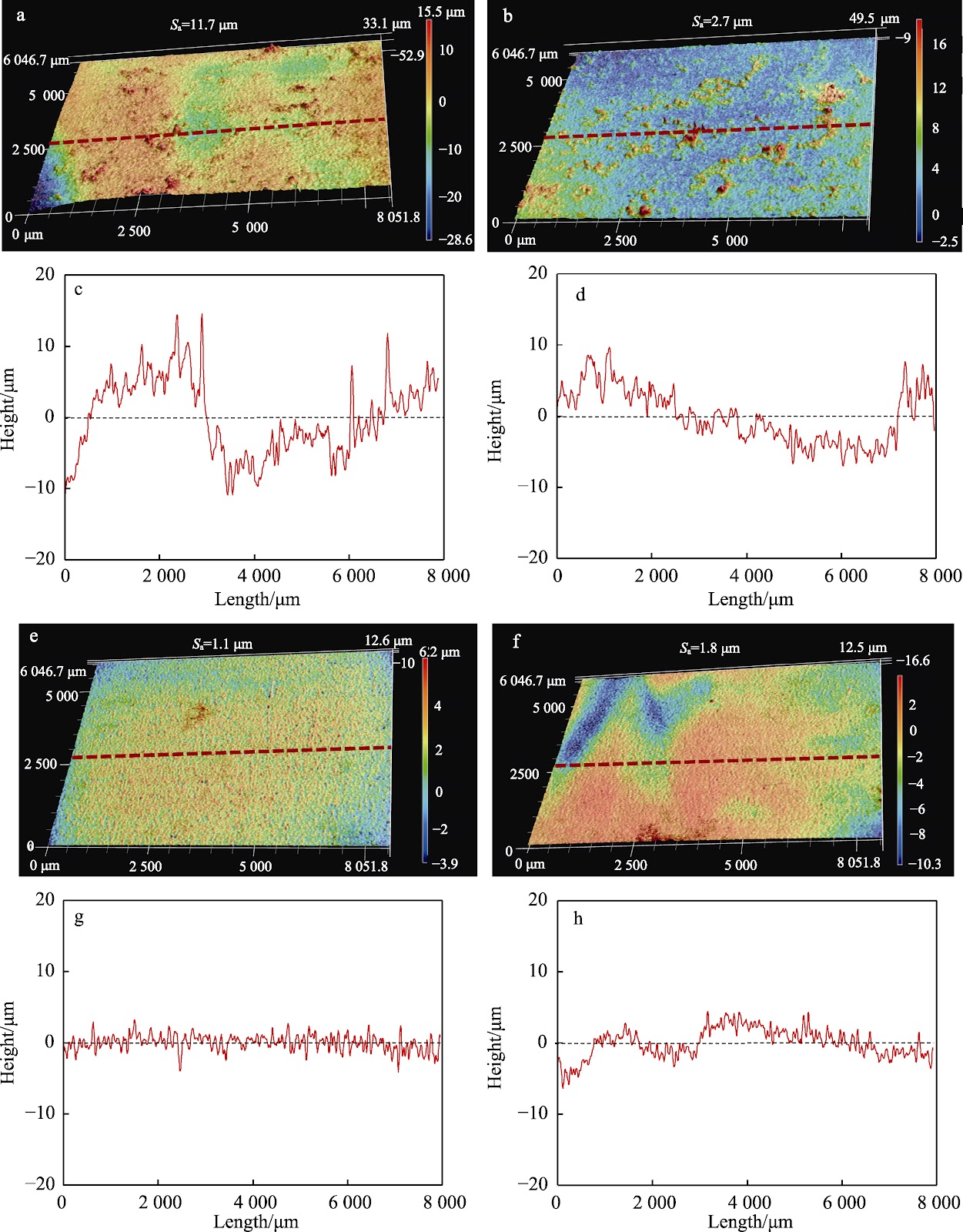

Surface functional groups dictate the corrosion inhibition efficiency of nanomaterials, yet isolating their single-variable effect has remained intractable because particle size and carbon core structure typically co-vary during synthesis. This study employs a post-modification strategy to prepare three carbon dot (CD) variants with nearly identical particle size and graphitization degree but distinctly different surface terminations: carboxyl-rich (OCDs), thiol-rich (SCDs), and amino-rich (NCDs). Transmission electron microscopy, Raman spectroscopy, and Fourier transform infrared spectroscopy confirm that the carbon cores are structurally equivalent, while surface chemistry differs markedly. Weight loss measurements, electrochemical impedance spectroscopy, and potentiodynamic polarization consistently rank inhibition efficiency (IE) in 1 mol/L HCl at 100 mg/L as NCDs (91.2%) > SCDs (86.6%) > OCDs (79.0%). The mechanism involves dual protection: adsorption film formation and induced oxide film densification. NCDs adopt a parallel adsorption configuration with the strongest binding energy, yielding the densest protective film and promoting a compact oxide layer. SCDs also adsorb in parallel but with weaker film-forming capability. OCDs cannot achieve parallel adsorption, exhibit the lowest binding energy, and produce the least dense films. These findings establish a direct structure–property relationship for surface group engineering of nanomaterial corrosion inhibitors, providing a validated experimental framework for designing high-efficiency inhibitors. The study is limited to 25 °C; future work will address temperature effects (40, 60, 80 °C), long-term dissolution–adsorption equilibria, and in situ characterization of Fe2+/Fe3+ ratios in the oxide film.
1. Introduction
Commercial acid pickling inhibitors—predominantly organic compounds such as thiourea derivatives, quaternary ammonium salts, and propargyl alcohol—suffer from acute performance ceilings: they require high dosage (often >500 mg/L), degrade rapidly above 40 °C, and raise environmental concerns due to toxicity and non-biodegradability. Nanomaterials have emerged as a potential alternative, offering high surface area and tunable surface chemistry, but their development has been stalled by a fundamental experimental limitation: it is nearly impossible to modify surface functional groups without simultaneously altering particle size, crystallinity, or carbon core structure. This co-variation has made it impossible to attribute performance differences to any single surface group, leaving inhibitor design largely empirical.
This study resolves that bottleneck by employing a post-modification strategy on carbon dots (CDs), a model nanomaterial whose surface chemistry can be systematically varied after synthesis. By preparing three CD variants—carboxyl-rich (OCDs), thiol-rich (SCDs), and amino-rich (NCDs)—with nearly identical particle size and carbon core structure, the authors isolate the effect of surface functional groups on corrosion inhibition for Q235 carbon steel in 1 mol/L HCl. The protocol combines weight loss measurements, electrochemical impedance spectroscopy, potentiodynamic polarization, and molecular dynamics simulations to link surface chemistry to adsorption configuration, binding energy, and film densification. The resulting IE ranking (NCDs 91.2% > SCDs 86.6% > OCDs 79.0%) provides the first direct experimental evidence that amino groups outperform thiol and carboxyl groups under identical structural conditions, offering a rational basis for designing next-generation nanomaterial inhibitors.
Loading authentic research manuscript (Pages 1–5)...
HE Chuang, NIE Yuheng, ZHENG Qiqi, HU Jiaji, LI Xingqiang, HE Haijie, YU Jing, YE Xiaowei (2026). Effects of Surface Functional Groups of Nanomaterials on Corrosion Inhibition Performance and Mechanisms. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.12.009
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the failure mechanism of these carbon dot inhibitors under elevated temperature, and how does it compare to commercial inhibitors?
The study explicitly limits evaluation to 25 °C. At higher temperatures (40–80 °C), adsorption equilibrium shifts toward desorption, and the protective film may destabilize. Commercial inhibitors often fail above 40 °C due to thermal degradation; the carbon dots' robust carbon core may offer better thermal stability, but this remains unverified. Future work will quantify IE at 40, 60, and 80 °C to establish the operational ceiling.
What is the cost parity of carbon dot synthesis against legacy inhibitor technology, and what are the scalability bottlenecks?
The paper does not report synthesis cost or yield. However, post-modification involves multiple steps (carbonization, functionalization, purification), which typically increases cost relative to one-pot commercial inhibitors. Scalability is constrained by the need for precise control over particle size and surface group density. Without cost data, industrial adoption cannot be assessed; this is a critical gap for translation.
How stable is the inhibitor film under long-term immersion, and what is the dissolution–adsorption equilibrium?
The study acknowledges that the dissolution–adsorption equilibrium of carbon dots in acidic media affects long-term film stability. No long-term immersion data are provided. For industrial pickling (typically 1–4 hours), the film may be sufficient, but for continuous processes or closed-loop systems, desorption could reduce IE. Future work will combine long-term immersion with kinetic modeling.
What is the mechanism by which amino groups promote Fe2+/Fe3+ ratio regulation and oxide film densification?
The paper states that NCDs promote a denser oxide film but does not elucidate the Fe2+/Fe3+ ratio mechanism. It is hypothesized that amino groups chelate iron ions and influence oxidation kinetics, but this requires in situ Raman and electrochemical quartz crystal microbalance studies. Without this mechanistic clarity, optimizing amino group density remains empirical.
Can these carbon dots be deployed in real industrial pickling lines, and what are the compatibility issues with existing additives?
No real-world validation is presented. Industrial pickling lines often contain surfactants, accelerators, and antifoaming agents that could compete for surface sites or destabilize the carbon dot dispersion. The study confirms dispersion stability in pure HCl, but compatibility with additives is untested. This is a prerequisite for field trials.
Related Chinese Research & Cross-Citations
Research Progress and Prospects of Corrosion-resistant High-entropy Alloy Coatings
Marine environments impose combined electrochemical, microbiological, and cavitation erosion degradation on metallic infrastructure, shortening service intervals and inflating maintenance expenditure. High-entropy alloy (HEA) coatings mitigate these failure modes through simple solid-solution or amorphous microstructures that suppress galvanic coupling and promote dense passive film formation. This review systematically examines corrosion-resistant HEA coatings from single-factor to multi-factor coupling perspectives, covering classification and compositional design, fabrication routes, and corrosion behavior under complex marine conditions. Key coating systems include FeCoCrNiMn, AlCoCrFeNi, FeCrNiCoAl, and (FeCoCrNi)75B15Si10 amorphous alloys deposited by atmospheric plasma spraying, high-velocity oxy-fuel spraying, and wire arc spraying. Elemental additions of Cr, Al, and Mo enhance passivation; B and Si promote amorphous phase formation. The review identifies core engineering bottlenecks: compositional design, process optimization, and service performance validation. A multi-scale simulation, process-structure optimization, and in-situ characterization framework is proposed to accelerate coating deployment. These findings provide theoretical and technical guidance for next-generation corrosion-resistant coatings in marine equipment.
Effect of Sodium Hypochlorite Concentration and Medium Temperature on Corrosion of 45# Steel in Artificial Seawater and Simulated Concrete Pore Solution
Seawater discharged during LNG regasification carries residual chlorine, predominantly sodium hypochlorite (NaClO), and low temperature, posing a dual corrosion threat to carbon steel components and adjacent reinforced concrete. This study systematically evaluates the corrosion behavior of 45# steel in artificial seawater (AS) and simulated concrete pore solution (SCPS, pH≈10) under NaClO concentrations of 0, 1, 10, and 100 mg/L at 10 °C and 25 °C. Electrochemical impedance spectroscopy, potentiodynamic polarization, weight-loss measurements, and localized corrosion-depth analysis were combined with SEM, EDS, XPS, and XRD to resolve corrosion kinetics, morphology, and product composition. In AS at 25 °C, increasing NaClO from 0 to 100 mg/L decreased charge transfer and film resistance (Rct + Rf) from 2266 to 1207 Ω·cm² and increased corrosion current density (Jcorr) from 11.48 to 18.29 μA/cm². Weight-loss rates remained 0.108 mm/a at 0 and 1 mg/L NaClO, rose slightly to 0.123 mm/a at 10 mg/L (+13%), and sharply to 0.202 mm/a at 100 mg/L (+87%). Corrosion morphology shifted from localized to uniform, with reduced pit depth. In SCPS at 25 °C, the alkaline environment suppressed NaClO-induced acceleration: Rct + Rf decreased from 2922 to 2266 Ω·cm², and weight-loss rates increased only 8% (0.0937 mm/a) at 10 mg/L and 25% (0.108 mm/a) at 100 mg/L relative to the 0.0865 mm/a control. However, 100 mg/L NaClO in SCPS significantly deepened localized pits. At 10 °C, both media exhibited reduced corrosion current density, thinner product layers, and shallower pits. Under standard discharge conditions (residual chlorine ≤0.2 mg/L), the additional corrosion risk from cold discharge water is negligible.
Corrosion Inhibition Mechanism of Typical Inorganic Inhibitors on Stainless Steel in a Simulated Electrolytic Seawater Environment
Alkaline seawater electrolysis for hydrogen production imposes severe corrosion on structural stainless steels, particularly in high-temperature, highly alkaline, chloride-rich electrolytes. This study evaluates four inorganic inhibitors—sodium molybdate (Na2MoO4), sodium tungstate (Na2WO4), sodium phosphate (Na3PO4), and vanadium pentoxide (V2O5)—for 316L austenitic stainless steel (316L SS) and 2205 duplex stainless steel (2205 DSS) in a simulated electrolytic seawater environment (6.0 mol/L NaOH, 2.0 mol/L NaCl, 90 °C). Potentiodynamic polarization, electrochemical impedance spectroscopy (EIS), and 14-day immersion tests quantified inhibition efficiency (IE). Surface morphology and film chemistry were characterized by SEM, optical profilometry (OP), and XPS. V2O5 exhibited the highest IE, reaching 79.90% for 316L SS and 89.58% for 2205 DSS at 0.05 mol/L, followed by Na3PO4 (83.33% for 2205 DSS). Na2MoO4 and Na2WO4 were least effective. EIS fitting revealed that V2O5 markedly increased film resistance (Rf) and charge-transfer resistance (Rct) (e.g., Rct = 29,770 Ω·cm², Rf = 923.50 Ω·cm² for 316L SS), indicating suppressed interfacial charge transfer. XPS confirmed the incorporation of V4+/V5+ and PO4³− species into the surface film, forming a dense, barrier-type vanadium/phosphate composite layer that mitigates corrosion. These findings establish V2O5 and Na3PO4 as promising inhibitors for stainless steel in harsh alkaline electrolytic seawater systems.
Influence of Temperature on Diffusion Behavior and Infiltration Layer Structure of Sherardizing on Structural Steel
Powder sherardizing on Q235 structural steel was conducted in a 70wt.% Zn–0.8wt.% NH4Cl–29.2wt.% α-Al2O3 activated pack at 340–400 °C for 2–10 h to establish the temperature-dependent growth kinetics, phase evolution, and corrosion performance of Zn–Fe intermetallic layers. Cross-sectional SEM/EDS and XRD show that all layers consist of δ and Γ phases, with Γ concentrated near the substrate; excessive Γ at 340 °C initiates interfacial cracking. Layer thickness increases monotonically with temperature and time, rising from 10.80 μm at 340 °C to 43.90 μm at 400 °C after 6 h, and from 12.10 μm at 2 h to 81.60 μm at 10 h at 380 °C. The Zn/Fe ratio and δ-phase fraction increase with temperature, yielding denser layers and improved corrosion resistance; at 380–400 °C, corrosion current densities fall to 1.16×10⁻⁶–9.78×10⁻⁷ A/cm². The diffusion coefficient at 380 °C is 2.341×10⁻¹³ m²/s. Prolonged holding beyond 6 h produces through-thickness cracks. DSC and microstructural evidence support a three-stage growth mechanism: formation of active Zn atoms via ZnCl2 decomposition, bidirectional Zn/Fe interdiffusion along substrate defects, and continuous inward advancement of the Zn–Fe intermetallic front. The optimal processing window is 380 °C for 6 h, yielding a ~36.1 μm crack-free layer with 84.1% δ phase and superior corrosion resistance.
Research Progress and Problem Analysis on Corrosion Prediction of Supercritical CO2 Transport Pipelines
Pipeline transport is the core of large-scale CO2 delivery in CCUS projects, and supercritical pipeline transport is the most economical and feasible method. However, inherent multicomponent impurities and complex aqueous phase precipitation make corrosion control difficult and costly. This review assesses corrosion mechanisms and prediction technologies for supercritical CO2 transport pipelines, focusing on numerical analysis, supporting experiments, and field application within comprehensive mechanistic models. Current understanding has clarified the effects of individual impurities (H2O, H2S, O2, SO2, N2O, N2, H2, CH4) and operating parameters, but synergistic mechanisms of mixed gases remain unresolved, lacking systematic quantitative description. Existing prediction models are limited in applicability to corrosion conditions, morphological matching, and comprehensiveness of factors. Experimental methods suffer from insufficient reliability, particularly in precise metering and replenishment of corrosive media under low water content and multicomponent impurity synergy. Field application faces challenges in rational model use and accurate extraction of field data. Future directions include: deepening research on synergistic effects of impurity gases and quantifying them via theoretical analysis to establish mapping between impurity concentration and corrosion rate; accelerating development of aqueous phase precipitation and distribution models, multicomponent impurity water chemistry models, thermodynamic and kinetic models for multicomponent reactions, and competitive formation/growth models for multiple product films; strengthening experimental techniques for precise metering and replenishment under low water and multicomponent synergy; and improving field application by understanding model parameter physical meanings, applicability boundaries, and ensuring reasonable input parameters and accurate field data extraction.
Research on Wear Resistance and Wear Mechanism of NM500 Steel in a Wide Temperature Range
The tribological behavior of NM500 wear-resistant steel was systematically evaluated across a wide temperature range from −50 to 600 °C to elucidate the influence of temperature on wear resistance and to provide a theoretical basis for service life extension. Friction and wear tests were conducted using a high-temperature tribometer under a normal load of 150 N, rotational speed of 354 r/min, wear track diameter of 15 mm, and test duration of 60 minutes. The microstructure was characterized by SEM and EBSD, while worn surfaces were analyzed using XRD, SEM, and 3D laser confocal microscopy. NM500 steel exhibits a fine lath martensitic structure with a grain size of 7.08 μm, conferring high hardness and superior wear resistance. At cryogenic temperatures (−50, −25, 0 °C), the wear mechanism is predominantly abrasive wear, with a wear rate of only 1.29×10−6 mm3/(N·m). As temperature increases, oxide formation on the worn surface intensifies, friction coefficient decreases to a minimum of 0.3 (50% lower than at low temperature), and wear rate increases significantly: 18×10−6, 22.7×10−6, 46.7×10−6, and 128×10−6 mm3/(N·m) at 100, 200, 300, and 600 °C, respectively. The dominant wear mechanism transitions from abrasive wear at low temperatures to oxidative wear with adhesive wear at elevated temperatures. At 600 °C, thermal softening, reduced texture strength, and oxide film delamination exacerbate material loss, shifting the mechanism to oxidative wear as the primary mode with adhesive wear as secondary.
