Key Takeaways & Executive Findings
- •• Two-dimensional mono- and few-layered Ti3CNTx MXene nanosheets with extremely high nitrogen content were synthesized. • Better performance for hydrogen evolution reaction (HER) than Pt/C catalyst in acidic, neutral and alkaline solutions. • Exceptional performance of HER in both acidic and alkaline solutions. • A large current density (>500 mA cm−2) has been achieved for HER.
Abstract

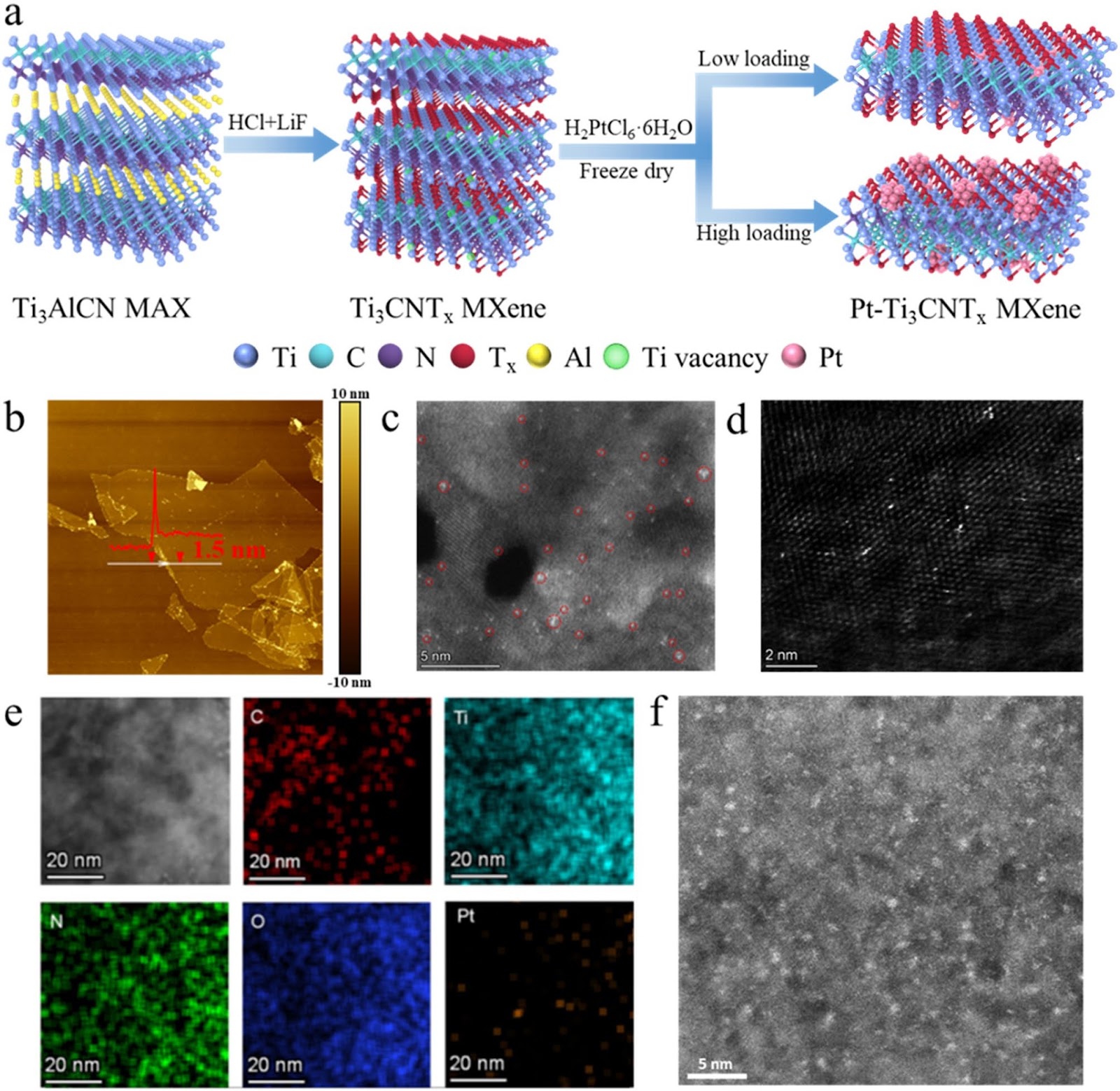

Transition metal carbides, known as MXenes, particularly Ti3C2Tx, have been extensively explored as promising materials for electrochemical reactions. However, transition metal carbonitride MXenes with high nitrogen content for electrochemical reactions are rarely reported. In this work, transition metal carbonitride MXenes incorporated with Pt-based electrocatalysts, ranging from single atoms to sub-nanometer dimensions, are explored for hydrogen evolution reaction (HER). The fabricated Pt clusters/MXene catalyst exhibits superior HER performance compared to the single-atom-incorporated MXene and commercial Pt/C catalyst in both acidic and alkaline electrolytes. The optimized sample shows low overpotentials of 28, 65, and 154 mV at current densities of 10, 100, and 500 mA cm−2, a small Tafel slope of 29 mV dec−1, a high mass activity of 1203 mA mgPt−1 and an excellent turnover frequency of 6.1 s−1 in the acidic electrolyte. Density functional theory calculations indicate that this high performance can be attributed to the enhanced active sites, increased surface functional groups, faster charge transfer dynamics, and stronger electronic interaction between Pt and MXene, resulting in optimized hydrogen absorption/desorption toward better HER. This work demonstrates that MXenes with a high content of nitrogen may be promising candidates for various catalytic reactions by incorporating single atoms or clusters.
1. Introduction
The persistent and intensifying climate issues, the ever-growing depletion of fossil fuels, and the massive greenhouse gas emissions demand the development of green and clean energy to maintain a healthy and sustainable living environment. Hydrogen energy, which can be obtained from water, is one of the most promising candidates. In contrast, the efficiency of hydrogen production remains very low, and the associated cost is still pretty high. Therefore, searching for suitable catalysts to achieve a high hydrogen production rate is in demand.
Currently, platinum (Pt) is the benchmark catalyst for the hydrogen evolution reaction (HER). Traditional Pt-based catalysts have limited atom utilization efficiency, as only a small fraction of Pt atoms is actively involved in catalysis. Moreover, the scarcity and high cost of Pt limit its viability as a long-term and sustainable choice. To realize both high efficiency and maximum atom utilization, rational catalyst design strategies like reducing the dosage and size of Pt are considered promising ways to overcome the dilemma. However, when Pt is downsized to sub-nanometer clusters or single atoms, it is extremely important to search for suitable substrates to accommodate them with strong interactions to avoid surface diffusion and coarsening under applied bias. This could improve the intrinsic activity and stability of the active site, which is a key factor in HER performance.
Loading authentic research manuscript (Pages 1–5)...
Zhihao Lei, Sajjad Ali, CI Sathish, Muhammad Ibrar Ahmed, Jiangtao Qu, Rongkun Zheng, Shibo Xi, Xiaojiang Yu, M. B. H. Breese, Chao Liu, Jizhen Zhang, Shuai Qi, Xinwei Guan, Vibin Perumalsamy, Mohammed Fawaz, Jae-Hun Yang, Mohamed Bououdina, Kazunari Domen, Ajayan Vinu, Liang Qiao, Jiabao Yi (2025). Transition Metal Carbonitride MXenes Anchored with Pt Sub-Nanometer Clusters to Achieve High-Performance Hydrogen Evolution Reaction at All pH Range. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-01654-y
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main achievement of this research?
The research demonstrates that transition metal carbonitride MXenes (Ti3CNTx) with high nitrogen content, when anchored with Pt sub-nanometer clusters, exhibit superior hydrogen evolution reaction (HER) performance compared to commercial Pt/C catalysts across acidic, neutral, and alkaline conditions, achieving low overpotentials and high current densities.
How does the Pt clusters/MXene catalyst compare to single-atom catalysts?
The Pt clusters/MXene catalyst outperforms the single-atom-incorporated MXene and commercial Pt/C in both acidic and alkaline electrolytes, showing lower overpotentials, smaller Tafel slope, higher mass activity, and excellent turnover frequency.
What are the key factors contributing to the high HER performance?
Density functional theory calculations attribute the high performance to enhanced active sites, increased surface functional groups, faster charge transfer dynamics, and stronger electronic interaction between Pt and MXene, leading to optimized hydrogen absorption/desorption.
What is the significance of high nitrogen content in MXenes?
High nitrogen content in MXenes is rarely reported and is shown to be beneficial for catalytic reactions, as it enhances the material's properties for HER, making these MXenes promising candidates for various catalytic applications.
What are the potential applications of this research?
The findings suggest that nitrogen-rich MXenes with Pt clusters could be used as efficient and cost-effective electrocatalysts for hydrogen production, contributing to sustainable energy technologies.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
