Key Takeaways & Executive Findings
- •• Microstructural parameters such as thickness, porosity, Zr/Ti ratio, doping, grain size, grain boundaries, and orientation critically influence the dielectric, ferroelectric, and piezoelectric properties of PZT ferroelectric films. • Geometric structure (thickness and porosity) directly impacts electrical performance, with application-specific requirements dictating optimal dimensions and porosity. • Compositional adjustments (Zr/Ti ratio and doping) alter phase composition, thereby tuning ferroelectric and piezoelectric responses. • Grain structure (size, boundaries, orientation) affects domain dynamics and switching behavior, offering pathways for performance optimization in device design.
Abstract
Lead zirconate titanate (PbZrxTi1-xO3, PZT) ferroelectric films possess remarkable characteristics such as high residual polarization, high dielectric constant, and high piezoelectric coefficient and have great application prospects in modern electronics, communications, medical care, and military fields. At present, the microstructure changes of PZT ferroelectric thin films have a significant impact on their electrical properties. Therefore, this work summarizes the influences of geometric structure (thickness, porosity), composition structure (Zr/Ti ratio, doping), and grain structure (grain size, grain boundaries, orientation) on the electrical properties of PZT ferroelectric thin films. The results show that the changes in thickness and porosity have a significant impact on the electrical properties of PZT ferroelectric films. Especially, the actual application scenarios and preparation processes determine the required geometric dimensions and structures of PZT ferroelectric films. The Zr/Ti ratio and doping mainly affect the electrical properties by influencing the phase composition of PZT ferroelectric films. The changes in grain size, boundary structure, and orientation dependence mainly have a certain degree of influence on the domain response and domain switching behavior of PZT ferroelectric thin films. In conclusion, different structures have different influence effects on the dielectric, ferroelectric, and piezoelectric properties of PZT ferroelectric films. The way the tiny structure affects how PZT thin films work was shown, helping to guide the design of ferroelectric thin film devices. In order to further study and apply piezoelectric ceramic devices, it is crucial to have an in-depth understanding of the relationship between the structure and performance of piezoelectric ceramic devices.
1. Introduction
Ferroelectric materials have demonstrated excellent application prospects in memory devices, microactuators, and microsensors in recent years [1–6]. With regard to modern electronics, communications, medical, and military fields, lead zirconate titanate (PbZrxTi1-xO3, PZT) films in particular have a wide range of applications due to their large piezoelectric coefficient, high Curie temperature, significant dielectric constant, and high remanent polarization [7–13]. PZT materials are known to exhibit a conventional ABO3 perovskite structure, wherein A is filled by +2 valent metal ions (such as Pb) and B by +4 valent metal ions (such as Ti, Zr) [14]. PZT, a high-performance material with exceptional ferroelectric and electromechanical capabilities, is created by the solid solution of PbZrO3 and PbTiO3 in various ratios, particularly the Zr/Ti structure close to tetragonal and rhombohedral phase boundary [15]. The microstructure of PZT materials varies in different Zr/Ti ratio ranges. Different electrical and physical properties can be acquired by modifying such structures, allowing PZT ceramic components to be widely suited to a variety of operating situations. PZT materials, first introduced as a binary system by Jaffe et al. in 1954, have rapidly gained widespread usage in the field of electro-mechanical transformation [16].
Consequently, there has been a surge in interest and attention from researchers about the usage of piezoelectric ceramics as building materials to create various kinds of thin films for high-quality electronic devices. A wearable, highly skin conformal hybrid piezoelectric-friction electric sensor composed of lead-zirconate-titanate and polydimethylsiloxane (PZT&PDMS) composite film (m-PZT&PDMS) composite sheets was disclosed by Yu et al [17]. A suitable amplified sensor device with improved piezoelectric response (0.005 Pa-level sensitivity and 0.1 ms reaction time) for skin pressure monitors was introduced by Rogers et al. [18] With a good output record (−8.15 V and −
Loading authentic research manuscript (Pages 1–5)...
Hefa Zhu, Zhiguo Xing, Haidou Wang, Longlong Zhou, Wei Peng, Qingbo Mi, Han Dong, Weiling Guo (2025). Research Progress of Microstructure Regulation on the Electrical Properties of PZT Ferroelectric Films. Chinese Journal of Mechanical Engineering. https://doi.org/10.1186/s10033-025-01303-w
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are the key microstructural factors affecting the electrical properties of PZT ferroelectric films?
The key factors include geometric structure (thickness, porosity), composition structure (Zr/Ti ratio, doping), and grain structure (grain size, grain boundaries, orientation). These factors influence dielectric, ferroelectric, and piezoelectric properties.

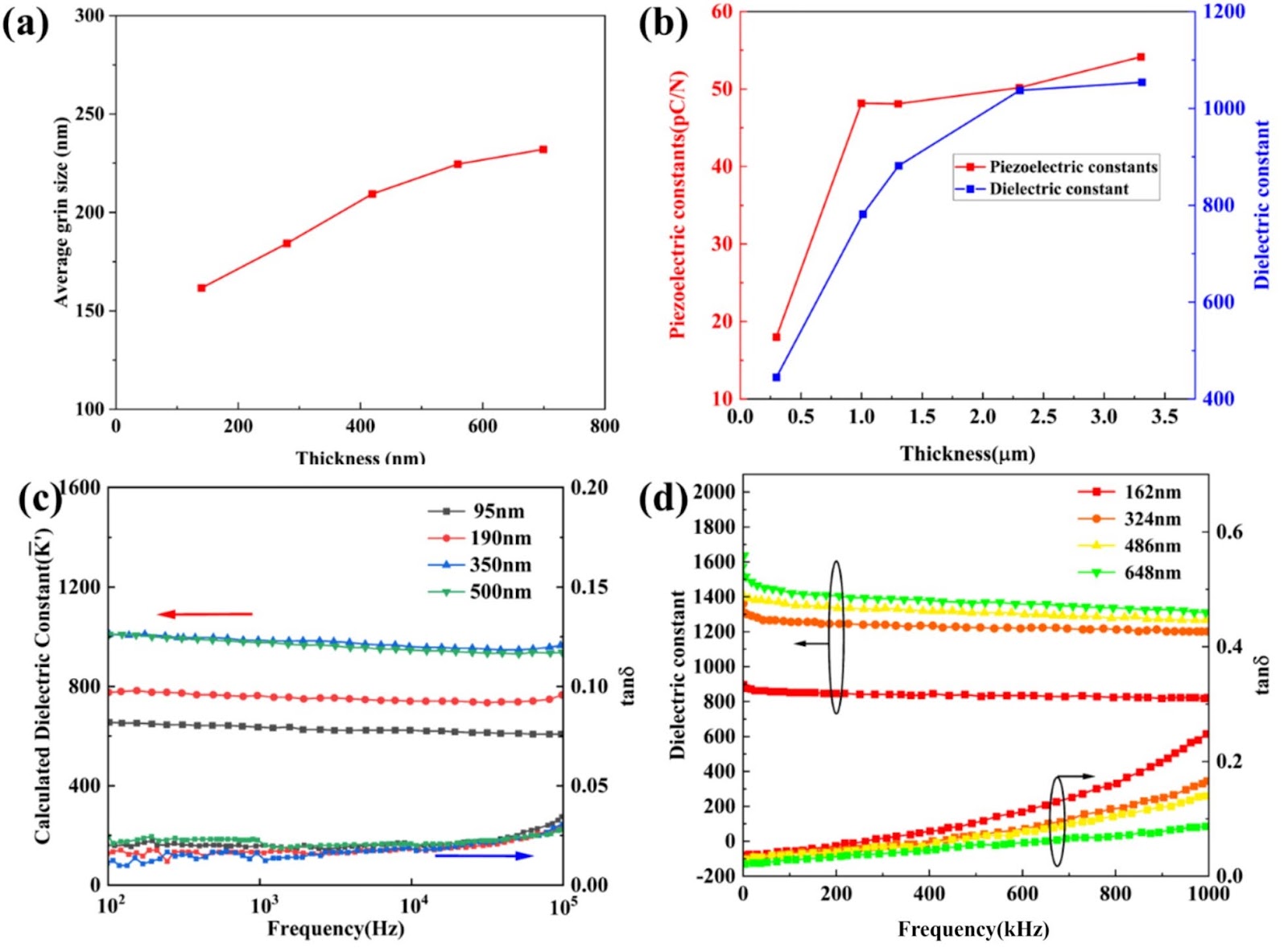

How does thickness and porosity impact PZT film performance?
Thickness and porosity significantly affect electrical properties. Optimal thickness and porosity are determined by application scenarios and preparation processes, influencing capacitance, leakage current, and mechanical flexibility.
What role does Zr/Ti ratio and doping play in PZT films?
Zr/Ti ratio and doping alter the phase composition, which in turn tunes ferroelectric and piezoelectric responses. For instance, near the morphotropic phase boundary, enhanced piezoelectric coefficients are observed.
How do grain size and orientation affect domain switching in PZT films?
Grain size and orientation influence domain wall mobility and switching behavior. Smaller grains can lead to higher coercive fields, while preferred orientation can enhance piezoelectric response.
What are the practical applications of PZT ferroelectric films?
PZT films are used in memory devices, microactuators, microsensors, wearable sensors, and energy harvesting devices due to their high piezoelectric coefficient and ferroelectric properties.
