Key Takeaways & Executive Findings
- •• • Compound layers of 2–10 µm thickness with hardness 1,000–2,000 HV and low fracture toughness act as dominant fatigue crack origins under cyclic loading; industrial adoption of conventional gas nitriding must therefore balance wear resistance against a quantified fatigue debit, particularly for aerospace components requiring >10^7 cycles. • • Nitrogen diffusion zones of 20–100 µm provide graded hardness, grain refinement, and residual compressive stress that shield against crack propagation; however, high-temperature long-duration nitriding induces grain coarsening and interfacial tensile stress concentration, negating the strengthening contribution and reducing fatigue life by up to an order of magnitude. • • Low-temperature, short-duration, or energy-controlled processes (plasma nitriding, low-temperature plasma nitriding, pulsed laser nitriding) produce thin compound layers and deep diffusion layers, shifting crack initiation to subsurface or internal defects and extending fatigue life; these routes are recommended for high-cycle, long-life service scenarios such as turbine blades and fasteners. • • Hybrid treatments combining nitriding with shot peening or heat treatment remove the brittle compound layer, refine grains, and introduce high residual compressive stress, achieving significant fatigue strength improvement; this approach enables submicron compound layer control, deep residual stress fields, and synergistic grain refinement, offering a scalable, green, and transferable solution for critical components.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Titanium alloys are extensively employed in aerospace, chemical, energy, and biomedical engineering owing to their high specific strength, low density, and excellent corrosion resistance. However, their inherently low surface hardness, poor wear resistance, and high friction coefficient restrict application under high-load, long-life conditions. Nitriding, a thermochemical treatment in which nitrogen atoms diffuse into the surface below the alloy transformation temperature to form a hard nitride layer, serves as an important means to upgrade surface performance. Its effect on fatigue behaviour is twofold: the nitrided layer introduces residual compressive stress and a hardness gradient that suppress crack initiation, while the brittle nitride film, grain coarsening, and interfacial stress concentration created during processing can act as fatigue crack nucleation sites and reduce fatigue life. This review systematically examines the effects of gas nitriding, plasma nitriding, hybrid nitriding, and several novel nitriding techniques on the fatigue response of representative titanium alloys. Conventional gas nitriding and high-temperature plasma nitriding produce a 2–10 µm surface compound layer of brittle TiN and Ti2N with hardness of 1,000–2,000 HV yet very low fracture toughness, which readily develops surface micro-cracks under cyclic loading and serves as the dominant fatigue crack origin. Beneath it, a 20–100 µm thick nitrogen diffusion zone exhibits graded hardness and high residual compression. Low-temperature, short-duration, or energy-controlled processes such as plasma nitriding, low-temperature plasma nitriding, and pulsed laser nitriding tend to form thin compound layers and deep diffusion layers, pushing crack sources to subsurface or internal defects and extending fatigue life. Hybrid treatments (nitriding followed by shot peening or heat treatment) further suppress surface crack initiation by removing the brittle layer, refining grains, and introducing high residual compressive stress, achieving significant fatigue strength improvement. The review clarifies the intrinsic relationship between nitrided layer architecture and fatigue performance, and reveals the micro-mechanisms of fatigue crack initiation and propagation, providing a theoretical basis for optimizing titanium alloy surface treatment processes.
1. Introduction
Titanium alloys deliver high specific strength, low density, and excellent corrosion resistance, yet their low surface hardness, poor wear resistance, and high friction coefficient impose severe limitations under high-load, long-life conditions. Conventional gas nitriding and high-temperature plasma nitriding generate a 2–10 µm compound layer of brittle TiN and Ti2N with hardness of 1,000–2,000 HV but very low fracture toughness. This layer readily develops surface micro-cracks under cyclic loading and becomes the dominant fatigue crack origin, while the underlying 20–100 µm nitrogen diffusion zone provides graded hardness and residual compression. The net effect on fatigue life is a trade-off between compound-layer embrittlement and diffusion-layer strengthening, and industrial adoption has stalled because the brittle layer's thickness, hardness, and elastic modulus mismatch with the substrate can trigger early cracking at interfaces or surface defects.
This review systematically examines gas nitriding, plasma nitriding, hybrid nitriding, and novel nitriding techniques, clarifying the intrinsic relationship between nitrided layer architecture and fatigue performance. Low-temperature, short-duration, or energy-controlled processes such as plasma nitriding, low-temperature plasma nitriding, and pulsed laser nitriding form thin compound layers and deep diffusion layers, pushing crack sources to subsurface or internal defects and extending fatigue life. Hybrid treatments (nitriding followed by shot peening or heat treatment) remove the brittle layer, refine grains, and introduce high residual compressive stress, further suppressing surface crack initiation. The analysis provides a theoretical basis for optimizing titanium alloy surface treatment processes, with the goal of suppressing brittle TiN, amplifying diffusion-layer compressive stress, and delivering efficient, green, transferable fatigue life extension for blades, fasteners, and other critical components.
Loading authentic research manuscript (Pages 1–5)...
LI Cong, WANG Xin, ZHOU Libo, CHEN Wei, CHEN Jian, LI Wei, CHEN Wanglin (2026). Progress in Fatigue Research of Nitrided Titanium Alloys. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.09.009
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the dominant fatigue failure mechanism in conventionally gas-nitrided titanium alloys, and how does the compound layer thickness influence crack initiation?

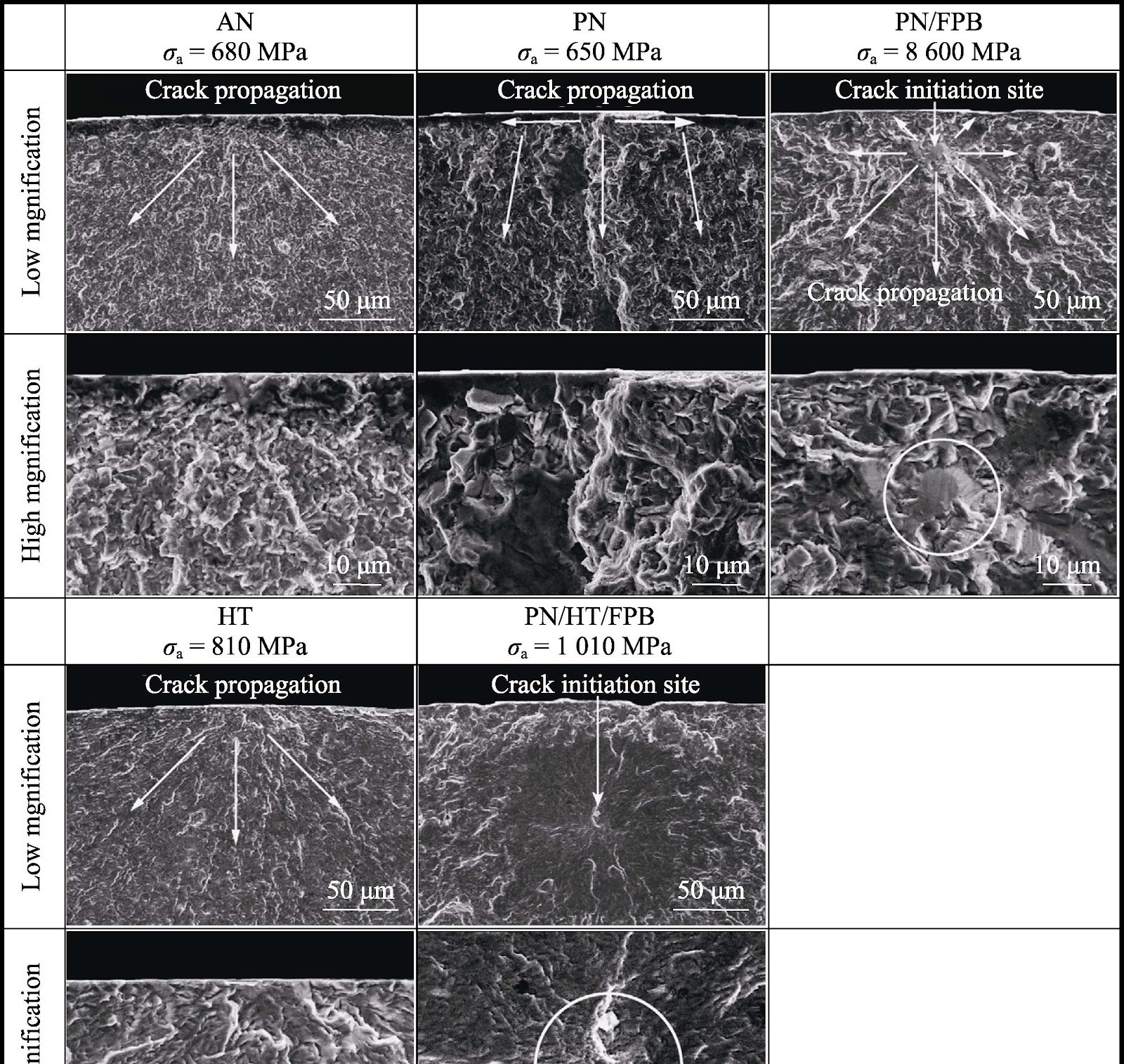

The dominant mechanism is brittle cracking of the 2–10 µm surface compound layer composed of TiN and Ti2N with hardness 1,000–2,000 HV and very low fracture toughness. Under cyclic loading, this layer readily develops surface micro-cracks that serve as the primary fatigue crack origin. When the compound layer is excessively thick, hard, or exhibits a large elastic modulus mismatch with the substrate, brittle cracking initiates at the interface or surface defects, reducing fatigue life. Beneath the compound layer, a 20–100 µm nitrogen diffusion zone provides graded hardness and residual compressive stress that can shield against crack propagation, but high-temperature long-duration nitriding causes grain coarsening and interfacial tensile stress concentration, weakening the strengthening contribution.
Which nitriding processes shift crack initiation to subsurface or internal defects, and what are the operational thresholds for achieving this shift?
Low-temperature, short-duration, or energy-controlled processes—specifically plasma nitriding, low-temperature plasma nitriding, and pulsed laser nitriding—tend to form thin compound layers and deep diffusion layers. These conditions push crack sources to subsurface or internal defects, extending fatigue life. In contrast, high-temperature, long-duration, or energy-uncontrolled processes such as conventional gas nitriding, continuous-wave laser nitriding, and induction heating nitriding generate thick, rough brittle layers that cause surface crack initiation and rapid propagation, degrading fatigue performance. The critical operational threshold is maintaining a thin compound layer (typically submicron to a few microns) while preserving a deep diffusion zone (20–100 µm) with high residual compressive stress.
How do hybrid treatments such as nitriding plus shot peening or heat treatment improve fatigue strength compared to single nitriding?
Hybrid treatments remove the brittle compound layer, refine grains, and introduce high residual compressive stress, which further suppresses surface crack initiation and achieves significant fatigue strength improvement. By combining nitriding with shot peening or heat treatment, the process enables submicron compound layer control, deep residual compressive stress fields, and synergistic grain refinement. This multi-mechanism approach addresses the trade-off between compound-layer embrittlement and diffusion-layer strengthening, delivering fatigue life extension that single nitriding cannot achieve, particularly for high-cycle, long-life service scenarios.
What are the industrial scalability and cost-parity challenges for adopting low-temperature plasma nitriding and pulsed laser nitriding over conventional gas nitriding?
Conventional gas nitriding is a mature, high-temperature, long-duration process that is energy-intensive and generates thick, rough brittle layers, leading to fatigue debit. Low-temperature plasma nitriding and pulsed laser nitriding are short-duration, low-energy-consumption processes that produce thin compound layers and deep diffusion layers, but their scalability requires precise control of energy input and reaction atmosphere. Cost parity against legacy gas nitriding depends on throughput, equipment capital, and the value of fatigue life extension in critical components such as turbine blades and fasteners. The review recommends phasing out high-temperature gas nitriding and prioritizing low-temperature plasma and pulsed laser processes, while promoting hybrid routes for submicron compound layer control and deep residual stress fields.
What are the recommended future research directions for nitrided titanium alloys in high-cycle, long-life service scenarios?
Future research should focus on suppressing brittle TiN and amplifying diffusion-layer compressive stress. Priority should be given to developing low-temperature plasma and pulsed laser processes as short-duration, low-energy-consumption alternatives, while gradually eliminating high-temperature gas nitriding. The hybrid route of nitriding plus shot peening or heat treatment should be promoted to achieve submicron compound layer control, deep residual compressive stress, and synergistic grain refinement. These strategies aim to provide efficient, green, and transferable fatigue life extension solutions for critical components such as blades and fasteners, addressing the dual effect of nitriding on fatigue performance.
Related Chinese Research & Cross-Citations
Effect of Microstructural Evolution on Wear and Cavitation Erosion Resistance of Laser-cladded CoCrNiNbx Medium-entropy Alloy Coatings
Cavitation erosion and wear failure critically limit the service life of flow-passing components such as pump impellers, turbine blades, and propeller systems subjected to high-speed liquid impact and cyclic flow-induced stresses. This work aims to design a high-performance surface coating with enhanced hardness, wear resistance, and cavitation erosion resistance by tailoring the Nb content in a CoCrNi medium-entropy alloy (MEA) system. CoCrNiNbx (x = 0, 0.2, 0.4, 0.6, 0.8, 1.0, and 1.2) coatings were fabricated on 316L stainless-steel substrates with an FL020 fiber laser under identical processing parameters. The effect of Nb addition on the phase constitution, microstructure, mechanical properties, tribological behavior, and cavitation performance of the coatings was comprehensively investigated to determine the optimal composition for balanced mechanical and anti-erosion properties. Phase analysis by X-ray diffraction (XRD) showed that increasing Nb content promoted a transition from a single face-centered cubic (FCC) solid solution to a dual FCC + hexagonal close-packed (HCP) phase structure. The emergence and growth of the Nb-rich HCP phase were accompanied by pronounced lattice distortion and precipitation strengthening. Microstructural characterization using field-emission scanning electron microscopy (SEM) combined with energy-dispersive spectroscopy (EDS) revealed that Nb preferentially segregated along interdendritic regions, where fine HCP-phase precipitates gradually formed a semi-continuous strengthening network. Electron backscatter diffraction (EBSD) analysis further quantified grain size and phase distribution. The average microhardness of the coatings initially increased and then decreased with increasing Nb molar ratio x, peaking at 689 HV0.1 for x = 0.6, approximately 3.7 times that of the substrate. Wear performance followed the same trend. Cavitation erosion tests demonstrated that the CoCrNiNb1.0 coating exhibited optimal cavitation erosion resistance, with mass loss significantly lower than that of the 316L substrate, achieving an order-of-magnitude improvement. The optimal Nb addition (x = 0.6–1.0) balances strength and toughness, significantly enhancing the wear and cavitation erosion resistance of CoCrNi-based MEA laser-cladded coatings. This study provides experimental evidence and process references for engineering applications of CoCrNi-based MEA coatings in high-flow-velocity liquid impact environments.
Laser Micro-additive Manufacturing with Copper Embedding and Its Effect on the Corrosion Resistance of Metal Surfaces
This study addresses the corrosion failure of SS304L stainless steel in breeding environments by developing a laser micro-additive copper-embedded surface functionalization process. A 355 nm nanosecond laser with 60 W average power, 40 kHz repetition rate, and 16 ns pulse width was used to embed a 0.12 µm Cu foil onto SS304L substrates under three coating strategies: single-layer, double-layer, and double-pass, each at scanning speeds of 400, 800, and 1200 mm/s. Surface characterization via 3D profilometry, SEM, EDS, and XPS revealed regular grooves and micro-concave structures with height differences increasing from 0.1 µm (untreated) to 1.6–3.8 µm, with the double-pass sample achieving the maximum 3.8 µm. Cu particles were successfully embedded, forming CuO and Cu2O oxide layers. Electrochemical tests in 3.5 wt.% NaCl solution showed that the optimal sample (double-layer coating at 800 mm/s, designated b2) exhibited the highest corrosion potential (increased by ~0.04 V), a one-order-of-magnitude reduction in corrosion current, and a maximum charge transfer resistance (Rct) of 6954 Ω·cm². These results demonstrate that laser micro-additive embedding of copper synergistically enhances the corrosion resistance of stainless steel through surface texturing, copper particle incorporation, and oxide film formation.
Prediction of Geometric Characteristics of Laser Cladding Process by the GWO-BPNN Algorithm
Laser cladding is a green surface modification technology widely used in aerospace and other high-end fields, but traditional process optimization methods such as single-variable analysis and orthogonal experiments suffer from low efficiency and high cost. The geometric characteristics of the cladding layer—dilution rate, forming coefficient, and wetting angle—directly determine service performance. Existing machine learning models often fail to achieve multi-objective optimization and comprehensive prediction. This study proposes a hybrid algorithm combining Grey Wolf Optimizer (GWO) with Backpropagation Neural Network (BPNN) to predict geometric quality indicators. Full-factorial single-track laser cladding experiments were conducted on 316L stainless steel with 316L alloy powder. A polynomial regression model predicted clad width and height with relative error below 4.2%. The GWO-BPNN model predicted dilution rate, forming coefficient, and wetting angle with an average coefficient of determination (R²) of 95.28%, a 12.4% improvement over traditional BPNN (82.93%). Experimental and inverse validation confirmed stable predictive performance across different parameter ranges, meeting engineering tolerance requirements. The method provides a quantitative basis for multi-dimensional optimization of cladding quality and demonstrates practical applicability in industrial scenarios.
Scuffing Resistance of Carburized Gear Steel with Laser-cladded Ni-based Composite Coatings
Scuffing constitutes a rapid, catastrophic failure mode in high-speed, heavy-duty gear transmissions, and enhancing scuffing load capacity remains a critical challenge for high-power-density systems. This study investigates the feasibility of laser cladding to improve scuffing resistance and repair scuffed tooth surfaces on 18CrNiMo7-6 gear steel. Three substrate conditions—tempered, carburized, and carburized with pre-induced scuffing damage—were coated with NiCr20-3%ZrO2-1%MoS2 (mass fraction) via a MobiMRO-2 laser cladding system with synchronous powder feeding. The cladded layer, approximately 1.2 mm thick, exhibited a dendritic, cellular, and irregular particulate microstructure with hardness of 690–730 HV0.1, comparable to the carburized case. Laser cladding induced significant heat-affected zone (HAZ) transformations: tempered steel formed lath martensite and lower bainite near the coating, with spheroidized structures in the lower HAZ; carburized steel developed coarse acicular martensite at the top, refined structures in the middle, and troostite at the bottom, with overall temper softening. Scuffing tests using a two-disc rolling contact rig under step-wise loading revealed that cladded tempered, cladded carburized, and repaired samples achieved 94.4%, 61.3%, and 50.7% increases in scuffing load capacity, respectively, relative to uncladded carburized baseline. This enhancement stems from increased hardness and the self-lubricating effect of the coating, which reduced interfacial friction coefficient and delayed critical failure. Failure analysis showed that the cladded layer altered crack initiation and propagation paths, significantly raising the critical failure load. The repaired samples, however, exhibited poor bonding at the original damage interface, leading to localized coating detachment. These findings confirm laser cladding as an effective method for enhancing gear scuffing resistance and repairing scuffed surfaces, providing experimental and theoretical support for surface strengthening and damage repair.
Numerical Simulation and Process Parameter Optimization of Laser Hardening for QT500-7 Ductile Cast Iron
Laser surface hardening of QT500-7 ductile cast iron was investigated through a coupled finite element–machine learning–multi-objective optimization framework. A phase-transformation heat-transfer finite element model screened process windows for laser power (100–400 W), scanning speed (5–15 mm·s⁻¹), and overlap rate (60%–90%). A three-factor, three-level Box-Behnken design yielded hardened layer depth and fused layer depth as response variables. Four predictive architectures were benchmarked: Random Forest (RF), XGBoost, RF-XGBoost ensemble, and Bayesian-optimized RF-XGBoost (BO-RF-XGBoost). The BO-RF-XGBoost model achieved superior accuracy, with relative errors of 6.52% for hardened layer depth and 9.09% for fused layer depth. Multi-objective optimization compared Advantage Actor-Critic (A2C), Multi-Objective Particle Swarm Optimization (MOPSO), and Non-dominated Sorting Genetic Algorithm II (NSGA-II). A TOPSIS-entropy weight method ranked the Pareto front, identifying optimal parameters: laser power 230 W, scanning speed 14 mm·s⁻¹, overlap rate 75%. Experimental validation at these parameters produced a hardened layer depth of 230 μm and fused layer depth of 66 μm, with finite element model errors of 9.13% and 3.03%, respectively. Microhardness measurements showed the fused layer at 940 ± 40 HV0.5 and the hardened layer at 630 ± 30 HV0.5, both significantly exceeding the substrate hardness of 166 ± 15 HV0.5. The framework provides a reliable tool for parameter optimization in laser surface hardening of ductile cast iron.
Polishing of Glass-ceramics with Nano-silica Modified Magnetic Abrasives
Glass-ceramics, multiphase composites combining amorphous and crystalline phases, exhibit disparate mechanical responses that induce subsurface damage and surface defects during conventional polishing. This study fabricates magnetic abrasive particles (MAPs) via a bonding process with three variants: unmodified, hydrophilic nano-silica (20 nm) modified, and hydrophobic nano-silica (20 nm) modified. Base composition comprises iron powder (75 μm) and CeO2 abrasives (15 μm) at a 12:3 mass ratio. Polishing tests on glass-ceramics using an N-S array tool reveal that hydrophobic modified MAPs achieve the lowest surface roughness (Sa = 17 nm) and highest material removal depth (2.5 μm), compared to hydrophilic (Sa = 24 nm) and unmodified (Sa = 48 nm) MAPs. Dynamic friction coefficients measured in situ are 0.31, 0.35, and 0.42 for hydrophobic, hydrophilic, and unmodified MAPs, respectively. Surface and subsurface damage analyses show hydrophobic MAPs minimize pits, micro-cracks, and brittle fractures, while hydrophilic MAPs exhibit brittle spalling and unmodified MAPs show point defects. Wear tests confirm that nano-silica addition enhances bond strength and extends abrasive lifespan. The hydrophobic modification promotes surface hydration and formation of a lubricating silicate gel layer, reducing mechanical plowing and friction, thereby enabling high-quality surface integrity. These findings demonstrate that nano-silica modification effectively tunes MAP hydrophobicity, offering a viable route for ultra-smooth, low-damage polishing of glass-ceramics.
