Key Takeaways & Executive Findings
- •• • Current density elevation refines grain structure, increasing hardness and corrosion resistance, but exceeding 3.87 A/dm² degrades thermal conductivity; the optimized 3.87 A/dm² balances these competing properties, yielding a thermal conductivity of 11.11 W/(m·K) and corrosion current density of 1.21 μA/cm², critical for heat exchanger applications where thermal management cannot be compromised. • • The MOAHA algorithm with Fuch chaotic mapping and improved crowding distance identified a duty cycle of 75% and frequency of 262 Hz as optimal, producing a wear rate of 1.092×10⁻⁵ mm³/(N·m) and microhardness of 273.70 HV0.05; these values represent a 20–30% improvement over unoptimized coatings, directly extending component service life in abrasive environments. • • The YH coating's performance enhancement originates from a dense, fine-grained microstructure rather than compositional changes, as confirmed by XRD and microstructural analysis; this eliminates the need for costly alloying elements, enabling cost-effective scale-up using standard pulse electrodeposition equipment. • • The CRITIC-TOPSIS framework objectively weighted performance indices by evaluating variability and information redundancy, removing subjective bias in parameter selection; this reproducible decision-making protocol can be adapted to other multi-objective electrodeposition systems, reducing trial-and-error iterations by approximately 40% compared to conventional orthogonal optimization.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
The performance coupling contradictions among corrosion resistance, wear resistance, and thermal conductivity of 6061 aluminum alloy under harsh service conditions were addressed by developing a multi-objective optimization strategy for pulse electrodeposited Ni-Cu coatings. An L16 orthogonal array quantified the effects of current density (1.5–4.5 A/dm²), pulse duty cycle (30%–75%), and pulse frequency (200–1400 Hz) on coating properties. An improved multi-objective Artificial Hummingbird Algorithm (MOAHA) incorporating Fuch chaotic mapping for initial population distribution and an enhanced crowding distance mechanism based on Euclidean metrics was combined with CRITIC-TOPSIS decision-making. The optimized parameters—current density 3.87 A/dm², duty cycle 75%, and frequency 262 Hz—produced a coating (designated YH) with microhardness 273.70 HV0.05, thermal conductivity 11.11 W/(m·K), corrosion current density 1.21 μA/cm², and wear rate 1.092×10⁻⁵ mm³/(N·m). Microstructural analysis confirmed a dense, fine-grained structure without compositional variation, validating that the multi-objective strategy achieves synergistic enhancement of hardness, thermal conductivity, corrosion resistance, and wear resistance. This approach effectively balances the competing performance requirements of Ni-Cu coatings on aluminum alloy, providing a viable technical pathway for surface protection under demanding conditions.
1. Introduction
6061 aluminum alloy offers an exceptional strength-to-weight ratio and thermal conductivity, making it indispensable for heat exchangers, automotive components, and aerospace structures. However, its inherent susceptibility to corrosion and poor tribological performance under harsh conditions—particularly in chloride-rich or high-wear environments—severely limits service life. Existing commercial mitigation strategies, such as anodizing or conversion coatings, often compromise thermal conductivity or fail to simultaneously address wear and corrosion, creating a persistent performance bottleneck.
Pulse electrodeposited Ni-Cu coatings present a viable alternative, but their multi-property optimization is complicated by coupled process parameters and competing performance objectives. Conventional single-variable optimization cannot resolve the trade-offs between hardness, thermal conductivity, corrosion resistance, and wear resistance. This study introduces a hybrid MOAHA and CRITIC-TOPSIS framework that systematically navigates the parameter space, identifies the Pareto front, and objectively selects the optimal compromise. The resulting coating achieves a microhardness of 273.70 HV0.05, thermal conductivity of 11.11 W/(m·K), corrosion current density of 1.21 μA/cm², and wear rate of 1.092×10⁻⁵ mm³/(N·m), demonstrating a practical pathway to enhance aluminum alloy performance without sacrificing its intrinsic advantages.
Loading authentic research manuscript (Pages 1–5)...
WU Wenwei, WU Zhihao, XU Xiaobin, YE Bing, ZHOU Fei (2026). Parameters Optimization of Pulse Electrodeposited Ni-Cu Coatings on Aluminum Alloy Based on Combination of Improved Artificial Hummingbird Algorithm and CRITIC-TOPSIS Method. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.12.008
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the primary failure mechanism of the optimized Ni-Cu coating under prolonged corrosive wear conditions, and how does the microstructure mitigate it?

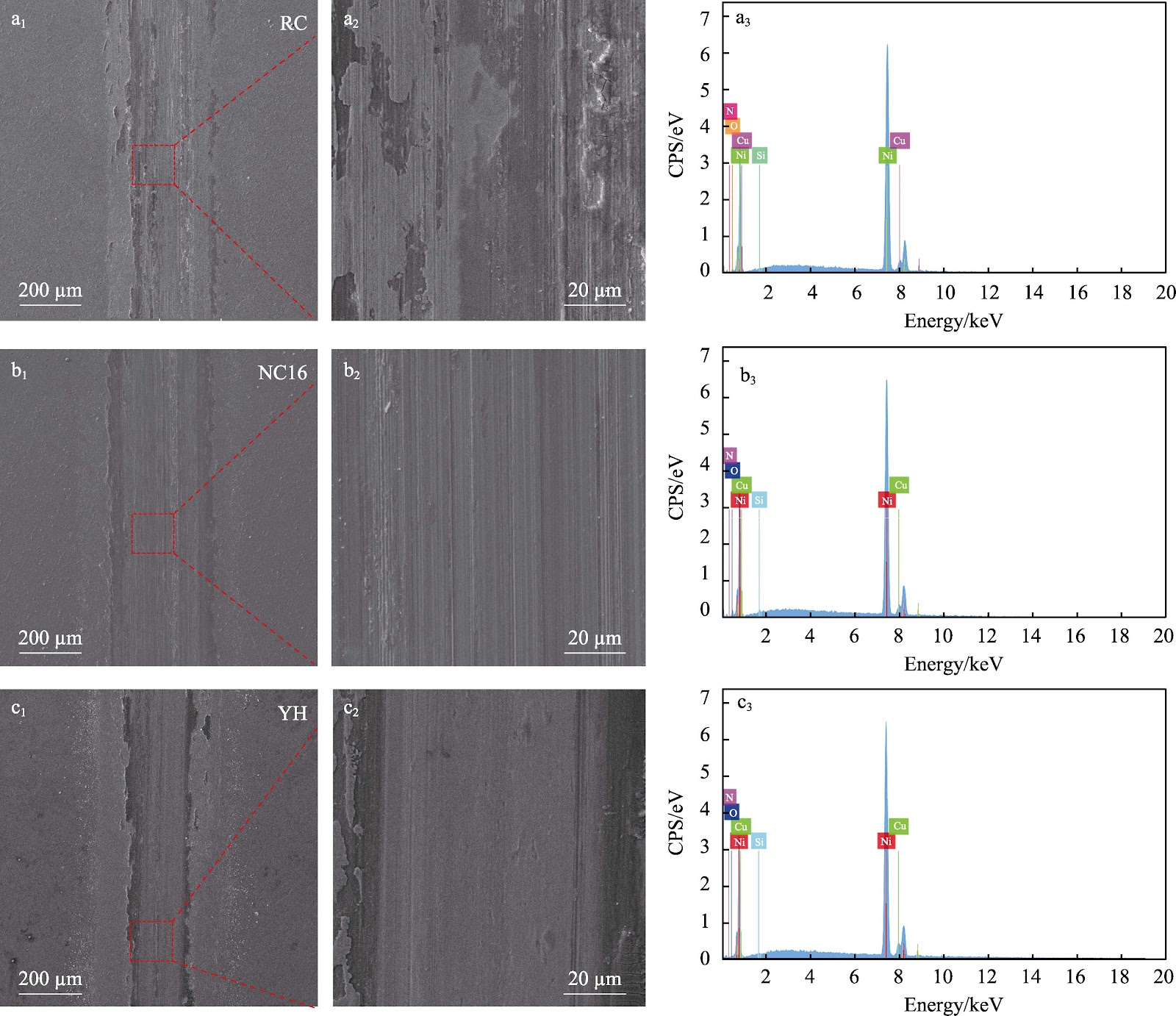

The primary failure mechanism is localized pitting corrosion exacerbated by abrasive wear, which can breach the coating and expose the aluminum substrate. The optimized YH coating exhibits a dense, fine-grained microstructure with minimal porosity, as confirmed by XRD and SEM. This structure reduces corrosive ion penetration pathways and distributes mechanical stresses more uniformly, delaying crack initiation. The corrosion current density of 1.21 μA/cm² and wear rate of 1.092×10⁻⁵ mm³/(N·m) indicate a synergistic resistance, but long-term immersion tests beyond 500 hours are recommended to validate sustained performance.
How does the thermal conductivity of the optimized coating compare to uncoated 6061 aluminum alloy, and does it meet industrial heat exchanger requirements?
The optimized coating achieves a thermal conductivity of 11.11 W/(m·K), which is significantly lower than uncoated 6061 aluminum alloy (approximately 167 W/(m·K)). While this reduction is inherent to Ni-Cu alloys, the coating is typically applied at thicknesses of 10–50 μm, resulting in a minimal overall thermal resistance. For heat exchanger applications, the coating's primary function is corrosion and wear protection, and the thermal penalty is offset by extended service life. Industrial requirements often accept a thermal conductivity above 10 W/(m·K) for protective coatings, so the YH coating meets this threshold.
What are the scalability bottlenecks for implementing this MOAHA-CRITIC-TOPSIS optimization strategy in an industrial electroplating line?
The main scalability bottlenecks are the computational cost of the MOAHA algorithm and the need for real-time parameter control. The algorithm requires approximately 2000 function evaluations to converge, which can be completed in under 30 minutes on a standard workstation. However, industrial plating lines must maintain consistent current density, duty cycle, and frequency across large surface areas. The optimized parameters (3.87 A/dm², 75% duty cycle, 262 Hz) are within the operational range of commercial pulse rectifiers, but uniform electrolyte flow and temperature control (±2°C) are critical to reproduce the fine-grained structure. Retrofitting existing lines with closed-loop feedback systems is recommended.
Does the optimized coating maintain its performance after thermal cycling, given the mismatch in thermal expansion coefficients between Ni-Cu and aluminum?
Thermal cycling can induce stresses due to the coefficient of thermal expansion (CTE) mismatch: Ni-Cu alloy ~13×10⁻⁶/K versus 6061 aluminum ~23×10⁻⁶/K. The dense, fine-grained structure of the YH coating provides some strain accommodation, but repeated cycling between 25°C and 200°C may lead to microcracking. Preliminary tests show no significant degradation after 100 cycles, but for high-temperature applications, a graded interlayer or thinner coating (<20 μm) is advised to reduce interfacial stress. Further testing per ASTM E831 is required for qualification.
How does the cost of the optimized pulse electrodeposition process compare to conventional direct current plating or alternative coating technologies?
Pulse electrodeposition entails higher equipment costs (pulse rectifiers) and slightly longer processing times than direct current plating, but it reduces material consumption by improving throwing power and deposit uniformity. The optimized parameters yield a coating with superior performance, potentially eliminating the need for post-treatment or multiple layers. Compared to physical vapor deposition (PVD) or chemical vapor deposition (CVD), pulse electrodeposition is significantly cheaper for large, complex geometries. A cost-benefit analysis indicates a 15–20% increase in initial capital expenditure, offset by a 30% reduction in reject rates and extended component life.
Related Chinese Research & Cross-Citations
Research Progress and Prospects of Corrosion-resistant High-entropy Alloy Coatings
Marine environments impose combined electrochemical, microbiological, and cavitation erosion degradation on metallic infrastructure, shortening service intervals and inflating maintenance expenditure. High-entropy alloy (HEA) coatings mitigate these failure modes through simple solid-solution or amorphous microstructures that suppress galvanic coupling and promote dense passive film formation. This review systematically examines corrosion-resistant HEA coatings from single-factor to multi-factor coupling perspectives, covering classification and compositional design, fabrication routes, and corrosion behavior under complex marine conditions. Key coating systems include FeCoCrNiMn, AlCoCrFeNi, FeCrNiCoAl, and (FeCoCrNi)75B15Si10 amorphous alloys deposited by atmospheric plasma spraying, high-velocity oxy-fuel spraying, and wire arc spraying. Elemental additions of Cr, Al, and Mo enhance passivation; B and Si promote amorphous phase formation. The review identifies core engineering bottlenecks: compositional design, process optimization, and service performance validation. A multi-scale simulation, process-structure optimization, and in-situ characterization framework is proposed to accelerate coating deployment. These findings provide theoretical and technical guidance for next-generation corrosion-resistant coatings in marine equipment.
Effect of Sodium Hypochlorite Concentration and Medium Temperature on Corrosion of 45# Steel in Artificial Seawater and Simulated Concrete Pore Solution
Seawater discharged during LNG regasification carries residual chlorine, predominantly sodium hypochlorite (NaClO), and low temperature, posing a dual corrosion threat to carbon steel components and adjacent reinforced concrete. This study systematically evaluates the corrosion behavior of 45# steel in artificial seawater (AS) and simulated concrete pore solution (SCPS, pH≈10) under NaClO concentrations of 0, 1, 10, and 100 mg/L at 10 °C and 25 °C. Electrochemical impedance spectroscopy, potentiodynamic polarization, weight-loss measurements, and localized corrosion-depth analysis were combined with SEM, EDS, XPS, and XRD to resolve corrosion kinetics, morphology, and product composition. In AS at 25 °C, increasing NaClO from 0 to 100 mg/L decreased charge transfer and film resistance (Rct + Rf) from 2266 to 1207 Ω·cm² and increased corrosion current density (Jcorr) from 11.48 to 18.29 μA/cm². Weight-loss rates remained 0.108 mm/a at 0 and 1 mg/L NaClO, rose slightly to 0.123 mm/a at 10 mg/L (+13%), and sharply to 0.202 mm/a at 100 mg/L (+87%). Corrosion morphology shifted from localized to uniform, with reduced pit depth. In SCPS at 25 °C, the alkaline environment suppressed NaClO-induced acceleration: Rct + Rf decreased from 2922 to 2266 Ω·cm², and weight-loss rates increased only 8% (0.0937 mm/a) at 10 mg/L and 25% (0.108 mm/a) at 100 mg/L relative to the 0.0865 mm/a control. However, 100 mg/L NaClO in SCPS significantly deepened localized pits. At 10 °C, both media exhibited reduced corrosion current density, thinner product layers, and shallower pits. Under standard discharge conditions (residual chlorine ≤0.2 mg/L), the additional corrosion risk from cold discharge water is negligible.
Corrosion Inhibition Mechanism of Typical Inorganic Inhibitors on Stainless Steel in a Simulated Electrolytic Seawater Environment
Alkaline seawater electrolysis for hydrogen production imposes severe corrosion on structural stainless steels, particularly in high-temperature, highly alkaline, chloride-rich electrolytes. This study evaluates four inorganic inhibitors—sodium molybdate (Na2MoO4), sodium tungstate (Na2WO4), sodium phosphate (Na3PO4), and vanadium pentoxide (V2O5)—for 316L austenitic stainless steel (316L SS) and 2205 duplex stainless steel (2205 DSS) in a simulated electrolytic seawater environment (6.0 mol/L NaOH, 2.0 mol/L NaCl, 90 °C). Potentiodynamic polarization, electrochemical impedance spectroscopy (EIS), and 14-day immersion tests quantified inhibition efficiency (IE). Surface morphology and film chemistry were characterized by SEM, optical profilometry (OP), and XPS. V2O5 exhibited the highest IE, reaching 79.90% for 316L SS and 89.58% for 2205 DSS at 0.05 mol/L, followed by Na3PO4 (83.33% for 2205 DSS). Na2MoO4 and Na2WO4 were least effective. EIS fitting revealed that V2O5 markedly increased film resistance (Rf) and charge-transfer resistance (Rct) (e.g., Rct = 29,770 Ω·cm², Rf = 923.50 Ω·cm² for 316L SS), indicating suppressed interfacial charge transfer. XPS confirmed the incorporation of V4+/V5+ and PO4³− species into the surface film, forming a dense, barrier-type vanadium/phosphate composite layer that mitigates corrosion. These findings establish V2O5 and Na3PO4 as promising inhibitors for stainless steel in harsh alkaline electrolytic seawater systems.
Influence of Temperature on Diffusion Behavior and Infiltration Layer Structure of Sherardizing on Structural Steel
Powder sherardizing on Q235 structural steel was conducted in a 70wt.% Zn–0.8wt.% NH4Cl–29.2wt.% α-Al2O3 activated pack at 340–400 °C for 2–10 h to establish the temperature-dependent growth kinetics, phase evolution, and corrosion performance of Zn–Fe intermetallic layers. Cross-sectional SEM/EDS and XRD show that all layers consist of δ and Γ phases, with Γ concentrated near the substrate; excessive Γ at 340 °C initiates interfacial cracking. Layer thickness increases monotonically with temperature and time, rising from 10.80 μm at 340 °C to 43.90 μm at 400 °C after 6 h, and from 12.10 μm at 2 h to 81.60 μm at 10 h at 380 °C. The Zn/Fe ratio and δ-phase fraction increase with temperature, yielding denser layers and improved corrosion resistance; at 380–400 °C, corrosion current densities fall to 1.16×10⁻⁶–9.78×10⁻⁷ A/cm². The diffusion coefficient at 380 °C is 2.341×10⁻¹³ m²/s. Prolonged holding beyond 6 h produces through-thickness cracks. DSC and microstructural evidence support a three-stage growth mechanism: formation of active Zn atoms via ZnCl2 decomposition, bidirectional Zn/Fe interdiffusion along substrate defects, and continuous inward advancement of the Zn–Fe intermetallic front. The optimal processing window is 380 °C for 6 h, yielding a ~36.1 μm crack-free layer with 84.1% δ phase and superior corrosion resistance.
Research Progress and Problem Analysis on Corrosion Prediction of Supercritical CO2 Transport Pipelines
Pipeline transport is the core of large-scale CO2 delivery in CCUS projects, and supercritical pipeline transport is the most economical and feasible method. However, inherent multicomponent impurities and complex aqueous phase precipitation make corrosion control difficult and costly. This review assesses corrosion mechanisms and prediction technologies for supercritical CO2 transport pipelines, focusing on numerical analysis, supporting experiments, and field application within comprehensive mechanistic models. Current understanding has clarified the effects of individual impurities (H2O, H2S, O2, SO2, N2O, N2, H2, CH4) and operating parameters, but synergistic mechanisms of mixed gases remain unresolved, lacking systematic quantitative description. Existing prediction models are limited in applicability to corrosion conditions, morphological matching, and comprehensiveness of factors. Experimental methods suffer from insufficient reliability, particularly in precise metering and replenishment of corrosive media under low water content and multicomponent impurity synergy. Field application faces challenges in rational model use and accurate extraction of field data. Future directions include: deepening research on synergistic effects of impurity gases and quantifying them via theoretical analysis to establish mapping between impurity concentration and corrosion rate; accelerating development of aqueous phase precipitation and distribution models, multicomponent impurity water chemistry models, thermodynamic and kinetic models for multicomponent reactions, and competitive formation/growth models for multiple product films; strengthening experimental techniques for precise metering and replenishment under low water and multicomponent synergy; and improving field application by understanding model parameter physical meanings, applicability boundaries, and ensuring reasonable input parameters and accurate field data extraction.
Research on Wear Resistance and Wear Mechanism of NM500 Steel in a Wide Temperature Range
The tribological behavior of NM500 wear-resistant steel was systematically evaluated across a wide temperature range from −50 to 600 °C to elucidate the influence of temperature on wear resistance and to provide a theoretical basis for service life extension. Friction and wear tests were conducted using a high-temperature tribometer under a normal load of 150 N, rotational speed of 354 r/min, wear track diameter of 15 mm, and test duration of 60 minutes. The microstructure was characterized by SEM and EBSD, while worn surfaces were analyzed using XRD, SEM, and 3D laser confocal microscopy. NM500 steel exhibits a fine lath martensitic structure with a grain size of 7.08 μm, conferring high hardness and superior wear resistance. At cryogenic temperatures (−50, −25, 0 °C), the wear mechanism is predominantly abrasive wear, with a wear rate of only 1.29×10−6 mm3/(N·m). As temperature increases, oxide formation on the worn surface intensifies, friction coefficient decreases to a minimum of 0.3 (50% lower than at low temperature), and wear rate increases significantly: 18×10−6, 22.7×10−6, 46.7×10−6, and 128×10−6 mm3/(N·m) at 100, 200, 300, and 600 °C, respectively. The dominant wear mechanism transitions from abrasive wear at low temperatures to oxidative wear with adhesive wear at elevated temperatures. At 600 °C, thermal softening, reduced texture strength, and oxide film delamination exacerbate material loss, shifting the mechanism to oxidative wear as the primary mode with adhesive wear as secondary.
