Key Takeaways & Executive Findings
- •• • Standardized resonant methods achieve εr measurement errors below 1% and a tanδ detection limit of 10^-5, yet accurate measurement of ultra-low dielectric loss (tanδ < 10^-5) remains challenging due to conductor loss and spurious mode interference, directly impacting the reliability of high-Q filter design for 5G/6G base stations. • • Cold sintering process achieves ceramic densification below 300 °C, reducing energy consumption by over 97% compared to conventional sintering (>1000 °C), which mitigates volatilization of active elements and enables co-firing with low-melting-point electrodes for miniaturized devices. • • Machine learning models predict key dielectric properties with a coefficient of determination (R²) higher than 0.9, accelerating the exploration of novel MWDCs; however, the temperature coefficient τf is often treated as a constant despite its actual temperature dependence, limiting predictive accuracy under thermal cycling. • • Device insertion loss is maintained below 1 dB in high-performance substrates, resonators, and filters for 5G/6G communications, but the role of multiscale defects in anharmonic lattice vibrations is not fully quantified, and the cation rattling effect has not been systematically integrated into classical dielectric theory, impeding rational design of ultra-low-loss materials.
Abstract

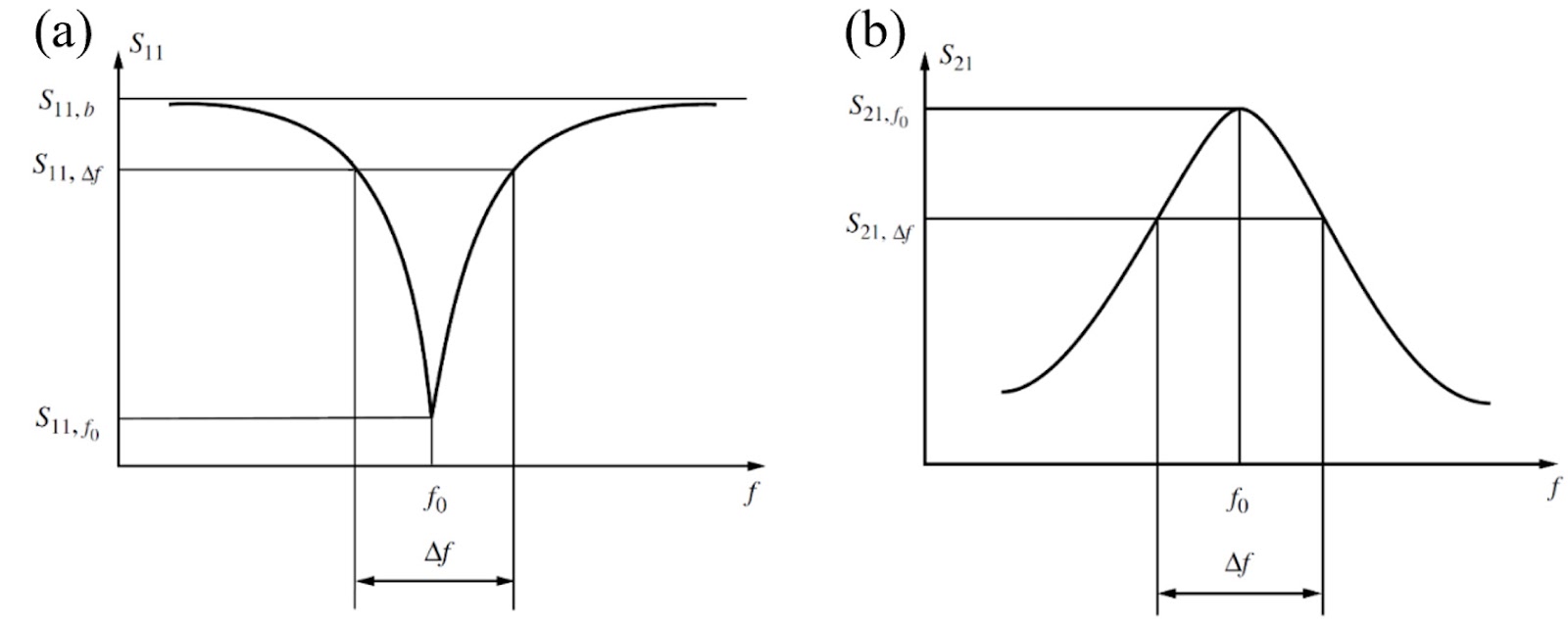

Microwave dielectric ceramics (MWDCs) are indispensable for modern wireless communication systems, with performance governed by relative dielectric constant (εr), quality factor (Q×f), and temperature coefficient of resonant frequency (τf). This review systematically examines recent progress across five interrelated domains. Standardized resonant methods achieve εr measurement errors below 1% and a tanδ detection limit of 10^-5. Theoretical frameworks, from complex crystal chemistry to the cation rattling effect, enable quantitative interpretation of dielectric behavior. Cold sintering achieves ceramic densification below 300 °C, reducing energy consumption by over 97% compared to conventional sintering. These materials are deployed in high-performance substrates, resonators, and filters for 5G/6G communications, with device insertion loss maintained below 1 dB. Data-driven approaches, particularly machine learning, predict key dielectric properties with a coefficient of determination (R²) higher than 0.9, accelerating discovery of novel MWDCs. Despite these advances, critical gaps persist: accurate measurement of ultra-low dielectric loss (tanδ < 10^-5) remains challenging due to conductor loss and spurious mode interference; the temperature dependence of τf is often neglected; the role of multiscale defects in anharmonic lattice vibrations is not fully quantified; and the cation rattling effect has not been integrated into classical dielectric theory. Conventional high-temperature sintering (>1000 °C) causes severe energy consumption, volatilization of active elements, and incompatibility with low-melting-point electrodes, hindering co-firing integration for miniaturized devices. This review integrates these perspectives to provide a systematic insight into the state-of-the-art and future directions of MWDC research.
1. Introduction
Microwave dielectric ceramics (MWDCs) form the cornerstone of modern wireless communication technologies, serving as essential materials for antennas, resonators, and filters in devices ranging from mobile terminals to satellite base stations. The ever-increasing demand for higher data rates, miniaturization, and energy efficiency in 5G/6G networks and the Internet of Things imposes stringent requirements on the performance of these materials. Their utility is fundamentally governed by three key dielectric parameters: a suitable relative dielectric constant (εr) for size reduction or signal transmission speed, Q×f value for frequency selectivity and low signal loss, and a near-zero temperature coefficient of resonant frequency (τf) for thermal stability. Consequently, the accurate characterization, deep understanding, and precise regulation of these properties are central to the advancement of the field.
Despite significant progress, several critical research gaps remain unaddressed. Firstly, in property characterization, the accurate measurement of ultra-low dielectric loss (tanδ < 10^-5) is still challenging due to conductor loss and spurious mode interference, and the temperature coefficient τf is often treated as a constant despite its actual temperature dependence. Then, theoretical understanding of dielectric loss and τf is fragmented: the role of multiscale defects in anharmonic lattice vibrations is not fully quantified, and the recently recognized cation rattling effect has not yet been systematically integrated into classical dielectric theory. Thirdly, conventional high-temperature sintering (>1000 °C) causes severe energy consumption, volatilization of active elements, and incompatibility with low-melting-point electrodes, hindering the co-firing integration required for miniaturized devices. Following that, while machine learning offers new avenues, its application to MWDC property prediction is still in its infancy, with limited interpretability and generalizability. This review addresses these bottlenecks by systematically summarizing recent advances in characterization, theory, processing, device integration, and data-driven prediction, providing a roadmap for future MWDC development.
Loading authentic research manuscript (Pages 1–5)...
Not specified in the provided text (2026). Microwave Dielectric Ceramics for 5G/6G Wireless Communication: Characterization, Theoretical Modeling, Cold Sintering, Device Integration, and Machine Learning Prediction. Journal of Advanced Ceramics. https://doi.org/10.26599/JAC.2026.9221320
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are the primary failure mechanisms limiting the measurement accuracy of ultra-low dielectric loss (tanδ < 10^-5) in MWDCs, and how do they impact industrial filter performance?
Conductor loss and spurious mode interference are the dominant failure mechanisms. Conductor loss arises from finite conductivity of metallic cavities and electrodes, while spurious modes couple with the desired resonant mode, distorting the measured Q factor. These errors propagate into filter design, causing insertion loss to exceed the 1 dB threshold and degrading frequency selectivity in 5G/6G base stations. Standardized resonant methods achieve εr errors below 1% and a tanδ detection limit of 10^-5, but accurate measurement below this limit remains challenging, necessitating advanced shielding and mode suppression techniques.
How does cold sintering achieve densification below 300 °C, and what are the trade-offs in mechanical integrity and dielectric performance compared to conventional sintering?
Cold sintering uses a transient solvent and applied pressure to promote particle rearrangement and dissolution-precipitation, enabling densification at temperatures below 300 °C. This reduces energy consumption by over 97% relative to conventional sintering (>1000 °C) and avoids volatilization of active elements. However, trade-offs include potentially lower grain boundary conductivity and reduced Q×f values due to residual porosity or secondary phases. Device insertion loss can still be maintained below 1 dB with optimized processing, but long-term reliability under thermal cycling requires further validation.
What are the scalability bottlenecks for machine learning prediction of MWDC properties, and how do they affect industrial adoption?
Scalability bottlenecks include limited high-quality training data, poor interpretability of black-box models, and the neglect of temperature-dependent τf. While machine learning achieves R² > 0.9 for εr and Q×f prediction, the constant-τf assumption leads to errors under thermal cycling. Industrial adoption is further hindered by the need for transferable models across diverse compositions and processing conditions. Current databases, such as those referenced in Section B, are fragmented, and manual feature engineering remains a barrier for spinel and perovskite systems.
How does the cation rattling effect challenge classical dielectric theory, and what experimental evidence supports its role in anharmonic lattice vibrations?
The cation rattling effect involves localized vibrational modes of weakly bound cations within oversized cages, contributing to anharmonic lattice vibrations that classical dielectric theory does not fully capture. This effect can lower τf and increase dielectric loss, but its quantification requires advanced techniques such as neutron scattering and Raman spectroscopy. The review notes that this effect has not been systematically integrated into classical theory, leaving a gap in predicting dielectric behavior for materials like filled skutterudites and clathrates. Experimental evidence includes anomalous temperature-dependent permittivity and enhanced phonon scattering.
What are the cost parity and performance benchmarks for MWDCs in 5G/6G devices compared to legacy materials, and where do they fall short?
MWDCs offer insertion loss below 1 dB and εr tailored for miniaturization, but cost parity with legacy materials such as alumina or PTFE composites is challenged by raw material costs (e.g., rare earths) and processing complexity. Cold sintering reduces energy consumption by over 97%, potentially lowering manufacturing costs, but capital investment for pressure-assisted systems remains high. Performance shortfalls include temperature stability (τf near zero is difficult to achieve) and ultra-low loss (tanδ < 10^-5) reproducibility, which are critical for millimeter-wave 6G applications.
