Key Takeaways & Executive Findings
- •• • The HEN-0.2Mo ceramic achieves an Arrhenius linearity of R² = 0.99907 across −50 to 1250 °C with a B-value fluctuation of only 4.44%, directly enabling calibration-free NTC thermistor operation in hypersonic engine monitoring where conventional spinels fail above 300 °C due to exponential drift. • • Grain and grain-boundary activation energies are nearly identical (Eg = 1.209 eV, Egb = 1.218 eV; ΔEa = 0.009 eV), eliminating the space-charge-induced nonlinearity that plagues polycrystalline NTC ceramics and ensuring stable response under thermal cycling. • • After 1000 h aging at 1250 °C, the stabilized-stage resistance drift is only 1.09%, a tenfold improvement over typical spinel-based sensors, which translates to reduced recalibration intervals and lower maintenance costs in aerospace and industrial furnace applications. • • Mo doping at x = 0.2 preserves the monoclinic ferroelastic framework while broadening local cation-distance distributions and increasing displacement amplitudes, providing a scalable compositional lever for tuning transport properties without sacrificing phase stability.
Abstract
Advanced temperature-sensitive materials are critical for hypersonic propulsion and next-generation energy systems, yet long-term stability above 1000 °C remains a formidable barrier. Conventional transition-metal spinel oxides (e.g., Ni–Mn–Co–O) suffer phase decomposition and cation migration above 300 °C, causing exponential resistance drift. This work develops a Mo-regulated high-entropy ferroelastic niobate strategy for ultrawide-temperature negative-temperature-coefficient (NTC) thermosensitive ceramics. Density functional theory calculations reveal that A-site high-entropy facilitates Mo doping in (Ca0.2La0.2Ce0.2Eu0.2Gd0.2)NbO4. Mo doping broadens local atomic configurations, modulates ferroelastic domain structures, and increases atomic-scale displacement disorder, redistributing Hall transport contributions and reducing grain/grain-boundary transport barrier mismatch. The optimized HEN-0.2Mo ceramic exhibits highly linear Arrhenius behavior (R² = 0.99907) from −50 to 1250 °C with a B-value fluctuation of only 4.44%. High-temperature impedance analysis confirms closely matched grain and grain-boundary activation energies (Eg = 1.209 eV, Egb = 1.218 eV; ΔEa ≈ 0.009 eV). During 1250 °C aging, postdensification and strain redistribution yield a stabilized-stage resistance drift of only 1.09% after 1000 h. These findings demonstrate that entropy-stabilized defect engineering decouples sensitivity from degradation in functional ceramics under thermal stress.
1. Introduction
Hypersonic propulsion, aerospace thermal management, and next-generation energy conversion systems demand temperature sensors that operate reliably above 1000 °C with high sensitivity and long-term stability. Negative temperature coefficient (NTC) thermistors outperform thermocouples in sensitivity, response speed, and integration density, yet commercial transition-metal spinel oxides (e.g., Ni–Mn–Co–O) undergo phase decomposition and uncontrolled cation migration above 300 °C, producing exponential resistance drift that invalidates calibration. Perovskite and fluorite alternatives face similar thermodynamic degradation, as equilibrium-driven phase transformations and grain-boundary segregation erode functional performance under sustained thermal stress.

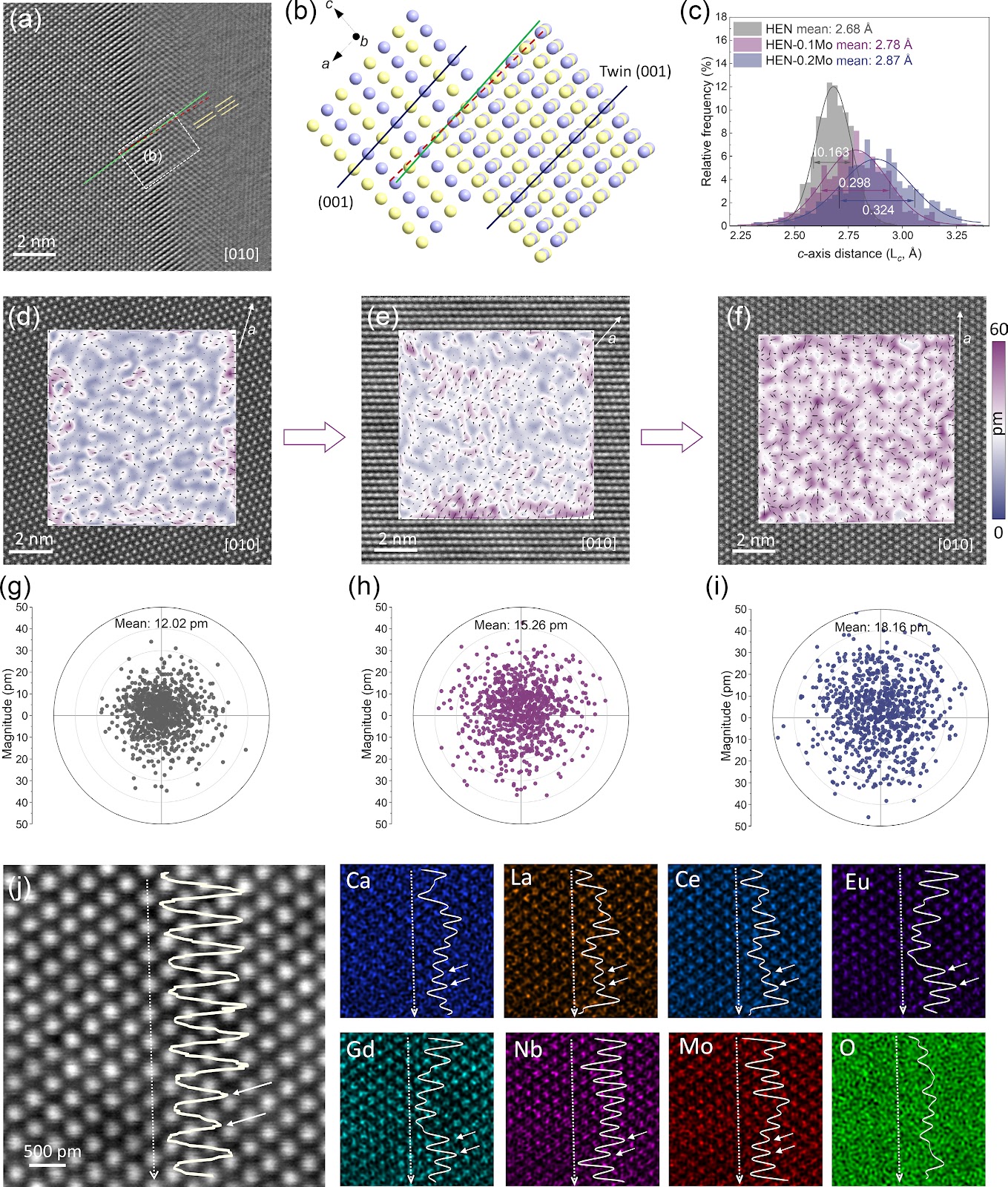

This work addresses the bottleneck by engineering a Mo-regulated high-entropy rare-earth niobate ceramic. A-site high-entropy in (Ca0.2La0.2Ce0.2Eu0.2Gd0.2)NbO4 facilitates Mo incorporation, which broadens local atomic configurations, reconfigures ferroelastic domains, and increases atomic-scale displacement disorder. These structural changes redistribute Hall transport contributions and reduce the mismatch between grain and grain-boundary transport barriers, yielding a homogenized energy landscape. The resulting HEN-0.2Mo ceramic exhibits linear Arrhenius behavior (R² = 0.99907) from −50 to 1250 °C, a B-value fluctuation of 4.44%, and a stabilized-stage resistance drift of only 1.09% after 1000 h at 1250 °C, demonstrating a viable pathway to decouple sensitivity from degradation in extreme-environment thermal sensing.
Loading authentic research manuscript (Pages 1–5)...
SUN Hao, XU Jianan, JIA Xuemei, DENG Hanao, CHEN Jia, XIE Congwei, LI Wenyuan, LIU Yafei, WU Ruifeng, CHANG Aimin, ZHANG Bo (2026). Homogenizing energy landscapes and microstructure enabling a linear and stable thermal sensing response in high-entropy niobates. Journal of Advanced Ceramics. https://doi.org/10.26599/JAC.2026.9221348
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the primary failure mechanism of conventional NTC thermistors above 300 °C, and how does the HEN-0.2Mo ceramic mitigate it?
Conventional spinel oxides (e.g., Ni–Mn–Co–O) undergo phase decomposition and uncontrolled cation migration above 300 °C, leading to exponential resistance drift. The HEN-0.2Mo ceramic mitigates this through A-site high-entropy stabilization and Mo doping, which homogenize the energy landscape and reduce grain/grain-boundary activation-energy mismatch to 0.009 eV, preserving linear Arrhenius behavior (R² = 0.99907) up to 1250 °C.
How does the aging-induced resistance drift of HEN-0.2Mo compare to legacy spinel-based sensors, and what is the industrial implication?
HEN-0.2Mo exhibits a stabilized-stage resistance drift of only 1.09% after 1000 h at 1250 °C. Legacy spinel sensors typically show drift exceeding 10% under similar conditions. This tenfold reduction directly lowers recalibration frequency and maintenance costs in aerospace and industrial furnace applications, where sensor replacement is logistically and financially burdensome.
What is the role of Mo doping in the transport mechanism, and why is the ΔEa = 0.009 eV mismatch critical?
Mo doping broadens local cation-distance distributions and increases atomic-scale displacement disorder, which redistributes Hall transport contributions and reduces the mismatch between grain and grain-boundary activation energies (Eg = 1.209 eV, Egb = 1.218 eV; ΔEa = 0.009 eV). This near-perfect match eliminates space-charge-induced nonlinearity, ensuring a smooth resistivity response and stable NTC behavior across the entire −50 to 1250 °C range.
What are the scalability and cost barriers for commercializing HEN-0.2Mo ceramics?
The synthesis relies on conventional solid-state processing and rare-earth oxides, which are cost-competitive with high-purity spinel precursors. The primary scalability challenge lies in achieving uniform Mo distribution and consistent A-site entropy across large batches; however, the compositional window (x < 0.2) preserves the monoclinic framework, reducing phase-purity risks. Pilot-scale validation is required to confirm batch-to-batch reproducibility of the 4.44% B-value fluctuation.
How does the B-value fluctuation of 4.44% impact sensor calibration and system integration?
A B-value fluctuation of 4.44% over −50 to 1250 °C indicates highly stable temperature sensitivity, enabling simplified linear calibration algorithms and reducing computational overhead in embedded sensor systems. This is particularly valuable for hypersonic propulsion control, where rapid, accurate temperature feedback is critical and recalibration opportunities are limited.
Related Chinese Research & Cross-Citations

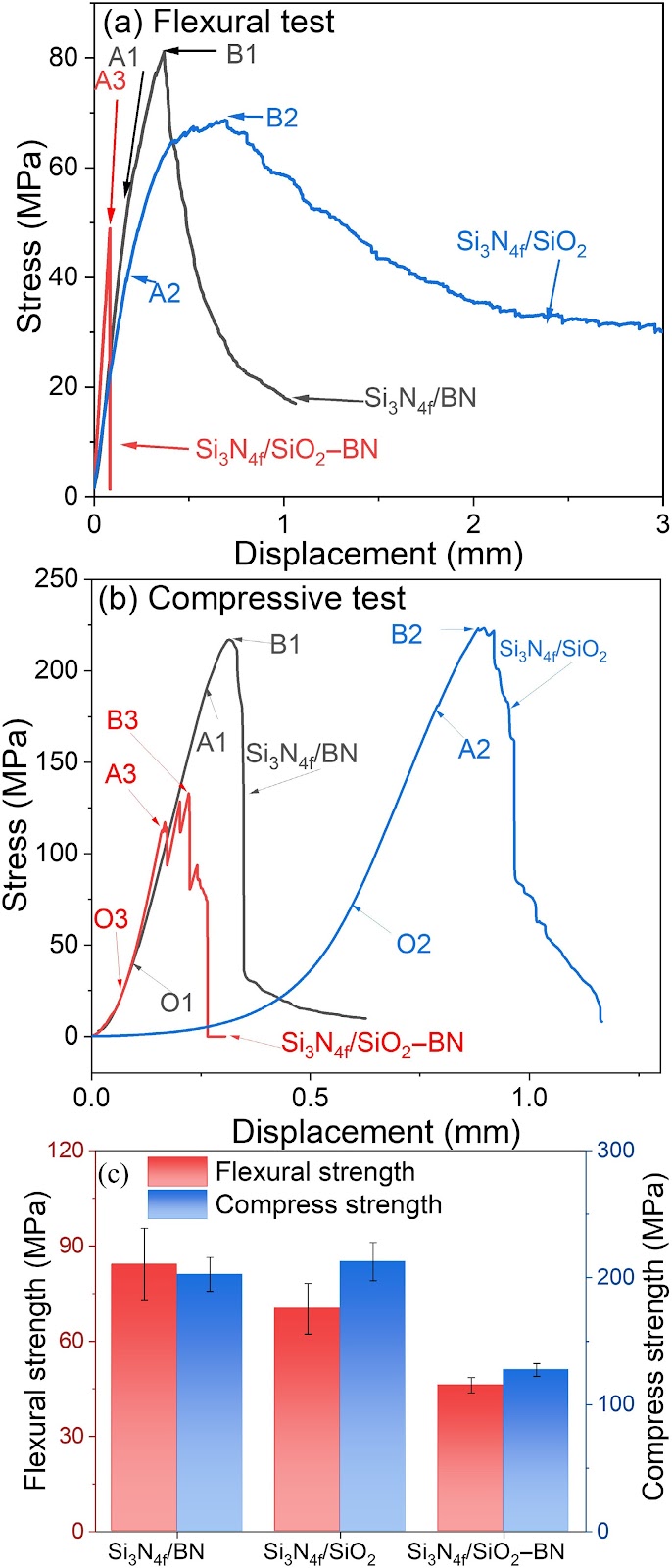

Revealing the influence of composition and interface on the mechanical and dielectric properties of Si3N4 fiber-reinforced ceramic composites
Si3N4 fiber-reinforced ceramic composites are candidate materials for high-temperature wave-transparent applications, yet the relationships among composition, interfacial characteristics, and mechanical performance remain inadequately understood. This study designs three composites—Si3N4f/BN, Si3N4f/SiO2, and Si3N4f/SiO2–BN—and systematically investigates their performances. The reaction between BN precursors and silanol groups in the SiO2 matrix during fabrication of Si3N4f/SiO2–BN enhances chemical compatibility between fiber and matrix, promoting elemental interdiffusion and forming a thicker interfacial diffusion region. Consequently, the interfacial shear strength of Si3N4f/SiO2–BN is 1.86 and 2.35 times that of Si3N4f/BN and Si3N4f/SiO2, respectively. The stronger fiber-matrix bonding in Si3N4f/SiO2–BN suppresses fiber pull-out, whereas weaker bonding in the other two composites permits it. Si3N4f/BN primarily exhibits fiber bundle pull-out, whereas Si3N4f/SiO2 shows long single-fiber pull-out, indicating improved damage tolerance. In contrast, Si3N4f/SiO2–BN displays typical brittle fracture behavior with minimal fiber pull-out and degraded mechanical properties. Excessive interfacial bonding, together with thermal residual stress arising from thermal expansion mismatch between the Si3N4 fiber and the matrix, degrades flexural and compressive strengths. Moreover, this excessive bonding restricts interfacial debonding and fiber pull-out, leading to a brittle fracture mode. Despite differences in interfacial microstructure, all three composites exhibit good dielectric properties. The use of SiO2 and BN matrices effectively reduces both the dielectric constant and the dielectric loss tangent of Si3N4 fiber-reinforced ceramic composites. These findings provide valuable insights into the design of high-temperature wave-transparent composites operated in extreme environments.

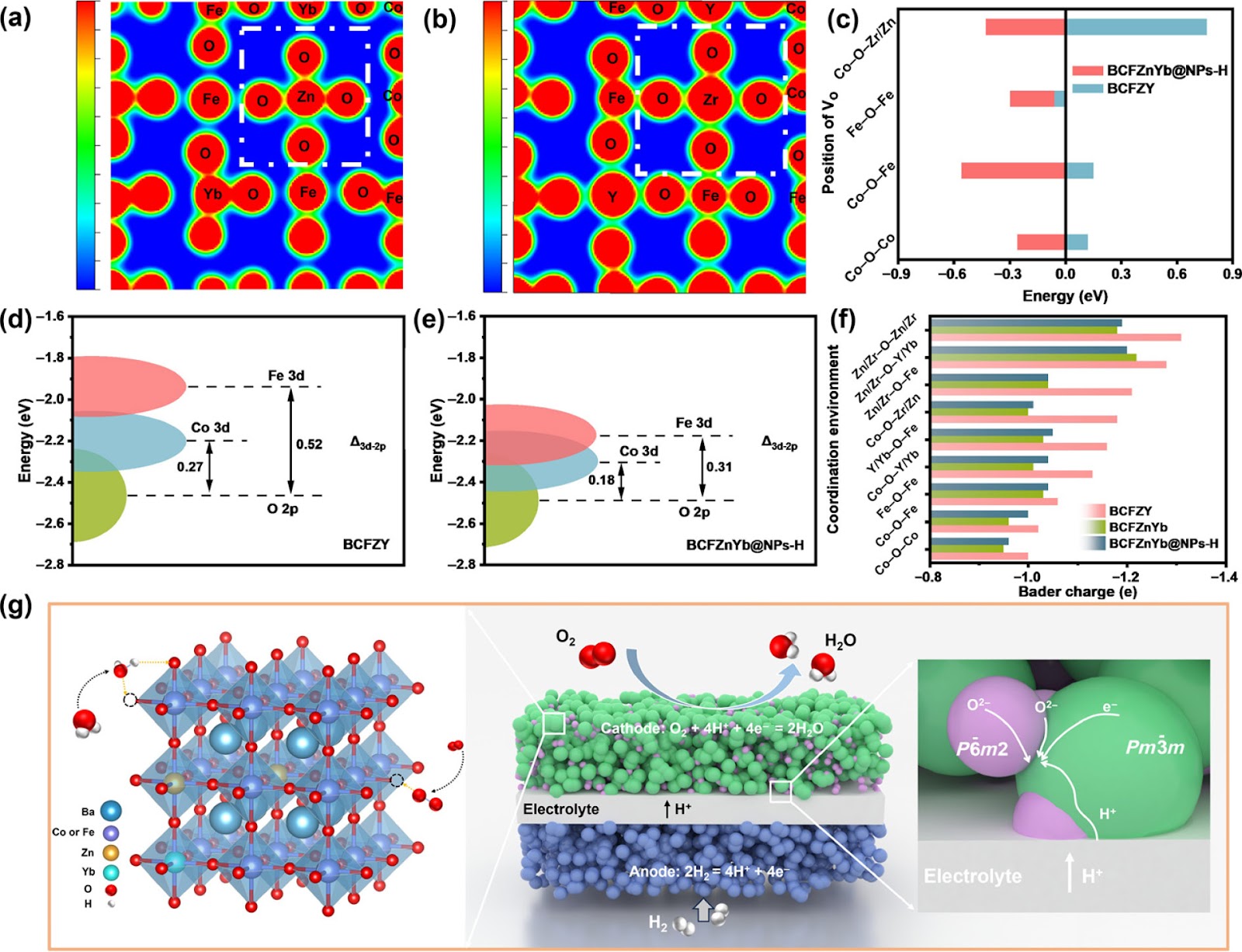

Cation-Driven Charge Modulation and In-Situ Exsolved Nanoparticles Enable a Self-Assembled Cathode for Proton Ceramic Solid Oxide Cells
Protonic ceramic fuel cells (PCFCs) offer efficient intermediate-temperature energy conversion but are constrained by the trade-off between insufficient electrode activity and limited operational durability. This work develops a Zn/Yb B-site codoping strategy combined with temperature-induced nanoparticle exsolution to construct a triple-conducting cathode. Cation-driven charge modulation enhances ionic diffusion and electronic conduction, while the exsolved secondary BaCoO3−δ phase increases active site density, optimizes interfacial charge transfer, and promotes oxygen reduction reaction (ORR) kinetics. Zn/Yb codoping redistributes local charge density, weakens metal–oxygen bonds, and reduces oxygen vacancy formation energy, promoting oxygen vacancy generation. The increased oxygen vacancy concentration facilitates surface oxygen activation and lattice hydration, enhancing oxygen-ion and proton transport. Enhanced d–p orbital hybridization improves electronic conductivity and accelerates charge transfer kinetics. Optimized alkaline–earth sites suppress carbonate formation, imparting excellent CO2 tolerance. The optimized cathode delivers a peak power density of 0.99 W·cm−2 at 600 °C and stable operation over 100 h, with a polarization resistance of 0.110 Ω·cm2 under 20% H2O-air. This work provides a novel strategy for optimizing activity, conductivity, and stability in PCFC cathodes.

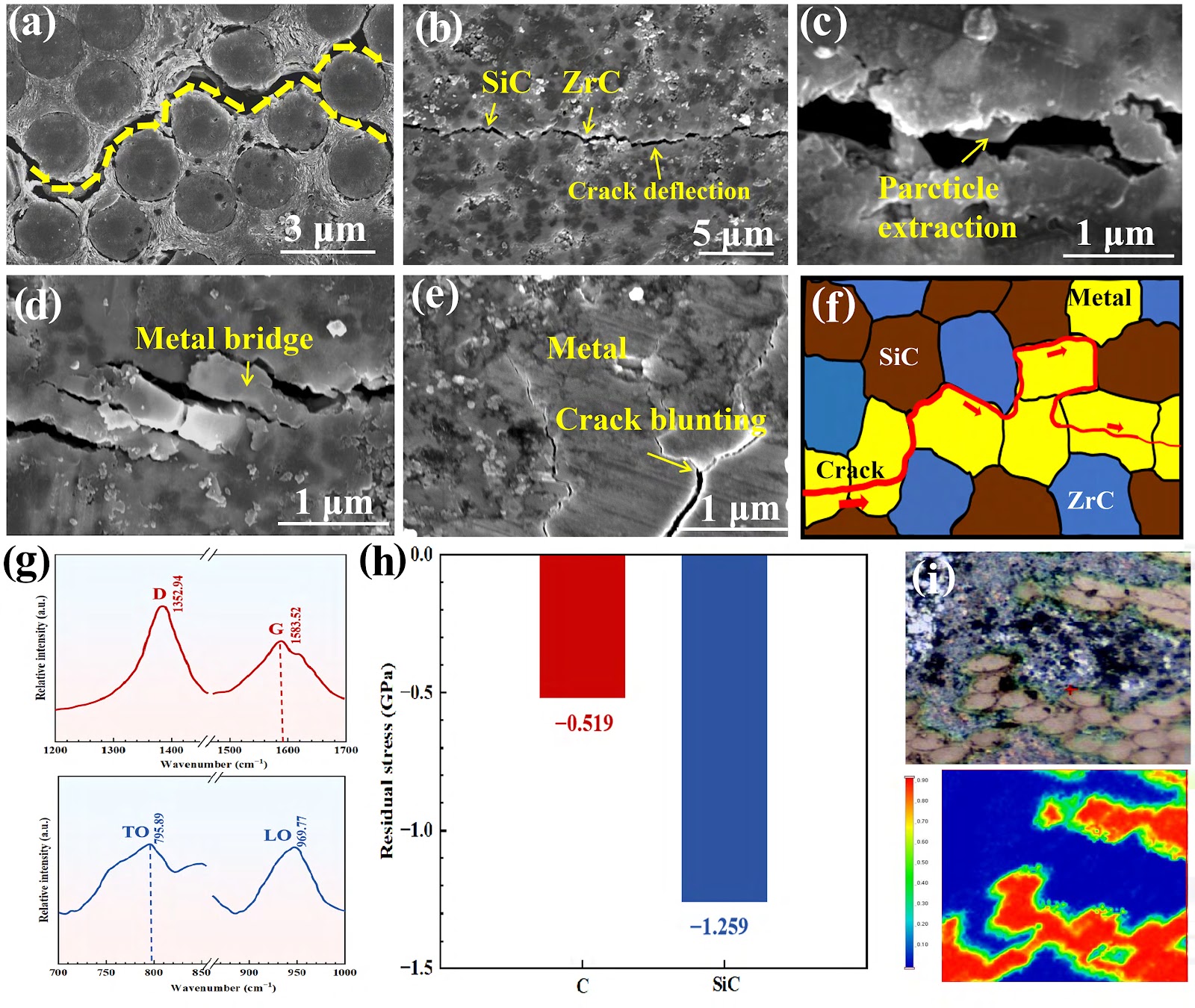

Exceptional Long-Duration Ablation Tolerance over 2500 °C of C/ZrC–SiC–Cu3Si–Cu Interpenetrating Composites
Carbon fiber-reinforced ultrahigh-temperature ceramic composites (C/UHTCs) based on ZrC–SiC are limited by rapid ablation above 2500 °C under prolonged oxidizing exposure. This study reports C/ZrC–SiC–Cu3Si–Cu interpenetrating composites fabricated by infiltrating a Zr–Si–Cu ternary melt into carbon fiber-reinforced carbon aerogel (C/CA) preforms. The process yields a uniform metal-ceramic matrix via ceramization of the carbon aerogel and in situ precipitation of Cu-containing phases. During oxyacetylene ablation at a surface temperature of 2557–2600 °C for 1200 s, the composite exhibits mass and linear ablation rates of 0.0604 mg·cm−2·s−1 and 0.1808 μm·s−1, respectively, surpassing conventional C/ZrC–SiC and other reported ceramic and ceramic-metal matrix composites under similar conditions. The ablation resistance arises from transpiration cooling via continuous evaporation of dispersed Cu-containing phases, which maintains a surface temperature of approximately 2300 °C under a heat flux of 3.18 MW·m−2, combined with a protective Zr–Si–O glassy layer that inhibits oxygen diffusion and resists mechanical denudation. The composite also demonstrates a flexural strength of 194±7 MPa, a fracture toughness of 11.8±1.2 MPa·m1/2, and a work of fracture of 5315±1232 J·m−2, exceeding most reaction-melt-infiltration-derived C/ZrC–SiC. These properties are attributed to the highly reactive carbon aerogel matrix, a protective PyC interface, optimized interfacial debonding, crack deflection mechanisms, and compressive residual stresses. The combination of active-passive cooling and robust mechanical performance positions this composite as a candidate for structural applications in extreme thermal-mechanical environments.

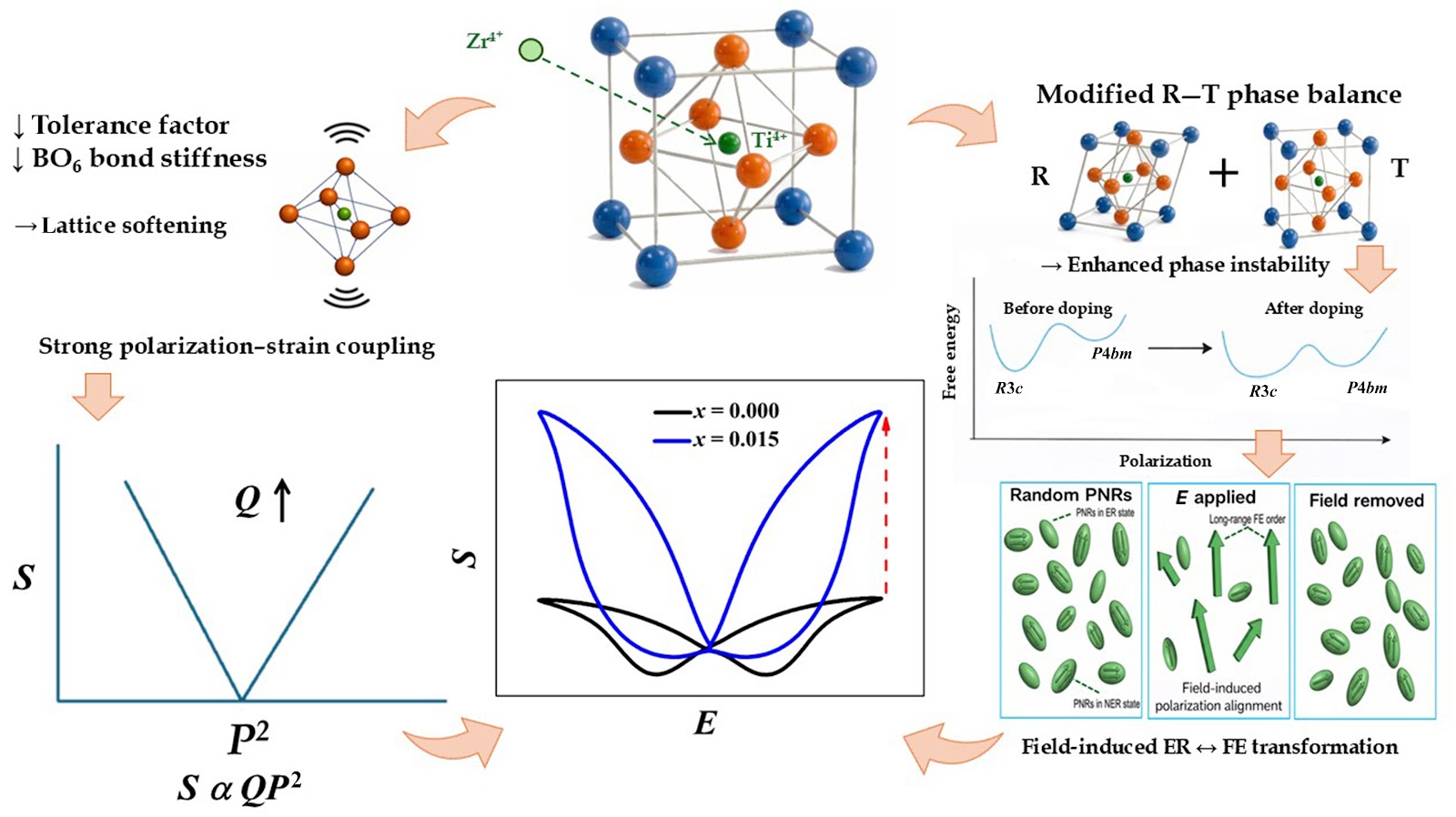

Breaking the strain–symmetry trade-off via electrostriction-mediated reversible phase transition in B-site-engineered BNKT-based ceramics
Lead-free piezoceramics face a persistent strain–symmetry trade-off: large electrostrain typically arises from irreversible polarization processes that degrade bipolar strain reversibility. This study investigates B-site Zr engineering in Bi0.495La0.005Na0.400K0.100Ti1−xZrxO3 (x = 0.000–0.025) to decouple strain magnitude from symmetry. The optimized composition (x = 0.015) achieves a large electrostrain of ~0.52% with a nearly symmetric bipolar S–E response and a normalized strain coefficient d*33 ≈ 867 pm/V. At x = 0.025, the electrostrictive coefficient reaches ~0.055 m4/C2, indicating strengthened electrostriction-dominated behavior. Structural analysis attributes the enhanced electromechanical response to Zr-induced lattice softening and R3c–P4bm phase coexistence, which flatten the free-energy landscape and promote reversible field-driven polarization dynamics. Reduced remanent polarization and coercive field suppress irreversible domain-wall motion, favoring electrostriction-governed strain generation. The electromechanically optimized composition also exhibits noncytotoxic behavior and preliminary surface mineral deposition after immersion in simulated body fluid (SBF), suggesting biofunctional potential. These findings establish B-site lattice engineering as an effective strategy for achieving large, nearly symmetric bipolar strain through electrostriction-dominated mechanisms in lead-free piezoceramics, with implications for actuator and biomedical applications.

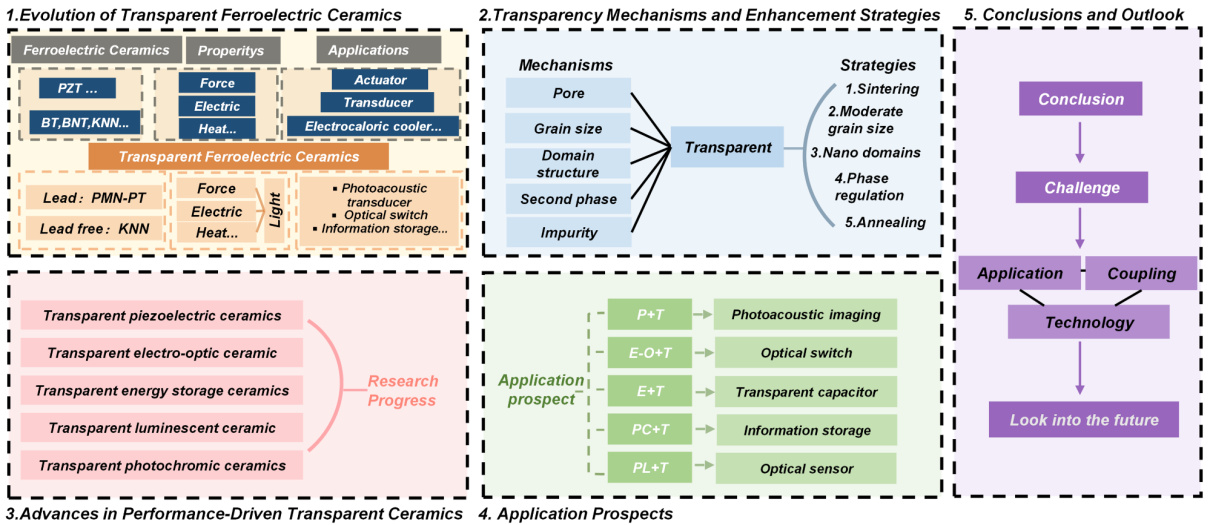

Transparent Ferroelectric Ceramics: From Fundamental Material Design to Multifunctional Optoelectronic Device Integration
The convergence of optics and electronics, driven by intelligent systems and wearable technologies, demands materials that seamlessly integrate optical transparency with robust electrical and mechanical functionalities. Transparent ferroelectric ceramics (TFCs) have emerged as a pivotal platform in this endeavor, uniquely bridging high optical transmittance with strong ferroelectric, piezoelectric, and electro-optic responses. This review comprehensively charts the evolution of TFCs, from fundamental material design to cutting-edge device applications. We systematically analyze the core strategies for achieving transparency in two representative transparent ferroelectric ceramic systems, namely lead-based (Pb(Mg1/3Nb2/3)O3–PbTiO3, abbreviated as PMN–PT) and lead-free ((K,Na)NbO3, abbreviated as KNN) systems, while also discussing other important systems such as (Pb,La)(Zr,Ti)O3 (PLZT), BaTiO3 (BTO), and (Bi0.5Na0.5)TiO3 (BNT) where appropriate for comparison. Critical mechanisms such as grain and domain engineering, refractive-index matching, phase-structure tuning, and defect control are examined. Representative functionalities—including transparent piezoelectricity, electro-optic modulation, energy storage, photoluminescence, and photochromism—are highlighted, with their potential applications evaluated across photoacoustic imaging, adaptive optics, transparent robotics, smart windows, and optical communication. Finally, we identify key challenges and future opportunities, such as high Curie temperature (Tc) design, texture engineering, and multifunctional co-integration. Overall, this review aims to provide theoretical insights and material-design foundations for next-generation multifunctional transparent ferroelectric devices, accelerating their adoption in intelligent sensing, integrated photonics, and transparent optoelectronic systems.

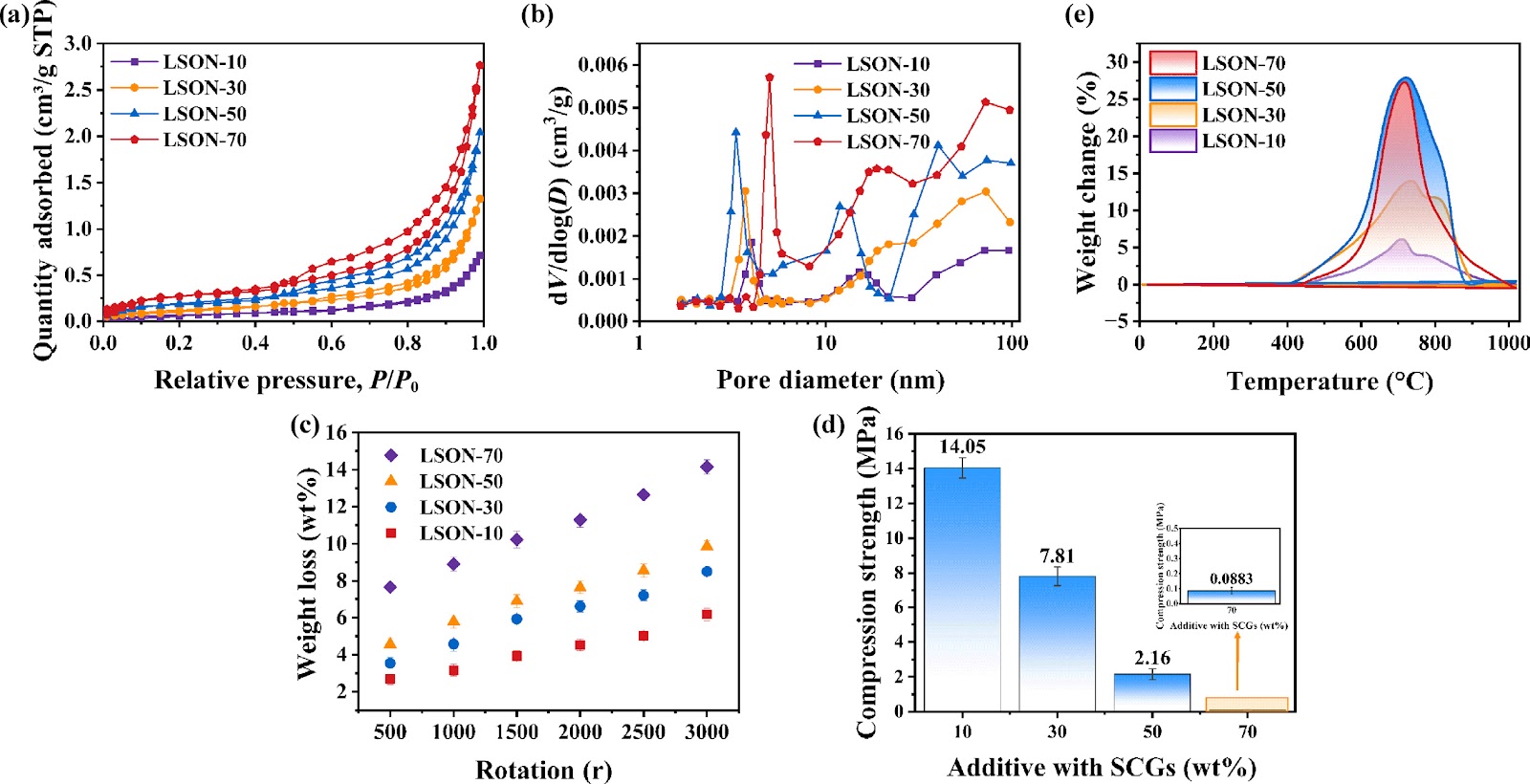

Spent coffee grounds as multifunctional modifiers for triple-synergistic enhancement of Li4SiO4 ceramic sorbents in high-temperature CO2 capture
