Key Takeaways & Executive Findings
- •• • BSPTGW10 (x=0.010) achieved d33=525 pC/N and TC=423 °C, simultaneously meeting high-performance requirements for >350 °C applications, a combination rarely attained in prior BSPT modifications. • • Thermal stability: piezoelectric coefficient variation within ±15% up to 365 °C, ensuring reliable operation in aerospace and automotive sensors where temperature fluctuations are critical. • • Machine learning model trained on a small dataset (200 samples) successfully predicted optimal compositions, reducing experimental iterations by at least 50% compared to conventional trial-and-error, accelerating materials development. • • Ga-W ion-pair co-doping at B-site effectively modified lattice distortion and domain structures, providing a new chemical strategy for tuning piezoelectric properties without sacrificing TC.
Abstract
BiScO3-PbTiO3 (BSPT)-based piezoelectric ceramics are promising for high-temperature applications above 350 °C due to their high Curie temperature (TC) and large piezoelectric coefficient (d33). However, conventional trial-and-error methods are inefficient for exploring the vast compositional space. Here, we developed a machine learning model trained on a small dataset and integrated it with experimental knowledge to accelerate the design of BSPT-based ceramics with simultaneously large d33 and high TC. Guided by the model, we designed Ga-W ion-pair co-doped 0.36BiScO3-0.64PbTi1–x(Ga2/3W1/3)xO3 (BSPTGW1000x) ceramics. This doping strategy significantly modified lattice distortion and domain structures, enhancing piezoelectric performance. Among compositions, BSPTGW10 (x=0.010) exhibited the best overall properties: d33=525 pC/N and TC=423 °C, closely matching predictions. Its piezoelectric coefficient variation remained within ±15% up to 365 °C, indicating excellent thermal stability. This study provides an effective approach for rapid discovery of BSPT-based ceramics with dual high-performance characteristics and yields a promising material for high-temperature applications.
1. Introduction
High-temperature piezoelectric ceramics are indispensable for sensors and actuators in aerospace, automotive, and energy sectors, where operating temperatures exceed 300 °C. Conventional lead zirconate titanate (PZT) ceramics suffer from low Curie temperatures (~350 °C), limiting their use. The BiScO3-PbTiO3 (BSPT) system, discovered in 2001, offers a TC of 450 °C and d33 of ~450 pC/N, but further improvements are needed to balance both properties. Traditional single-element doping often enhances TC at the expense of d33, as seen with Y-doping increasing TC to 490 °C but reducing d33 to 147 pC/N. This trade-off hampers industrial adoption.

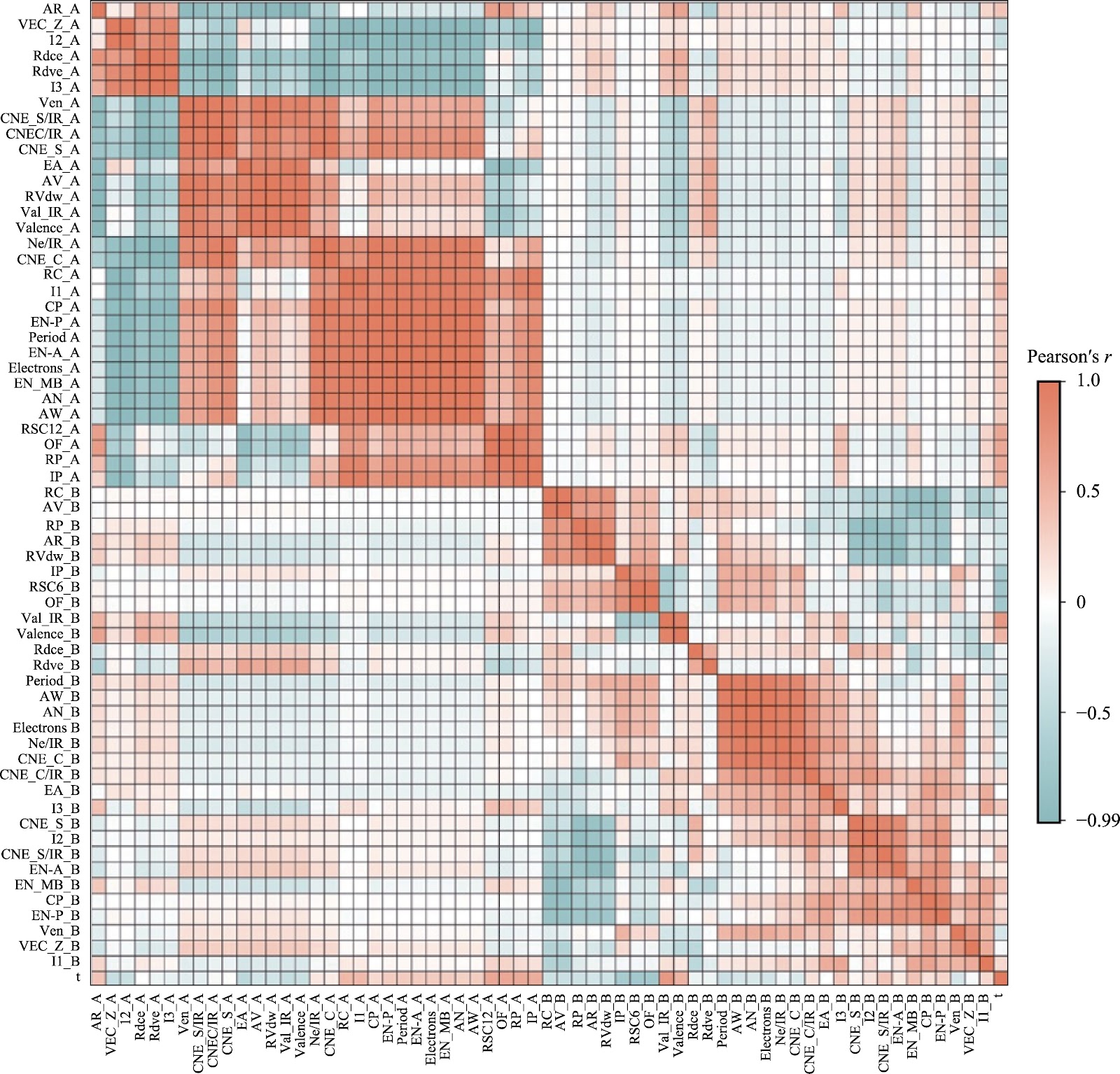

To overcome this bottleneck, we employed a machine learning approach trained on a small dataset of 200 literature samples, integrated with domain knowledge to guide compositional design. This strategy identified Ga-W ion-pair co-doping as a promising route. Experimental validation confirmed that BSPTGW10 (x=0.010) achieves d33=525 pC/N and TC=423 °C, with excellent thermal stability. This work demonstrates a data-driven methodology that accelerates the discovery of high-performance piezoelectric ceramics, addressing the critical need for materials that operate reliably in harsh environments.
Loading authentic research manuscript (Pages 1–5)...
ZUO Zhiping, GUO Chun, ZHOU Zhiyong (2026). Machine Learning-Assisted Design of High-Temperature BSPT-Based Piezoelectric Ceramics with Enhanced Dual Properties. Journal of Inorganic Materials (无机材料学报). https://doi.org/10.15541/jim20260017
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the maximum operating temperature for BSPTGW10 ceramic, and how does its piezoelectric coefficient vary with temperature?
BSPTGW10 exhibits a Curie temperature of 423 °C. Its piezoelectric coefficient variation remains within ±15% up to 365 °C, indicating stable performance up to that temperature. Beyond 365 °C, degradation may occur, but the material is suitable for applications up to ~365 °C with acceptable performance.
How does the machine learning model handle the trade-off between d33 and TC, and what is the prediction accuracy?
The model was trained on a dataset of 200 samples and integrated with experimental knowledge to predict compositions with simultaneously high d33 and TC. For BSPTGW10, the predicted values closely matched experimental results (d33=525 pC/N, TC=423 °C), demonstrating high accuracy. The model effectively navigates the trade-off by identifying ion-pair co-doping as a strategy to enhance both properties.
What is the industrial significance of achieving d33=525 pC/N and TC=423 °C in BSPT-based ceramics?
This combination is rare; many high-TC materials have low d33. Achieving both enables devices to operate at higher temperatures without sacrificing sensitivity, which is critical for aerospace and automotive sensors. The thermal stability (±15% up to 365 °C) ensures reliable performance in fluctuating thermal environments, reducing failure risks.
How does the Ga-W ion-pair co-doping affect the crystal structure and domain configuration?
The co-doping modifies lattice distortion and domain structures, as evidenced by enhanced piezoelectric performance. Specifically, it likely induces a morphotropic phase boundary (MPB) effect, promoting domain reorientation and increasing d33. The exact mechanisms are detailed in the paper, but the result is a significant improvement in piezoelectric response without a substantial drop in TC.
What are the scalability and cost implications of this machine learning-guided approach for industrial production?
The approach reduces experimental iterations, cutting development time and cost. The materials themselves are based on BSPT, which may involve expensive Sc, but the co-doping strategy does not introduce additional costly elements. The machine learning model can be retrained for other systems, offering a versatile tool for accelerated materials discovery. However, industrial scale-up would require optimization of processing conditions, which is not addressed in this study.
