Local Strain Engineering of Two-Dimensional Transition Metal Dichalcogenides Towards Quantum Emitters

Ruoqi Ai¹,Ximin Cui¹,Yang Li¹,Xiaolu Zhuo¹

Shenzhen University; The Chinese University of Hong Kong, Shenzhen

Read Executive PreviewQuick FAQ
Local Strain Engineering of Two-Dimensional Transition Metal Dichalcogenides Towards Quantum Emitters

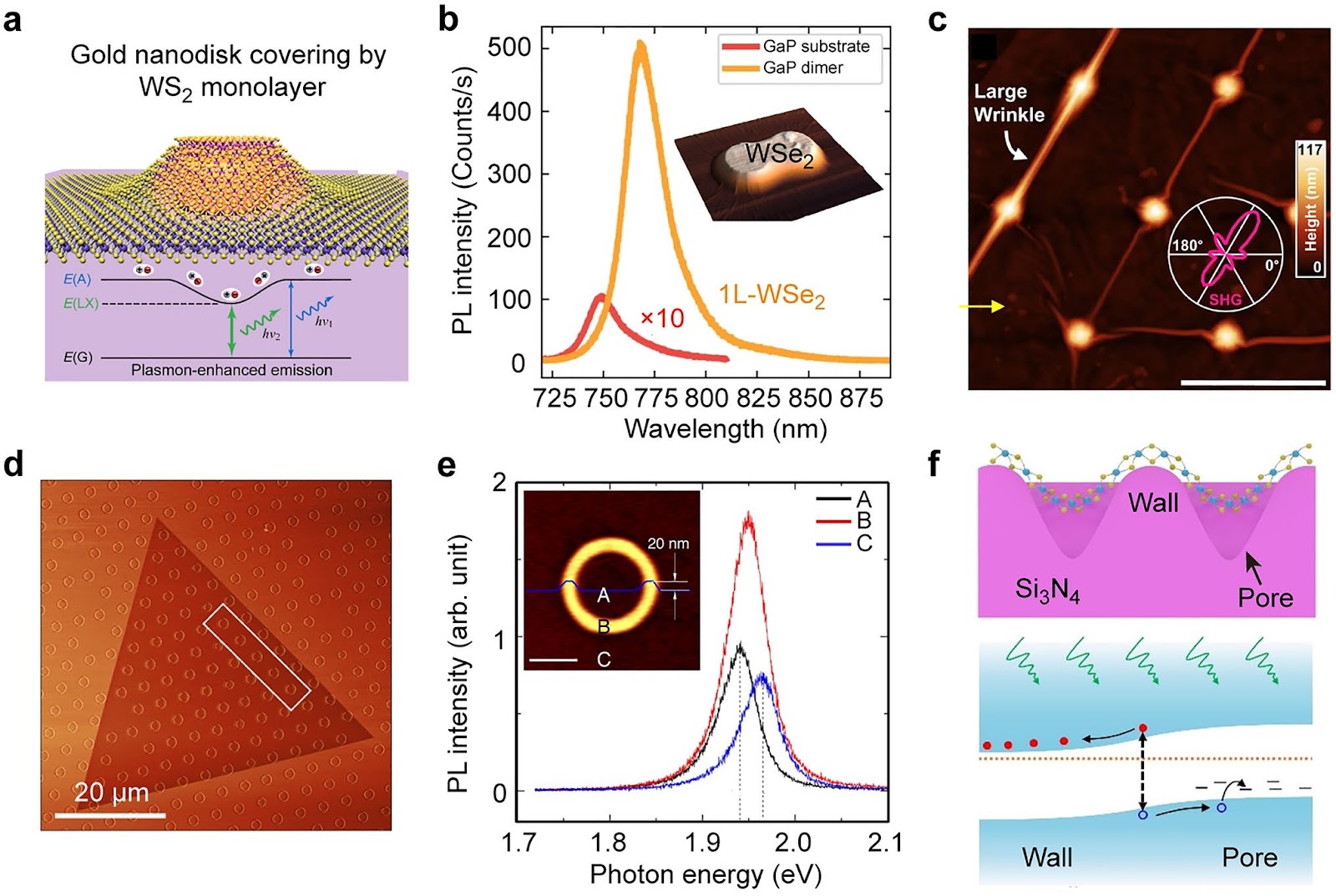

Graphical Abstract / Figure
Published In
Nano-Micro Letters
Published:January 8, 2025Edition:Vol. 17, Issue 104 • pp. 1-39Citation:Ruoqi Ai et al. (2025), Nano-Micro Letters
Impact FactorPeer-Reviewed Core
Source JournalNano-Micro Letters
Sponsored Research Partner
Keywords & Index Terms:Two-dimensional transition metal dichalcogenidesLocal strain engineeringQuantum emittersExcitonic behaviorsOptical propertiesSingle-photon sourcesStrain-induced deformation2D materials

Key Takeaways & Executive Findings

  • • State-of-the-art methods for introducing local strain into 2D TMDCs, including AFM tips, pre-strained elastomer substrates, and templated structures, are systematically reviewed. • Local strain engineering enables precise modulation of optical properties and excitonic behaviors, such as exciton funnelling and anti-funnelling, in 2D TMDCs. • Strained 2D TMDCs serve as deterministic quantum emitters with tunable emission energies, offering a promising platform for single-photon sources in quantum technologies. • The review highlights the potential of 2D TMDC-based quantum emitters for integration into optical cavities and waveguides, enhancing coherence and brightness for practical quantum applications.
Sponsored Research Highlight

Abstract

Two-dimensional transition metal dichalcogenides (2D TMDCs) have received considerable attention in local strain engineering due to their extraordinary mechanical flexibility, electronic structure, and optical properties. The strain-induced out-of-plane deformations in 2D TMDCs lead to diverse excitonic behaviors and versatile modulations in optical properties, paving the way for the development of advanced quantum technologies, flexible optoelectronic materials, and straintronic devices. Research on local strain engineering on 2D TMDCs has been delved into fabrication techniques, electronic state variations, and quantum optical applications. This review begins by summarizing the state-of-the-art methods for introducing local strain into 2D TMDCs, followed by an exploration of the impact of local strain engineering on optical properties. The intriguing phenomena resulting from local strain, such as exciton funnelling and anti-funnelling, are also discussed. We then shift the focus to the application of locally strained 2D TMDCs as quantum emitters, with various strategies outlined for modulating the properties of TMDC-based quantum emitters. Finally, we discuss the remaining questions in this field and provide an outlook on the future of local strain engineering on 2D TMDCs.

1. Introduction

Two-dimensional transition metal dichalcogenides (2D TMDCs) have garnered significant attention in recent years due to their exceptional electronic [1, 2], optical [3, 4], and mechanical properties [5]. The atomically thin nature of 2D TMDCs gives rise to a strong quantum confinement effect, which confines photons and electrons within the planar dimensions. This confinement enables a diverse range of distinct phenomena, such as direct-to-indirect bandgap transitions [6, 7], rich excitonic complexes [7, 8], and valley pseudospin [9]. These unique properties of 2D TMDCs make them promising candidates for a wide range of applications, including high-performance electronics [10], optoelectronics [8], and energy storage [11].

The extraordinary flexibility and mechanical properties of 2D TMDCs enable them to tolerate significant structural curvature and accommodate large deformations in both the in-plane and out-of-plane directions. Specifically, 2D TMDCs can withstand up to 10% strain, which is an order of magnitude higher than their bulk counterparts [12–15]. As morphology deformation occurs, lattice distance and symmetry are altered, leading to the tuning in electronic band structures. This in turn modulates the optical properties and excitonic behaviors of 2D TMDCs [16, 17]. For example, a direct-to-indirect bandgap transition has been detected in monolayer MoS2 under tensile strain in uniaxial or biaxial directions [18, 19]. Out-of-plane deformation can introduce a non-uniform strain gradient in 2D TMDCs, enabling novel phenomena such as exciton funnelling [20, 21] and exciton-exciton interactions [22, 23]. The formed local excitons exhibit non-classical quantum emission, whose positions and emission characteristics are deterministically controlled by local strain fields [24–27]. The energies of emitted photons can be easily adjusted by strain field [17]. These characteristics make 2D TMDCs competitive candidates for the construction of single-photon light sources [28, 29].

SinoTechIntel Interactive Document Reader
Page 1–5 of Preview
100%
Download Full PDF

Loading authentic research manuscript (Pages 1–5)...

Sponsored Research Partner
Cite This Research Paper
Ruoqi Ai, Ximin Cui, Yang Li, Xiaolu Zhuo (2025). Local Strain Engineering of Two-Dimensional Transition Metal Dichalcogenides Towards Quantum Emitters. Nano-Micro Letters. https://doi.org/10.1007/s40820-024-01611-1
SinoTechIntel Academic & Legal Disclaimer

Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.

Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.

Frequently Asked Questions

What are two-dimensional transition metal dichalcogenides (2D TMDCs)?

2D TMDCs are atomically thin materials with exceptional electronic, optical, and mechanical properties, making them promising for various applications including quantum technologies.

How does local strain engineering affect 2D TMDCs?

Local strain engineering introduces controlled deformations in 2D TMDCs, altering their electronic band structure and optical properties, leading to phenomena like exciton funnelling and enabling deterministic quantum emission.

What are the methods for introducing local strain into 2D TMDCs?

Common methods include using atomic force microscope (AFM) tips, pre-strained elastomer substrates, and integration of templated structures, each offering precise control over strain distribution.

Why are strained 2D TMDCs suitable for quantum emitters?

Strained 2D TMDCs can localize excitons at strain maxima, producing single-photon emission with tunable energies, high purity, and deterministic positioning, which is essential for quantum communication and computation.

What are the potential applications of 2D TMDC-based quantum emitters?

They can be integrated into optical cavities or waveguides to enhance single-photon coherence and brightness, and are promising for secure quantum communication, quantum computing, and on-chip photonic circuits.
