Key Takeaways & Executive Findings

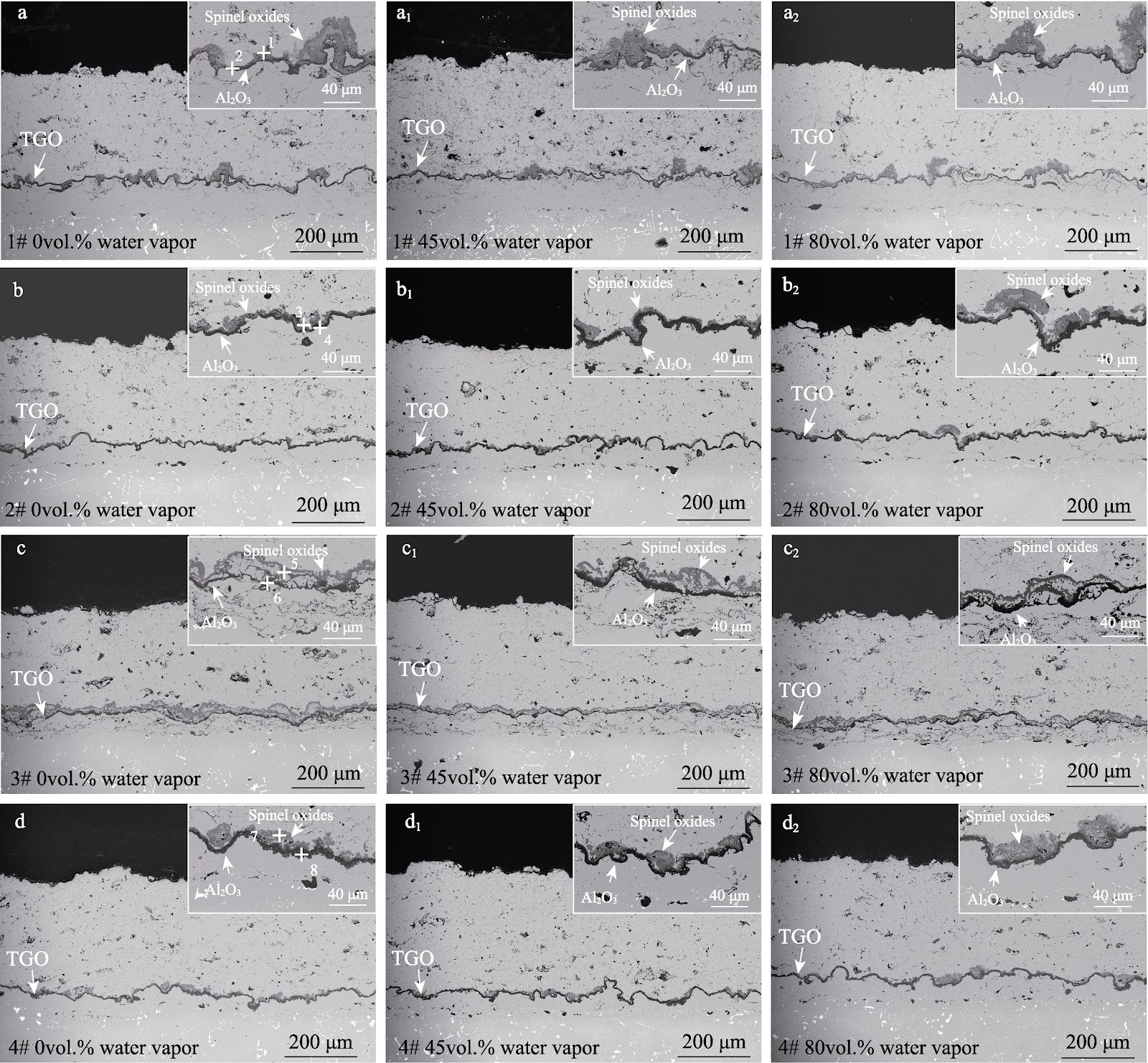

- •• • At 1050 °C and 80 vol.% water vapor, the spinel oxide fraction in the TGO of APS-sprayed bond coats increased markedly compared to 0 vol.% and 45 vol.% conditions, confirming that water vapor accelerates outward diffusion of metal ions and spinel growth; this directly threatens coating durability in hydrogen-blended turbines where steam partial pressures are high. • • HVOF-sprayed bond coats with dense lamellar interfaces reduced spinel oxide formation relative to APS-sprayed coats, because the porous, weakly bonded APS lamellae provide fast diffusion pathways for corrosive species; industrial adoption of HVOF for bond coat deposition can therefore extend TBC service intervals under high water vapor exposure. • • The NiCoCrAlTaY bond coat generated the lowest spinel oxide content after 100 h at 1050 °C across all water vapor levels, as Ta promotes rapid formation of a stable Al2O3 scale and suppresses diffusion of other metal cations; this composition offers a viable route for turbines operating with high humidity or hydrogen combustion, though performance above 1050 °C remains unverified. • • All TBC systems formed a dual-layer oxide scale with continuous, dense Al2O3 beneath uneven, porous spinel oxide; the spinel's brittleness and accelerated growth rate readily initiate cracks within the TGO, leading to premature failure, so controlling spinel content is a direct lever for extending coating life in commercial gas turbines.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
The high-temperature water vapor corrosion behavior of MCrAlY/8YSZ thermal barrier coatings (TBCs) was investigated to address the premature failure of bond coats in hydrogen-blended gas turbine environments. Four MCrAlY bond coats with distinct compositions and microstructures were deposited on MM247 substrates via high-velocity oxy-fuel (HVOF) spraying and atmospheric plasma spraying (APS), followed by APS-deposited 8YSZ ceramic top coats. Corrosion tests were conducted at 1050 °C for 100 h under water vapor contents of 0 vol.%, 45 vol.%, and 80 vol.%. Scanning electron microscopy and energy-dispersive spectroscopy revealed a dual-layer oxide scale consisting of spinel oxides and Al2O3 on all samples. The Al2O3 layer exhibited a continuous, dense microstructure, whereas the spinel oxide grew unevenly with internal porosity. Increasing water vapor content from 0% to 45% and then to 80% progressively elevated the spinel oxide fraction, accelerating bond coat degradation. HVOF-sprayed bond coats, characterized by dense lamellar interfaces, effectively suppressed inward penetration of corrosive species and outward diffusion of metal ions, yielding significantly lower spinel content than APS-sprayed counterparts. The addition of Ta promoted rapid formation of a stable Al2O3 scale and inhibited outward diffusion of other metal cations, with the NiCoCrAlTaY bond coat producing the lowest spinel oxide content and superior protection. These findings indicate that dense bond coat microstructures and Ta alloying are critical for extending TBC service life in high-humidity or hydrogen-blended combustion environments.
1. Introduction
Commercial gas turbine engines increasingly face operational demands that degrade thermal barrier coatings faster than legacy design assumptions permit. Hydrogen-blended combustion and high-humidity environments introduce elevated water vapor partial pressures at temperatures exceeding 1000 °C, conditions under which conventional MCrAlY bond coats form mixed oxide scales rather than the desired pure, slow-growing Al2O3. The resulting spinel oxides are brittle, porous, and grow at accelerated rates, driving early crack initiation within the thermally grown oxide and triggering premature spallation of the ceramic top coat. Existing APS-deposited bond coats, while cost-effective, contain inter-lamellar porosity and weak splat interfaces that serve as fast diffusion paths for both inward oxygen transport and outward metal cation migration, exacerbating spinel formation.
This study systematically isolates the effects of bond coat microstructure and composition on high-temperature water vapor corrosion by comparing four MCrAlY variants deposited via HVOF and APS, each topped with an APS 8YSZ ceramic layer. Testing at 1050 °C for 100 h under 0, 45, and 80 vol.% water vapor quantifies how steam content alters spinel-to-Al2O3 ratios and identifies the mechanisms by which dense HVOF structures and Ta alloying suppress cation diffusion. The experimental protocol directly addresses the bottleneck of premature TGO failure in hydrogen-capable turbines, providing empirical thresholds for bond coat selection and pointing toward alloying strategies that maintain a single, stable Al2O3 scale under severe water vapor attack.
Loading authentic research manuscript (Pages 1–5)...
ZHANG Xiao, SU Jianhao, SHEN Hongyu, LIU Guanghua, CHEN Weijie, WANG Lu, XIAO Fei, WANG Jingyang (2026). Investigation on High Temperature Water Vapor Corrosion Behavior of MCrAlY/8YSZ Thermal Barrier Coatings. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.08.003
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the dominant failure mechanism of MCrAlY/8YSZ TBCs under high-temperature water vapor, and how does spinel oxide content quantitatively affect coating life?
The dominant failure mechanism is crack initiation within the thermally grown oxide (TGO) driven by uneven, porous spinel oxide growth. After 100 h at 1050 °C, samples exposed to 80 vol.% water vapor showed a markedly higher spinel fraction than those at 0 vol.% or 45 vol.%, because water vapor accelerates outward diffusion of metal cations from the bond coat. The spinel oxide is more brittle and grows faster than the continuous, dense Al2O3 layer, creating stress concentrations that initiate cracks and lead to premature spallation. Controlling spinel content is therefore directly correlated with extended service life.
How does the deposition method (HVOF vs. APS) for the bond coat influence corrosion resistance under 80 vol.% water vapor at 1050 °C?
HVOF-sprayed bond coats exhibit a dense microstructure with well-bonded lamellar interfaces, which blocks inward penetration of water vapor and oxygen and suppresses outward diffusion of metal ions. In contrast, APS-sprayed bond coats contain significant porosity and poor inter-splat bonding, providing channels for corrosive species and cation migration. After 100 h at 1050 °C and 80 vol.% water vapor, APS-sprayed samples formed substantially more spinel oxide in the TGO than HVOF-sprayed samples, confirming that HVOF deposition significantly improves overall water vapor corrosion resistance.
What is the specific role of Ta in NiCoCrAlTaY bond coats, and what empirical evidence supports its protective effect?
Ta promotes rapid formation of a stable, continuous Al2O3 scale and itself forms stable oxides that inhibit the outward diffusion of other metal cations such as Ni, Co, and Cr. Among the four bond coat compositions tested, the NiCoCrAlTaY system produced the lowest spinel oxide content after 100 h at 1050 °C under all water vapor conditions (0, 45, and 80 vol.%). This indicates superior protection and suggests viability for high-humidity or hydrogen-blended turbine environments, although performance at temperatures above 1050 °C requires further investigation.
Can the experimental results be directly scaled to industrial gas turbine components, and what are the remaining scalability bottlenecks?
The 100 h isothermal tests at 1050 °C with controlled water vapor provide a controlled ranking of bond coat performance, but industrial components experience thermal cycling, mechanical loading, and longer exposure times. The key scalability bottleneck is reproducing the dense HVOF microstructure on complex 3D geometries without compromising bond coat uniformity. Additionally, the Ta-containing NiCoCrAlTaY composition increases raw material cost, and its long-term stability under cyclic conditions and temperatures exceeding 1050 °C has not been established. Pilot-scale validation on actual turbine blades is required before full adoption.
What water vapor content threshold triggers a step-change in spinel oxide formation, and what are the implications for hydrogen-blended combustion?
The data show a progressive increase in spinel oxide fraction as water vapor content rises from 0 vol.% to 45 vol.% and further to 80 vol.%. While no single sharp threshold was identified, the 45 vol.% condition already produced a measurable increase relative to the dry condition, and 80 vol.% caused a further significant rise. This suggests that even moderate steam levels in hydrogen-blended combustion (which can generate 30–60 vol.% water vapor) will accelerate bond coat degradation. Turbines designed for hydrogen blends must therefore specify dense HVOF bond coats and Ta-containing alloys to maintain a stable Al2O3 scale.
