Key Takeaways & Executive Findings
- •• • Flexural strength reaches (1679±78) MPa after OVCP treatment, a 31% improvement over the unannealed baseline, directly enabling ZTA components to withstand higher bending loads in cutting tools and biomedical implants without geometric redesign. • • Oxygen-vacancy compensation during air annealing generates a residual compressive stress field via constrained lattice expansion in the near-surface region, suppressing surface crack initiation under bending and eliminating the delamination failure mode of coated systems. • • The simplified bilayer model quantitatively captures the dependence of surface stress on oxygen-charged layer (OCL) thickness, providing a predictive design tool for tuning prestress levels through annealing time and temperature. • • The interface-free OVCP strategy avoids heterogeneous interfaces that cause thermally induced stress concentration and spallation in conventional prestressed ceramics, offering a cost-effective, scalable route for monolithic oxide strengthening.
Abstract

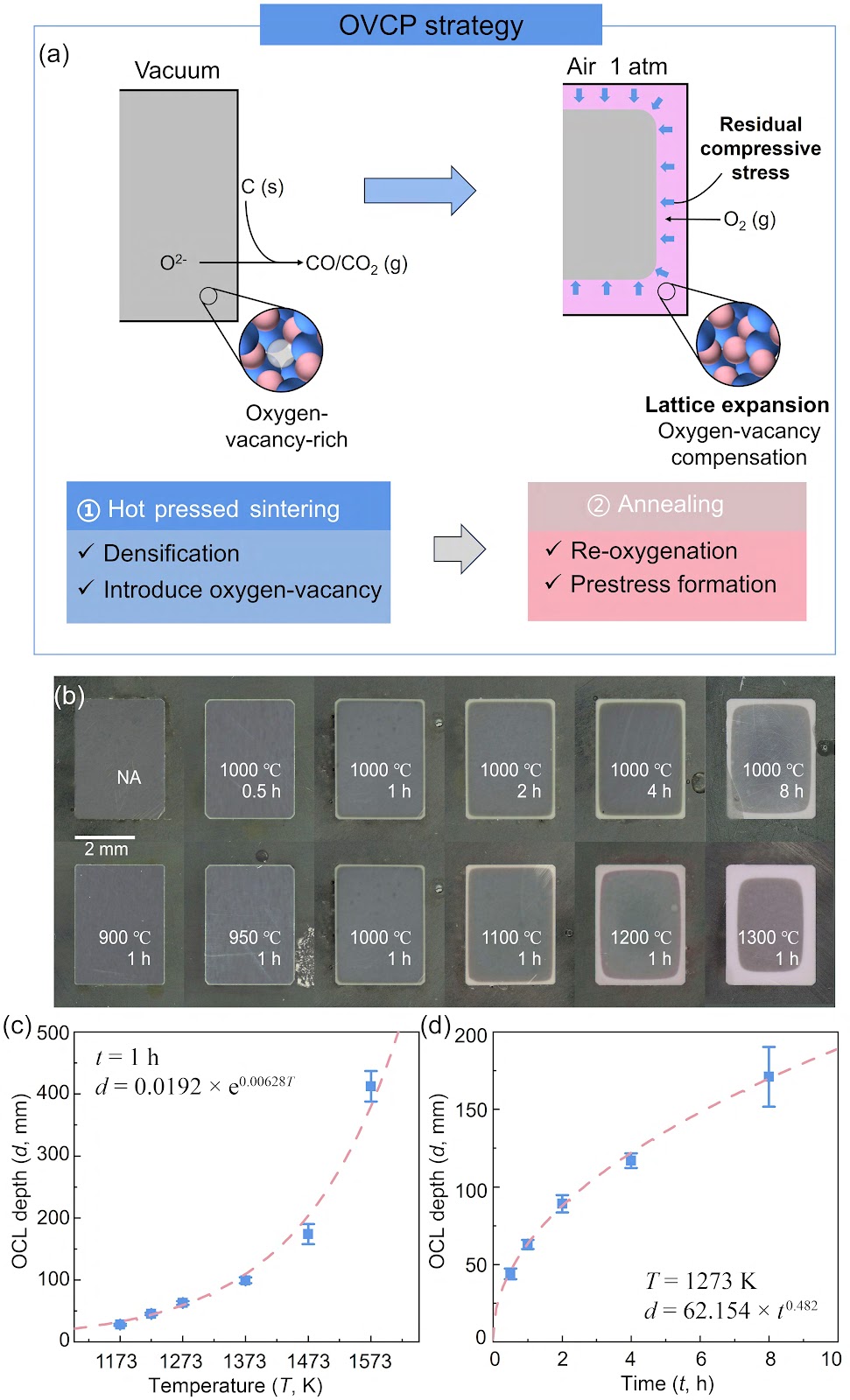

Achieving intrinsic surface compressive stress in monolithic oxide ceramics without heterogeneous interfaces remains a persistent challenge. This study introduces oxygen-vacancy compensation prestressing (OVCP), a defect-engineering strategy that generates in situ surface prestressing in zirconia-toughened alumina (ZTA). Oxygen vacancy-rich ZTA was first produced by vacuum hot pressing, followed by air annealing to induce surface reoxygenation and form an oxygen-charged layer (OCL). The optimized treatment increased flexural strength to (1679±78) MPa, a 31% improvement over the unannealed state. Mechanistically, oxygen-vacancy compensation during annealing induces lattice expansion in the near-surface region. Constrained by the less-oxidized interior, this expansion converts into a residual compressive stress field that suppresses bending-induced failure. A simplified bilayer model quantitatively supports the experimentally observed strengthening behavior. These findings establish oxygen vacancy-regulated lattice expansion as an effective mechanism for intrinsic surface prestressing, providing a simple, interface-free route for strengthening oxide ceramics. The approach circumvents delamination and interfacial debonding inherent to conventional coating or laminated architectures, offering a scalable pathway for high-performance structural oxide ceramics.
1. Introduction
Zirconia-toughened alumina (ZTA) ceramics dominate high-precision cutting tools, wear-resistant industrial components, and load-bearing biomedical implants such as femoral heads due to their hardness, chemical inertness, and fracture resistance. Despite state-of-the-art flexural strengths exceeding 1 GPa, further gains via bulk microstructural design—transformation toughening, grain-boundary engineering, and second-phase reinforcement—are approaching diminishing returns. These strategies increasingly demand complex processing or finely tuned dopant design, often compromising economic feasibility and long-term reliability. Surface prestressing offers a fundamentally different route by introducing a residual compressive layer that offsets applied tensile stress, but existing approaches rely on external coatings or laminated architectures with tailored thermal-expansion mismatch. Such heterogeneous interfaces introduce reliability concerns: delamination, interfacial debonding, and thermally induced stress concentration, which degrade retained prestress and structural integrity.
The OVCP strategy addresses this bottleneck by generating intrinsic surface compression directly within monolithic ZTA. Oxygen vacancies introduced during reducing-atmosphere sintering are selectively compensated in the surface region during post-annealing in air, forming an oxidized surface layer with residual compressive stress. This interface-free mechanism eliminates delamination and debonding failure modes while leveraging a simple, scalable heat-treatment step. The optimized treatment increases flexural strength to (1679±78) MPa, a 31% improvement over the unannealed state, and a simplified bilayer model quantitatively supports the experimentally observed strengthening trend. By converting defect chemistry into a mechanical prestress field, OVCP provides a generalizable pathway for enhancing the strength of oxide ceramics without heterogeneous interfaces.
Loading authentic research manuscript (Pages 1–5)...
CHEN Shile, FAN Wenkai, CHAI Liping, XIA Jing, LI Honghua, LI Jiangtao (2026). Intrinsic Surface Prestressing via Oxygen-Vacancy Regulation Enables High-Strength ZTA Ceramics. Journal of Advanced Ceramics. https://doi.org/10.26599/JAC.2026.9221346
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the exact flexural strength improvement and its statistical significance?
The optimized OVCP treatment increased flexural strength to (1679±78) MPa, representing a 31% improvement over the unannealed state. The reported error bar indicates one standard deviation from multiple measurements, confirming a statistically robust enhancement.
How does the OVCP mechanism avoid the delamination failure mode of coated or laminated ceramics?
OVCP generates a residual compressive stress field intrinsically within the monolithic ZTA via oxygen-vacancy compensation and constrained lattice expansion. No external coating or laminated interface exists, eliminating delamination, interfacial debonding, and thermally induced stress concentration that plague heterogeneous architectures.
What is the role of the oxygen-charged layer (OCL) thickness in the strengthening effect?
The simplified bilayer model captures the dependence of surface stress on OCL thickness. Constrained lattice expansion in the near-surface region converts to compressive stress; the model quantitatively supports the experimentally observed strengthening trend, enabling predictive tuning of prestress through annealing parameters.
What are the industrial scalability and cost implications of the OVCP process?
OVCP requires only vacuum hot pressing followed by air annealing—a simple, interface-free route compatible with existing ceramic processing lines. It avoids complex dopant design or multilayer fabrication, offering a cost-effective, scalable pathway for strengthening oxide ceramics without compromising economic feasibility.
Does the OVCP treatment compromise other mechanical properties such as hardness or fracture toughness?
The study reports a 31% flexural strength improvement to (1679±78) MPa while maintaining the intrinsic ZTA microstructure. The mechanism relies on surface defect regulation rather than bulk compositional changes, preserving the hardness and transformation-toughening characteristics of the ZTA matrix.
