Key Takeaways & Executive Findings
- •• This review offers an overview of recent advancements in conjugated polymers (CPs), with a thorough discussion of their molecular engineering. Key electronic properties are put forth that complement traditional inorganic semiconductor devices. • Key concepts and innovations in molecular engineering are discussed, highlighting advancements that improve device performance, with a particular focus on photovoltaics, organic field-effect transistors, and nonvolatile memory devices. • The current challenges in fabricating CP-based devices are explored, along with anticipated future developments and growing market demand. • CPs are poised to play an essential role in shaping next-generation technologies that prioritize performance, sustainability, and adaptability.
Abstract
Conjugated polymers (CPs) have emerged as an interesting class of materials in modern electronics and photonics, characterized by their unique delocalized π-electron systems that confer high flexibility, tunable electronic properties, and solution processability. These organic polymers present a compelling alternative to traditional inorganic semiconductors, offering the potential for a new generation of optoelectronic devices. This review explores the evolving role of CPs, exploring the molecular design strategies and innovative approaches that enhance their optoelectronic properties. We highlight notable progress toward developing faster, more efficient, and environmentally friendly devices by analyzing recent advancements in CP-based devices, including organic photovoltaics, field-effect transistors, and nonvolatile memories. The integration of CPs in flexible sustainable technologies underscores their potential to revolutionize future electronic and photonic systems. As ongoing research pushes the frontiers of molecular engineering and device architecture, CPs are poised to play an essential role in shaping next-generation technologies that prioritize performance, sustainability, and adaptability.
1. Introduction
Conjugated polymers (CPs) have significantly impacted the field of electronic and photonic devices in the twenty-first century, offering a versatile class of materials with properties that complement traditional inorganic semiconductors [1]. Traditional materials including silicon (Si), germanium (Ge), and gallium arsenide (GaAs), which have dominated research and industry and are known for their high performance and stability in devices like computer processors and solar panels, often face challenges including rigidity, high production costs, environmental concerns, and performance instability under extreme conditions. CPs’ mechanical flexibility and tunable bandgaps, with their easy and low-cost processing [2], have opened new avenues for device fabrication and application, including organic light-emitting diodes (OLEDs), organic photovoltaics (OPVs) [2–4], organic field-effect transistors (OFETs) [5, 6], and bioelectronics [7–11], making them especially useful for flexible and wearable devices [12].

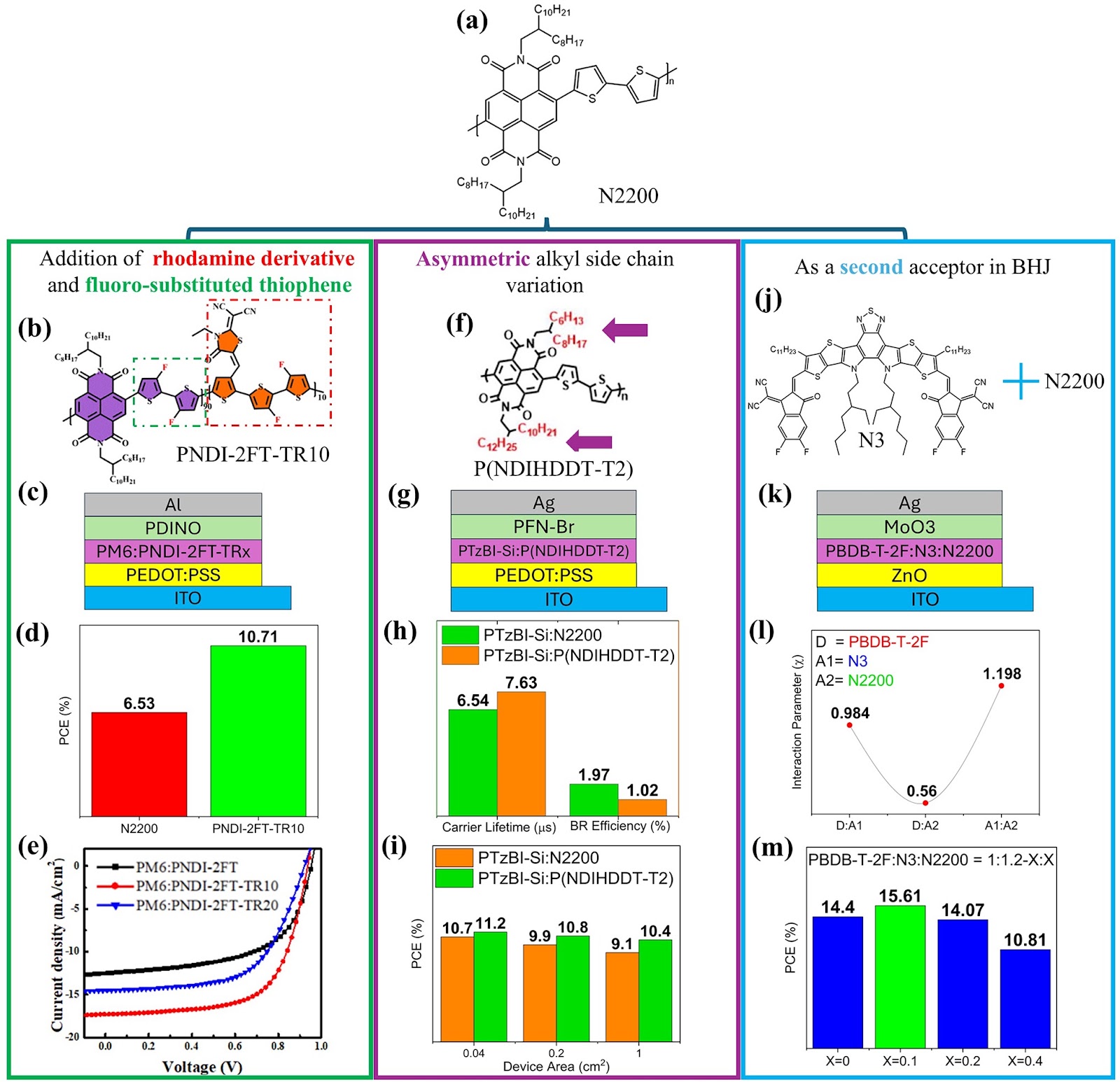

However, the path to widespread adoption of CPs has challenges [13]. They often exhibit lower stability and efficiency than traditional semiconductor devices, facing chemical and thermal stability limitations, power conversion efficiency, long-term operational stability, and environmental resilience [14]. CPs are susceptible to degradation under environmental factors such as heat, humidity, and UV exposure, which impacts the lifespan and reliability of CP-based devices. Furthermore, achieving consistent film quality and integration with existing CMOS-based technologies present processing challenges. To address these issues and reduce costs associated with fabrication, advanced fabrication techniques, like molecular engineering and nanostructuring, alongside hybrid approaches combining CPs with nanomaterials and inorganic semiconductors [15] are being explored. Innovations in solution-based and roll-to-roll printing [16] are also under development to enhance stability, improve charge transport properties [17, 18], and achieve uniform, high-quality films [19].
Loading authentic research manuscript (Pages 1–5)...
Amaan Chougle, Ayman Rezk, Syed Usama Bin Afzal, Abdul Khayum Mohammed, Dinesh Shetty, Ammar Nayfeh (2025). Evolving Role of Conjugated Polymers in Nanoelectronics and Photonics. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-01748-7
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are conjugated polymers (CPs) and why are they important in nanoelectronics and photonics?
Conjugated polymers are organic macromolecules with delocalized π-electron systems, offering high flexibility, tunable electronic properties, and solution processability. They are important because they provide a compelling alternative to traditional inorganic semiconductors, enabling flexible, low-cost, and environmentally friendly optoelectronic devices.
What are the main applications of conjugated polymers discussed in this review?
The review highlights applications in organic photovoltaics (OPVs), organic field-effect transistors (OFETs), and nonvolatile memory devices, along with potential in bioelectronics and flexible/wearable devices.
What challenges do conjugated polymers face in device fabrication?
Challenges include lower stability and efficiency compared to inorganic semiconductors, susceptibility to degradation from heat, humidity, and UV exposure, and difficulties in achieving consistent film quality and integration with existing CMOS technology.
How are researchers addressing the challenges of conjugated polymers?
Researchers are employing molecular engineering, nanostructuring, hybrid approaches with nanomaterials and inorganic semiconductors, and advanced fabrication techniques like solution-based and roll-to-roll printing to enhance stability, charge transport, and film quality.
What is the future outlook for conjugated polymers in electronics and photonics?
With ongoing research in molecular engineering and device architecture, conjugated polymers are expected to play a crucial role in next-generation technologies that prioritize performance, sustainability, and adaptability, potentially revolutionizing flexible and sustainable electronic and photonic systems.
