Key Takeaways & Executive Findings
- •• Multilayer copper–carbon nanofilms fabricated via plasma immersion deposition achieve up to 30.20% higher conductivity than pure copper. • Effective medium theory, first-principles calculations, and density of states analysis reveal the critical roles of copper atom adsorption sites and electron migration pathways in enhancing conductivity. • High-density electrons from copper migrate into the nanocarbon film under an applied electric field, forming efficient electron transport channels. • Large-scale electrode coating equipment was developed, enabling industrial production of copper–carbon nanocomposite films for high-conductivity applications.
Abstract

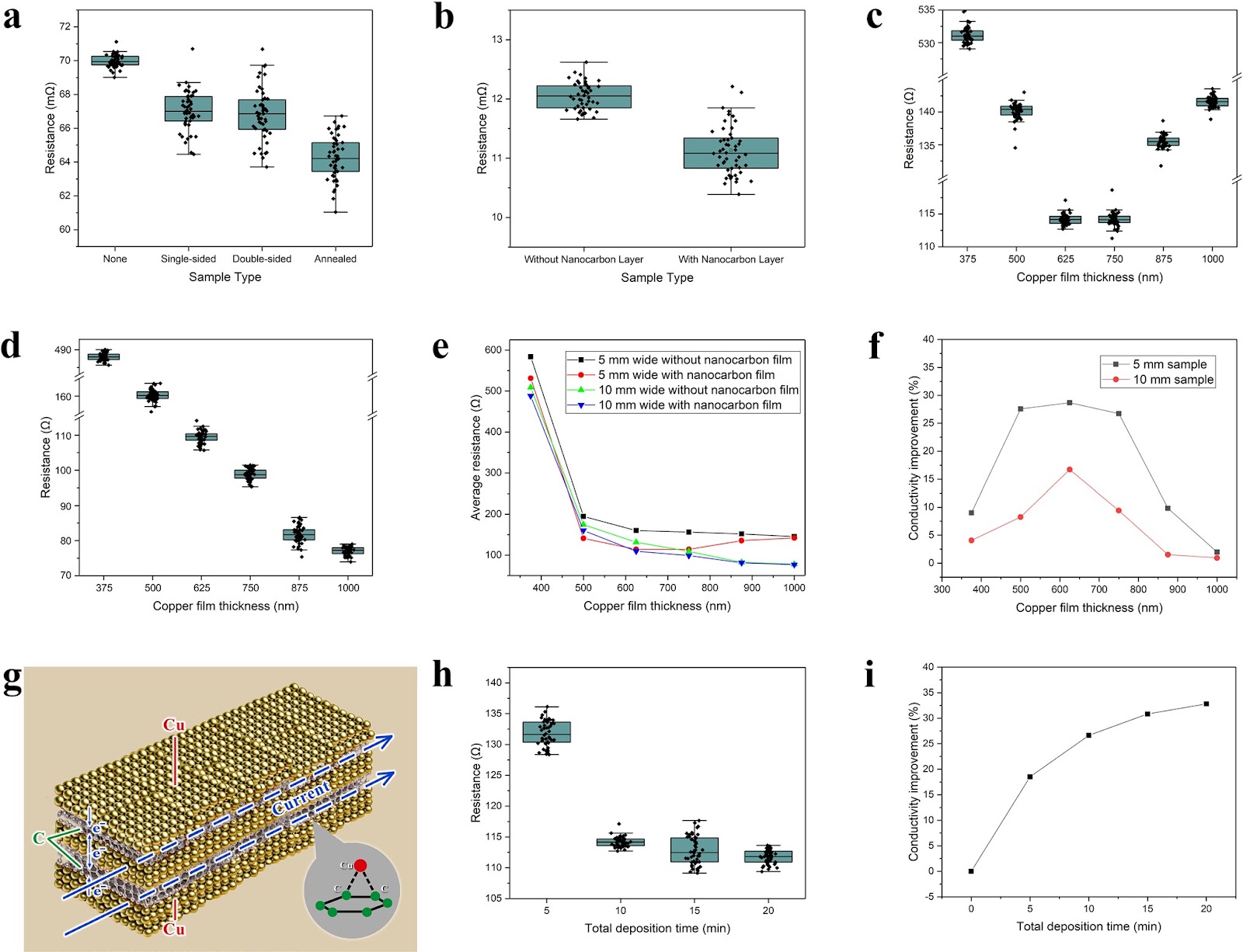

Although room-temperature superconductivity is still difficult to achieve, researching materials with electrical conductivity significantly higher than that of copper will be of great importance in improving energy efficiency, reducing costs, lightening equipment weight, and enhancing overall performance. Herein, this study presents a novel copper–carbon nanofilm composite with enhanced conductivity which has great applications in the electronic devices and electrical equipment. Multilayer copper–carbon nanofilms and interfaces with superior electronic structures are formed based on copper materials using plasma immersion nanocarbon layer deposition technology, effectively enhancing conductivity. Experimental results show that for a five-layer copper–carbon nanofilm composite, the conductivity improves significantly when the thickness of the carbon nanofilm increases. When the carbon nanofilm accounts for 16% of the total thickness, the overall conductivity increases up to 30.20% compared to pure copper. The mechanism of the enhanced conductivity is analyzed including roles of copper atom adsorption sites and electron migration pathways by applying effective medium theory, first-principles calculations and density of states analysis. Under an applied electric field, the high-density electrons in the copper film can migrate into the nanocarbon film, forming highly efficient electron transport channels, which significantly enhance the material’s conductivity. Finally, large-area electrode coating equipment is developed based on this study, providing the novel and robust strategy to enhance the conductivity of copper materials, which enables industrial application of copper–carbon nanocomposite films in the field of high conductivity materials.
1. Introduction
In recent years, more and more high-performance conductive materials have been extensively investigated owing to the rapid development of electronic devices and electrical equipment [1]. Ideally, superconductors would achieve the highest conductivity. However, since room-temperature superconductivity remains unattainable, copper, as the second most conductive metal after silver, has become widely used in practical applications due to its lower cost and abundant availability [2]. Enhancing the conductivity of copper holds significant importance in improving energy efficiency, reducing costs, decreasing equipment weight, and enhancing overall performance. Consequently, this has become a key research focus in the fields of physics and materials science [3].
Copper can provide exceptional conductivity with the property of high electron density of approximately 1.9 × 1029 electrons m−3 [3, 4]. However, significant electron–electron scattering in copper results in relatively low electron mobility, about 43 cm2 V−1 s−1, which limits the potential enhancements in conductivity [5, 6]. To overcome this challenge, an innovative approach combining copper with carbon-based nanocomposites has been extensively studied [7]. These composites not only retain the high electron density characteristics of copper but also enhance its conductivity by introducing carbon materials, fully utilizing the unique structural advantages of carbon. They exhibit excellent electrical, mechanical, and chemical properties [8, 9], thereby showing great potential for applications in the field of conductive materials [10].
Nanocarbon thin films, such as carbon nanotubes and graphene can present great potential for future applications in high-conductivity materials owing to their ultra-high electron mobility, which exceed 10,000 cm2 V−1 s−1 [11–13]. Therefore, a strategy of combining copper and nanocarbon film was proposed, in order to enhance the composite’s electrical conductivity significantly and address copper’s mobility limitation [14–16]. Numerous developments have been reported on the copper and nanocarbon film combination. In 2012, Kasichainula et al. achieved a 15–17% increase in conductivity when th...
Loading authentic research manuscript (Pages 1–5)...
Haotian Weng, Xiwu Zhang, Xuan Liu, Yunhui Tang, Hewei Yuan, Yang Xu, Kun Li, Xiaolu Huang (2025). Enhanced Conductivity of Multilayer Copper–Carbon Nanofilms via Plasma Immersion Deposition. Nano-Micro Letters. https://doi.org/10.1007/s40820-024-01628-6
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main achievement of this research?
The research demonstrates that multilayer copper–carbon nanofilms fabricated via plasma immersion deposition can achieve up to 30.20% higher conductivity compared to pure copper, offering a promising approach for high-conductivity materials.
How does the plasma immersion deposition technique work?
Plasma immersion deposition is used to deposit nanocarbon layers onto copper films, creating multilayer structures with enhanced electronic properties. This technique allows precise control over layer thickness and composition, leading to improved conductivity.
What is the mechanism behind the conductivity enhancement?
The enhancement is attributed to the migration of high-density electrons from copper into the nanocarbon film under an applied electric field, forming efficient electron transport channels. This is supported by effective medium theory, first-principles calculations, and density of states analysis.
What are the potential applications of this technology?
The technology can be applied in electronic devices and electrical equipment where high conductivity is crucial, such as electrodes, interconnects, and power systems. The developed large-scale coating equipment enables industrial production.
What is the significance of the carbon nanofilm thickness?
The study found that conductivity improves with increasing carbon nanofilm thickness up to a point. When the carbon nanofilm accounts for 16% of the total thickness, the maximum conductivity enhancement of 30.20% is achieved.
