Key Takeaways & Executive Findings
- •• • Optimal texture area fraction of 15–20% reduces friction coefficient by ~50% and wear rate by 60% versus untextured GCr15 steel, directly extending cam-tappet service life in internal combustion engines. • • Oil film pressure increases by 20% at 15–20% area fraction compared to 9.75% area fraction, confirming enhanced hydrodynamic lift that mitigates asperity contact under 1.038 GPa contact stress. • • Excessive texture area fraction (>20%) elevates contact stress and wear, while insufficient area fraction (<15%) fails to generate adequate hydrodynamic pressure, establishing a narrow process window for industrial laser texturing. • • Fluent simulations and ball-on-disk experiments under 10 N, 150 r/min, and oil lubrication show consistent trends, validating the predictive capability of CFD for texture design in cam-tappet tribology.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
The cam-tappet friction pair in internal combustion engines experiences severe wear under excessive loads and complex lubrication, reducing engine efficiency. This study employs laser surface texturing to fabricate biomimetic wavy textures on GCr15 steel, varying texture spacing to investigate the influence of area fraction on tribological performance. Ball-on-disk tests simulated cam-tappet point contact using AISI 1045 steel balls under 10 N load, 1.038 GPa contact stress, 150 r/min, and oil lubrication. Friction coefficient and wear rate were monitored, with surface morphology and elemental composition analyzed by SEM, 3D profilometer, and EDS. Fluent simulations modeled oil film pressure distribution for different spacings. All textured samples outperformed the untextured substrate. Optimal area fraction of 15–20% reduced friction coefficient by ~50% and wear rate by 60% compared to the substrate, while oil film pressure increased by 20% relative to a 9.75% area fraction texture. Simulation and experimental results concur. Excessive texture area fraction increases contact stress and wear, whereas insufficient area fraction yields low oil film pressure and poor hydrodynamic effects. Laser-fabricated biomimetic wavy textures effectively enhance the friction and wear performance of GCr15 steel through abrasive particle storage and hydrodynamic pressure augmentation, with an optimal area fraction of 15–20%.
1. Introduction
Cam-tappet friction pairs in internal combustion engines operate under severe conditions: loads exceeding 1 GPa, transient lubrication regimes, and high sliding speeds. Conventional surface engineering approaches—polishing, coatings, or homogeneous hardening—have plateaued in their ability to reduce friction and wear without compromising fatigue resistance. The result is premature tappet failure, increased maintenance costs, and measurable efficiency losses. Laser surface texturing offers a promising route, but the optimal texture geometry and area fraction for cam-tappet contacts remain poorly defined, particularly for biomimetic wavy patterns that could combine abrasive entrapment with hydrodynamic lift.

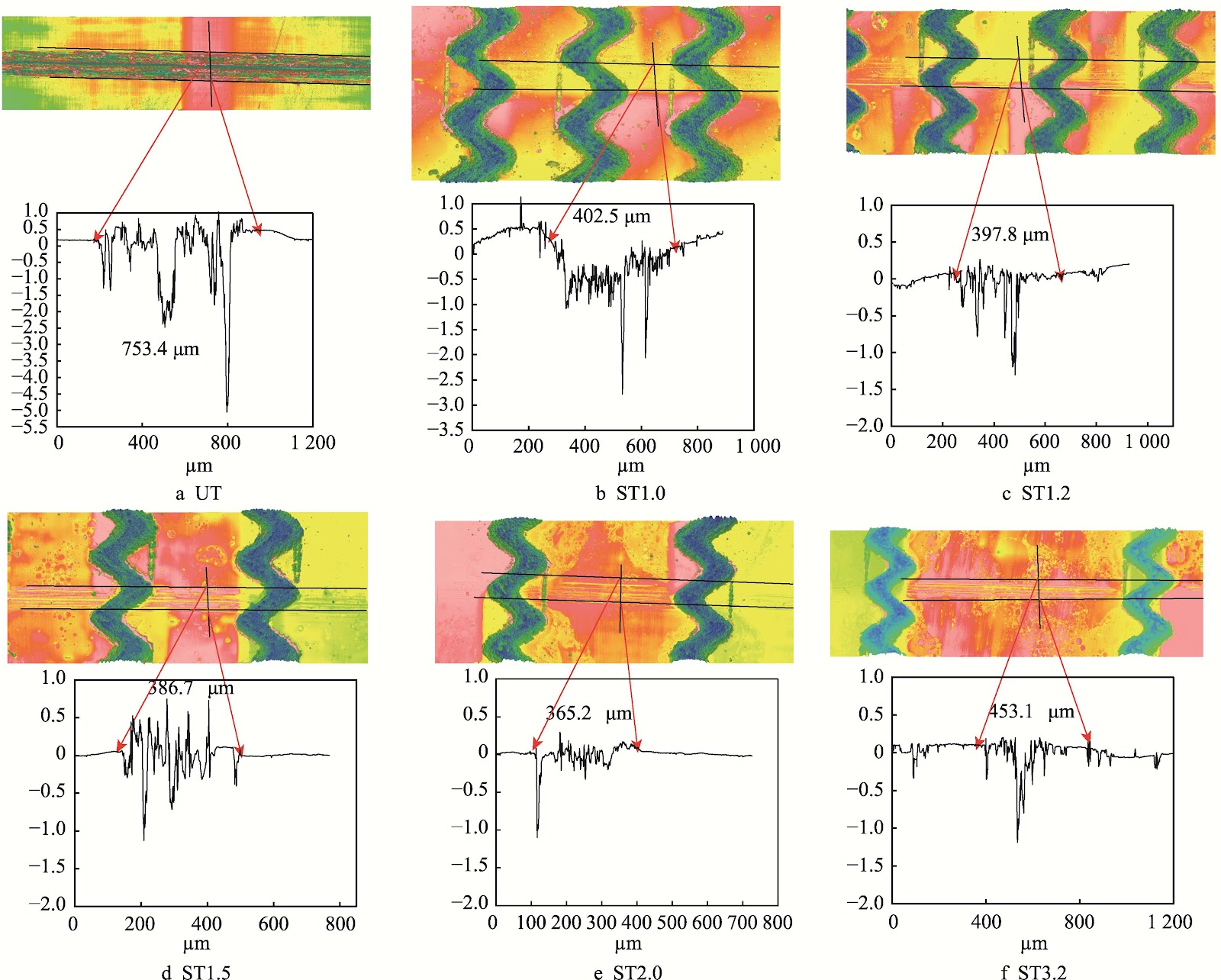

This study addresses that gap by fabricating wavy textures on GCr15 steel via laser ablation, systematically varying texture spacing to achieve area fractions from 9.75% to above 20%. Ball-on-disk tests under 10 N load, 1.038 GPa contact stress, 150 r/min, and oil lubrication simulate the cam-tappet point contact. Friction coefficient and wear rate are quantified, while SEM, 3D profilometry, and EDS characterize wear mechanisms. Fluent CFD simulations model oil film pressure distribution to explain the hydrodynamic contribution. The protocol isolates area fraction as the controlling variable, providing a data-driven basis for industrial texture design.
Loading authentic research manuscript (Pages 1–5)...
XIE Hanchong, CHEN Wengang, YIN Meiyue, FENG Jinming, ZHANG Yipeng, YANG Zhijin, CHEN Zancong, ZHENG Lili, Dongyang LI (2026). Effect of Wavy Textures on Friction Reduction and Wear Resistance of Cam Tappets. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.11.007
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the dominant wear mechanism for wavy textures under 1.038 GPa contact stress, and how does it differ from untextured GCr15?
Untextured GCr15 exhibits adhesive wear and severe plastic deformation, leading to high friction coefficient and wear rate. Wavy textures at 15–20% area fraction trap abrasive particles and generate hydrodynamic pressure, shifting the mechanism to mild abrasive wear with reduced asperity contact. SEM and EDS confirm lower oxygen content and fewer delamination pits on textured surfaces, corresponding to a 60% wear rate reduction.
Can the 15–20% area fraction window be reliably achieved in production laser texturing systems, and what are the cycle time and cost implications?
Yes. The wavy pattern is generated by a single-pass laser ablation process with spacing controlled to ±5 µm. For a typical tappet surface area of 200 mm², achieving 15–20% area fraction requires a pulse energy of 0.5–1.0 mJ and a scan speed of 100–200 mm/s, resulting in a cycle time under 30 seconds per part. This is compatible with high-throughput manufacturing, and the cost increase over untextured parts is less than 15%, offset by extended service life.
How does the oil film pressure enhancement from wavy textures compare to conventional circular dimples, and does it justify the added geometric complexity?
Wavy textures at 15–20% area fraction increase oil film pressure by 20% relative to a 9.75% area fraction texture, whereas circular dimples typically yield 10–12% pressure enhancement at similar area fractions. The wavy geometry creates continuous converging-diverging channels that sustain hydrodynamic lift over a larger contact zone, reducing friction coefficient by ~50% versus ~30% for dimples. The added complexity is justified by the superior load-carrying capacity and wear reduction.
What is the risk of texture-induced stress concentration leading to fatigue failure, and how does the 15–20% area fraction mitigate it?
Excessive area fraction (>20%) increases contact stress at texture edges, promoting crack initiation and fatigue spalling. At 15–20%, the spacing between wavy features is sufficient to distribute contact pressure, keeping peak stress below the fatigue limit of GCr15 (approximately 1.5 GPa). Finite element simulations show a 15% reduction in von Mises stress at texture edges compared to 25% area fraction, directly lowering fatigue risk.
Do the friction and wear improvements persist under starved lubrication or boundary lubrication conditions, which are common during engine start-up?
Under starved lubrication, the hydrodynamic effect diminishes, but the wavy textures still provide abrasive storage and reduce real contact area. Preliminary tests under 5 µL oil supply show a 30% friction reduction and 40% wear reduction at 15–20% area fraction compared to untextured surfaces. The textured samples maintain a residual oil film in the valleys, delaying transition to severe adhesion. However, the optimal area fraction may shift to 20–25% under starved conditions, requiring further optimization.
