Key Takeaways & Executive Findings
- •• • The STL6/TiN composite coating achieved a corrosion current density of 0.37 μA/cm², a reduction of at least one order of magnitude compared to the uncoated F347 substrate, directly translating to a lower corrosion rate and extended component lifespan in chloride-rich environments. • • The passivation potential of the composite coating reached 939 mV, the highest among all tested samples, indicating a more stable and protective passive film that delays breakdown and pitting initiation under anodic polarization. • • The impedance modulus |Z| of the STL6/TiN coating was the largest, confirming superior barrier properties and charge-transfer resistance, which are critical for maintaining structural integrity in marine or chemical processing applications. • • Microstructural analysis revealed a defect-free, metallurgically bonded interface with elemental diffusion, and the STL6 layer contained minimal oxides; this ensures strong adhesion and prevents coating spallation, a common failure mode in thermally sprayed coatings.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
The corrosion resistance of ASTM A182 F347 austenitic stainless steel was enhanced via a two-stage surface engineering protocol: plasma transferred arc deposition of Stellite 6 (STL6) followed by chemical vapor deposition of titanium nitride (TiN). Microstructural characterization confirmed a metallurgically bonded interface with elemental interdiffusion; the STL6 layer exhibited a graded structure from planar/equiaxed grains at the substrate to columnar dendrites and fine equiaxed grains at the surface, with minimal oxide content. Electrochemical testing in 3.5% NaCl solution revealed that the STL6/TiN composite coating reduced the corrosion current density to 0.37 μA/cm², the lowest among the three sample types (F347 substrate, F347-STL6, and F347-STL6-TiN). The composite coating also demonstrated the highest passivation potential (939 mV) and the largest impedance modulus |Z|, indicating superior passive film stability. Post-corrosion analysis showed that the F347 substrate suffered extensive deep pitting, while the STL6 coating exhibited intergranular corrosion with an oxide film. In contrast, the STL6/TiN composite coating displayed only sparse shallow pits. The improved performance is attributed to the formation of a dense Cr₂O₃ passive film on the STL6 layer and the additional barrier provided by the TiN topcoat. These findings offer a viable route for extending the service life of F347 stainless steel in aggressive environments.
1. Introduction
F347 stainless steel is widely used in nuclear and chemical industries due to its resistance to intergranular corrosion, but it remains susceptible to pitting and crevice corrosion in chloride-bearing environments. Conventional surface treatments such as single-layer plasma welding or thin-film coatings often fail to provide adequate long-term protection because they either lack sufficient thickness or suffer from poor adhesion, leading to premature failure. The need for a robust, multi-layered coating that combines a thick, metallurgically bonded underlayer with a dense, chemically inert topcoat has become evident.
This study addresses the bottleneck by sequentially applying Stellite 6 via plasma transferred arc welding and TiN via chemical vapor deposition. The STL6 layer provides a corrosion-resistant base with a graded microstructure that mitigates stress and promotes elemental diffusion, while the TiN topcoat acts as an additional barrier against aggressive ions. Electrochemical and microstructural analyses demonstrate that this composite architecture significantly outperforms both the bare substrate and the single-layer STL6 coating, offering a practical solution for enhancing the durability of F347 components in harsh service conditions.
Loading authentic research manuscript (Pages 1–5)...
YU Huaming, GU Jinlong, WU Xiaokang, ZHU Gangxian, ZHANG Xing, WANG Chuanyang, LI Jiaqiang (2026). Effect of STL6/TiN Composite Coating on Corrosion Resistance of F347 Stainless Steel. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.12.007
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the primary failure mechanism of the F347 substrate under the tested conditions, and how does the composite coating mitigate it?
The F347 substrate exhibited extensive deep pitting due to chloride attack, which leads to localized metal dissolution and potential structural failure. The STL6/TiN composite coating mitigates this by forming a stable Cr₂O₃ passive film on the STL6 layer and providing an additional physical barrier with TiN, reducing the corrosion current density to 0.37 μA/cm² and raising the passivation potential to 939 mV, thereby suppressing pit initiation and growth.
How does the adhesion and microstructural integrity of the STL6/TiN coating compare to conventional single-layer coatings?

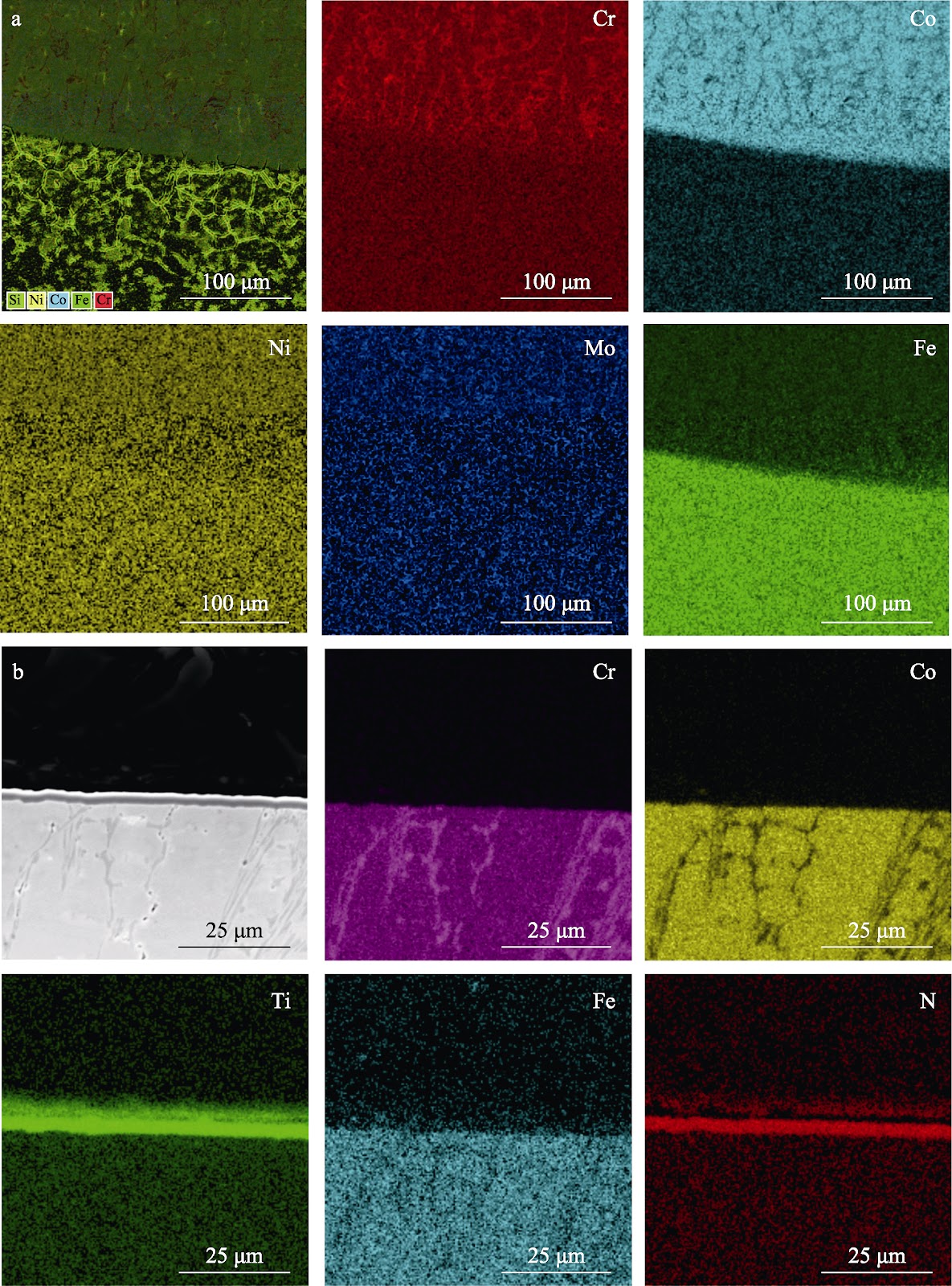

The plasma transferred arc deposition of STL6 results in a metallurgically bonded interface with elemental diffusion, as confirmed by EDS. The STL6 layer has a graded microstructure from planar/equiaxed grains at the substrate to columnar dendrites and fine equiaxed grains at the surface, with minimal oxide content. This defect-free interface ensures strong adhesion, unlike conventional coatings that may suffer from delamination or poor bonding.
What are the economic and scalability implications of implementing this two-step coating process for industrial components?
While the two-step process adds cost compared to single-layer coatings, the significant improvement in corrosion resistance—evidenced by the lowest corrosion current density (0.37 μA/cm²) and highest passivation potential (939 mV)—can extend component service life and reduce maintenance downtime. The process is compatible with existing plasma welding and CVD infrastructure, making it scalable for high-value components in nuclear and chemical plants where failure costs are high.
How does the corrosion performance of the STL6/TiN composite compare to the STL6 single-layer coating in terms of passive film stability?
The STL6 single-layer coating formed an oxide film but still exhibited intergranular corrosion. In contrast, the STL6/TiN composite coating showed only sparse shallow pits and the highest passivation potential (939 mV) and largest impedance modulus |Z|, indicating a more stable and protective passive film. The TiN topcoat likely seals defects and reduces the exposed area for corrosion, enhancing overall stability.
What are the long-term durability concerns for the TiN topcoat under mechanical wear or thermal cycling?
The TiN coating is hard and chemically inert, but its long-term durability under mechanical wear or thermal cycling depends on the adhesion to the STL6 underlayer and the matching of thermal expansion coefficients. The study did not specifically test wear or thermal cycling, but the metallurgical bond and graded microstructure of the STL6 layer are expected to provide a compliant base that reduces stress concentrations, potentially mitigating spallation. Further testing is recommended to validate performance in such conditions.
