Key Takeaways & Executive Findings
- •• • Calcium addition at 1.2 wt.% yields a peak ultimate tensile strength of 380.1 MPa and yield strength of 360.1 MPa with 10.4% elongation, outperforming the Ca-free baseline by a substantial margin, enabling lightweight structural components in aerospace and railway applications where high specific strength is critical. • • Ignition resistance escalates from 556 °C for ZK60 to 824 °C for the 1.8 wt.% Ca alloy, a 268 °C improvement that directly addresses the spontaneous combustion risk in high-temperature environments, potentially eliminating the need for costly rare-earth additions. • • The formation of a continuous CaO−MgO oxide layer with PBR values between 1 and 2 ensures protective scaling, as confirmed by the AVR value for CaO/MgO, providing a durable barrier against oxidation during thermal exposure. • • Microstructural evolution shows that Ca promotes Ca2Mg6Zn3 precipitation while inhibiting MgZn2 in as-cast alloys; after homogenization and extrusion, fragmented Ca2Mg6Zn3 particles and nanoscale MgZn2 precipitates combine with grain refinement to deliver precipitation strengthening and texture effects, achieving a balance of strength and ductility.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

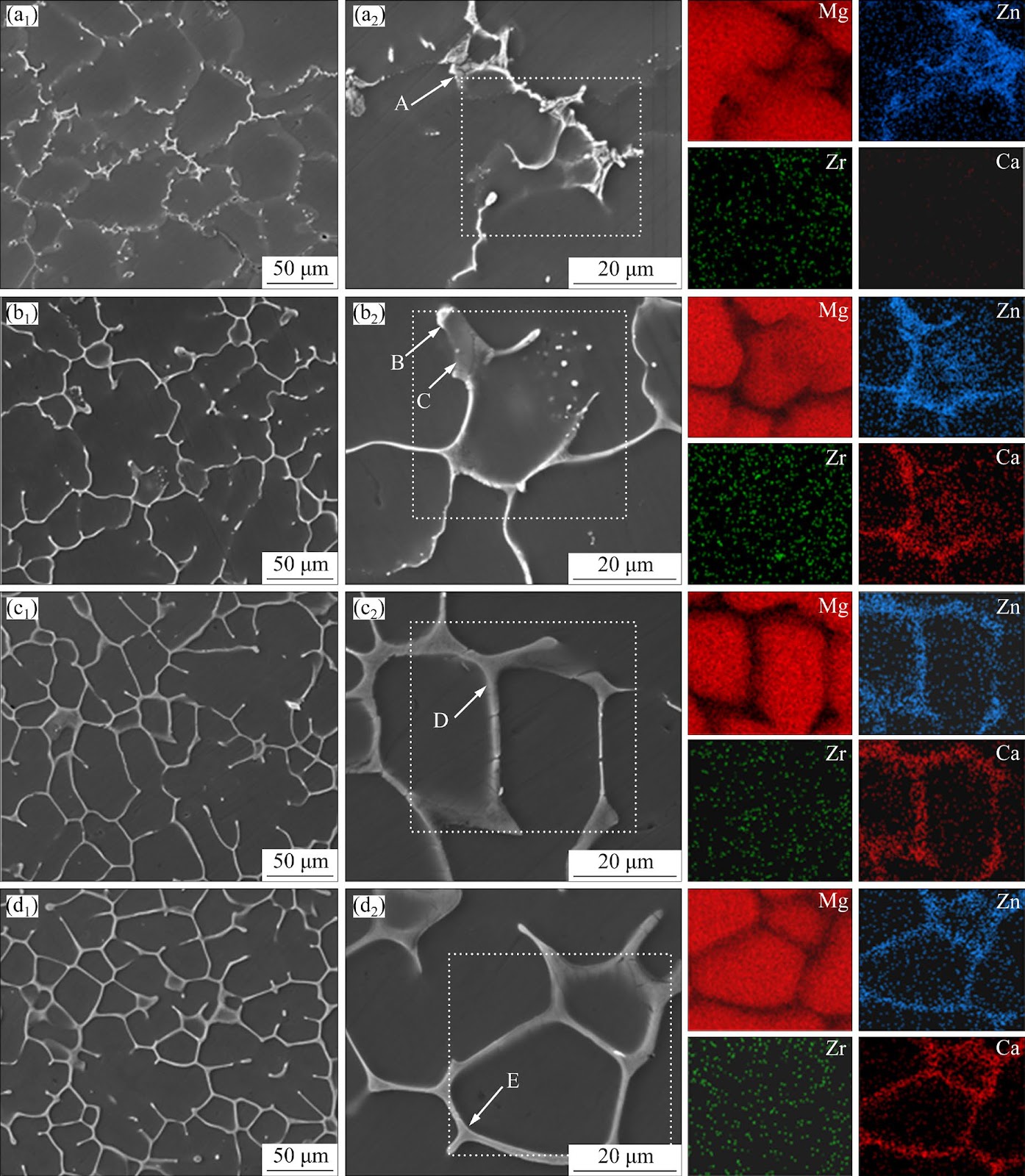

The ignition vulnerability of magnesium alloys restricts their deployment in high-temperature aerospace and railway applications. This study investigates the influence of calcium content (0, 0.6, 1.2, 1.8 wt.%) on the microstructure, mechanical properties, and ignition resistance of gravity-cast and hot-extruded Mg−6Zn−0.6Zr alloys. Calcium addition promotes the formation of Ca2Mg6Zn3 phases while suppressing MgZn2 precipitation in the as-cast condition. Homogenization dissolves most MgZn2 phases but retains numerous Ca2Mg6Zn3 particles. Subsequent extrusion fragments the Ca2Mg6Zn3 phases and precipitates nanoscale MgZn2 within the matrix. The synergy of fine grains and high-density precipitates substantially enhances strength. The Mg−6Zn−0.6Zr−1.2Ca alloy achieves optimal mechanical performance, with ultimate tensile strength of 380.1 MPa, yield strength of 360.1 MPa, and elongation of 10.4%. The ignition point increases from 556 °C for the Ca-free alloy to 824 °C for the 1.8 wt.% Ca alloy, attributed to the formation of a dense CaO−MgO oxide layer. These findings demonstrate that calcium alloying offers a cost-effective, rare-earth-free pathway to simultaneously improve mechanical integrity and ignition resistance in magnesium alloys.
1. Introduction
Magnesium alloys, with a density of 1.74 g/cm³, offer high specific strength and excellent machinability, making them attractive for aerospace and railway applications. However, their low ignition point—typically below 600 °C—poses a severe fire hazard in high-temperature service environments, limiting their widespread adoption. Commercial Mg−Al and Mg−Zn alloys are particularly susceptible to spontaneous combustion, and while rare-earth elements such as Y, Gd, and La effectively raise ignition resistance, their high cost and supply chain constraints hinder economic viability. The development of rare-earth-free ignition-resistant magnesium alloys has therefore become a strategic priority.
Calcium emerges as a promising alternative due to its low cost, non-toxicity, and demonstrated ability to improve ignition resistance. Prior work shows that 1.7 wt.% Ca in binary Mg−Ca alloys allows exposure at 900 °C for 30 minutes without burning, and additions of 1–2 wt.% Ca to Mg−1.5Zn raise the ignition point to 758–800 °C. This study systematically investigates the effect of Ca content (0–1.8 wt.%) on the microstructure, mechanical properties, and ignition resistance of Mg−6Zn−0.6Zr alloys processed by gravity casting and hot extrusion. The objective is to establish a quantitative relationship between Ca concentration and performance metrics, thereby providing a cost-effective alloy design strategy that simultaneously addresses mechanical integrity and fire safety.
Loading authentic research manuscript (Pages 1–5)...
Shi-cheng LI, Ke WANG, Xiao-dong GUO, Hong-yun LI, Jin-xing WANG, Jing-feng WANG, Fu-sheng PAN (2026). Effect of Ca content on mechanical properties and ignition resistance of Mg−Zn−Zr−Ca alloys. Transactions of Nonferrous Metals Society of China (中国有色金属学报). https://doi.org/10.1016/S1003-6326(26)67057-4
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the optimal Ca content for balancing strength and ignition resistance, and what are the exact performance trade-offs?
The 1.2 wt.% Ca alloy (ZKX601) delivers the best overall mechanical properties: UTS of 380.1 MPa, YS of 360.1 MPa, and EL of 10.4%, with an ignition point of 800 °C. Increasing Ca to 1.8 wt.% raises the ignition point further to 824 °C but may compromise ductility due to increased coarse Ca2Mg6Zn3 particles. Thus, 1.2 wt.% Ca offers the optimal balance for structural applications requiring both high strength and moderate ignition resistance.
How does the CaO−MgO oxide layer protect against ignition, and what are the PBR and AVR values that confirm its effectiveness?
The oxide layer forms continuously on the surface, with thickness increasing with Ca content. PBR values for CaO/ZKX600, CaO/ZKX601, and CaO/ZKX602, as well as the AVR value for CaO/MgO, range from 1 to 2, indicating a dense, protective scale that hinders oxygen diffusion and prevents spontaneous combustion. This mechanism is critical for high-temperature applications.
What microstructural changes occur during homogenization and extrusion, and how do they contribute to strengthening?
Homogenization dissolves most MgZn2 phases but retains Ca2Mg6Zn3 particles. During extrusion, Ca2Mg6Zn3 fragments into coarse particles along the extrusion direction, while nanoscale rod-shaped MgZn2 dynamically precipitates in unDRXed grains. This combination, along with grain refinement and increased recrystallization, provides precipitation strengthening and texture effects, resulting in the observed high strength.
Can this alloy be scaled up for industrial production, and what are the cost implications compared to rare-earth-containing alloys?
The alloy uses low-cost Ca instead of expensive rare-earth elements, significantly reducing raw material costs. The processing route—gravity casting and hot extrusion—is industrially established. However, scaling requires careful control of Ca content to avoid excessive coarse phase formation. The 1.2 wt.% Ca alloy offers a cost-effective alternative with comparable mechanical performance to some RE-containing alloys, but ignition resistance is slightly lower than high-RE variants.
What are the failure mechanisms under stress, and how does Ca content affect ductility?
Failure occurs primarily by microvoid coalescence at coarse Ca2Mg6Zn3 particles, which act as stress concentrators. Increasing Ca content beyond 1.2 wt.% leads to larger and more numerous particles, reducing elongation. The 1.2 wt.% Ca alloy maintains 10.4% elongation due to a fine dispersion of fragmented particles and nanoscale MgZn2 precipitates, which distribute stress more uniformly.
