Key Takeaways & Executive Findings
- •• • The Cu−0.3Be−2.0Ni−0.2Al alloy achieves a tensile strength of 881 MPa and hardness of HV 268 after 70% cold rolling and aging at 450 °C for 60 min, representing a 4.9% strength increase over the Al-free alloy (840 MPa). This matters industrially because it enables down-gauging of components in precision instruments and connectors without sacrificing mechanical integrity. • • Thermo-mechanical treatment yields a 13% hardness increase and a 6.8% conductivity increase in the Al-modified alloy compared to conventional aging, directly reducing energy losses in high-frequency electrical connectors and extending service life under cyclic loading. • • The Al-free alloy retains a higher conductivity of 50% IACS versus 47% IACS for the Al-containing alloy, a 6% relative reduction. For applications where conductivity is the primary metric, such as high-current carrying springs, this trade-off must be weighed against the 4.9% strength gain. • • The phase transformation sequence γ″→γ′→γ in the Cu−0.3Be−2.0Ni alloy is altered by Al addition to include Ni3Al co-precipitation, which pins grain boundaries and dislocations more effectively. This microstructural control is critical for extending fatigue life in aerospace and petrochemical valve components.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

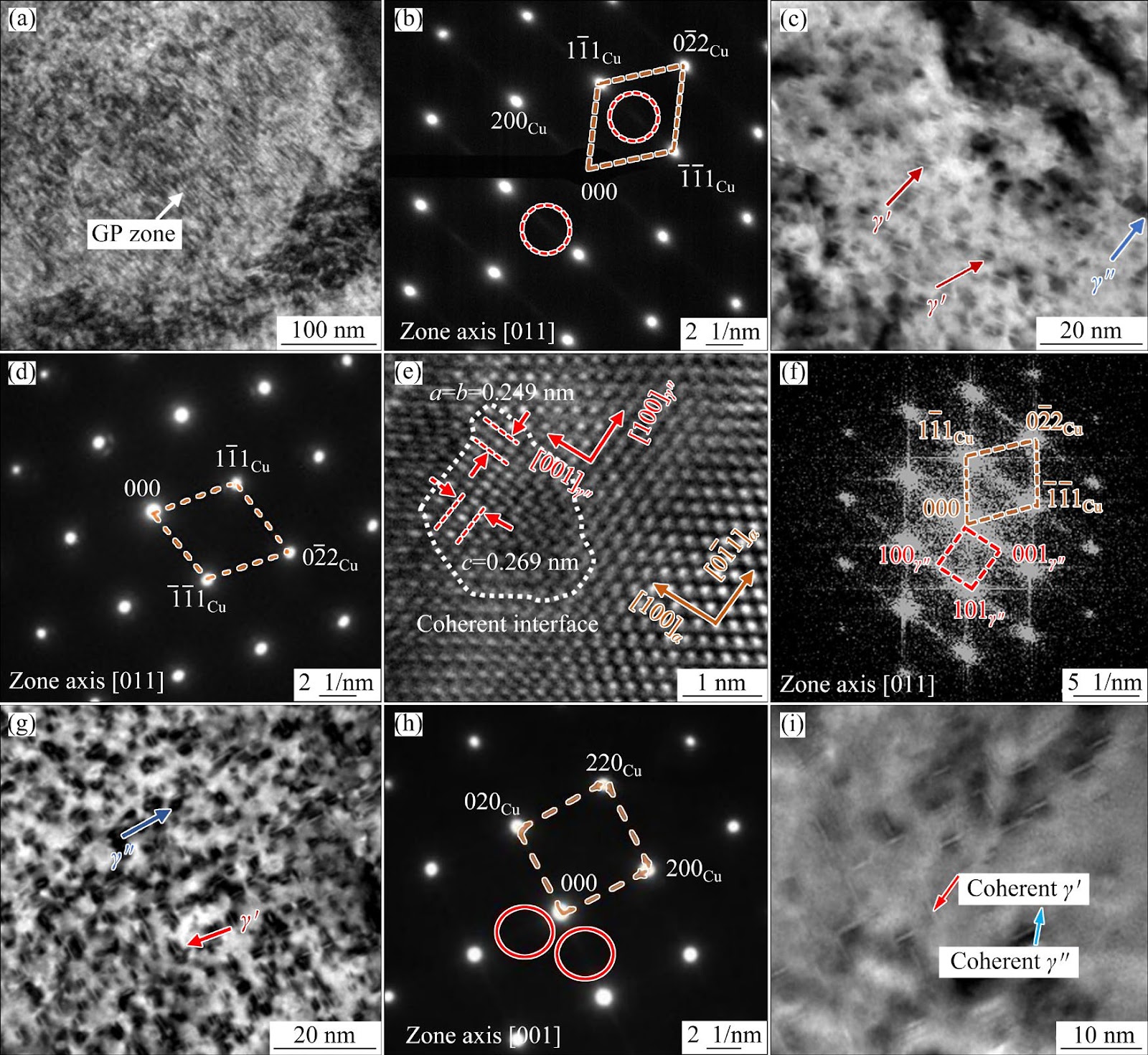

The microstructural evolution and property response of Cu−0.3Be−2.0Ni and Cu−0.3Be−2.0Ni−0.2Al alloys subjected to solution treatment at 950 °C for 30 min, 70% cold rolling, and aging at 450 °C for 60 min were systematically investigated. The baseline Cu−0.3Be−2.0Ni alloy precipitates predominantly the Ni−Be phase with a transformation sequence of γ″→γ′→γ, whereas the Al-modified alloy exhibits co-precipitation of Ni3Al and nanoscale Be−Ni phases. This synergistic precipitation yields a hardness of HV 268, yield strength of 824 MPa, tensile strength of 881 MPa, elongation of 9%, and electrical conductivity of 47% IACS in the Cu−0.3Be−2.0Ni−0.2Al alloy, compared to HV 238, 785 MPa, 840 MPa, 10%, and 50% IACS for the Al-free counterpart. Relative to conventional aging, thermo-mechanical treatment increases hardness by 13% and conductivity by 6.8% in the Al-containing alloy, while the Al-free alloy shows a 6% hardness increase with marginal conductivity improvement. The co-precipitation mechanism effectively compensates for the strength loss typically associated with reduced Be content, demonstrating a viable pathway for low-cost, high-performance Cu−Be alloys.
1. Introduction
Beryllium-copper alloys have long been the default material for high-reliability electrical contacts, springs, and non-sparking tooling, owing to an exceptional combination of strength, conductivity, and fatigue resistance. Their dominance, however, is undermined by two persistent industrial frictions: the high cost of beryllium and the well-documented health hazards associated with its production and machining. These factors have driven a decades-long search for low-Be alternatives that do not compromise the performance envelope required by aerospace, petrochemical, and precision instrumentation sectors. Partial substitution of Be with Ni and Co has been explored, but the resulting alloys often suffer from insufficient precipitation hardening or degraded conductivity, failing to match the comprehensive property profile of conventional Cu−Be alloys.
The present study addresses this bottleneck by introducing 0.2 wt.% Al into a Cu−0.3Be−2.0Ni matrix, followed by a thermo-mechanical treatment comprising solution treatment at 950 °C for 30 min, 70% cold rolling, and aging at 450 °C for 60 min. The Al addition is designed to promote the formation of nanoscale Ni3Al precipitates that co-exist with Ni−Be phases, thereby providing synergistic strengthening without the need for higher Be content. This approach specifically targets the strength-conductivity trade-off that has stalled previous low-Be alloy development, offering a pathway to maintain or exceed the mechanical properties of higher-Be alloys while reducing raw material cost and toxicity risks.
Loading authentic research manuscript (Pages 1–5)...
Yan-bin JIANG, Fei WANG, Wei CHEN, Xin-hua LIU, Zhi-hao ZHANG, Xiao-yu JIANG (2026). Effect of Al on Microstructure and Properties of Cu−Be−Ni Alloy Processed by Thermo-Mechanical Treatment. Transactions of Nonferrous Metals Society of China (中国有色金属学报). https://doi.org/10.1016/S1003-6326(26)67060-4
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the specific strength-conductivity trade-off observed between the Al-free and Al-containing alloys, and how does it affect material selection for high-current connectors?
The Cu−0.3Be−2.0Ni−0.2Al alloy exhibits a tensile strength of 881 MPa and conductivity of 47% IACS, while the Al-free alloy shows 840 MPa and 50% IACS. The 4.9% strength gain comes at a 6% relative conductivity loss. For high-current connectors where resistive heating is a concern, the Al-free alloy may be preferred; however, for spring contacts requiring higher yield strength (824 MPa vs. 785 MPa), the Al-modified alloy offers a better balance.
How does the thermo-mechanical treatment schedule compare to conventional aging in terms of hardness and conductivity improvements, and what is the underlying mechanism?
Compared to conventional aging, thermo-mechanical treatment (70% cold rolling + 450 °C/60 min aging) increases hardness by 13% and conductivity by 6.8% in the Al-containing alloy, and by 6% hardness with slight conductivity improvement in the Al-free alloy. The improvement is attributed to a higher dislocation density from cold rolling, which accelerates precipitation kinetics and refines the precipitate size, leading to more effective strengthening and reduced solute scattering.
What are the identified precipitate phases in each alloy, and how do they contribute to the strengthening mechanism?
The Cu−0.3Be−2.0Ni alloy precipitates primarily Ni−Be phases with a transformation sequence of γ″→γ′→γ. The Cu−0.3Be−2.0Ni−0.2Al alloy contains additional Ni3Al precipitates. The co-precipitation of nanoscale Ni3Al and Be−Ni phases provides synergistic strengthening, likely through a combination of order strengthening and Orowan bypassing, resulting in higher yield strength (824 MPa vs. 785 MPa) despite the lower Be content.
What is the industrial viability of this alloy for aerospace applications, considering the elongation values and thermal stability?
The Al-containing alloy shows 9% elongation versus 10% for the Al-free alloy, a marginal reduction that remains acceptable for many aerospace spring and contact applications. The aging treatment at 450 °C for 60 min suggests thermal stability up to at least 200–250 °C in service. The 13% hardness increase from thermo-mechanical treatment indicates potential for weight reduction in components, but long-term creep and fatigue data are required for critical flight hardware qualification.
What are the cost implications of adding 0.2 wt.% Al and applying thermo-mechanical treatment versus conventional processing?
Al is a low-cost alloying element, and its addition at 0.2 wt.% is economically negligible compared to the cost of Be. The thermo-mechanical treatment adds a cold rolling step, which increases processing cost but also shortens aging time and improves properties. The net effect is a potential reduction in total cost per component due to lower Be content and improved performance, though a full techno-economic analysis including scrap rates and energy consumption is warranted.
