Key Takeaways & Executive Findings
- •• • The optimized SiO2/ZrO2 aerogel (θ = 40°, x = 1.3 mm) achieves an ultra-low thermal conductivity of 30.2 mW·m−1·K−1, enabling superior insulation for high-temperature applications. • • The arctangent-topological design (αn = 26.6°, n = 2) increases compressive strength by 114% to 341.7 kPa (at 24.6% fracture strain) while maintaining a low thermal conductivity of 33.9 mW·m−1·K−1, addressing the brittleness of inorganic aerogels. • • The aerogels withstand temperatures above 1000 °C, as demonstrated in flame nozzle tests, confirming their suitability for extreme thermal environments such as engine combustion chambers. • • Finite element simulations (COMSOL) validate the experimental thermal and mechanical performance, providing a predictive tool for optimizing aerogel architectures.
Abstract

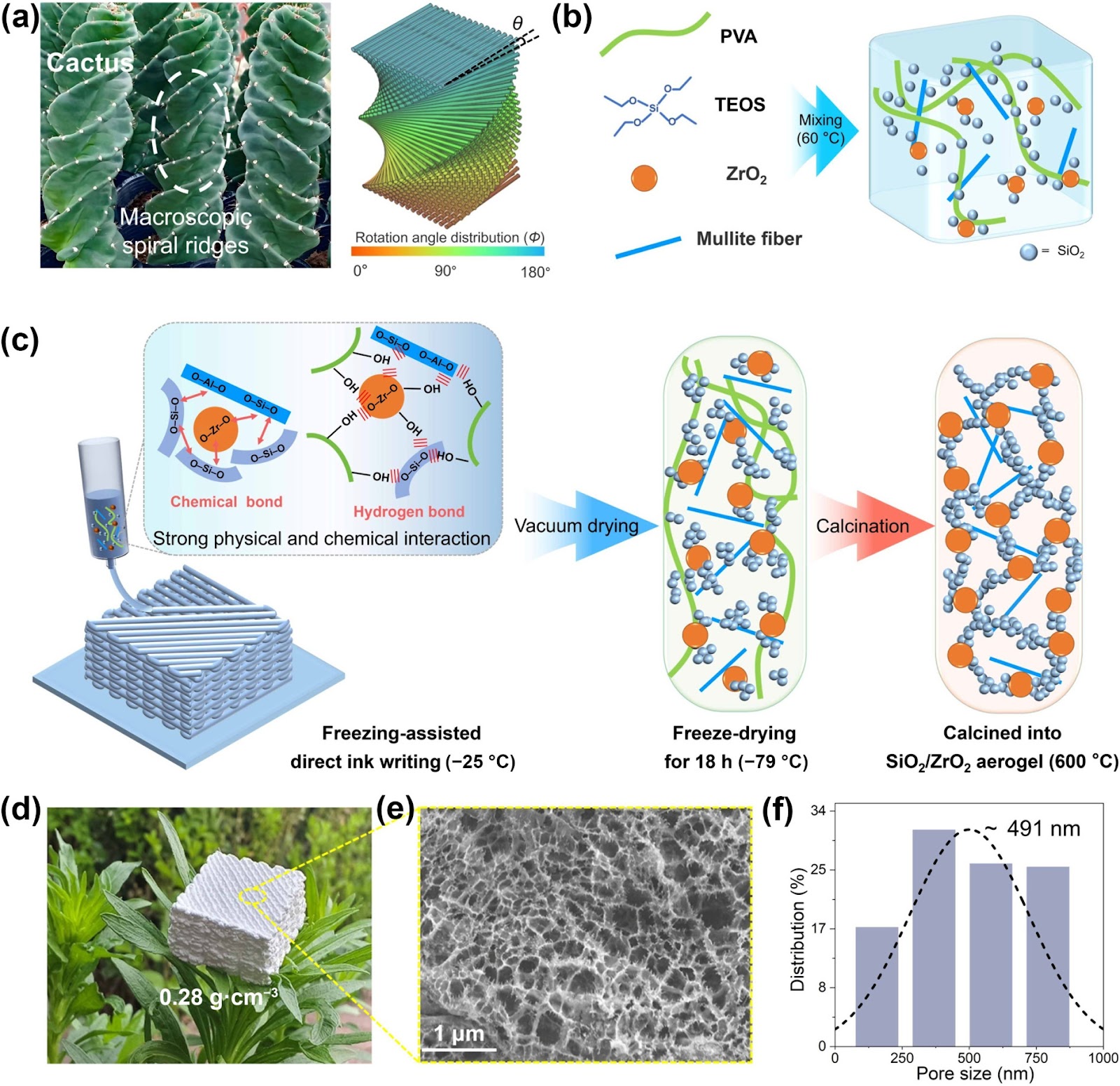

Aerogels are promising for thermal insulation due to their lightweight and low thermal conductivity, yet achieving high-temperature resistance (>1000 °C) alongside robust mechanical performance remains challenging. Here, we report a cactus-inspired spiral structure strategy via freezing-assisted direct ink writing (DIW). By controlling the rotation angle (θ) and printing spacing (x), we fabricate SiO2/ZrO2 aerogels with programmable macroscopic spiral architectures. The aerogel with θ = 40° and x = 1.3 mm exhibits excellent thermal insulation (30.2 mW·m−1·K−1) but limited compressive strength (159.3 kPa at 24.2% fracture strain). To enhance mechanical properties without compromising insulation, we propose an arctangent-topological DIW strategy using αn = arctan(1/n) to create four-fold rotational symmetry. At αn = 26.6° (n = 2), the aerogel achieves a thermal conductivity of 33.9 mW·m−1·K−1 and a compressive strength of 341.7 kPa at 24.6% fracture strain, representing a significant improvement. Finite element simulations (COMSOL Multiphysics) corroborate experimental results. Demonstrations on electronic chips and flame nozzles confirm effective thermal protection. This work provides a viable route to aerogels with integrated high-temperature stability and mechanical robustness.
1. Introduction
High-temperature protective materials are critical for thermal management in aerospace and electronics, where components face extreme heat fluxes. Conventional aerogels, while offering low thermal conductivity, suffer from brittleness and limited mechanical integrity, restricting their use in load-bearing or dynamic environments. Organic aerogels, such as polyimide, provide flexibility but degrade above 400 °C, whereas inorganic aerogels like SiO2 can withstand >1000 °C but fracture at strains below 5%. This dichotomy has hindered the development of aerogels that simultaneously meet thermal and mechanical demands.
Nature offers solutions: the cactus, thriving in hot deserts, employs spiral ridges to dissipate heat and enhance structural stability. Inspired by this, we employ freezing-assisted direct ink writing to fabricate SiO2/ZrO2 aerogels with programmable spiral architectures. By tuning the rotation angle and printing spacing, we achieve low thermal conductivity, and further introduce an arctangent-based topological design to enhance compressive strength without sacrificing insulation. This bioinspired approach bridges the gap between thermal performance and mechanical robustness, enabling practical applications in extreme environments.
Loading authentic research manuscript (Pages 1–5)...
Li Huikang, Liao Weilin, Li Bingcheng, Su Xiaosen, Zhang Ke, Fang Fei, Huang Xudong (2026). Cactus-inspired freeze-printed SiO2/ZrO2 aerogels with programmable configuration for extreme thermal insulation. SinoTechIntel Verified Research. https://doi.org/10.26599/NR.2026.94908587
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the maximum operating temperature of the SiO2/ZrO2 aerogel, and how does it compare to organic aerogels?
The SiO2/ZrO2 aerogel is designed for high-temperature applications exceeding 1000 °C, as demonstrated in flame nozzle tests. In contrast, organic aerogels like polyimide have a maximum service temperature of approximately 400 °C, limiting their use in extreme thermal environments.
How does the arctangent-topological design improve mechanical strength without compromising thermal insulation?
The arctangent design (αn = arctan(1/n)) creates a four-fold rotational symmetry that redistributes stress more effectively during compression. At αn = 26.6° (n = 2), the compressive strength increases to 341.7 kPa (from 159.3 kPa) while thermal conductivity only slightly rises from 30.2 to 33.9 mW·m−1·K−1, indicating a favorable trade-off.
What are the key processing parameters in the freezing-assisted DIW method, and how do they affect performance?
Key parameters include the rotation angle (θ) and printing spacing (x). For instance, θ = 40° and x = 1.3 mm yield optimal thermal insulation (30.2 mW·m−1·K−1). Adjusting these parameters alters the macroscopic architecture, influencing both thermal and mechanical properties.
How do the experimental results compare with finite element simulations?
COMSOL Multiphysics simulations of thermal insulation and compressive behavior show good consistency with experimental data, validating the predictive capability of the models for optimizing aerogel structures.
What are the demonstrated applications of these aerogels?
The aerogels effectively protect electronic chips from overheating and insulate pipelines near flame nozzles, confirming their utility in thermal management for electronics and aerospace propulsion systems.
