Key Takeaways & Executive Findings
- •• • The Te/Bi2O2Se heterojunction photodetector achieves a responsivity of ~0.89 A·W−1 under 1550 nm irradiation in self-powered mode, enabling efficient detection without external bias, which is critical for low-power infrared sensing systems. • • The device exhibits a fast response time of ~29/41 μs (rise/fall), facilitating high-speed optical communication and imaging applications where rapid signal acquisition is essential. • • A high polarization ratio of 2.8 is achieved due to the intrinsic optical anisotropy of tellurium, allowing polarization-sensitive detection for applications such as ellipsometry, remote sensing, and secure optical communications. • • The heterojunction is fabricated via a two-step chemical vapor deposition method, ensuring a clean interface and type-II band alignment, which is essential for efficient charge separation and high detectivity in mixed-dimensional vdW heterostructures.
Abstract
Low-dimensional semiconductors have attracted widespread attention in next-generation broadband infrared photodetectors due to their tunable band structures, strong light-matter interactions, and compatibility with mixed-dimensional integration. Among them, tellurium (Te) and bismuth selenide (Bi2O2Se) are ideal candidates for high-performance detection owing to their inherent anisotropy, high carrier mobility, and broad spectral response. Constructing heterojunction photodetectors based on these materials enables self-powered operation and suppresses dark current. Heterojunction interface engineering and band structure design are crucial for high-performance Te/Bi2O2Se heterojunction photodetectors. Here, we in-situ construct a one-dimensional (1D) Te/two-dimensional (2D) Bi2O2Se heterojunction via a two-step chemical vapor deposition method, achieving a clear interface and type-II band alignment. The photodetector based on the Te/Bi2O2Se heterojunction, operating in self-driven mode, exhibits high performance: a responsivity of ~0.89 A·W−1 and a fast response time of ~29/41 μs under 1550 nm light irradiation. Furthermore, owing to the optical absorption anisotropy of tellurium, the device demonstrates a high polarization ratio of 2.8 and successfully enables polarization optical communication and polarization imaging applications. This work provides new insights into the in-situ construction strategy for high-quality mixed-dimensional van der Waals heterojunctions and advances high-performance photodetectors and their applications.
1. Introduction
Conventional infrared photodetectors based on bulk semiconductors face fundamental limitations: lattice mismatch and covalent bonding constraints hinder heterojunction integration, while high dark currents and slow response times degrade performance. Low-dimensional van der Waals (vdW) materials offer atomic-level thickness, tunable bandgaps, and strong light-matter interactions, but constructing high-quality heterojunctions with controlled interfaces remains challenging. The lack of scalable, in-situ fabrication methods for mixed-dimensional vdW heterostructures has impeded their practical deployment in high-speed, self-powered photodetection.

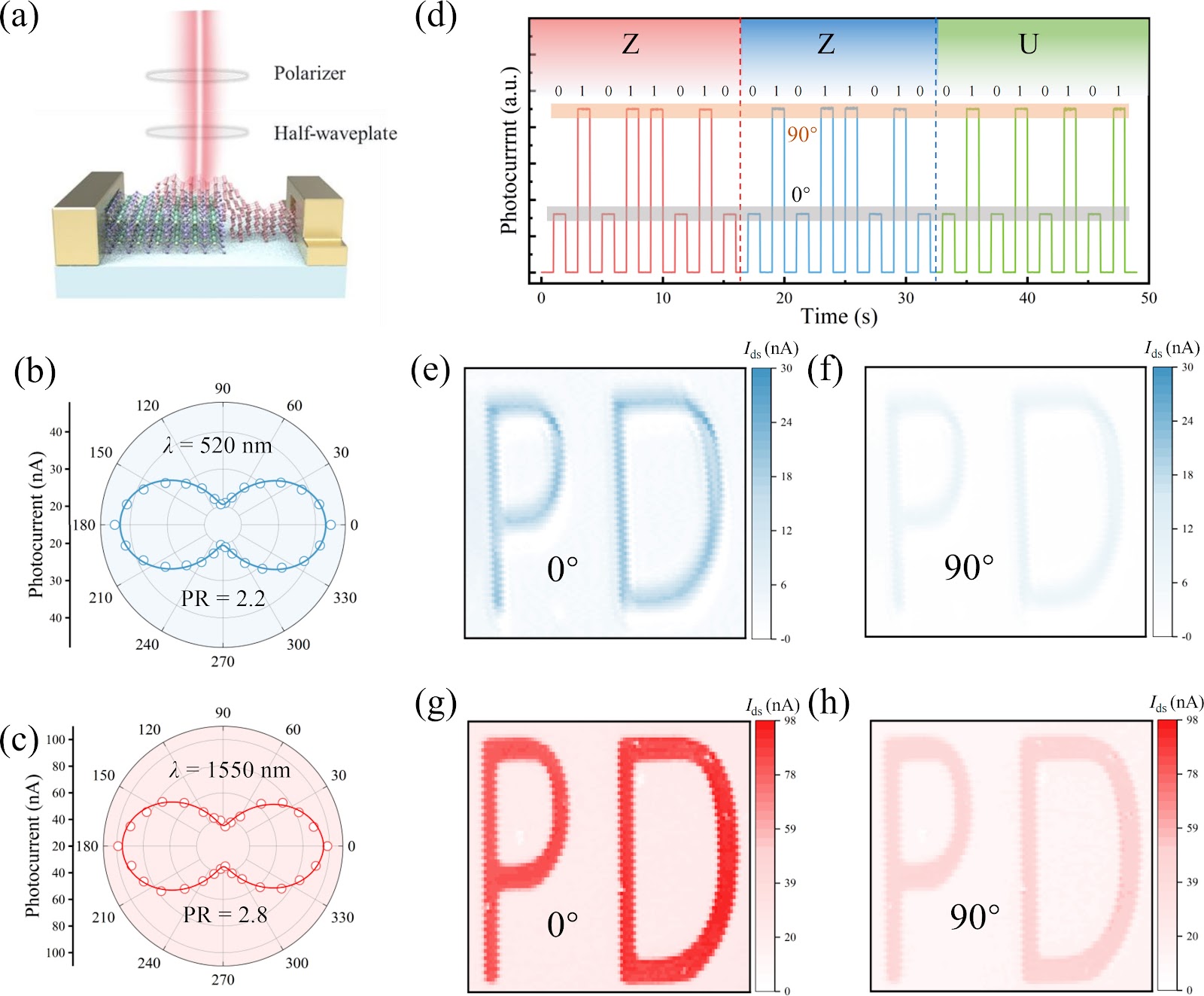

This work addresses these bottlenecks by demonstrating an in-situ growth strategy for 1D Te/2D Bi2O2Se heterojunctions via two-step chemical vapor deposition. The resulting type-II band alignment and clean interface enable self-powered operation with suppressed dark current, achieving a responsivity of 0.89 A·W−1 and response times of 29/41 μs at 1550 nm. Furthermore, the inherent anisotropy of Te yields a polarization ratio of 2.8, enabling polarization-sensitive detection. This approach provides a scalable route to high-performance, multifunctional infrared photodetectors, overcoming prior limitations in heterojunction fabrication and device performance.
Loading authentic research manuscript (Pages 1–5)...
Xingbo Shang, Maohua Chen, Yiye Yu, Tiange Zhao, Yuzhuo Bai, Shikun Duan, Haonan Ge, Zhen Wang, Longhui Zeng, Di Wu (2026). In-situ grown 1D Te/2D Bi2O2Se van der Waals heterostructure for high-performance self-powered polarization-sensitive photodetection. SinoTechIntel Verified Research. https://doi.org/10.26599/NR.2026.94908666
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the long-term operational stability of the Te/Bi2O2Se heterojunction photodetector under continuous illumination and ambient conditions?
The paper does not provide explicit long-term stability data. However, Te is noted for high environmental stability, and the device is fabricated via CVD, which typically yields robust interfaces. Further stress testing under continuous 1550 nm illumination and varying humidity would be required to quantify degradation rates.
How does the device performance compare with state-of-the-art commercial InGaAs photodetectors in terms of specific detectivity and noise equivalent power?
The paper reports responsivity and response time but does not provide specific detectivity or noise equivalent power values. The self-powered operation and low dark current suggest competitive performance, but direct comparison requires additional measurements under identical conditions.
What is the scalability of the two-step CVD method for wafer-scale production, and what are the main bottlenecks?
The two-step CVD method is inherently scalable to large-area substrates, but uniformity of Te nanowire growth and precise alignment with Bi2O2Se nanosheets remain challenges. The paper demonstrates feasibility on a laboratory scale; industrial scale-up would require optimization of growth parameters and transfer processes.
What is the polarization extinction ratio at different wavelengths, and how does it vary with incident angle?
The paper reports a polarization ratio of 2.8 under 1550 nm illumination. Detailed wavelength-dependent and angle-dependent polarization performance is not provided, but the anisotropy of Te suggests wavelength dependence. Further characterization across the spectral range would be necessary.
What is the device yield and reproducibility of the heterojunction fabrication process?
The paper does not specify yield or reproducibility statistics. The in-situ growth method appears reliable, but quantitative data on device-to-device variation would be essential for manufacturing viability.
Related Chinese Research & Cross-Citations
Automotive-Grade 8-Inch Silicon Carbide (SiC) Wafers: Sanan Optoelectronics vs. Wolfspeed Defect Density and Yield Economics
For 800V EV traction inverters, Wolfspeed's 8-inch SiC wafers exhibit lower BPD density (0.1 vs 0.3 cm⁻²) and superior RDS(on) stability, but Sanan offers a 22% cost-per-good-die advantage due to higher throughput and lower substrate cost. Wolfspeed leads in high-voltage performance; Sanan wins on cost efficiency.
Localized Asymmetric Electron Distribution in Covalent Organic Frameworks Promotes Efficient Photocatalytic H2O2 Production

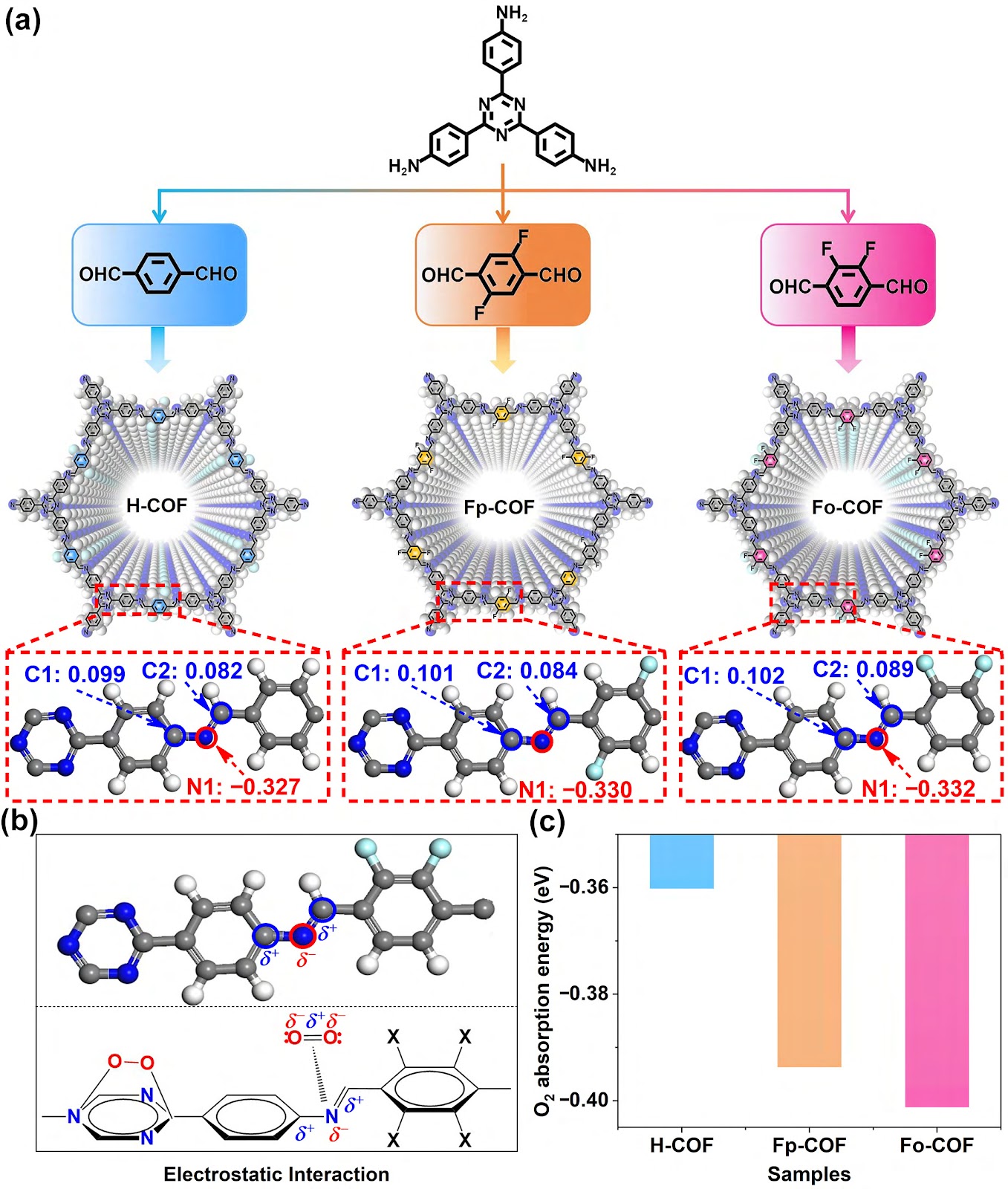

Covalent organic frameworks (COFs) with highly symmetric skeletons exhibit limited O2 adsorption and weak thermodynamic driving force for the two-electron oxygen reduction reaction (2e− ORR), constraining photocatalytic H2O2 production. Here, we modulate the local arrangement of fluorine atoms in COFs, creating para- and ortho-fluorinated variants (Fp-COFs and Fo-COFs) to induce an asymmetric electronic distribution. This asymmetry provides effective O2-adsorption sites and strengthens the driving force for 2e− ORR. Theoretical analysis reveals that asymmetric fluorination delocalizes lone-pair electrons of F atoms to adjacent carbons, producing a discretized electron distribution that enhances O2 adsorption at imine bonds. The increased electron density on these carbons facilitates electron transfer into the π* orbital of adsorbed O2, accelerating ·OOH* intermediate formation and lowering the Gibbs free energy barrier of the 2e− pathway. Consequently, Fo-COFs achieve a quantum yield of 8.8% for H2O2 photosynthesis in pure water. This work provides a new approach for tuning local electron distribution in COFs, offering guidance for rational design of efficient photocatalytic materials and broadening the application prospects of asymmetric electronic structures.
Superhydrophobic, Active Anti-Corrosion, and Solar Anti-Icing Coating with Fast Self-Healing Properties

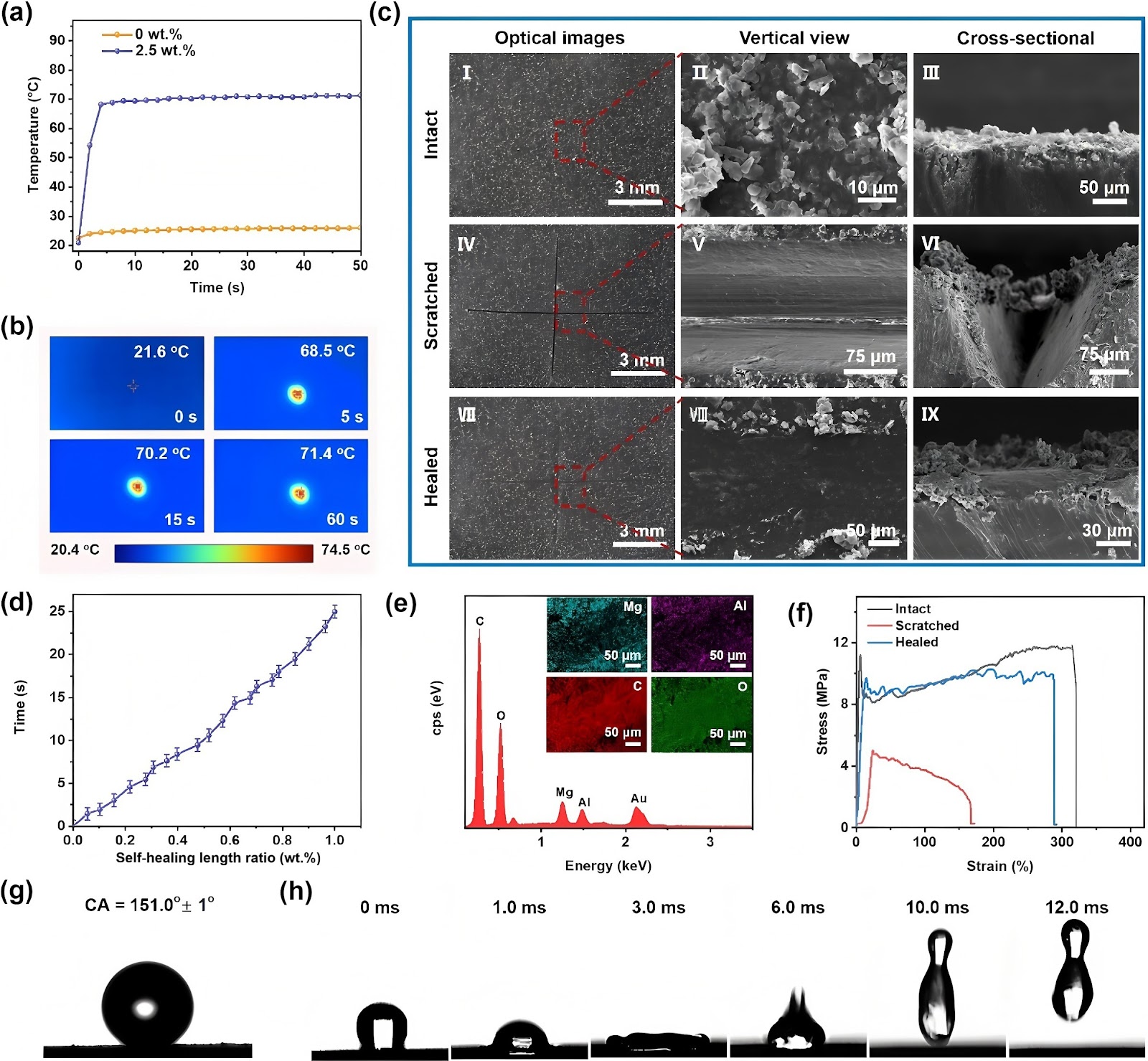

Corrosion and icing critically threaten the service safety of magnesium (Mg) alloys in aerospace and transportation industries. Although superhydrophobic coatings offer effective anti-corrosion and anti-icing functions, they are limited by susceptibility to failure due to physical damage or capillary condensation. Here, a multifunctional integrated coating (SAAS) is reported, which endows coated Mg alloys with excellent superhydrophobicity, active anti-corrosion performance, anti-icing properties, and fast self-healing capabilities. Layered double hydroxide (LDH) modified and intercalated with sodium laurate (La) acts as nanoreservoirs, releasing La corrosion inhibitors via an anion-exchange process to retard corrosion. Incorporation of MXene provides full-spectrum high absorption and efficient photothermal conversion, achieving a surface temperature of 61 °C under 1.0 sun illumination, which prevents adhesion and accumulation of supercooled droplets. Near-infrared (NIR) irradiation induces macromolecular chain migration and phase transition, enabling fast self-healing of coating damage. The SAAS coating exhibits a water contact angle of 153°, a corrosion current density of 1.294 × 10⁻⁹ A·cm⁻² (four orders of magnitude lower than bare Mg alloy), an icing delay time approximately 23 times longer than the substrate, and a healing rate of about 0.34 cm·s⁻¹ under NIR. This study provides a novel strategy for enhancing aircraft skin durability and offers insights into multifunctional coating design.
Multifunctional modular electrospun fiber with heterogenous structure for multimodal sensing

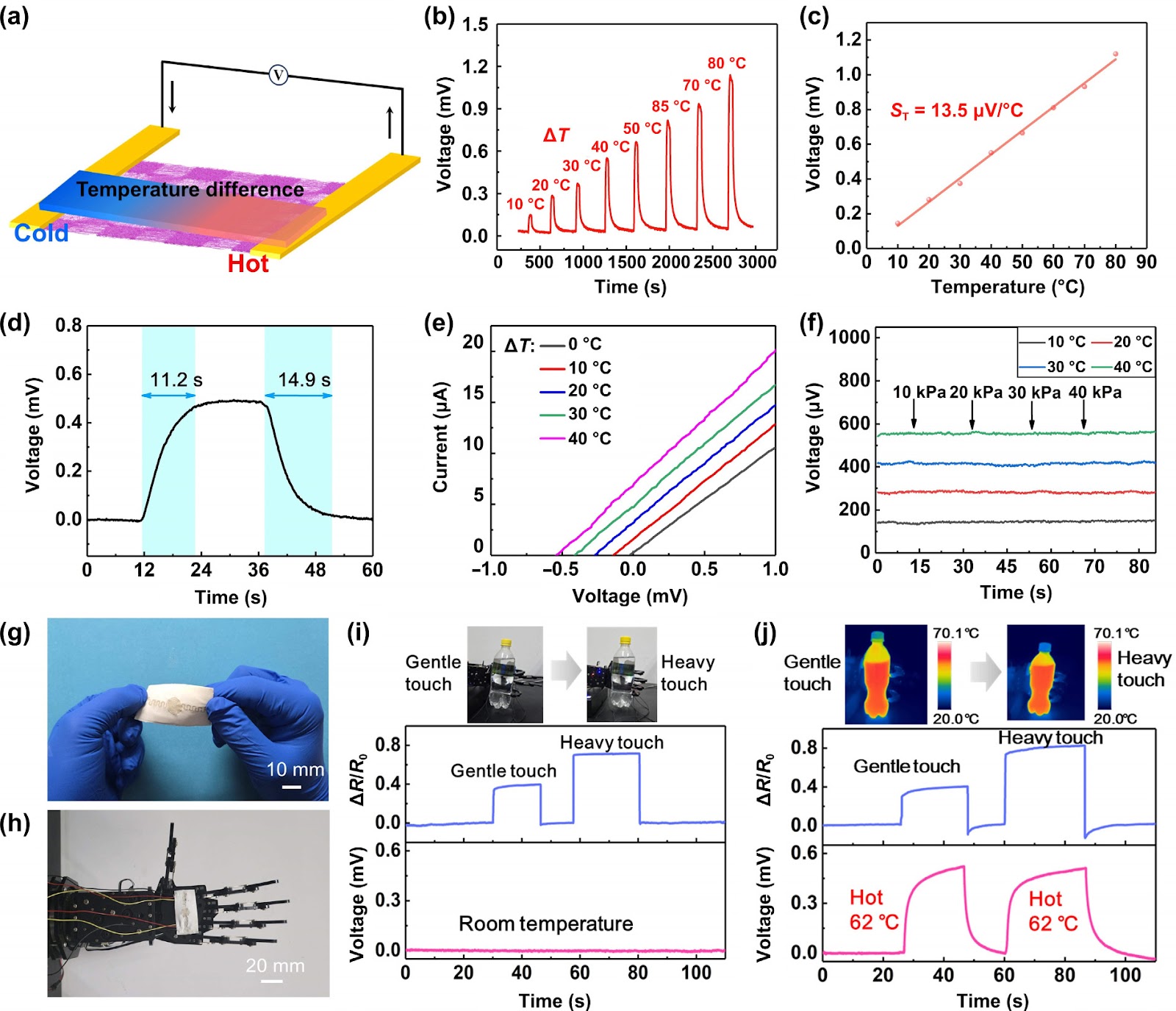

Flexible sensors have advanced rapidly to achieve skin-like multisensory capabilities, yet their performance is compromised by strain disturbances and multi-parameter interactions, impeding widespread deployment. Here, we report a flexible fibrous device with a patterned cellular structure enabling anti-strain interference, dual-parameter measurement, and static/dynamic detection. The patterned cellular fibrous structure achieves a heterogenous strain distribution that preserves sensing performance under 10% strain. The sensor integrates a piezoresistive component for low-frequency mechanical stimuli and a thermoelectric response to calibrate temperature-induced resistance changes. A hybrid piezoresistive/piezoelectric sensing platform was experimentally implemented for static pressure persistence and high-frequency acoustic excitation from 0 to 300 Hz. The hybrid tactile sensing achieved the highest material identification accuracy of 98.6%. This work provides valuable proposals to resolve practical constraints in flexible sensor applications, compelling advantages for broader wearable integration.
MXene-Based Hydrogel Disrupts Bacterial Biofilms and Reprograms Immune Cell Metabolism via Photothermal-Electron Transfer Effects to Reverse Bone Resorption in Periodontitis

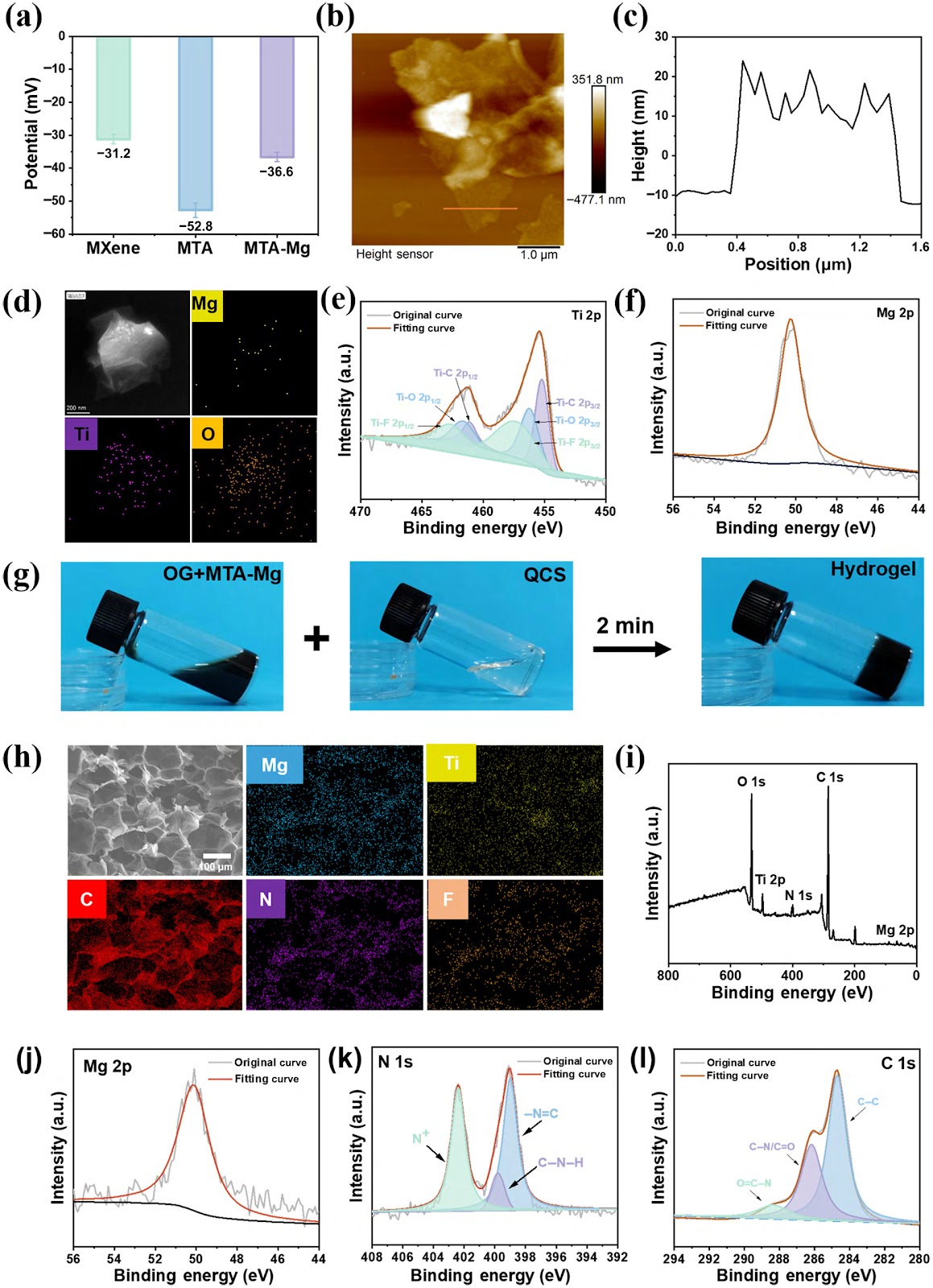

Periodontitis, a chronic inflammatory disease caused by bacterial biofilms, leads to alveolar bone resorption and tooth loss. Current treatments fail to eradicate biofilms and reverse inflammation-induced bone loss. Here, we developed an injectable hydrogel (GQM) composed of oxidized gellan gum, quaternized chitosan, and magnesium–tannic acid-modified MXene nanosheets (MTA-Mg). GQM is injectable into periodontal pockets and delivers MTA-Mg, which disrupts biofilms via photothermal effect under near-infrared (NIR) laser irradiation and kills bacteria through electrostatic interactions from quaternized chitosan. MTA-Mg also acts as an interfacial electron transfer agent to activate oxidative phosphorylation, while releasing magnesium and tannic acid to improve mitochondrial function, thereby reprogramming immune cell metabolism toward the M2 macrophage phenotype. In a rat periodontitis model, GQM hydrogel effectively eradicated biofilms, alleviated inflammation, and reversed alveolar bone resorption. This synergistic 'biofilm disruption–immune metabolic reprogramming' strategy offers a novel approach for treating inflammatory bone resorption in periodontitis.
Construction of Feδ+–Ruδ− synergistic interface enabling efficient and stable hydrogen evolution in versatile electrolytes

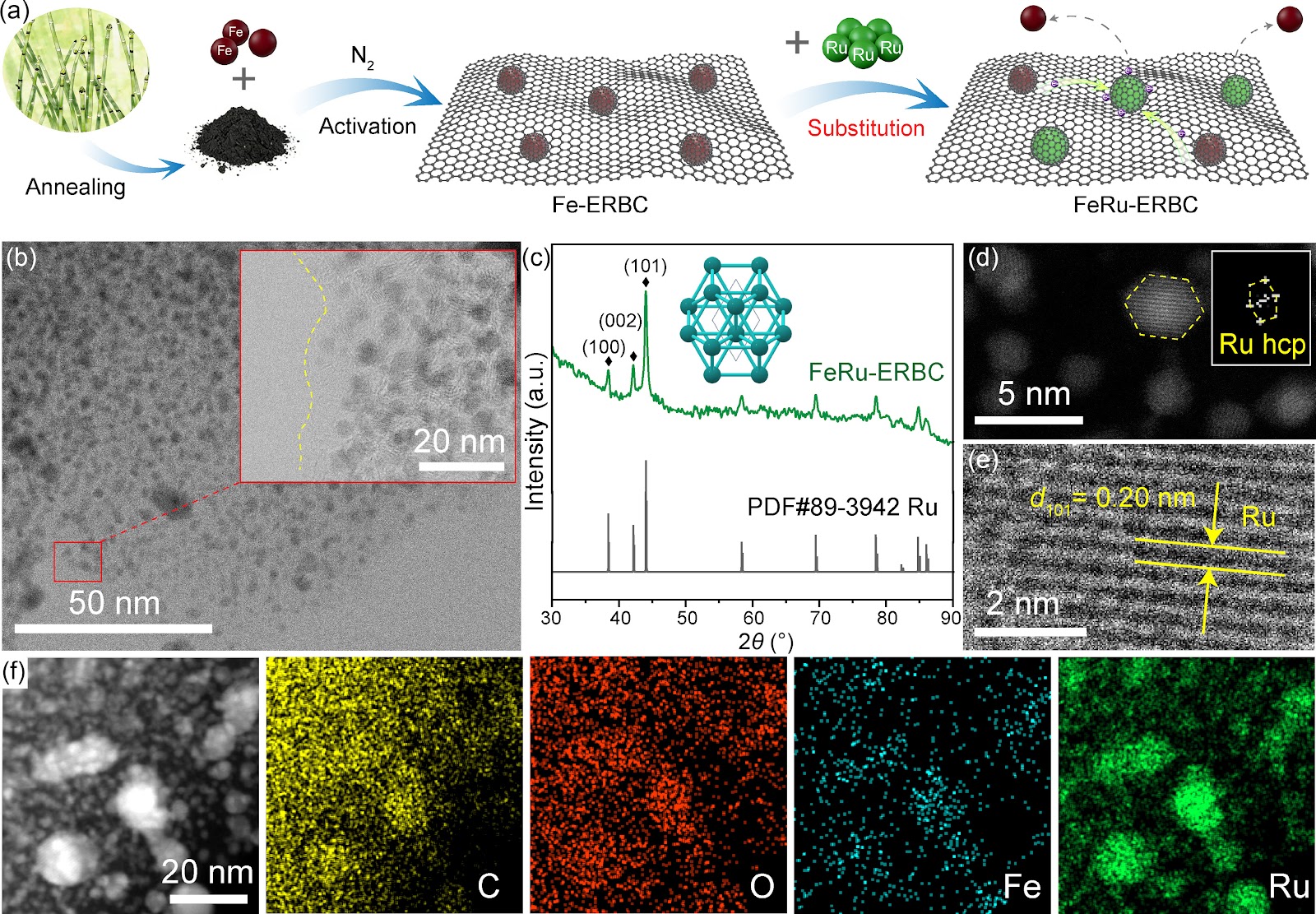

Electrocatalytic water splitting for hydrogen production is a key pathway for sustainable green hydrogen. However, freshwater scarcity limits large-scale application, necessitating efficient and stable catalysts for complex water sources such as seawater and wastewater. Here, we report a FeRu bimetallic nanocatalyst (FeRu-ERBC) constructed by anchoring FeRu composite nanoparticles on engineered biomass-derived carbon from Equisetum ramosissimum Desf. FeRu-ERBC exhibits excellent hydrogen evolution reaction (HER) performance in alkaline, seawater, and chemical wastewater environments, achieving an overpotential of only 22.7 mV at 10 mA·cm−2 in 1.0 M KOH and maintaining stability for over 120 h. Structural characterization and density functional theory (DFT) calculations reveal that the carbon support provides high specific surface area and hierarchical pores for mass transport, and critically promotes atomic-level substitution of Fe by Ru, forming a tightly coupled Fe–Ru interface. X-ray photoelectron spectroscopy and in situ spectroscopy confirm electron transfer from Fe to Ru, creating a 'Feδ+–Ruδ−' synergistic active center. This interface regulates the surface interfacial water network, enhancing overall reaction kinetics. This work provides a new strategy for designing Ru-based catalysts with interfacial electronic regulation for real-world water environments, highlighting the crucial role of biomass-derived carbon supports in advancing green hydrogen technology.
