Key Takeaways & Executive Findings
- •• An integrated conjugated microporous polymer composite electrode (C4N/rGO) with high conductivity, large specific surface area and good solvent resistance was prepared by in-situ growth. • An antifreeze alkaline electrolyte (0.1 DMSO/2 M NaOH) was developed to broaden the operation temperature zone and voltage window of the aqueous alkaline battery. • The prepared aqueous alkaline battery exhibits a high energy density (147.3 Wh Kg−1 at 25 °C), outstanding long cycling stability and excellent wide-temperature-range performance (−70 to 45 °C). • The C4N/rGO//Ni(OH)2 full cell demonstrates ultra-high cycling stability over 38,000 cycles, offering a promising solution for extreme-condition energy storage.
Abstract

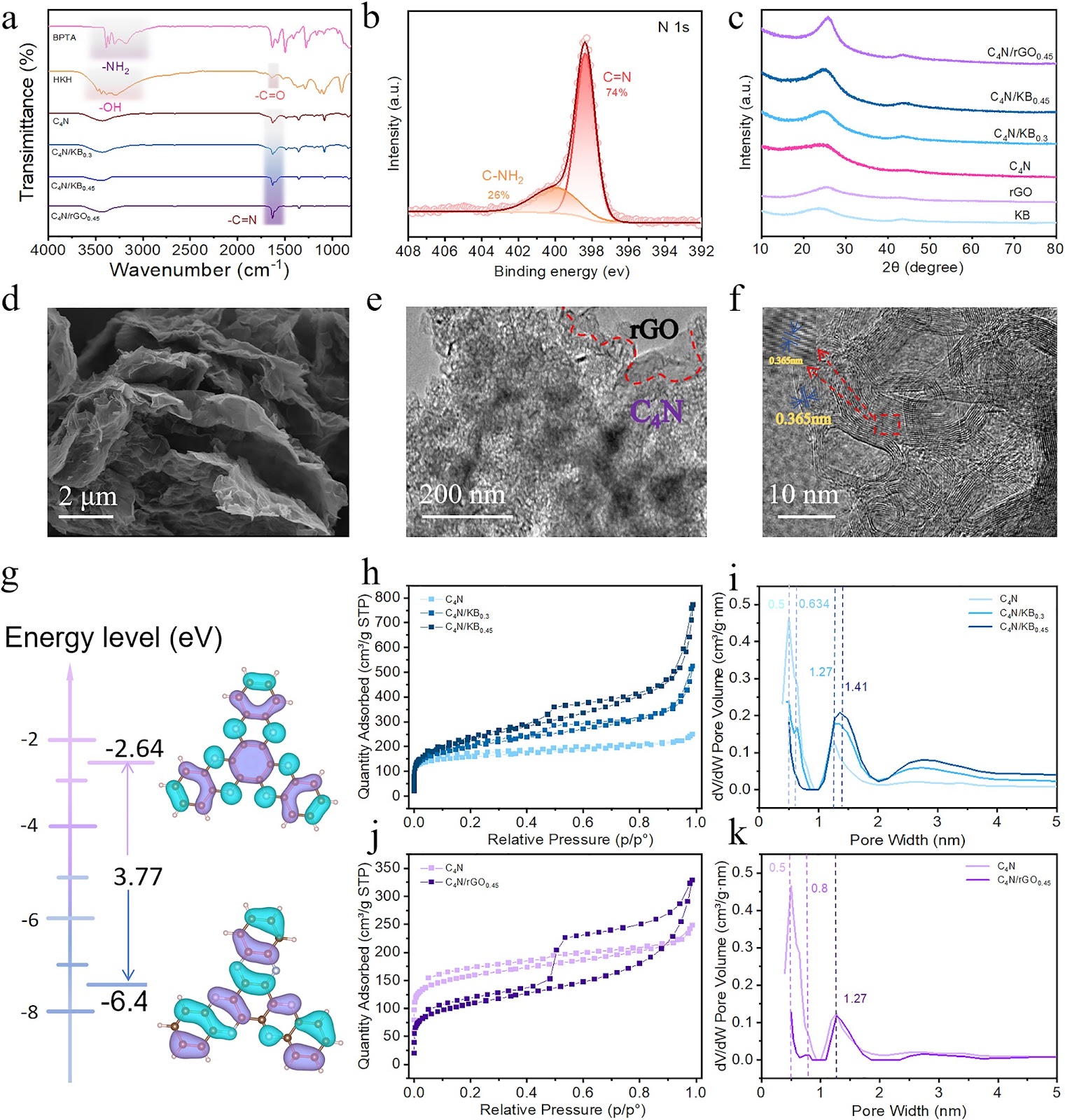

Common anode materials in aqueous alkaline electrolytes, such as cadmium, metal hydrides and zinc, usually suffer from remarkable biotoxicity, high cost, and serious side reactions. To overcome these problems, we develop a conjugated porous polymer (CPP) in-situ grown on reduced graphene oxide (rGO) and Ketjen black (KB), noted as C4N/rGO and C4N/KB respectively, as the alternative anodes. The results show that C4N/rGO electrode delivers a low redox potential (−0.905 V vs. Ag/AgCl), high specific capacity (268.8 mAh g−1 at 0.2 A g−1), ultra-stable and fast sodium ion storage behavior (216 mAh g−1 at 20 A g−1) in 2 M NaOH electrolyte. The assembled C4N/rGO//Ni(OH)2 full battery can cycle stably more than 38,000 cycles. Furthermore, by adding a small amount of antifreeze additive dimethyl sulfoxide (DMSO) to adjust the hydrogen bonding network, the low-temperature performance of the electrolyte (0.1 DMSO/2 M NaOH) is significantly improved while hydrogen evolution is inhibited. Consequently, the C4N/rGO//Ni(OH)2 full cell exhibits an energy density of 147.3 Wh Kg−1 and ultra-high cycling stability over a wide temperature range from −70 to 45 °C. This work provides an ultra-stable high-capacity CPP-based anode and antifreeze electrolyte for aqueous alkaline batteries and will facilitate their practical applications under extreme conditions.
1. Introduction
In recent years, rechargeable batteries have received widespread attention as an efficient energy storage system to meet the development needs of a green economy in society [1]. Sodium is 440 times more abundant than lithium in the Earth’s crust and is widely distributed and simple to extract [2]. Considering the abundance of the element and the cost of the resource, sodium has appeared as a substitute for lithium in recent years and has gained more and more attention in the field of batteries [3–6]. Aqueous rechargeable batteries have low cost, high safety and reliability, and fast kinetics compared with the organic electrolyte-based batteries, which meet the needs of modern green economy development [7, 8]. Therefore, the interest in aqueous rechargeable batteries is increasing day by day.
Conventional electrolytes for aqueous rechargeable batteries are commonly H2SO4 for acidic batteries [9], alkali metal salts (Li+, Na+) for neutral batteries [10], and MOH (M = alkali metal) for alkaline batteries [11]. Aqueous alkaline batteries are the latent high energy rechargeable batteries with prospects for large-scale energy storage applications [12]. Commercial aqueous alkaline batteries usually used nickel-based cathode (Ni(OH)2, theoretical specific capacity 289 mAh g−1) and metal or alloy anodes (zinc, iron, cadmium, hydrogen storage alloys, etc.) [13]. In 2022, Zhou et al. reviewed nickel-based rechargeable aqueous alkaline batteries such as Ni–Fe, Ni–Cd, Ni–MH, and Ni–Zn, and recounted their advantages and operating principles [14]. Since the anode materials of aqueous alkaline batteries always have some shortcomings [11], it is the quest of researchers to find anode materials with low cost, environmental friendliness, high specific capacity and suitable redox potentials [15–17].
Loading authentic research manuscript (Pages 1–5)...
Mengxiao Li, Rui Li, Huige Ma, Mingsheng Yang, Yujie Dai, HaiPing Yu, Yuxin Hao, Zhihui Wang, Bei Wang, Mingjun Hu, Jun Yang (2025). An Ultra-Stable, High-Energy and Wide-Temperature-Range Aqueous Alkaline Sodium-Ion Battery with the Microporous C4N/rGO Anode. Nano-Micro Letters. https://doi.org/10.1007/s40820-024-01589-w
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main innovation of this paper?
The paper introduces a novel C4N/rGO composite anode for aqueous alkaline sodium-ion batteries, combined with an antifreeze electrolyte (0.1 DMSO/2 M NaOH), enabling ultra-stable cycling and operation over a wide temperature range from -70 to 45 °C.
What are the key performance metrics of the C4N/rGO anode?
The C4N/rGO anode delivers a low redox potential (-0.905 V vs. Ag/AgCl), high specific capacity (268.8 mAh g−1 at 0.2 A g−1), and excellent rate capability (216 mAh g−1 at 20 A g−1) in 2 M NaOH electrolyte.
How does the antifreeze electrolyte improve low-temperature performance?
The addition of dimethyl sulfoxide (DMSO) adjusts the hydrogen bonding network of the electrolyte, significantly improving low-temperature performance while inhibiting hydrogen evolution, thus enabling operation at temperatures as low as -70 °C.
What is the cycling stability of the full battery?
The assembled C4N/rGO//Ni(OH)2 full battery can cycle stably for more than 38,000 cycles, demonstrating ultra-high cycling stability.
What is the energy density of the full cell?
The full cell exhibits an energy density of 147.3 Wh kg−1 at 25 °C, which is high for aqueous alkaline batteries.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
