Key Takeaways & Executive Findings
- •• A vertical interfacial engineering strategy via dual-interface modification (Sn(OTF)2 at NiOx/perovskite, 4-Fluorophenylethylamine chloride (F-PEA) at perovskite/C60) solves energy-level mismatches in two-step-processed (TSP) p-i-n PSCs, boosting PCE to 25.6%. • Sn(OTF)2 enhances NiOx conductivity, suppresses ion migration, and forms a Pb-Sn perovskite interlayer; F-PEA eliminates PbI2, forming a 2D capping layer for defect passivation. • Optimized NiOx-based TSP p-i-n PSCs retain 84% initial power conversion efficiency after 720-h light illumination, providing design principles for 26%-efficiency devices. • The study reveals that residual PbI2 clusters in TSP films cause Schottky heterojunctions and energy-level mismatches, which are effectively mitigated by the dual-interface modification.
Abstract

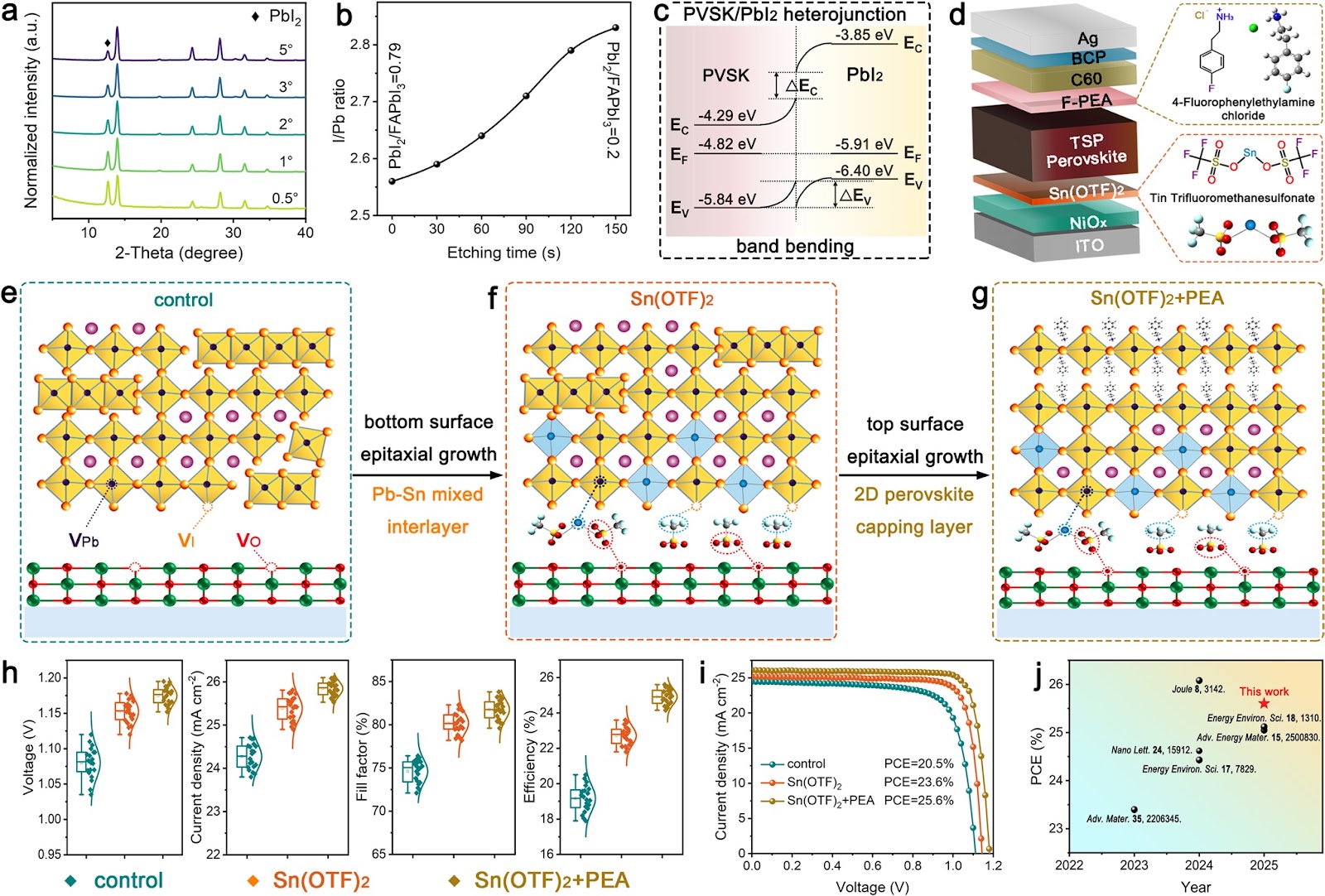

Two-step-processed (TSP) inverted p-i-n perovskite solar cells (PSCs) have demonstrated significant promise in tandem applications. However, the power conversion efficiency (PCE) of TSP p-i-n PSCs rarely exceeds 24%. Here, we demonstrate that TSP perovskite films exhibit a vertically gradient distribution of residual PbI2 clusters, which form Schottky heterojunctions with the perovskite, leading to substantial interfacial energy-level mismatches within NiOx-based TSP p-i-n PSCs. These limitations were effectively addressed via a vertical interfacial engineering enabled by dual-interface modification incorporating tin trifluoromethanesulfonate (Sn(OTF)2) and 4-Fluorophenylethylamine chloride (F-PEA) at the NiOx/perovskite and perovskite/C60 interfaces, respectively. The functional Sn(OTF)2 not only enhances the conductivity of NiOx films but also suppresses ion migration, while inducing the formation of a Pb-Sn mixed perovskite interlayer that precisely regulates the energy level at the NiOx/perovskite interface. Complementally, F-PEA post-treatment effectively converts surface residual PbI2 clusters into a 2D perovskite capping layer, which simultaneously passivates surface defects and enhances energy-level alignment at the perovskite/C60 interface. Consequently, the optimized NiOx-based TSP p-i-n PSCs achieve a notable PCE of 25.6% with superior operational stability. This study elucidates the underlying mechanisms limiting the efficiency of TSP p-i-n PSCs, while establishing design principles for these devices targeting 26% efficiency.
1. Introduction
Perovskite solar cells (PSCs) have garnered significant global research interest over the past decade owing to their exceptional advantages, including cost-effective fabrication, high device efficiency, and superior defect tolerance [1, 2]. Through innovations in material design and device engineering, the power conversion efficiency (PCE) of PSCs has reached certified record values of 27.0% in single-junction configurations and 34.6% in perovskite-silicon tandem architectures, positioning them as a leading candidate for next-generation photovoltaic technologies [3–5]. Among strategies for advancing PSCs, the inverted p-i-n architecture has attracted considerable attention due to its negligible hysteresis, low-temperature processability, high stability, and low parasitic absorption. Such features render this architecture particularly suitable for flexible devices and monolithic perovskite-silicon tandem solar cells.
Within p-i-n device architectures, perovskite films are typically deposited on a hole transport layer (HTL) such as poly(3,4-ethylenedioxythiophene)/polystyrene sulfonate (PEDOT/PSS) and poly[bis(4-phenyl)(2,4,6-trimethylphenyl)amine] (PTAA). However, PEDOT/PSS suffers from inherent hydrolytic and UV-induced degradation, whereas PTAA exhibits poor surface wettability, posing substantial manufacturing challenges [6–8]. In comparison, nickel oxide (NiOx), an inorganic wide-bandgap semiconductor, has emerged as a promising alternative hole transport material (HTM) for perovskite photovoltaics owing to its combination of exceptional stability, efficient charge carrier transport, and low-cost processing [9–11]. Yu et al. developed H2O2-engineered NiOx as the HTM, demonstrating that H2O2 addition enhances NiOx films’ conductivity and generates abundant surface hydroxyl groups for improved surface wettability. This approach yielded NiOx-based p-i-n PSCs with a certified PCE of 25.2% [12].
Loading authentic research manuscript (Pages 1–5)...
Wenhao Zhou, Heng Liu, Haiyan Li, Weihai Zhang, Hui Li, Xia Zhou, Rouxi Chen, Wenjun Zhang, Tingting Shi, Antonio Abate, Hsing-Lin Wang (2026). Vertical Interfacial Engineering in Two-Step-Processed Perovskite Films Enabled by Dual-Interface Modification for High-Efficiency p-i-n Solar Cells. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-02010-w
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main achievement of this study?
The study achieves a power conversion efficiency (PCE) of 25.6% in two-step-processed p-i-n perovskite solar cells by employing dual-interface modification with Sn(OTF)2 and F-PEA, addressing energy-level mismatches and enhancing stability.
How does Sn(OTF)2 improve device performance?
Sn(OTF)2 enhances the conductivity of NiOx films, suppresses ion migration, and induces the formation of a Pb-Sn mixed perovskite interlayer that precisely regulates the energy level at the NiOx/perovskite interface.
What role does F-PEA play in the device?
F-PEA post-treatment converts surface residual PbI2 clusters into a 2D perovskite capping layer, which passivates surface defects and enhances energy-level alignment at the perovskite/C60 interface.
What is the operational stability of the optimized devices?
The optimized NiOx-based TSP p-i-n PSCs retain 84% of their initial power conversion efficiency after 720 hours of light illumination, demonstrating superior operational stability.
What are the design principles for achieving 26% efficiency?
The study establishes design principles for TSP p-i-n PSCs targeting 26% efficiency, emphasizing the importance of vertical interfacial engineering to mitigate energy-level mismatches and residual PbI2-induced Schottky barriers.
