Key Takeaways & Executive Findings
- •• LiPF6 integration into sodium-ion battery electrolytes strengthens solid electrolyte interphase (SEI) film and stabilizes O3 electrode surfaces, enhancing cycleability with 92.7% at 400 cycles. • Li-based SEI exhibits reduced solubility, effectively suppressing sodium-ion and electron leakage, and mitigating electrolyte decomposition on hard carbon electrode. • The formation of Li-ion pillars on O3-type electrode surfaces significantly reduces oxygen release and electrolyte degradation, resulting in improved capacity retention. • Compared with conventional fluoroethylene carbonate additive, the dual-interface strengthening approach yields superior capacity retention and long-term stability.
Abstract

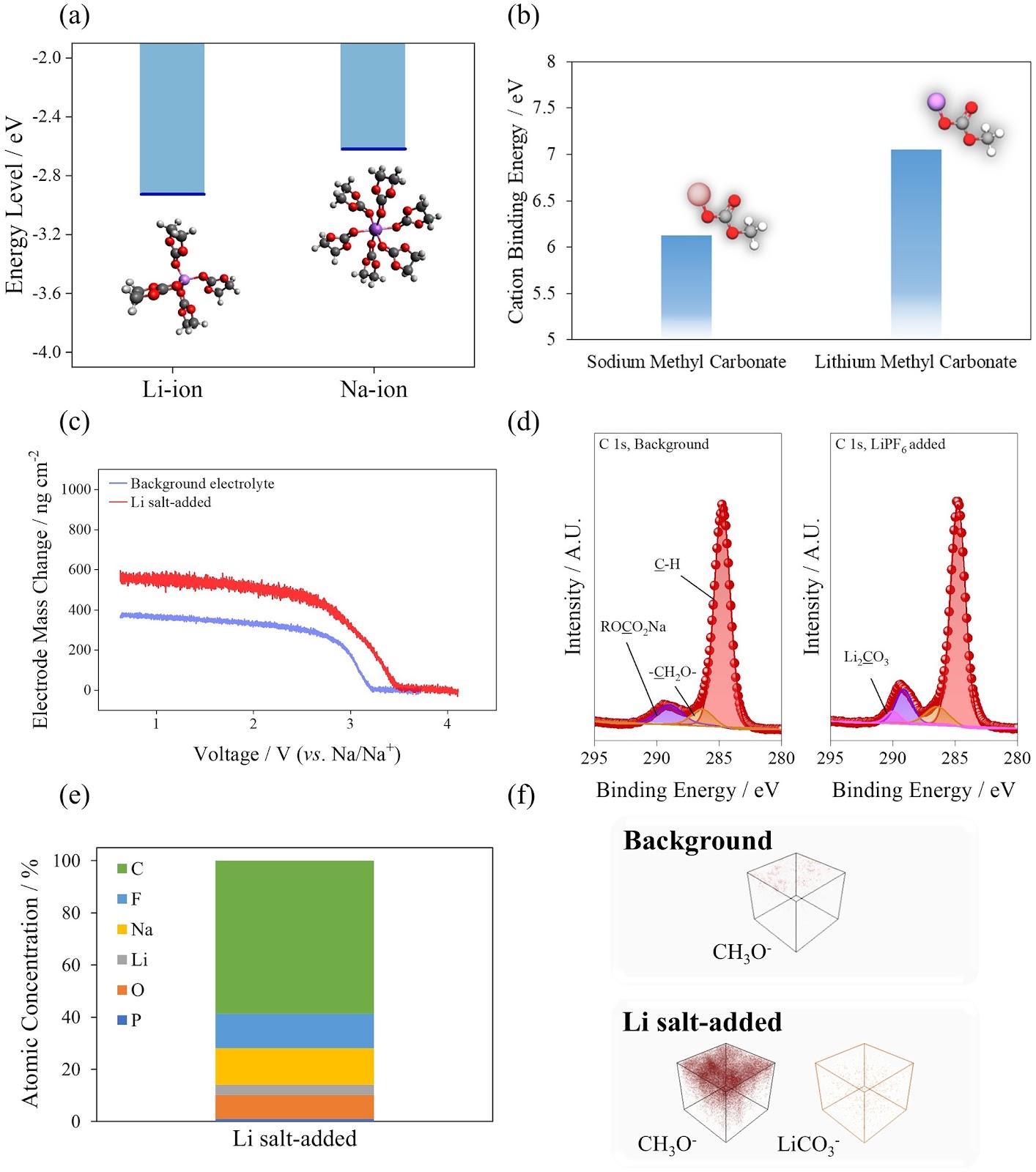

The robust respective formations of a solid electrolyte interphase (SEI) and pillar at the surfaces of hard carbon and O3-type positive electrodes are the consequences of integrating LiPF6 salt into a sodium-ion battery electrolyte that considerably strengthens both interfaces of positive and negative electrodes. The improvement of cycle performances due to the formation of highly passivating SEI on the hard carbon electrode is induced by the alternated solvation structure following the addition of Li salt, which inhibits sodium-ion and electron leakage from further electrolyte decomposition. The SEI with incorporated Li is less soluble than Na-based SEI, and the passivation ability of the initially formed SEI can thus be well preserved. Conversely, the gas evolution caused by oxygen release is reduced considerably by the marginal surface intercalation of Li ions at the surface of the O3-positive electrode. Additionally, the LiF layer that forms on the O3 surface diminishes additional deterioration of the electrolyte after formation. Compared with the fluoroethylene carbonate additive that is typically applied, a simultaneously strengthened interface yields major improvements in capacity retention.
1. Introduction
The substitution of charge carriers by sodium ions ensures the natural abundance of material resources. Hence, the supply of minerals can be stabilized, thereby delivering financially stable chemistry, resulting in large-scale energy storage and device-compatible, sodium-ion batteries (SIBs) [1–14]. The most widely used SIB chemistry is based on the hard carbon and layered transition metal oxide system [15–21]; therefore, the initially injected electrolyte is decomposed from the limited electrochemical stability window of the typical carbonate-based electrolytes [22–29]. From this decomposition, interphase formation occurs on the surface of the electrode in SIBs; however, the dominant decomposition characteristics of electrolytes in SIBs are considerably different than those of lithium-ion batteries (LIBs).
The standard reduction potential of the Na/Na+ redox couple is 0.33 V higher than that of Li/Li+ redox couple; thus, the overpotential necessary to deliver the reduction current of the electrolyte, which expresses the kinetics of the formation of the solid electrolyte interphase (SEI), is not sufficient at identical voltage swing range [25, 30]. This results the thermally vulnerable performances of SIBs due to the insufficient deposition of SEI film on hard carbon electrode at SIB than that of LIBs. Furthermore, the number of solvated solvents is higher in SIBs compared with LIBs, and the reducibility of the solvated cation cluster is thus highly decreased [30, 31]. It is because the positive charge density of solvation cluster is decreased with the increment of solvation, which leads less reducible environment of electrolyte. Consequently, the formation of SEI in the SIBs is thermodynamically less favorable than in LIBs from thermodynamically and kinetically [30]. Moreover, formed sodium-ion-based SEI is more soluble in electrolytes compared with the SEI in the LIBs, implying that the chemical stability of SEI is insufficient for long-term operations [25, 32–34]. In layered structures, intercalation and de-intercalation of sodium ions severely degrade the interface because of the larger ionic radius of the sodium ion compared with that of lithium ions.
Loading authentic research manuscript (Pages 1–5)...
Jooeun Byun, Joon Ha Chang, Chihyun Hwang, Chae Rim Lee, Miseung Kim, Jun Ho Song, Boseong Heo, Sunghun Choi, Jong Hyeok Han, Hee-Jae Jeon, Beom Tak Na, Youngjin Kim, Ji-Sang Yu, Hyun-seung Kim (2025). Transformative Effect of Li Salt for Proactively Mitigating Interfacial Side Reactions in Sodium-Ion Batteries. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-01742-z
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main finding of this study?
The study demonstrates that integrating LiPF6 salt into sodium-ion battery electrolytes significantly strengthens both the solid electrolyte interphase (SEI) on hard carbon anodes and the surface stability of O3-type cathodes, leading to enhanced cycle life and capacity retention.
How does Li salt improve the SEI in sodium-ion batteries?
Li salt alters the solvation structure, resulting in a Li-incorporated SEI that is less soluble than Na-based SEI, thereby better suppressing sodium-ion and electron leakage and preventing further electrolyte decomposition.
What is the effect of Li salt on the O3-type cathode?
Li ions intercalate marginally at the cathode surface, forming Li-ion pillars that reduce oxygen release and electrolyte degradation. Additionally, a LiF layer forms, further protecting the cathode and improving capacity retention.
How does this approach compare to using fluoroethylene carbonate (FEC) additive?
The dual-interface strengthening achieved with Li salt yields greater improvements in capacity retention compared to the conventional FEC additive, as it simultaneously enhances both anode and cathode interfaces.
What are the practical implications of this research?
This research provides a promising strategy for developing high-performance sodium-ion batteries with improved cycle stability, which is crucial for large-scale energy storage applications.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
