Key Takeaways & Executive Findings
- •• Mo equivalent design enables rapid and cost-effective composition optimization for ultra-high strength and toughness titanium alloys, replacing traditional trial-and-error methods. • Increasing Mo equivalent transforms β grains from columnar to equiaxed, refining grain size and reducing α phase content, with 6Mo alloy achieving optimal balance of strength (984 MPa), plasticity (12.8%), and toughness (74 MPa·m1/2). • The strengthening and toughening mechanisms are primarily solid-solution strengthening of Mo, β grain refinement, and α/β phase content modulation. • The study provides a theoretical foundation for developing new titanium alloys with synergistic strength and toughness for aerospace applications.
Abstract

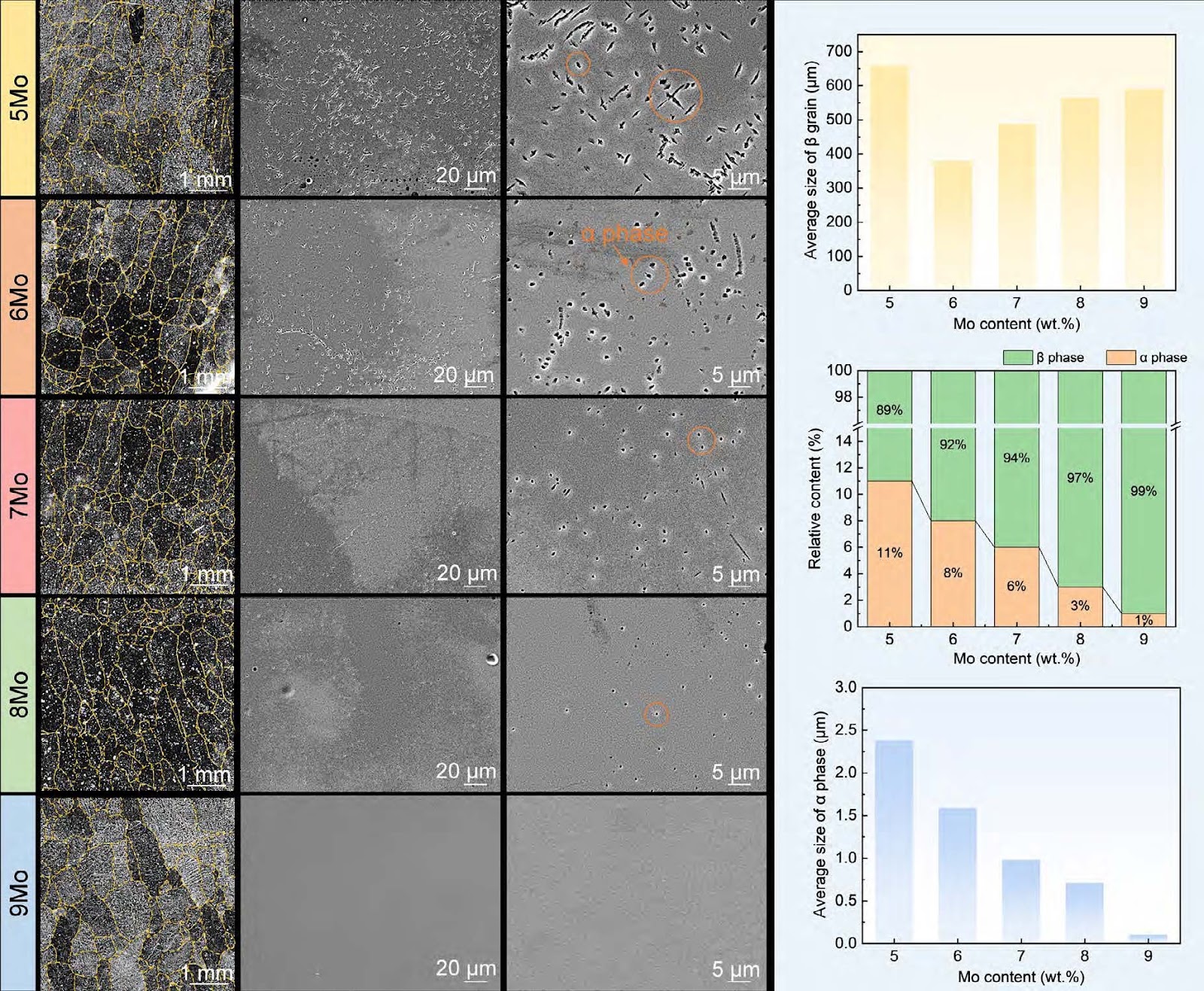

The traditional "trial and error" microstructural control method, with high cost and low efficiency, has become a key issue restricting the development of ultra-high strength and toughness titanium alloys. This study adopts the molybdenum equivalent (Mo[eq]) method to rapidly design Ti-xMo-4Al-4Zr-3Nb-2Cr-1Fe alloys (x=5-9). The as-cast alloys with different Mo[eq] exhibit a single peak of the β phase in XRD. The β grains of 5Mo alloy (the lowest Mo[eq]) exhibit elongated columnar grain characteristics. As the Mo[eq] increases, the β grains transition towards a more equiaxed form, resulting in a decrease in aspect ratio and a reduction in grain size. As the Mo[eq] increases, the α phase content gradually decreases and the α phase is almost unobservable in 9Mo alloy (the highest Mo[eq]). The α phase in 5Mo alloy exhibits short rod-shaped shapes with an average length of about 2.4 μm, while the α phase in 6Mo alloy shows an equiaxed and short rod shapes with the smallest size. The strength, plasticity, and toughness are the lowest in 5Mo alloy, with values of 867 MPa, 7.3%, and 56 MPa·m1/2, respectively. However, it reaches its maximum in 6Mo alloy, where the strength, plasticity, and toughness increase to 984 MPa, 12.8%, and 74 MPa·m1/2, respectively. The mechanical properties of Ti-xMo-4Al-4Zr-3Nb-2Cr-1Fe alloys are affected mainly by solid-solution strengthening of Mo element, refinement of β grain, and changes in α/β phase content. This study lays a certain theoretical foundation for the theoretical research and composition development of new ultra-high strength and toughness titanium alloys.
1. Introduction
With the rapid development of the aerospace industry, the requirements for structural materials for aerospace are increasingly focused on lightweight, high strength, and high toughness [1-4]. To adapt to this development trend, ultra-high strength and toughness titanium alloys (tensile strength>1,300 MPa, fracture toughness>55 MPa·m1/2), as high-performance lightweight metals, are becoming a highly valued new structural material in the field of high-tech new materials [5-8]. It is widely recognized that ultra-high strength and toughness titanium alloys, as a typical structural material, are characterized by three fundamental properties: strength, plasticity, and fracture toughness. Achieving an optimal balance among these properties is inherently challenging [9-11], as their interdependence presents a well-documented contradiction in metallurgy. Due to inherent contradictions at the source, ultra-high strength and toughness titanium alloys are currently almost completely in a bottleneck period of development and have not been able to be truly applied. However, research on higher strength titanium alloys exceeding 1,300 MPa has never been interrupted [12-15]. Researchers continuously strive to improve material properties on the basis of matching strength and toughness through microstructural design and optimized element configurations.
Typically, ultra-high strength and high toughness titanium alloys exhibit an α+β two-phase microstructure, wherein the α precipitation phase serves to reinforce the β phase matrix [16-18]. The mechanical properties of alloys depend on the properties of the two phases and their matching. Achieving precise control over the composition, proportion, and morphology of these phases is essential for the comprehensive optimization of alloy strength and toughness [19-21]. The most fundamental aspect of alloy design is composition design [22-24]. Ultra-high strength and toughness titanium alloys often have 5-8 alloying elements. This is because different elements have different contributions to the mechanical/physical properties, process performance, and cost of alloys [25,26]. The traditional “trial and error” microstructural control method, with high cost and low efficiency, has become a key issue restricting the development of ultra-high strength and toughness titanium alloys. Therefore, the appropriate and rapidly selection of these elements remains a focal point of research in the field.
Loading authentic research manuscript (Pages 1–5)...
Yi-li Li, Hong-ze Fang, Rui-run Chen, Jia-qi Hao, Bao-hui Zhu, Jing-jie Guo (2026). Titanium alloy with synergistic enhancement of strength and toughness based on molybdenum equivalent design: Microstructure evolution and strengthening-toughening mechanism. China Foundry. https://doi.org/10.1007/s41230-026-5016-6
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the molybdenum equivalent (Mo[eq]) method in titanium alloy design?
The Mo[eq] method is a rapid alloy design approach that uses the equivalent molybdenum content to predict the stability of the β phase in titanium alloys. It allows researchers to quickly select alloy compositions to achieve desired microstructures and mechanical properties, reducing the need for costly and time-consuming trial-and-error experiments.
How does increasing Mo equivalent affect the microstructure of Ti-xMo-4Al-4Zr-3Nb-2Cr-1Fe alloys?
Increasing Mo equivalent transforms the β grains from elongated columnar to equiaxed, reduces grain size, and decreases the α phase content. At the highest Mo equivalent (9Mo), the α phase becomes almost unobservable, while at lower Mo equivalents, the α phase appears as short rods or equiaxed shapes.
Which alloy composition in the study achieved the best combination of strength, plasticity, and toughness?
The 6Mo alloy (with 6 wt.% Mo) achieved the best combination, with a tensile strength of 984 MPa, elongation of 12.8%, and fracture toughness of 74 MPa·m1/2. This composition provided an optimal balance of α/β phases and grain refinement.
What are the main strengthening and toughening mechanisms in these titanium alloys?
The main mechanisms are solid-solution strengthening from Mo, refinement of β grains, and changes in α/β phase content. These factors collectively enhance strength and toughness by impeding dislocation movement and promoting uniform deformation.
What is the significance of this study for aerospace applications?
This study provides a rapid and efficient method for designing ultra-high strength and toughness titanium alloys, which are critical for aerospace structural materials. By understanding the microstructure-property relationships, it enables the development of lightweight, high-performance alloys that meet the demanding requirements of the aerospace industry.
Related Technical Papers & Translations
Pull-out capacity and energy absorption of cable bolts under impact loading
This study investigates the performance of high-strength cable bolts under impact loading conditions representative of rock bursts in underground environments. Although widely used, the dynamic behaviour of these cable bolts has received limited experimental attention, and their effectiveness in seismically active zones remains a subject of ongoing debate. To address this gap, a reverse pull-out test machine integrated with a drop hammer rig was employed. Tests were conducted on 70-t SUMO bulbed and non-bulbed cable bolts with encapsulation lengths of 300 and 450 mm, subjected to an impact energy of 14.52 kJ. Results indicate that non-bulbed cables, despite showing lower initial peak loads (average 218 vs. 328 kN for bulbed cables at 300 mm encapsulation), demonstrated superior energy absorption (average 11.26 vs. 8.75 kJ) and displacement capacity (average 48.40 vs. 36.25 mm). Increasing the encapsulation length for bulbed cables led to a reduction in initial peak load but improved displacement and energy absorption. The dominant failure mechanism was debonding at the cable-grout interface, characterised by frictional sliding and cable rotation. These findings provide new insights into the energy dissipation mechanisms of cables and support the development of more resilient ground support systems for dynamically active conditions.
Effect of eutectic content on microstructure and mechanical properties of Al-Zn-Mg-Cu alloys
The 7xxx series aluminum alloys have emerged as a particularly promising class of lightweight structural materials. However, the inherent strength of these materials is primarily influenced by the content and type of alloying elements added during the manufacturing process, as well as casting defects. The present study investigated the effects of eutectics formed by solute atoms (Zn, Mg, and Cu), with equal mass ratios (Zn/Mg=2, Mg/Cu=3) but varying overall contents, on the liquid film thickness, crack propagation depth, and the mechanical properties of the Al-Zn-Mg-Cu alloy after heat treatment. The results from gravity casting indicate that the intergranular liquid film thickness increases with the increase of eutectic content. A thick intergranular liquid film in the casting can accommodate greater strain during grain contraction, thereby preventing liquid film rupture and subsequent hot tearing. Concurrently, during the solution treatment at 475 °C, the residual eutectic fraction in the Al-7Zn-3.5Mg-1.18Cu alloy diminishes from 9.1% at 10 h to 0.35% at 40 h. At 165 °C, the Al-6Zn-3.0Mg-1.0Cu alloy exhibits the optimal mechanical properties, with a peak aging tensile strength of 510 MPa and an elongation of 6.4%. The incorporation of lower concentrations of solute atoms (Zn, Mg, and Cu) serves to reduce the barrier to dislocation precipitation, thereby enhancing alloy plasticity. However, when the proportion of alloying elements exceeds the solubility limit of the α-Al matrix at specific heat treatment temperatures, coarse residual phases remain intergranular, thereby significantly impairing the mechanical properties of the alloy. This study provides a reference for the optimal addition level of the main strengthening elements in Al‑Zn‑Mg‑Cu alloys.
Achieving optimal strength-conductivity balance in cast Al-2.3Fe-Mg-Si alloys via Mg/Si ratio regulation
The Al-2.3Fe eutectic alloy is regarded as a promising substitute for Cu conductors in automotive motors owing to its excellent castability and low resistivity. However, its application is restricted by the mutually exclusive relationship between electrical conductivity and mechanical strength. The microstructure and mechanical properties of Al-2.3Fe alloy were modified through Mg/Si alloying combined with T6 heat treatment in this work, leading to the development of a high-performance cast Al-2.3Fe-Mg-Si alloy. In the Al-2.3Fe-0.40Mg-0.72Si (Mg/Si=0.56) alloy subjected to T6 treatment, an electrical conductivity of (52.5±0.6)% IACS is achieved, while the ultimate tensile strength is significantly enhanced to 309.5±5.6 MPa. The addition of Mg and Si brings about marked changes in the solidification process of the Al-2.3Fe alloy, resulting in considerable variations in both the morphology of the second phase and its phase constitution. The aging behavior of the alloy is governed by second phase and solid solubility. Through optimization of the Mg/Si ratio, the aging response can be effectively enhanced. At the ratio of Mg/Si=0.56, a balance is achieved between solid solubility and precipitation, while simultaneously minimizing the detrimental impact on electrical conductivity and reaching the best mechanical properties and electrical conductivity in peak-aged Al-2.3Fe-xMg-ySi alloy. This work providing valuable insights for developing advanced conductor materials.
