Key Takeaways & Executive Findings
- •• Metallic microneedles (MMNs) offer superior mechanical properties, machinability, and biocompatibility compared to silicon, polymer, and ceramic counterparts, enabling painless and efficient skin penetration. • MMNs are classified by structure (in-plane/out-of-plane) and internal/surface design (solid, hollow, coated, porous), each tailored for specific applications. • Fabrication technologies for MMNs include cutting tool machining, non-traditional machining, etching, hot-forming, and additive manufacturing, each with distinct advantages and limitations. • MMNs show significant promise in drug delivery, disease diagnosis, and cosmetology, but challenges remain in fabrication scalability, cost, and long-term safety, guiding future research directions.
Abstract
Microneedle (MN) is a medical device containing an array of needles with a micrometer-scale. It can penetrate the human stratum corneum painlessly and efficiently for treatment and diagnosis purposes. Currently, the materials commonly used to manufacture MNs include silicon, polymers, ceramics and metals. Metallic MNs (MMNs) have drawn significant attention owing to its superior mechanical properties, machinability, and biocompatibility. This paper is a state-of-the-art review of the structure, fabrication technologies, and applications of MMNs. According to the relative position of the axis of MN and the plane of the substrate, MMNs can be divided into in-plane and out-of-plane. Solid, hollow, coated and porous MMNs are also employed to characterize their internal and surface structures. Until now, numerous fabrication technologies, including cutting tool machining, non-traditional machining, etching, hot-forming, and additive manufacturing, have been used to fabricate MMNs. The recent advances in the application of MMNs in drug delivery, disease diagnosis, and cosmetology are also discussed in-depth. Finally, the shortcomings in the fabrication and application of MMNs and future directions for development are highlighted.
1. Introduction
Microneedle (MN) as a medical device is composed of micron-sized arrays of tip protrusions [1, 2]. As a novel transdermal drug delivery technique, MNs can pierce the stratum corneum to form microchannels reaching the epidermis and even the upper dermis without touching the nerve fibers and blood vessels in the dermis [3]. The first-pass metabolism of the traditional delivery method of oral ingestion is avoided by MNs drug delivery [4]. The pain and infection risk of hypodermic injection delivery can also be reduced by MNs [5–7]. Moreover, MNs can increase the drug delivery efficiency and the drug types compared to traditional transdermal drug delivery [8–10]. Besides, MNs have great potential in disease diagnosis [11–13] and cosmetology [14].
Due to the inherent viscoelastic properties of the skin, the MNs have to possess sufficient strength and stiffness. Furthermore, they have to be sharp, thin, and long enough to penetrate the stratum corneum and to reach the epidermis and even the dermis [15–17] without breaking or bending during insertion [18–23]. It is therefore challenging to design and manufacture MNs that meet the aforementioned requirements.
The material of the MNs has a strong influence on the mechanical properties [24]. Until recently, most of the MNs have been made using silicon, polymer, ceramic, and metal [25–28]. The first MN device was built using silicon [29], and photolithography (LIGA) has been extensively employed to fabricate silicon MNs with a very high dimension and shape accuracy [30, 31]. However, silicon possesses low fracture toughness, posing the risk of leaving debris of silicon in tissue in the case of fracture [24, 32]. Polymer MNs are biocompatible, degradable, and sufficiently tough, but easily undergo buckling failure during insertion due to their low strength [33]. Ceramic MNs are employed because of their excellent chemical stability, compression resistance, and biocompatibility [34]. However, they can also experience a brittle fracture like silica MNs [35]. Compared with other materials, metallic MNs have superior mechanical properties, including high strength, hardness, and toughness, which allow them to have precise insertion capabilities. Moreover, because of these features, they can penetrate through the skin without being fractured or buckled, even in the case of the formation of larger microchannels or higher porosity [8, 36]. Therefore, metallic mater
Loading authentic research manuscript (Pages 1–5)...
Zhishan Yuan, Hongzhao Zhang, Wentao Hu, Xiao Yu, Si Qin, Chengyong Wang, Fenglin Zhang (2025). State-of-the-art Review of Metallic Microneedles: Structure, Fabrication, and Application. Chinese Journal of Mechanical Engineering. https://doi.org/10.1186/s10033-025-01188-9
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are metallic microneedles (MMNs) and why are they advantageous?
Metallic microneedles are micron-sized needle arrays made from metals, offering superior mechanical strength, hardness, and toughness compared to silicon, polymer, or ceramic microneedles. This allows them to penetrate the skin painlessly and efficiently without breaking or buckling, making them ideal for drug delivery, diagnosis, and cosmetic applications.
How are metallic microneedles classified?
MMNs are classified based on the orientation relative to the substrate (in-plane or out-of-plane) and their internal/surface structure (solid, hollow, coated, or porous). Each type serves specific purposes, such as enhanced drug loading or continuous fluid extraction.

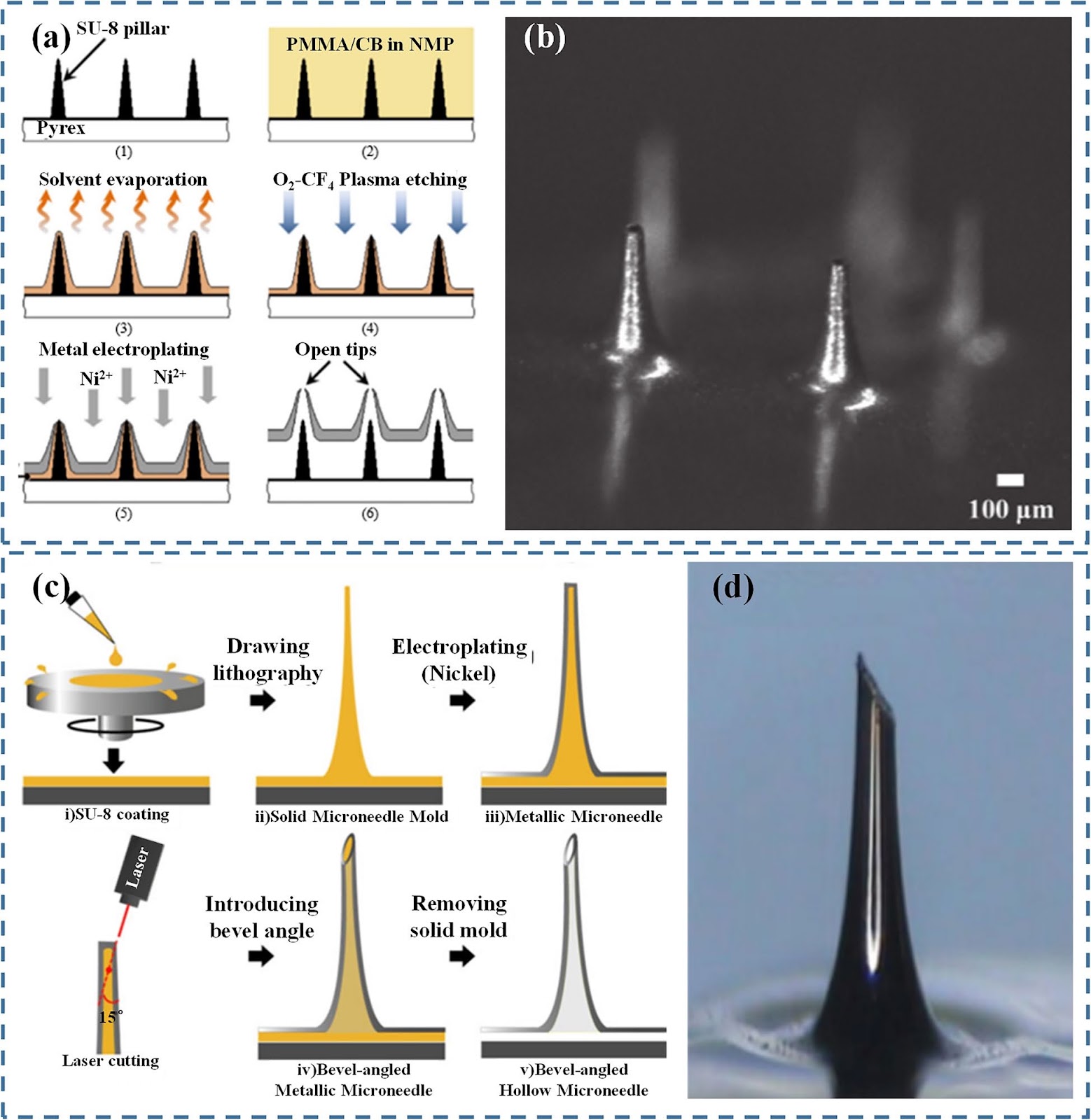

What fabrication technologies are used for metallic microneedles?
Fabrication methods include cutting tool machining, non-traditional machining (e.g., EDM, laser), etching, hot-forming, and additive manufacturing (3D printing). Each technique offers different trade-offs in precision, cost, scalability, and material compatibility.
What are the main applications of metallic microneedles?
MMNs are primarily used in transdermal drug delivery, disease diagnosis (e.g., interstitial fluid sampling), and cosmetology (e.g., anti-aging treatments). Their robust mechanical properties enable reliable skin penetration and controlled release or extraction.
What are the current challenges and future directions for metallic microneedles?
Challenges include high fabrication costs, limited scalability, potential metal ion release, and regulatory hurdles. Future research focuses on developing cost-effective manufacturing methods, improving biocompatibility, and integrating smart features like sensors for personalized medicine.
