Key Takeaways & Executive Findings
- •• Bioinspired dual-mechanism sensor combining fabric microstructures (∝ P1/3 contact area) and ionic film (∝ P2/3 ion modulation) achieves 242 kPa−1 sensitivity with 0.997 linearity (0–1 MPa), yielding record LSF of 242,000. • Medical-grade validation via smart insole demonstrates 1.8% GRF error (vs. 6.5% in nonlinear sensors), enabling precise early fracture-risk prediction and validating medical-grade wearables. • The sensor achieves ultra-wide working range and full-range linearity, overcoming the trade-off between sensitivity and linearity in conventional flexible pressure sensors. • The biomimetic design framework provides a universal approach for developing high-performance linear sensors, with potential for broad application in wearable biomechanical monitoring.
Abstract

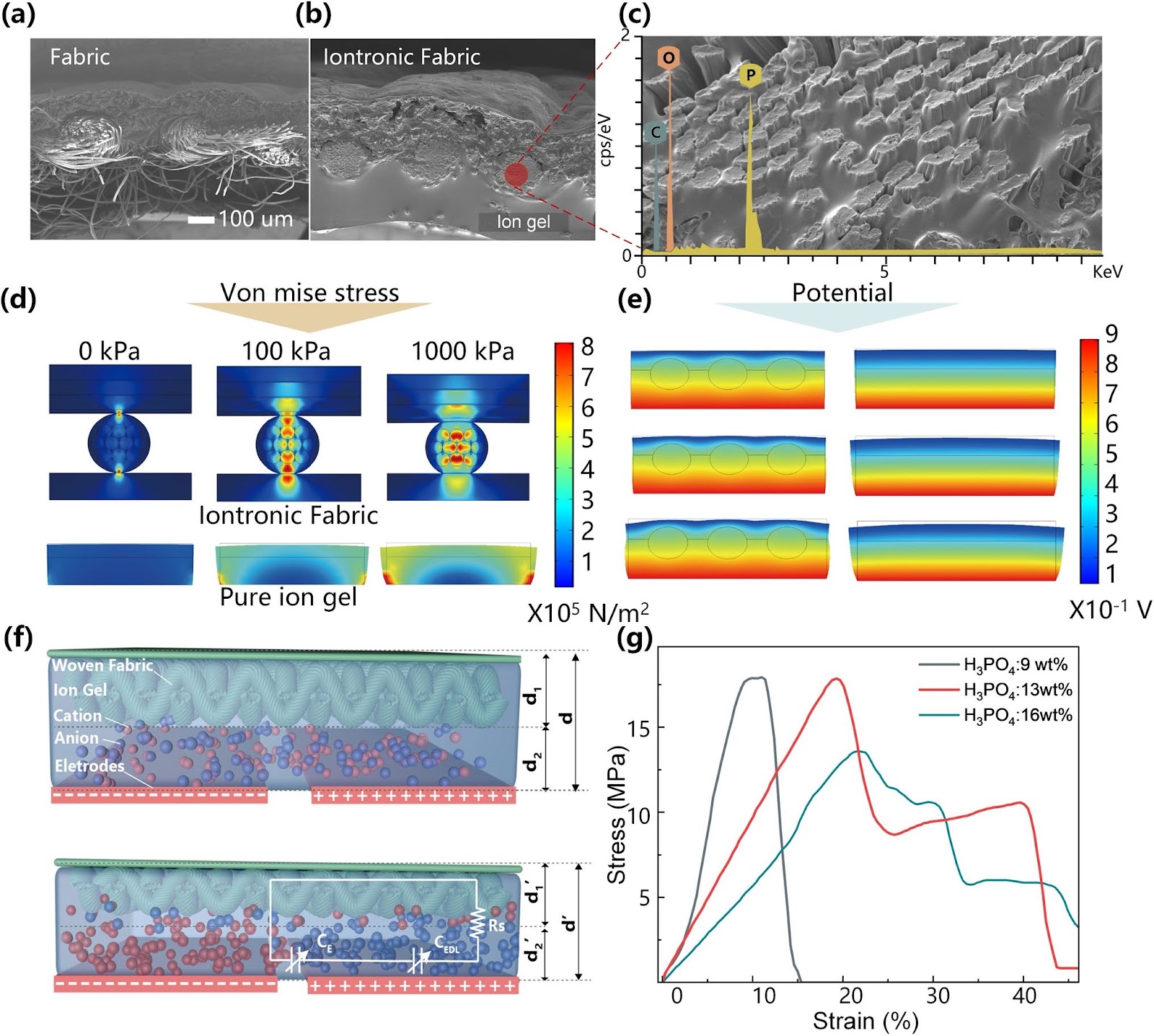

The growing prevalence of exercise-induced tibial stress fractures demands wearable sensors capable of monitoring dynamic musculoskeletal loads with medical-grade precision. While flexible pressure-sensing insoles show clinical potential, their development has been hindered by the intrinsic trade-off between high sensitivity and full-range linearity (R2 > 0.99 up to 1 MPa) in conventional designs. Inspired by the tactile sensing mechanism of human skin, where dermal stratification enables wide-range pressure adaptation and ion-channel-regulated signaling maintains linear electrical responses, we developed a dual-mechanism flexible iontronic pressure sensor (FIPS). This innovative design synergistically combines two bioinspired components: interdigitated fabric microstructures enabling pressure-proportional contact area expansion (∝ P1/3) and iontronic film facilitating self-adaptive ion concentration modulation (∝ P2/3), which together generate a linear capacitance-pressure response (C ∝ P). The FIPS achieves breakthrough performance: 242 kPa−1 sensitivity with 0.997 linearity across 0–1 MPa, yielding a record linear sensing factor (LSF = 242,000). The design is validated across various substrates and ionic materials, demonstrating its versatility. Finally, the FIPS-driven design enables a smart insole demonstrating 1.8% error in tibial load assessment during gait analysis, outperforming nonlinear counterparts (6.5% error) in early fracture-risk prediction. The biomimetic design framework establishes a universal approach for developing high-performance linear sensors, establishing generalized principles for medical-grade wearable devices.
1. Introduction
Exercise-induced bone stress injuries (BSI), particularly tibial fractures caused by repetitive mechanical loading during running (accounting for 6–20% of sports injuries [1]), necessitate real-time tibia load monitoring for injury prevention and rehabilitation planning. Current methods—such as invasive strain gauges or costly optical motion capture systems—lack practicality for free-motion monitoring due to irreversible tissue damage or limited portability. While biomechanical platforms like force plates with optical markers remain the gold standard for indirect tibial load estimation, their operational complexity and inability to provide real-time data drive urgent demand for wearable solutions.
Flexible pressure sensors integrated into ergonomic devices [2], such as insoles, offer promising alternatives for continuous, non-restrictive tibial load tracking [3–5]. Since monitoring bone loads requires simultaneous acquisition of mechanical and gait-related kinematic data [6, 7], flexible pressure-sensing insoles have emerged as a viable wearable option. To accurately reflect plantar pressure dynamics and achieve simplified signal decoupling in wearable devices, flexible sensors must fulfill stringent requirements: ultra-wide working range, high sensitivity, and full-range linearity [8–10]. Although significant breakthroughs have been achieved in individual performance metrics—such as spatial resolution and response speed—its practical applications still face a series of challenges. Taking pressure sensing for biomechanical monitoring as an example, rigid sensors exhibit a nonlinearity error of ≤ 0.1% F.S., whereas existing flexible sensors typically show a nonlinearity error of ≥ 5% F.S. or adopt segmented linearity over a wide range. This leads to an exponential increase in calibration complexity for flexible sensors, severely limiting both their precision and the reliability of data acquisition, and fundamentally constraining their engineering application in wearable biomechanical monitoring.
To characterize the linear response of sensors across a wide range, recent studies have proposed the linear sensing factor (LSF, sensitivity × linear range) as a critical metric for evaluating sensor linearity [11–13]. Flexible sensors, which employ various response mechanisms such as piezoresistive, piezoelectric, and capacitive, have gained significant attention in recent years. Ionic gel materials, thanks to their ultra-high intrinsic capacitance density (> 1 μF cm−2) formed at the electric double-layer interface, offer promising avenues for achieving high sensitivity and linearity.
Loading authentic research manuscript (Pages 1–5)...
Pei Li, Shipan Lang, Lei Xie, Yong Zhang, Xin Gou, Chao Zhang, Chenhui Dong, Chunbao Li, Jun Yang (2026). Skin-Inspired Ultra-Linear Flexible Iontronic Pressure Sensors for Wearable Musculoskeletal Monitoring. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-01887-x
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the key innovation of this skin-inspired flexible iontronic pressure sensor?
The sensor combines two bioinspired mechanisms: interdigitated fabric microstructures that expand contact area proportionally to pressure (∝ P1/3) and an iontronic film that modulates ion concentration (∝ P2/3), together yielding a linear capacitance-pressure response (C ∝ P). This dual-mechanism design achieves ultra-high sensitivity (242 kPa−1) and full-range linearity (R² > 0.99 up to 1 MPa), overcoming the traditional trade-off between sensitivity and linearity.
How does the sensor achieve medical-grade precision in musculoskeletal monitoring?
The sensor's linear response enables accurate tibial load assessment during gait analysis. In a smart insole validation, it achieved only 1.8% error in ground reaction force estimation, compared to 6.5% for nonlinear sensors, allowing precise early fracture-risk prediction and validating its suitability for medical-grade wearables.
What is the linear sensing factor (LSF) and why is it important?
LSF is defined as sensitivity multiplied by linear range. It is a critical metric for evaluating sensor linearity across a wide pressure range. The proposed sensor achieves a record LSF of 242,000, indicating exceptional linearity and sensitivity, which simplifies calibration and enhances reliability in wearable biomechanical monitoring.
What are the potential applications of this sensor technology?
The sensor is designed for wearable musculoskeletal monitoring, particularly for real-time tibia load tracking to prevent exercise-induced bone stress injuries. It can be integrated into smart insoles for gait analysis, rehabilitation planning, and potentially other biomechanical monitoring applications requiring high precision and linearity.
How does the sensor's design mimic human skin?
Human skin achieves wide-range pressure adaptation through dermal stratification and maintains linear electrical responses via ion-channel-regulated signaling. The sensor mimics this by using fabric microstructures for pressure-proportional contact area expansion and an iontronic film for self-adaptive ion concentration modulation, resulting in a linear capacitance-pressure response.
