Key Takeaways & Executive Findings
- •• A sustainable protective layer for Zn anodes integrating carbon nanotubes (CNTs) and chitosan via a simple scraping process inhibits dendrite growth and side reactions. • Chitosan's polar functional groups enhance Zn2+ transport, and the even distribution of CNTs lowers local current density, enabling a uniform electric field to regulate Zn deposition. • Benefiting from the chitosan/CNTs protective layer, the Zn//Zn and Zn//V2O5 cells showcase significantly enhanced electrochemical performance, and technical economic analyses demonstrate their practical applications. • The reversibility of chitosan as a binder enables successful recovery of high-value CNTs, demonstrating sustainability and providing a novel design idea for highly efficient use of electrodes.
Abstract

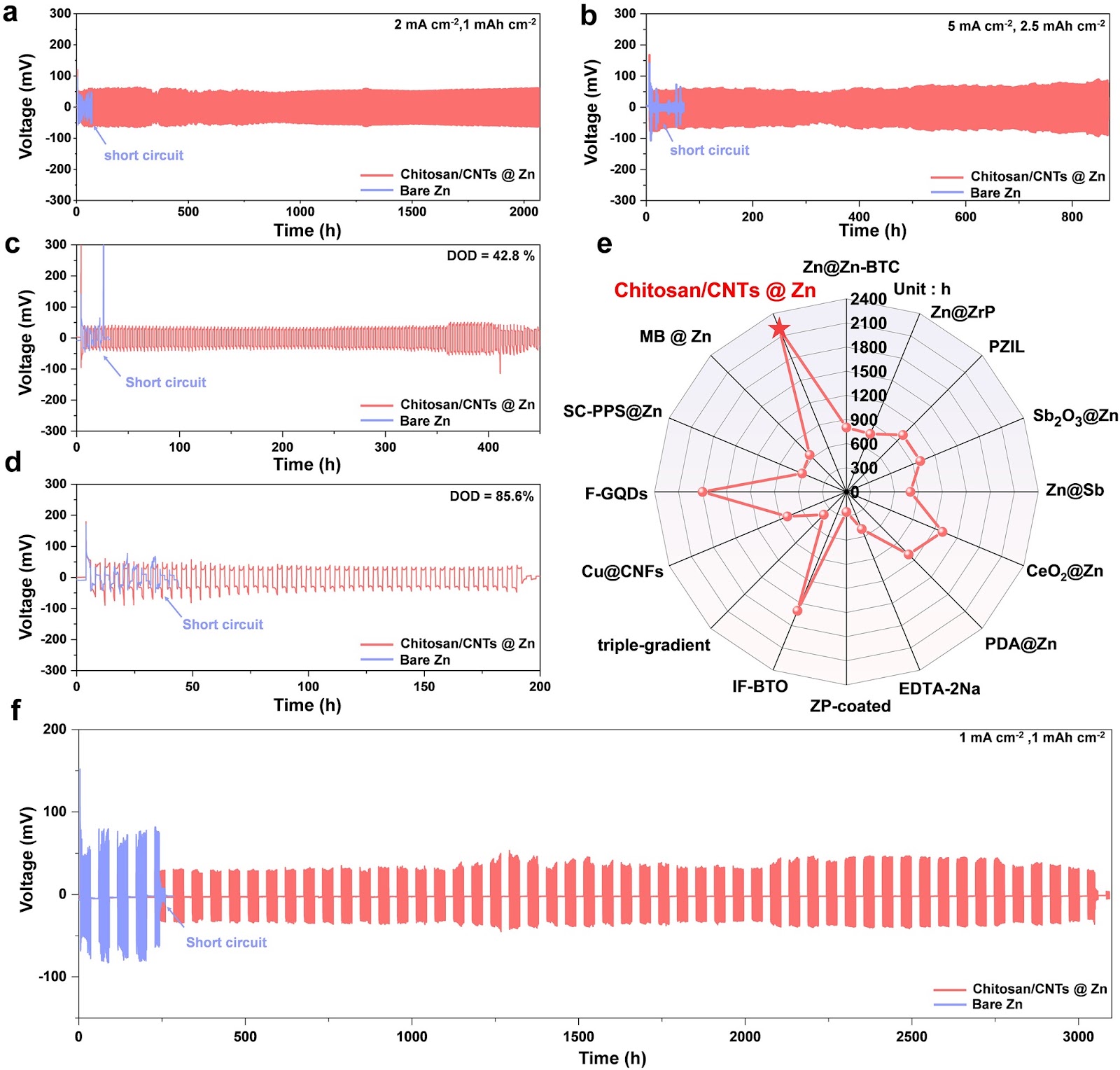

Rechargeable aqueous zinc (Zn)-metal batteries hold great promise for next-generation energy storage systems. However, their practical application is hindered by several challenges, including dendrite formation, corrosion, and the competing hydrogen evolution reaction. To address these issues, we designed and fabricated a composite protective layer for Zn anodes by integrating carbon nanotubes (CNTs) with chitosan through a simple and scalable scraping process. The CNTs ensure uniform electric field distribution due to their high electrical conductivity, while protonated chitosan regulates ion transport and suppresses dendrite formation at the anode interface. The chitosan/CNTs composite layer also facilitates smooth Zn2+ deposition, enhancing the stability and reversibility of the Zn anode. As a result, the chitosan/CNTs @ Zn anode demonstrates exceptional cycling stability, achieving over 3000 h of plating/stripping with minimal degradation. When paired with a V2O5 cathode, the composite-protected anode significantly improves the cycle stability and energy density of the full cell. Techno-economic analysis confirms that batteries incorporating the chitosan/CNTs protective layer outperform those with bare Zn anodes in terms of energy density and overall performance under optimized conditions. This work provides a scalable and sustainable strategy to overcome the critical challenges of aqueous Zn-metal batteries, paving the way for their practical application in next-generation energy storage systems.
1. Introduction
Rechargeable aqueous zinc (Zn)-metal batteries hold great promise for next-generation energy storage systems due to their high theoretical capacity, low cost, and intrinsic safety. However, their practical application is hindered by several challenges, including dendrite formation, corrosion, and the competing hydrogen evolution reaction. These issues lead to poor cycling stability and low Coulombic efficiency, limiting the commercialization of Zn-based batteries.
To address these challenges, various strategies have been explored, such as surface coating, electrolyte optimization, and structural design of Zn anodes. Among these, protective layers have shown effectiveness in regulating Zn deposition and suppressing side reactions. However, many existing coatings rely on polyvinylidene difluoride (PVDF) as a binder, which can increase interfacial impedance and inadequate ion transport due to its hydrophobic nature. Although powder-metallurgy-based and electrodeposition strategies can incorporate carbon nanotubes (CNTs) into zinc anodes without binders, these methods are complex and energy-consuming. Moreover, CNTs recycling is often overlooked. Thus, achieving efficient and recyclable CNTs utilization in zinc anodes remains challenging.
As a natural polymer, chitosan possesses several advantages, such as cost-effectiveness, abundant H-bonded groups, and strong coordination ability. Its abundant hydrogen bonds endow it with excellent self-adhesive properties, allowing it to bind effectively with CNTs without extra binders. More importantly, chitosan's good solubility in acetic acid makes the recycling of CNTs feasible. Inspired by plant cell wall, we develop a sustainable chitosan/CNTs composite protective layer on the zinc anode via a simple and energy-efficient scraping coating method. The chitosan in the composite like a soft matrix not only serves as a binder, but also functions as Lewis basic sites, effectively attracting and capturing Zn2+, thereby regulating Zn2+ transport. Moreover, the CNTs act like the fibrous component, providing strength and conductivity, and the abundant CNTs within the protective layer facilitate the redistribution of charge at the anode interface, which reduces the local current density, resulting in a lower nucleation overpotential for zinc and effectively inhibiting dendrite growth.
Loading authentic research manuscript (Pages 1–5)...
Jinchang Wang, Alessandro Innocenti, Hang Wei, Yuanyuan Zhang, Jingsong Peng, Yuanting Qiao, Weifeng Huang, Jian Liu (2025). Scalable and Sustainable Chitosan/Carbon Nanotubes Composite Protective Layer for Dendrite-Free and Long-Cycling Aqueous Zinc-Metal Batteries. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-01837-7
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main challenge addressed in this paper?
The paper addresses the challenges of dendrite formation, corrosion, and hydrogen evolution reaction in aqueous zinc-metal batteries, which hinder their practical application.
How does the chitosan/CNTs protective layer work?
The protective layer integrates carbon nanotubes (CNTs) with chitosan. CNTs ensure uniform electric field distribution due to high conductivity, while protonated chitosan regulates ion transport and suppresses dendrite formation, facilitating smooth Zn2+ deposition.
What are the key performance improvements reported?
The chitosan/CNTs@Zn anode demonstrates exceptional cycling stability, achieving over 3000 hours of plating/stripping with minimal degradation. When paired with a V2O5 cathode, the full cell shows significantly improved cycle stability and energy density.
Is the proposed strategy sustainable?
Yes, the strategy is sustainable because chitosan is a natural polymer that is cost-effective and recyclable. The reversibility of chitosan as a binder enables the successful recovery of high-value CNTs, demonstrating sustainability.
What is the significance of the techno-economic analysis?
The techno-economic analysis confirms that batteries incorporating the chitosan/CNTs protective layer outperform those with bare Zn anodes in terms of energy density and overall performance under optimized conditions, indicating practical applications.
Related Technical Papers & Translations
Pull-out capacity and energy absorption of cable bolts under impact loading
This study investigates the performance of high-strength cable bolts under impact loading conditions representative of rock bursts in underground environments. Although widely used, the dynamic behaviour of these cable bolts has received limited experimental attention, and their effectiveness in seismically active zones remains a subject of ongoing debate. To address this gap, a reverse pull-out test machine integrated with a drop hammer rig was employed. Tests were conducted on 70-t SUMO bulbed and non-bulbed cable bolts with encapsulation lengths of 300 and 450 mm, subjected to an impact energy of 14.52 kJ. Results indicate that non-bulbed cables, despite showing lower initial peak loads (average 218 vs. 328 kN for bulbed cables at 300 mm encapsulation), demonstrated superior energy absorption (average 11.26 vs. 8.75 kJ) and displacement capacity (average 48.40 vs. 36.25 mm). Increasing the encapsulation length for bulbed cables led to a reduction in initial peak load but improved displacement and energy absorption. The dominant failure mechanism was debonding at the cable-grout interface, characterised by frictional sliding and cable rotation. These findings provide new insights into the energy dissipation mechanisms of cables and support the development of more resilient ground support systems for dynamically active conditions.
Effect of eutectic content on microstructure and mechanical properties of Al-Zn-Mg-Cu alloys
The 7xxx series aluminum alloys have emerged as a particularly promising class of lightweight structural materials. However, the inherent strength of these materials is primarily influenced by the content and type of alloying elements added during the manufacturing process, as well as casting defects. The present study investigated the effects of eutectics formed by solute atoms (Zn, Mg, and Cu), with equal mass ratios (Zn/Mg=2, Mg/Cu=3) but varying overall contents, on the liquid film thickness, crack propagation depth, and the mechanical properties of the Al-Zn-Mg-Cu alloy after heat treatment. The results from gravity casting indicate that the intergranular liquid film thickness increases with the increase of eutectic content. A thick intergranular liquid film in the casting can accommodate greater strain during grain contraction, thereby preventing liquid film rupture and subsequent hot tearing. Concurrently, during the solution treatment at 475 °C, the residual eutectic fraction in the Al-7Zn-3.5Mg-1.18Cu alloy diminishes from 9.1% at 10 h to 0.35% at 40 h. At 165 °C, the Al-6Zn-3.0Mg-1.0Cu alloy exhibits the optimal mechanical properties, with a peak aging tensile strength of 510 MPa and an elongation of 6.4%. The incorporation of lower concentrations of solute atoms (Zn, Mg, and Cu) serves to reduce the barrier to dislocation precipitation, thereby enhancing alloy plasticity. However, when the proportion of alloying elements exceeds the solubility limit of the α-Al matrix at specific heat treatment temperatures, coarse residual phases remain intergranular, thereby significantly impairing the mechanical properties of the alloy. This study provides a reference for the optimal addition level of the main strengthening elements in Al‑Zn‑Mg‑Cu alloys.
Achieving optimal strength-conductivity balance in cast Al-2.3Fe-Mg-Si alloys via Mg/Si ratio regulation
The Al-2.3Fe eutectic alloy is regarded as a promising substitute for Cu conductors in automotive motors owing to its excellent castability and low resistivity. However, its application is restricted by the mutually exclusive relationship between electrical conductivity and mechanical strength. The microstructure and mechanical properties of Al-2.3Fe alloy were modified through Mg/Si alloying combined with T6 heat treatment in this work, leading to the development of a high-performance cast Al-2.3Fe-Mg-Si alloy. In the Al-2.3Fe-0.40Mg-0.72Si (Mg/Si=0.56) alloy subjected to T6 treatment, an electrical conductivity of (52.5±0.6)% IACS is achieved, while the ultimate tensile strength is significantly enhanced to 309.5±5.6 MPa. The addition of Mg and Si brings about marked changes in the solidification process of the Al-2.3Fe alloy, resulting in considerable variations in both the morphology of the second phase and its phase constitution. The aging behavior of the alloy is governed by second phase and solid solubility. Through optimization of the Mg/Si ratio, the aging response can be effectively enhanced. At the ratio of Mg/Si=0.56, a balance is achieved between solid solubility and precipitation, while simultaneously minimizing the detrimental impact on electrical conductivity and reaching the best mechanical properties and electrical conductivity in peak-aged Al-2.3Fe-xMg-ySi alloy. This work providing valuable insights for developing advanced conductor materials.
