Key Takeaways & Executive Findings
- •• Iron ore addition enhances iron coke gasification by increasing micropores and specific surface area, providing more CO2 adsorption sites and lowering initial gasification temperature. • Metallic iron from ore reduction disrupts carbon structure order, boosting carbon atom reactivity and overall gasification kinetics. • The random pore model accurately describes iron coke gasification, with activation energy decreasing from 246.2 kJ/mol (coke) to 192.5 kJ/mol (15wt% iron coke). • Accelerating heating rate in non-isothermal gasification improves iron coke reactivity, offering process optimization for low-carbon ironmaking.
Abstract

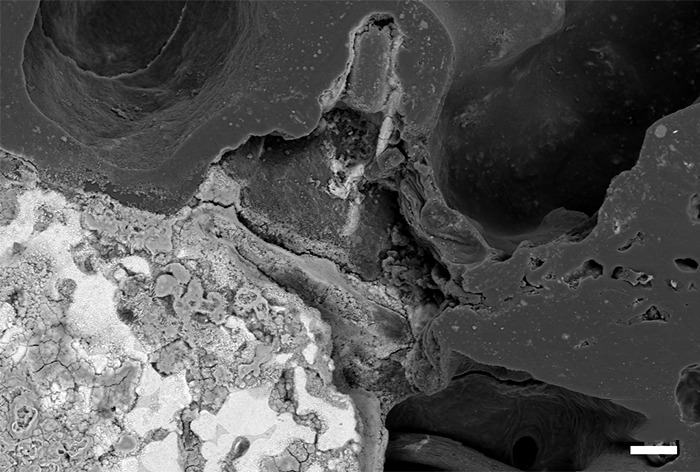

The utilization of iron coke provides a green pathway for low-carbon ironmaking. To uncover the influence mechanism of iron ore on the behavior and kinetics of iron coke gasification, the effect of iron ore on the microstructure of iron coke was investigated. Furthermore, a comparative study of the gasification reactions between iron coke and coke was conducted through non-isothermal thermogravimetric method. The findings indicate that compared to coke, iron coke exhibits an augmentation in micropores and specific surface area, and the micropores further extend and interconnect. This provides more adsorption sites for CO2 molecules during the gasification process, resulting in a reduction in the initial gasification temperature of iron coke. Accelerating the heating rate in non-isothermal gasification can enhance the reactivity of iron coke. The metallic iron reduced from iron ore is embedded in the carbon matrix, reducing the orderliness of the carbon structure, which is primarily responsible for the heightened reactivity of the carbon atoms. The kinetic study indicates that the random pore model can effectively represent the gasification process of iron coke due to its rich pore structure. Moreover, as the proportion of iron ore increases, the activation energy for the carbon gasification gradually decreases, from 246.2 kJ/mol for coke to 192.5 kJ/mol for iron coke 15wt%.
1. Introduction
The low-carbon ironmaking in blast furnaces (BF) is a crucial step towards achieving green steel production and serves as a significant strategy to support the national goal of “double carbon” [1–3]. Using iron coke is widely concerned as a potential energy-saving and carbon-reducing technology in low-carbon ironmaking [4]. Iron coke serves a dual role: it lowers the temperature in the thermal reserve zone of BF to achieve low-carbon production [5], and expands the utilization of weakly caking coal, thereby decreasing ironmaking costs [6]. The iron coke exhibits a heightened gasification reaction activity, attributable to the catalytic effect of metallic iron or iron oxide, which makes its gasification behavior different from that of conventional coke. This characteristic significantly influences the location of the indirect and direct reduction zones in BF [7]. Consequently, it directly affects the energy utilization of BF gas and the efficiency of the furnace shaft. However, a higher reactivity often implies a diminished post-reaction strength [8], which can potentially undermine its role as a BF skeleton. The dual roles frequently present conflicting demands for iron coke reactivity, making the performance regulation of iron coke challenging. Therefore, it is crucial to clarify the impact of iron coke structure on its reactivity and to unravel the mechanism of iron coke gasification for a comprehensive understanding of the gasification behavior and practical application of iron coke.
A series of studies examining the gasification behavior of iron coke and its influencing factors have been conducted by researchers. Nomura et al. [9] and Shi et al. [10] reported a reduction of approximately 120°C in the initial gasification temperature of iron coke when added with 30wt% iron ore. Qiu et al. [11] demonstrated that iron coke gasification was promoted by iron-containing substances, with the effectiveness descending in the order of Fe2O3, Fe3O4, and FeC2O4. Bao et al. [12] further revealed that the post-reaction strength significantly declined as the reactivity increased, particularly when the iron ore addition exceeded 25wt%. Additionally, they noted a gradual decrease in gasification reactivity as the carbonization time increased [13]. Afterwards, Wang et al. [14–15] studied the isothermal gasification behavior of iron coke, concluding that the oxidation of iron was accompanied by iron coke gasification. Recently, Zhu et al. [16] examined the co-gasification behavior of iron coke-coke under hydrogen-rich conditions. Their findings revealed that the lower gasification temperature of iron coke exerted a protective effect on coke. To efficiently utilize resources, some scholars used metallurgical dust, steel slag, and low-caking coal to prepare iron coke and investigate its gasificat
Loading authentic research manuscript (Pages 1–5)...
Jie Wang, Wei Wang, Xuheng Chen, Junfang Bao, Qiuyue Hao, Heng Zheng, Runsheng Xu (2025). Role of iron ore in enhancing gasification of iron coke: Structural evolution, influence mechanism and kinetic analysis. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-024-2873-0
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is iron coke and why is it important?
Iron coke is a composite material made by blending iron ore with coal before carbonization. It is important because it lowers the thermal reserve zone temperature in blast furnaces, reducing CO2 emissions and enabling the use of cheaper, weakly caking coals, thus contributing to low-carbon ironmaking.
How does iron ore affect the gasification of iron coke?
Iron ore enhances gasification by increasing micropores and specific surface area, providing more active sites for CO2 adsorption. The metallic iron produced during reduction disrupts the carbon structure, increasing carbon atom reactivity, which lowers the initial gasification temperature and activation energy.
What kinetic model best describes iron coke gasification?
The random pore model (RPM) effectively represents iron coke gasification due to its rich pore structure. It accounts for the evolution of pore surface area during reaction, providing accurate predictions of conversion rates.
What are the activation energy values for coke and iron coke gasification?
The activation energy for coke gasification is 246.2 kJ/mol, while for iron coke with 15wt% iron ore it decreases to 192.5 kJ/mol, indicating that iron ore addition significantly reduces the energy barrier for gasification.
How does heating rate influence iron coke gasification?
Accelerating the heating rate in non-isothermal gasification enhances the reactivity of iron coke, likely due to faster devolatilization and more rapid formation of active sites, improving overall gasification performance.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
