Key Takeaways & Executive Findings
- •• Laser cladding produces Fe-based alloy coatings with superior interfacial bonding and finer microstructure compared to traditional methods, but they suffer from lower hardness and wear/corrosion resistance. • Doping with rare earth oxides (La2O3, CeO2, Y2O3) significantly enhances the microstructure, hardness, wear, corrosion, and oxidation resistance of laser-cladded Fe-based alloy coatings. • The concentration of rare earth oxides critically influences coating properties; optimal doping levels refine grains and reduce defects like pores and cracks. • This review consolidates mechanisms by which rare earth oxides improve coating performance, providing a reference for advancing laser cladding technology for Fe-based alloys.
Abstract
Conventional Fe-C alloy parts used in mechanical transmission and braking systems exposed to the external environment often suffer from wear and corrosion failures. Surface coating strengthening technologies have been explored to improve the surface performance and prolong service life of these parts. Among these technologies, laser cladding has shown promise in producing Fe-based alloy coatings with superior interfacial bonding properties to the Fe-C alloy substrate. Additionally, the microstructure of the Fe-based alloy coating is more uniform and the grain size is finer than that of surfacing welding, thermal spraying, and plasma cladding, and the oxide film of alloying elements on the coating surface can improve the coating performance. However, Fe-based alloy coatings produced by laser cladding typically exhibit lower hardness, lower wear resistance, corrosion resistance, and oxidation resistance compared to coatings based on Co and Ni alloys. Moreover, these coatings are susceptible to defects such as pores and cracks. To address these limitations, the incorporation of rare-earth oxides through doping in the laser cladding process has garnered significant attention. This approach has demonstrated substantial improvements in the microstructure and properties of Fe-based alloy coatings. This paper reviewed recent research on the structure and properties of laser-cladded Fe-based alloy coatings doped with various rare earth oxides, including La2O3, CeO2, and Y2O3. Specifically, it discussed the effects of rare earth oxides and their concentrations on the structure, hardness, friction, wear, corrosion, and oxidation characteristics of these coatings. Furthermore, the mechanisms by which rare earth oxides influence the coating’s structure and properties were summarized. This review aimed to serve as a valuable reference for the application and advancement of laser cladding technology for rare earth modified Fe-based alloy coatings.
1. Introduction
Fe-C alloy parts utilized in mechanical transmission and braking systems, which are exposed to external environments, are susceptible to corrosion and wear [1-2]. Examples include steel shaft components in mechanical transmission equipment within powder, chemical, and metallurgical industries, as well as cast-iron brake discs used in trains operating at speeds below 200 km·h-1. Moreover, replacing these parts prematurely leads to resource wastage and economic losses. Enhancing the wear and corrosion resistance of Fe-based alloy parts through surface coating technologies can notably enhance their performance and prolong their operational lifespan [3].

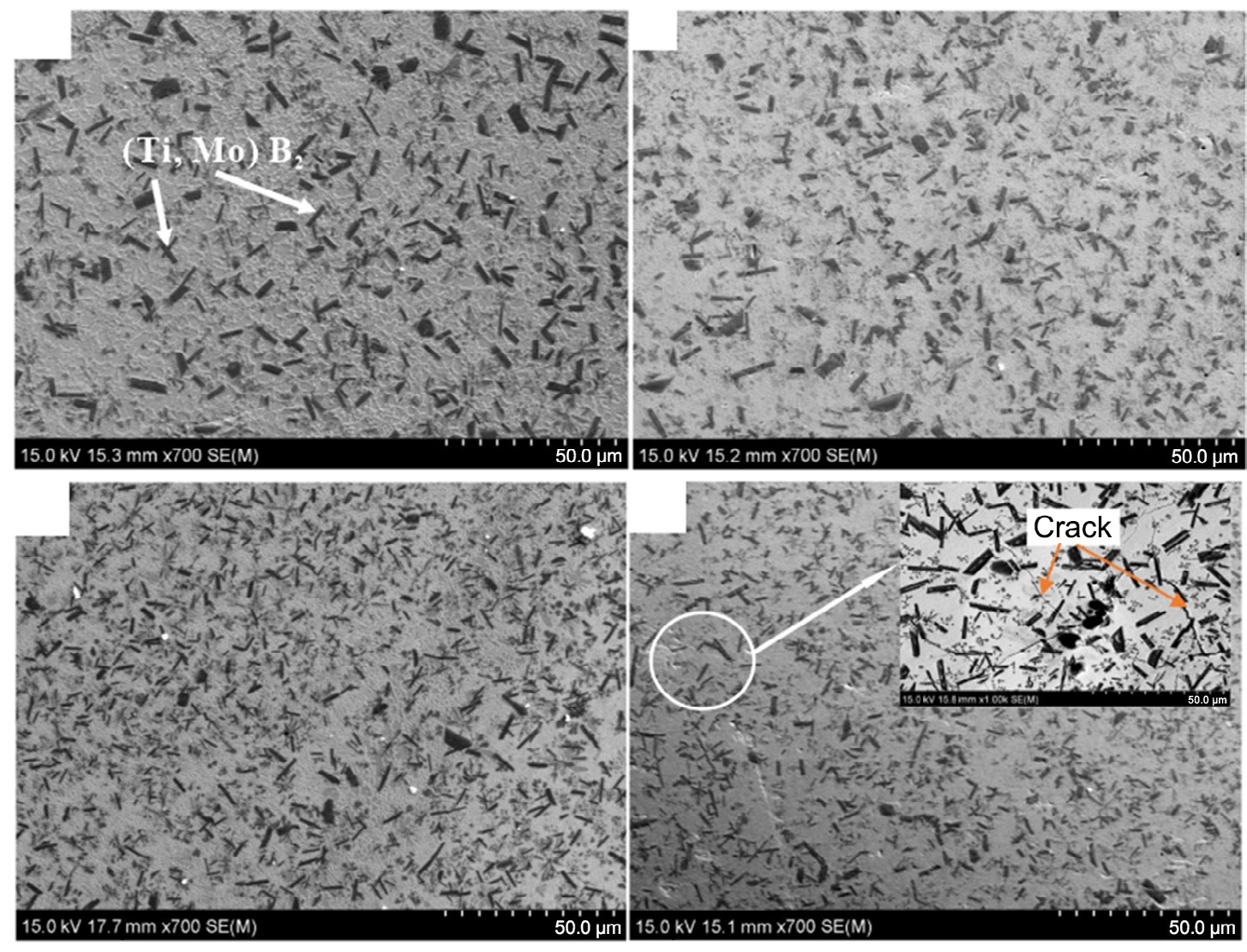

Laser cladding technology, as shown in Fig. 1, adopts a high-energy laser beam as a heat source to melt the powder material. After rapid solidification, a metallurgically bonded coating is deposited onto the substrate. This technology results in a minimal heat-affected zone on the substrate, low dilution, low porosity, and a fine structure. Consequently, it finds extensive application in the surface modification of metal materials and the repair of damaged mechanical parts. It is more suitable for strengthening the surface properties of Fe-based alloys than coating remanufacturing techniques such as arc overlay welding [4], thermal spraying [5], and plasma cladding [6].
By selecting different cladding materials, one can achieve a coating possessing excellent properties such as wear resistance, fatigue resistance, corrosion resistance, and oxidation resistance [7-9]. Commonly used cladding coating materials include self-fluxing powders and composite powders containing ceramics. Among these, self-fluxing powders of Fe-, Co-, and Ni-based alloys are extensively utilized. Fe-based alloy powders, utilized as cladding materials, exhibit exceptional interfacial bonding strength with Fe-based substrate materials compared to Co-based and Ni-based powders, while also offering cost advantages [10-11]. These alloy powders contain alloying elements along with oxygen, carbon, and iron, which contribute to the formation of a passivation layer and hard phases. These components enhance the corrosion resistance and wear resistance of the Fe-based alloy coating. Additionally, Fe-based alloy powders containing B and Si demonstrate self-deoxidizing and slag-forming properties, thereby lowering the alloy’s melting point, improving alloy infiltration and fluidity, and reducing surface tension. Ultimately, these properties positively influence the interfacial bonding performance between the coating and the substrate [12-13].
Loading authentic research manuscript (Pages 1–5)...
Han-yu Zhou, Li-yao Li, Yang Zhao, Ming-xue Shen, Huo-ping Zhao, Ye-long Xiao, Shao-peng Liu (2025). Review of rare earth oxide doping-modified laser cladding of Fe-based alloy coatings. China Foundry. https://doi.org/10.1007/s41230-024-3072-3
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main challenge of laser-cladded Fe-based alloy coatings?
Laser-cladded Fe-based alloy coatings typically exhibit lower hardness, wear resistance, corrosion resistance, and oxidation resistance compared to Co- and Ni-based coatings, and are prone to defects like pores and cracks.
How do rare earth oxides improve the properties of Fe-based alloy coatings?
Rare earth oxides such as La2O3, CeO2, and Y2O3 refine the microstructure, reduce defects, and enhance hardness, wear, corrosion, and oxidation resistance through mechanisms like grain refinement and oxide film formation.
What are the common rare earth oxides used in doping?
The common rare earth oxides used are La2O3, CeO2, and Y2O3.
What is the significance of this review?
This review summarizes recent research on the effects of rare earth oxide doping on the structure and properties of laser-cladded Fe-based alloy coatings, providing a reference for advancing this technology.
What are the potential applications of these coatings?
These coatings are used for surface modification of Fe-based alloy parts in mechanical transmission and braking systems to enhance wear and corrosion resistance, extending service life.
Related Technical Papers & Translations
Pull-out capacity and energy absorption of cable bolts under impact loading
This study investigates the performance of high-strength cable bolts under impact loading conditions representative of rock bursts in underground environments. Although widely used, the dynamic behaviour of these cable bolts has received limited experimental attention, and their effectiveness in seismically active zones remains a subject of ongoing debate. To address this gap, a reverse pull-out test machine integrated with a drop hammer rig was employed. Tests were conducted on 70-t SUMO bulbed and non-bulbed cable bolts with encapsulation lengths of 300 and 450 mm, subjected to an impact energy of 14.52 kJ. Results indicate that non-bulbed cables, despite showing lower initial peak loads (average 218 vs. 328 kN for bulbed cables at 300 mm encapsulation), demonstrated superior energy absorption (average 11.26 vs. 8.75 kJ) and displacement capacity (average 48.40 vs. 36.25 mm). Increasing the encapsulation length for bulbed cables led to a reduction in initial peak load but improved displacement and energy absorption. The dominant failure mechanism was debonding at the cable-grout interface, characterised by frictional sliding and cable rotation. These findings provide new insights into the energy dissipation mechanisms of cables and support the development of more resilient ground support systems for dynamically active conditions.
Effect of eutectic content on microstructure and mechanical properties of Al-Zn-Mg-Cu alloys
The 7xxx series aluminum alloys have emerged as a particularly promising class of lightweight structural materials. However, the inherent strength of these materials is primarily influenced by the content and type of alloying elements added during the manufacturing process, as well as casting defects. The present study investigated the effects of eutectics formed by solute atoms (Zn, Mg, and Cu), with equal mass ratios (Zn/Mg=2, Mg/Cu=3) but varying overall contents, on the liquid film thickness, crack propagation depth, and the mechanical properties of the Al-Zn-Mg-Cu alloy after heat treatment. The results from gravity casting indicate that the intergranular liquid film thickness increases with the increase of eutectic content. A thick intergranular liquid film in the casting can accommodate greater strain during grain contraction, thereby preventing liquid film rupture and subsequent hot tearing. Concurrently, during the solution treatment at 475 °C, the residual eutectic fraction in the Al-7Zn-3.5Mg-1.18Cu alloy diminishes from 9.1% at 10 h to 0.35% at 40 h. At 165 °C, the Al-6Zn-3.0Mg-1.0Cu alloy exhibits the optimal mechanical properties, with a peak aging tensile strength of 510 MPa and an elongation of 6.4%. The incorporation of lower concentrations of solute atoms (Zn, Mg, and Cu) serves to reduce the barrier to dislocation precipitation, thereby enhancing alloy plasticity. However, when the proportion of alloying elements exceeds the solubility limit of the α-Al matrix at specific heat treatment temperatures, coarse residual phases remain intergranular, thereby significantly impairing the mechanical properties of the alloy. This study provides a reference for the optimal addition level of the main strengthening elements in Al‑Zn‑Mg‑Cu alloys.
Achieving optimal strength-conductivity balance in cast Al-2.3Fe-Mg-Si alloys via Mg/Si ratio regulation
The Al-2.3Fe eutectic alloy is regarded as a promising substitute for Cu conductors in automotive motors owing to its excellent castability and low resistivity. However, its application is restricted by the mutually exclusive relationship between electrical conductivity and mechanical strength. The microstructure and mechanical properties of Al-2.3Fe alloy were modified through Mg/Si alloying combined with T6 heat treatment in this work, leading to the development of a high-performance cast Al-2.3Fe-Mg-Si alloy. In the Al-2.3Fe-0.40Mg-0.72Si (Mg/Si=0.56) alloy subjected to T6 treatment, an electrical conductivity of (52.5±0.6)% IACS is achieved, while the ultimate tensile strength is significantly enhanced to 309.5±5.6 MPa. The addition of Mg and Si brings about marked changes in the solidification process of the Al-2.3Fe alloy, resulting in considerable variations in both the morphology of the second phase and its phase constitution. The aging behavior of the alloy is governed by second phase and solid solubility. Through optimization of the Mg/Si ratio, the aging response can be effectively enhanced. At the ratio of Mg/Si=0.56, a balance is achieved between solid solubility and precipitation, while simultaneously minimizing the detrimental impact on electrical conductivity and reaching the best mechanical properties and electrical conductivity in peak-aged Al-2.3Fe-xMg-ySi alloy. This work providing valuable insights for developing advanced conductor materials.
