Key Takeaways & Executive Findings
- •• The Ag/H co-doping strategy effectively suppresses SnZn-related defects and enhances the performance of CZTSSe solar cells. • Hydrogen incorporation improves the poor electrical conductivity and low carrier density caused by Ag substitution. • The synergistic effect of defect passivation and photoelectric property modulation leads to a champion efficiency of 14.74%. • This work provides a promising pathway for achieving high-efficiency kesterite-based photovoltaic devices.
Abstract

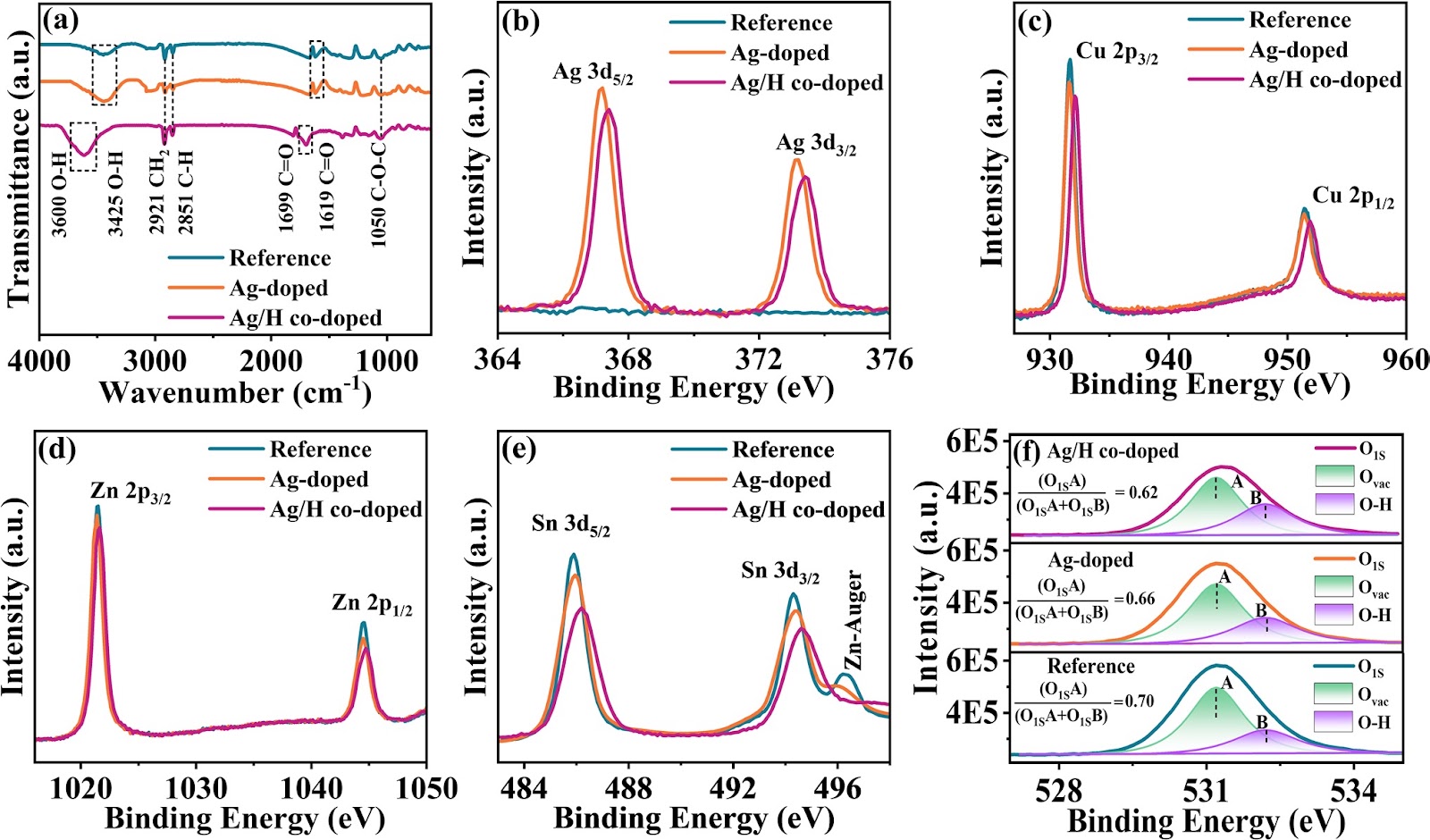

The presence of SnZn-related defects in Cu2ZnSn(S,Se)4 (CZTSSe) absorber results in large irreversible energy loss and extra irreversible electron–hole non-radiative recombination, thus hindering the efficiency enhancement of CZTSSe devices. Although the incorporation of Ag in CZTSSe can effectively suppress the SnZn-related defects and significantly improve the resulting cell performance, an excellent efficiency has not been achieved to date primarily owing to the poor electrical-conductivity and the low carrier density of the CZTSSe film induced by Ag substitution. Herein, this study exquisitely devises an Ag/H co-doping strategy in CZTSSe absorber via Ag substitution programs followed by hydrogen-plasma treatment procedure to suppress SnZn defects for achieving efficient CZTSSe devices. In-depth investigation results demonstrate that the incorporation of H in Ag-based CZTSSe absorber is expected to improve the poor electrical-conductivity and the low carrier density caused by Ag substitution. Importantly, the C=O and O–H functional groups induced by hydrogen incorporation, serving as an electron donor, can interact with under-coordinated cations in CZTSSe material, effectively passivating the SnZn-related defects. Consequently, the incorporation of an appropriate amount of Ag/H in CZTSSe mitigates carrier non-radiative recombination, prolongs minority carrier lifetime, and thus yields a champion efficiency of 14.74%, showing its promising application in kesterite-based CZTSSe devices.
1. Introduction
Kesterite Cu2ZnSn(S,Se)4 (CZTSSe) solar cells have emerged as promising candidates for next-generation thin-film photovoltaic technologies due to their incomparable advantages, such as low cost, high absorption coefficient, adjustable bandgap, and high theoretical conversion efficiency [1–5]. In the past decade, the certified power conversion efficiency (PCE) of CZTSSe devices has made incredible progress, soaring from 12.6% to over 15% [6, 7]. Even so, compared with its predecessors, including CIGS (23.6%), cadmium telluride (22.6%), and silicon (26.81%) solar cells [7–9], there is still a great gap. Therefore, it is imperative to explore the internal loss mechanism that affects the improvement of cell performance to chase high-performance CZTSSe devices.
It is generally recognized that the Shockley-Queisser (S-Q) theoretical limit efficiency of CZTSSe solar cells is 32.8%, which is a prediction of theoretical sunlight-to-electricity conversion efficiency of a single-junction solar cell based on the principle of detailed balance [10]. In reality, however, few materials approach this radiative limit. For single-junction CZTSe (CZTS) solar cells, its intrinsic limit efficiency is only 20.3% (20.9%), due to the presence of large irreversible energy loss and extra irreversible electron–hole non-radiative recombination [11, 12]. In this regard, suppressing the non-radiative recombination loss is imperative for the CZTSSe device performance to reach the S-Q theoretical limit. Encouragingly, recent theoretical calculations and experimental studies have proposed that the deep defects, such as SnZn donor and associated compensated defect clusters, in CZTSSe absorber bulk are often responsible for carrier trapping and non-radiative recombination owing to their high concentration (>10^14 cm^-3), which could result in a shorter carrier lifetime and a lower open-circuit voltage (VOC), limiting the performance of resulting devices [13–15].
In an attempt to address these issues, a number of studies have been conducted to suppress the formation of SnZn-related defects [1, 4, 16–21], and thus, to radically promote the VOC and PCE of CZTSSe solar cells. Some studies have shown that the proper isoelectronic cation substitution in the host CZTSSe crystal lattice is an effective method to address this issue [17, 18]. Other studies highlight the importance of local chemical environment engineering in suppressing detrimental intrinsic defects (i.e., SnZn) in CZTSSe devices [20, 21]. In particular, theoretical studies strongly indicate that substituting Cu with Ag for...
Loading authentic research manuscript (Pages 1–5)...
Xiaoyue Zhao, Jingru Li, Chenyang Hu, Yafang Qi, Zhengji Zhou, Dongxing Kou, Wenhui Zhou, Shengjie Yuan, Sixin Wu (2024). Revealing the Role of Hydrogen in Highly Efficient Ag-Substituted CZTSSe Photovoltaic Devices: Photoelectric Properties Modulation and Defect Passivation. Nano-Micro Letters. https://doi.org/10.1007/s40820-024-01574-3
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main challenge in CZTSSe solar cells?
The presence of SnZn-related defects causes large irreversible energy loss and non-radiative recombination, limiting efficiency.
How does Ag substitution affect CZTSSe devices?
Ag substitution suppresses SnZn defects but leads to poor electrical conductivity and low carrier density.
What is the role of hydrogen in the Ag-substituted CZTSSe?
Hydrogen incorporation improves electrical conductivity and carrier density, and forms functional groups that passivate defects.
What efficiency was achieved in this study?
A champion efficiency of 14.74% was achieved using Ag/H co-doping.
What is the significance of this work?
It provides a promising strategy for high-efficiency kesterite-based solar cells by combining defect passivation and photoelectric property modulation.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
