Key Takeaways & Executive Findings
- •• First CFD-based aerodynamic analysis of the innovative elastic ring-hinge group non-pneumatic mechanical elastic wheel (ME-Wheel). • Steering angle has a more significant effect on lift and drag than camber angle, while speed has negligible influence on drag and lift coefficients. • The number of hinge groups significantly affects aerodynamic characteristics, with deviations up to 8.6% in lift coefficient. • Provides a theoretical foundation for aerodynamic optimization and commercial development of ME-Wheels.
Abstract

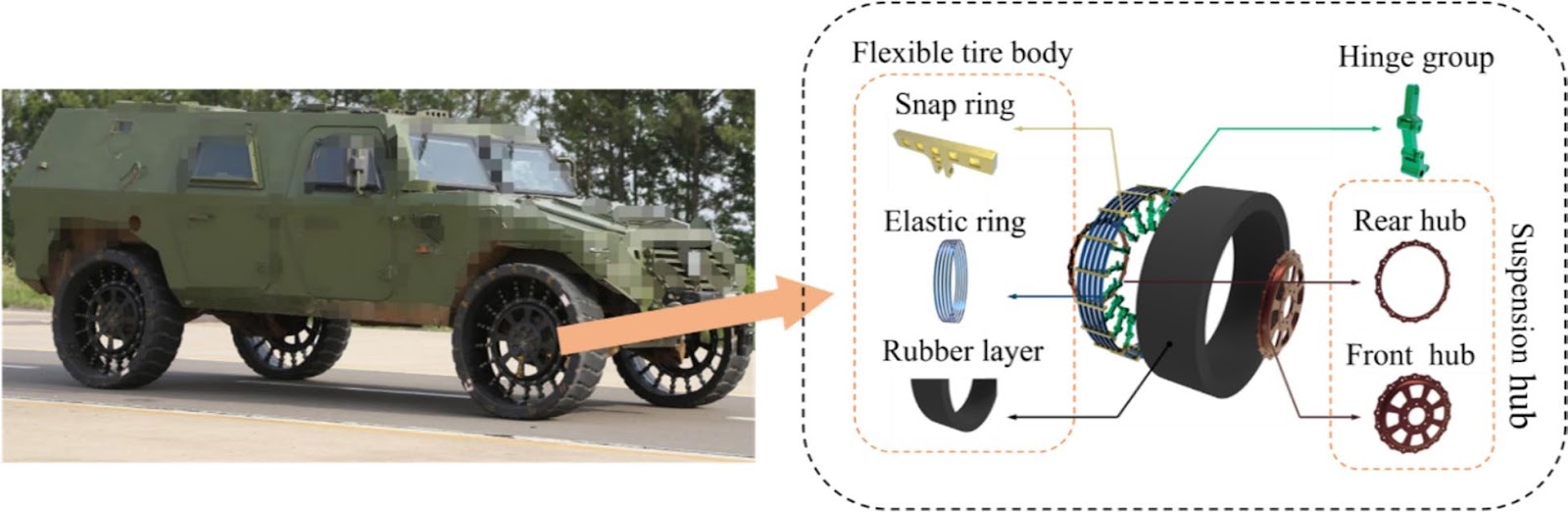

Non-pneumatic wheels inherently offer explosion-proof advantages compared to pneumatic wheel. Our team innovatively proposed an “elastic ring-hinge group” type non-pneumatic mechanical elastic wheel (ME-Wheel). To analyze the gas flow characteristics around the ME-Wheel, this study analyzed the aerodynamic characteristics of the ME-Wheel for the first time by using CFD calculation method, and studied the influences of speed, steering angle, camber angle and hinge group on the aerodynamic characteristics of the wheel. Compared with camber angle, steering angle has a more significant effect on the aerodynamic characteristics of non-pneumatic mechanical elastic wheels in terms of lift and drag. Speed has no significant effect on the wheel drag coefficient and lift coefficient. The number of hinge groups has a significant effect on wheel aerodynamic characteristics. The deviations between the maximum and minimum values of drag, lift, drag coefficient, and lift coefficient are 6.06%, 8.57%, 6.05%, and 8.6%, respectively. This study addresses a critical gap in the design optimization of ME-Wheel, provides a theoretical basis for the aerodynamic optimization of ME-Wheel, and has strong practical significance for the commercial development of non-pneumatic mechanical elastic wheels.
1. Introduction
The invention of the wheel is considered crucial in the annals of history. Wheels bear the vehicle’s weight and transfer the necessary forces for driving, braking, and cornering between the wheels and the road [1–3]. They can withstand vertical, lateral, and longitudinal road forces with minimal deformation. Recent efforts by wheel engineers have focused on advancing innovations in non-pneumatic wheels (NPWs).
Yoon et al. [4] put forward a non-pneumatic variable stiffness wheel capable of actively adapting to various environments. It can modify the force exerted on the contact surface and exhibits superior robustness and adaptability. Shuai et al. [5] developed an innovative non-pneumatic wheel with V-shaped spokes. The specially designed V-shaped spokes enable it to have better support performance and aerodynamic characteristics. Liu et al. [6] investigated the relationship between the static characteristics of non-pneumatic wheels and the design parameters of the spokes using the finite element method. A three-dimensional finite element model of NPW was established. Subsequently, the main design parameters, such as the thickness of the spokes, the number of spokes, and the arc curvature, were selected based on the geometric characteristics of the spokes. The influences of these three parameters on vertical stiffness, maximum spoke stress, total maximum stress, as well as maximum and average contact pressure were examined using single-variable and multi-variable analysis methods. Fu et al. [7], in order to address the complex issue of the fatigue life of non-pneumatic tires, constructed a fatigue life prediction fitting model for flexible spoke non-pneumatic tires based on fatigue failure evaluation indicators. The fatigue life of flexible spoke non-pneumatic tires was predicted based on the J-integral method, and the validity of the prediction method was verified through fatigue durability tests.
To sum up, NPWs have garnered interest primarily due to their ability to address the drawbacks of conventional pneumatic wheels [8–11], such as potential for severe damage while in use, the requirement for air pressure maintenance, and intricate manufacturing procedures.
Loading authentic research manuscript (Pages 1–5)...
Shuo Guo, Youqun Zhao, Fen Lin, Chenxi Zhang, Song Yu (2025). Research on Aerodynamic Characteristics of Isolated Non-pneumatic Mechanical Elastic Wheels. Chinese Journal of Mechanical Engineering. https://doi.org/10.1186/s10033-025-01329-0
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is a non-pneumatic mechanical elastic wheel (ME-Wheel)?
An ME-Wheel is a type of non-pneumatic wheel with an elastic ring-hinge group structure, offering explosion-proof advantages over pneumatic wheels.
How was the aerodynamic analysis of the ME-Wheel conducted?
The study used Computational Fluid Dynamics (CFD) to analyze the airflow around the isolated ME-Wheel, examining the effects of speed, steering angle, camber angle, and hinge group number.
What are the key findings regarding steering and camber angles?
Steering angle has a more significant effect on lift and drag than camber angle, while speed has negligible influence on drag and lift coefficients.
How does the number of hinge groups affect aerodynamic performance?
The number of hinge groups significantly affects aerodynamic characteristics, with deviations up to 8.6% in lift coefficient, indicating that optimizing hinge group count is crucial for performance.
What is the practical significance of this research?
This research fills a gap in ME-Wheel design optimization, providing a theoretical basis for aerodynamic improvements and supporting the commercial development of non-pneumatic mechanical elastic wheels.
