Key Takeaways & Executive Findings
- •• • The system resolves 23 nm gaps on silicon wafers using a 20 μm microsphere with a 100× oil-immersion objective (NA = 1.4), surpassing the ~200 nm diffraction limit of conventional optical microscopy by nearly an order of magnitude, enabling direct, non-destructive inspection of sub-30 nm semiconductor defects without vacuum or conductive coating requirements. • • A universal lens adapter integrating a 400 μm microsphere with a 20× objective achieves imaging performance comparable to a 50× objective, reducing equipment cost to one-tenth that of high-end super-resolution systems while maintaining a 125 μm × 125 μm field of view via image stitching, which lowers the capital barrier for nanoscale metrology in production environments. • • Real-time, non-contact imaging of 77 nm metal probe gaps in hard-disk magnetic heads on production lines is demonstrated, a task beyond conventional oil-immersion microscopy, enabling inline quality control with sub-100 nm resolution and eliminating sample preparation steps that would otherwise halt or slow manufacturing throughput. • • Commercial deployment by PHAOS Technology has yielded over 300% annual sales growth and the Manufacturing Technology Disruptor of the Year award, validating the technology's industrial viability and cost-effectiveness for scalable nanometrology in semiconductor fabrication and magnetic storage manufacturing.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Conventional optical microscopy is fundamentally constrained by the optical diffraction limit of approximately 200 nm, which restricts the observation of critical nanoscale features in advanced manufacturing, semiconductor defect inspection, and biomedical research. This study presents a remote-mode microsphere-enabled nanoscale imaging technology that overcomes this limitation through the use of a suspended transparent microsphere functioning as a miniature lens. The system forms a magnified virtual image via light refraction at the microsphere surfaces, which is captured by a standard objective lens and reconstructed through reverse optical-path analysis. Experimental validation demonstrates that a 20 μm silica microsphere integrated with a 100× oil-immersion objective (NA = 1.4) resolves 23 nm gaps on silicon wafers and 77 nm metal probe gaps in hard-disk magnetic heads, achieving performance comparable to scanning electron microscopy. A universal lens adapter incorporating a 400 μm microsphere enables a standard 20× objective to attain imaging performance equivalent to a 50× objective at one-tenth the cost of high-end super-resolution systems. The technology has been commercialized by PHAOS Technology, achieving over 300% annual sales growth and receiving the Manufacturing Technology Disruptor of the Year award. This approach provides a scalable, cost-effective solution for real-time, non-contact, label-free nanometrology in semiconductor inspection and industrial quality control.
1. Introduction
Optical microscopy remains indispensable across biomedicine, semiconductor manufacturing, and food science due to its flexibility, portability, low cost, and rapid imaging capabilities. However, the optical diffraction limit restricts conventional microscope resolution to approximately 200 nm, preventing observation of critical nanoscale features such as virus particles, integrated circuit defects, and biological macromolecules. Advanced techniques like transmission electron microscopy (TEM) and scanning electron microscopy (SEM) achieve higher resolution but require vacuum conditions and complex sample preparation, rendering them unsuitable for living samples or inline inspection. Atomic force microscopy (AFM) and fluorescence super-resolution microscopy face limitations in near-surface sensitivity or labeling requirements, creating a persistent gap for label-free, real-time, non-contact nanoscale imaging.
To address this bottleneck, a remote-mode microsphere-enabled nanoscale imaging technology has been developed, utilizing a suspended transparent microsphere as a miniature lens to form a magnified virtual image captured by a conventional objective. Reverse optical-path reconstruction precisely determines virtual image position and magnification, enabling resolution of 23 nm gaps on silicon wafers and 77 nm metal probe gaps in hard-disk magnetic heads. A universal lens adapter allows a standard 20× objective to achieve performance comparable to a 50× objective at one-tenth the cost of high-end systems. This approach has been commercialized by PHAOS Technology, achieving over 300% annual sales growth, and provides a practical solution for real-time semiconductor inspection and industrial quality control.
Loading authentic research manuscript (Pages 1–5)...
Zheting Meng, Lianwei Chen, Mingbo Pu, Xiangang Luo, Minghui Hong (2026). Remote-Mode Microsphere-Enabled Nanoscale Imaging Technology for Real-Time, Label-Free Semiconductor Inspection: From Laboratory Innovation to Commercial Deployment. Opto-Electronic Advances (光电进展). https://doi.org/10.29026/oea.2026.260073
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the maximum resolution achieved by the remote-mode microsphere system, and how does it compare to electron microscopy?

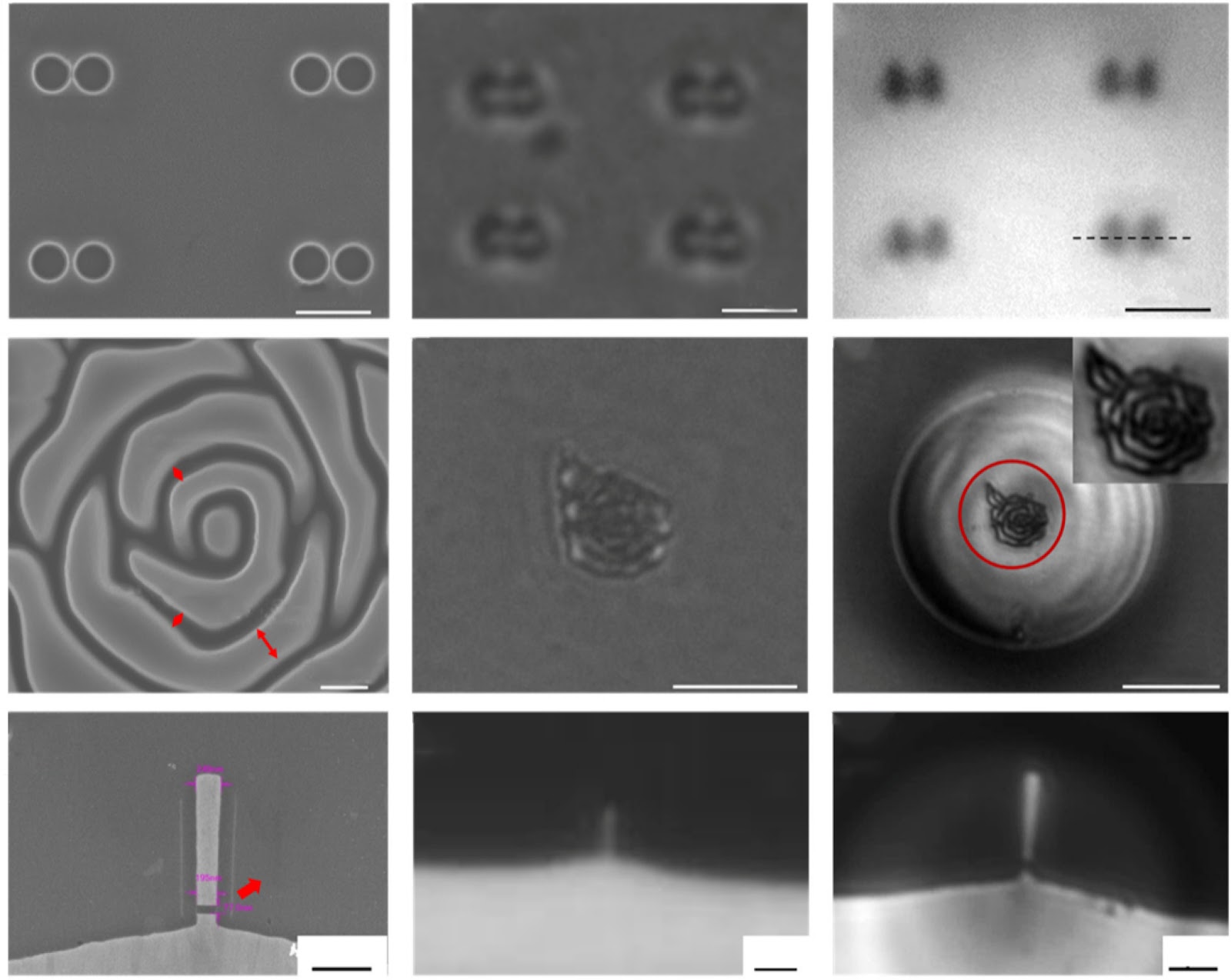

The system resolves 23 nm gaps on silicon wafers using a 20 μm microsphere with a 100× oil-immersion objective (NA = 1.4), and 77 nm metal probe gaps in hard-disk magnetic heads. This performance is comparable to SEM for these features, but without requiring vacuum conditions or conductive coatings, enabling real-time, non-contact imaging.
What are the cost implications of integrating the microsphere adapter with a standard 20× objective versus purchasing a high-end super-resolution system?
The universal lens adapter enables a 20× objective to achieve imaging performance comparable to a 50× objective at only one-tenth the cost of high-end super-resolution systems. This substantially reduces the capital barrier for nanoscale metrology, requiring minimal modification to existing equipment.
How does the system perform for inline inspection of hard-disk magnetic heads, and what are the operational limits?
The system achieves clear, real-time, non-contact imaging of 77 nm metal probe gaps in hard-disk magnetic heads on production lines, a task beyond conventional oil-immersion microscopes. The compact design and mechanical stability support integration into production environments, though specific throughput and environmental tolerance data are not detailed in the provided text.
What is the field of view and image stitching capability of the microsphere-integrated system?
Using a 400 μm microsphere with a 20× objective, image-stitching techniques expand the field of view to 125 μm × 125 μm, enabling larger-area inspection while maintaining nanoscale resolution. This is critical for semiconductor wafer defect review and quality control.
What evidence supports the commercial viability and industrial adoption of this technology?
The technology has been commercialized by PHAOS Technology, achieving over 300% annual sales growth and receiving the Manufacturing Technology Disruptor of the Year award. This indicates market acceptance and scalability for semiconductor inspection and industrial quality control.
