Key Takeaways & Executive Findings
- •• A 2D cellular automaton model accurately simulates microporosity formation in Al-Cu alloys, validated by directional solidification experiments. • Copper content significantly influences microporosity growth through its effects on liquidus temperature, dendrite morphology, and hydrogen solubility. • Withdrawal rate affects microporosity nucleation by altering cooling rates and dendritic growth rates, leading to distinct microporosity characteristics. • The model provides a cost-effective tool for predicting microstructure and microporosity, aiding in process optimization for high-performance aluminum alloys.
Abstract

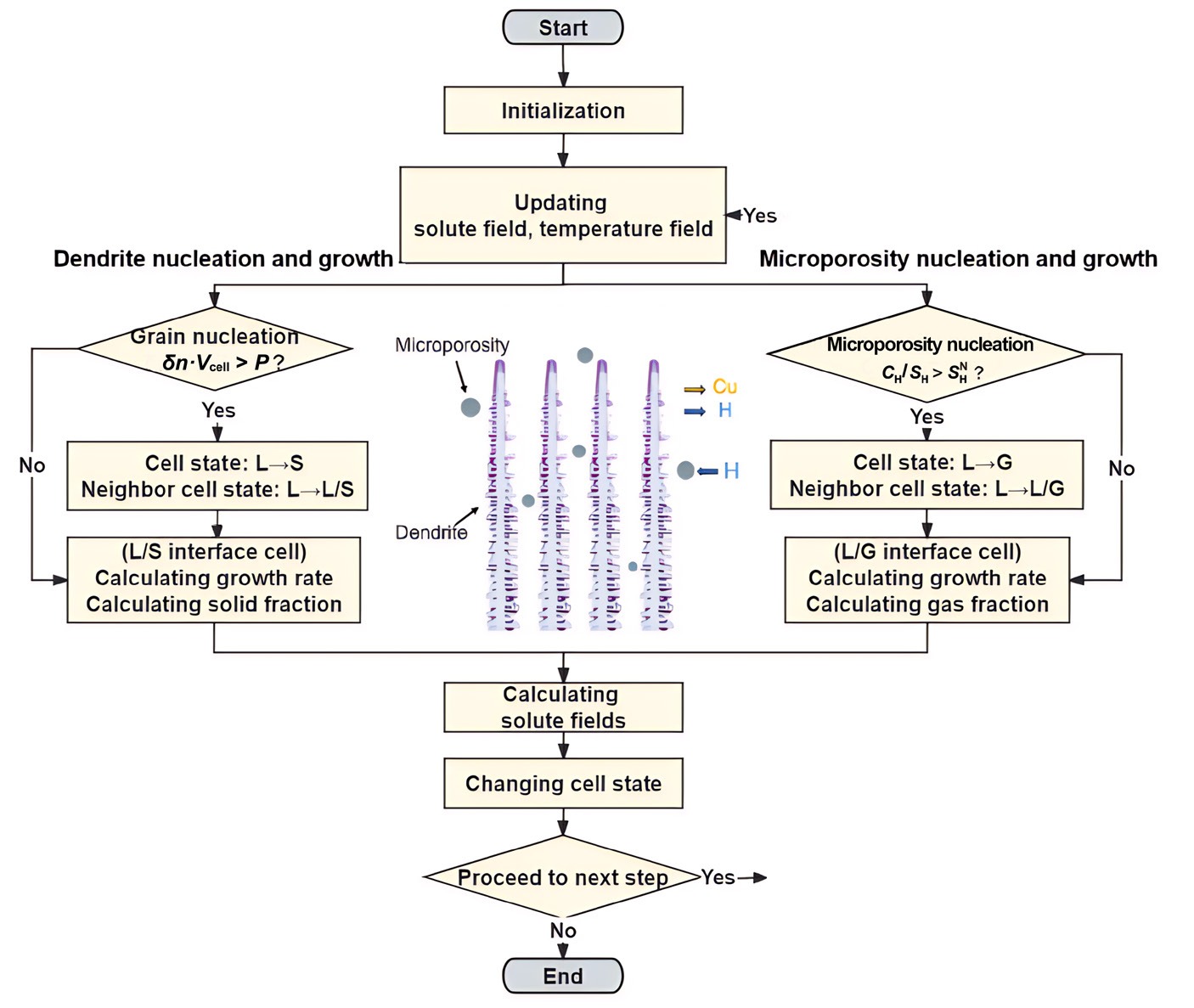

Microporosity formed in the solidification process of Al alloys is detrimental to the alloy properties. A two-dimensional cellular automaton (CA) model was developed to simulate the microstructure and microporosity formation in Al-Cu alloys, considering variations in Cu content and solidification rate. The results indicate that the Cu content primarily influences the growth of microporosity. To validate the model, directional solidification experiments were conducted on Al-Cu alloys with varing Cu contents and withdrawal rates. The experimental results of dendrites and microporosity characteristics agree well with the predictions from the developed model, thus confirming the validity of the model. The alloy’s liquidus temperature, dendrite morphology, and hydrogen saturation solubility arising from different Cu contents have significant effects on microporosity morphology. The withdrawal rate primarily affects the nucleation of hydrogen microporosity by altering cooling rates and dendritic growth rates, resulting in different microporosity characteristics.
1. Introduction
The microstructure of an alloy is the key factor to determine its properties. Microporosity, which usually occurs during the solidification process [1,2], detrimentally impacts fundamental characteristics such as mechanical properties, thermal conductivity, fatigue resistance [3], and corrosion resistance [4]. During the solidification of Al melts, hydrogen exhibits a lower solubility in the solid phase compared to the liquid phase. As the temperature decreases, this difference in solubility causes hydrogen to be expelled from the solidifying alloy, leading to the formation of microporosity. Effectively controlling the porosity formation process is very important, particularly in high-performance sectors like aerospace and automotive, where strict quality standards are essential.
The formation of microporosity in Al alloys is influenced by many factors. To measure the nucleation conditions of hydrogen microporosity, Lee and Hunt [5,6] using X-ray radiography to study the effects of different alloy compositions, initial hydrogen concentrations, solidification rates, and temperature gradients on the nucleation and growth of hydrogen microporosity during the directional solidification of Al-Cu alloys in 1997. Through their research, it can be seen that the formation of microporosity is related to differences in hydrogen concentration and solubility, and hydrogen solubility is related to temperature, alloy composition, and pressure. In subsequent studies, researchers have focused on employing advanced experimental methods to investigate and discuss the causes behind the formation of microstructures and microporosity [7]. Wan et al. [8] used high-precision 3D X-ray tomography to quantify the three-dimensional characteristics of microporosity and analyze the formation of various types of microporosities in die-cast Al alloys. Bhagavath et al. [9], in 2019, revealed the mechanisms of microporosity formation and their growth, using fast synchrotron tomography. Through technological advances, the study of microporosity has evolved from semi-qualitative to precise quantitative.
Numerical simulation, combined with experiments, offering a cost-effective means to establish quantitative relationships between process parameters and microstructure. Zhao et al. [10] developed a model to predict the porosity formation in Al-Cu alloys experiencing columnar to equiaxed transition (CET) based on Darcy’s law of interdendritic flow, taking into account hydrogen macro segregation. To simulate the interaction between microstructure and microporosity during the formation process, Atwood and Lee [11] established a cellular automaton (CA) model. Since the introduction of the CA approach by Rappaz et al. [12] in 1993, it has been widely used for simulating grain growth during solidification [13-18] due to its scalability. In 2013, Wu et al. [19] used the Boltzmann method along with CA to investigate the precipitation, growth, merger, and movement of microporosity. Zhu et al. [20] developed a 2D CA-FDM model for simulating dendrite growth and microporos...
Loading authentic research manuscript (Pages 1–5)...
Wei Yuan, Hai-dong Zhao, Xu Shen, Chun Zou, Yuan Liu, Qing-yan Xu (2025). Numerical simulation of microstructure and microporosity morphology in directional solidification of aluminum-copper alloys: Effect of copper content and withdrawal rate. China Foundry. https://doi.org/10.1007/s41230-024-4014-9
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main objective of this study?
The study aims to develop a two-dimensional cellular automaton model to simulate the microstructure and microporosity formation in Al-Cu alloys during directional solidification, and to validate the model with experiments, focusing on the effects of copper content and withdrawal rate.
How does copper content affect microporosity formation?
Copper content influences microporosity growth by altering the alloy's liquidus temperature, dendrite morphology, and hydrogen saturation solubility, which in turn affect the size and distribution of micropores.
What role does withdrawal rate play in the process?
Withdrawal rate affects the nucleation of hydrogen microporosity by changing cooling rates and dendritic growth rates, leading to variations in microporosity characteristics such as density and morphology.
How was the model validated?
The model was validated by conducting directional solidification experiments on Al-Cu alloys with varying copper contents and withdrawal rates, and comparing the predicted dendrite and microporosity characteristics with experimental results, which showed good agreement.
What are the practical implications of this research?
The validated model provides a cost-effective tool for predicting microstructure and microporosity in Al-Cu alloy castings, enabling optimization of solidification processes to reduce defects and improve mechanical properties in high-performance applications like aerospace and automotive.
