Key Takeaways & Executive Findings
- •• The rGO/PAA aerogel achieves synergistic optimization for direct ink writing printing and construction of 0D/2D heterostructures in rGO sheets. • Optimal reflection loss of −39.86 dB and effective absorption bandwidth (EAB) of 8.36 GHz are obtained with low density of 4.8 mg cm−3. • Realization of an ultra-broadband metamaterial absorber of 14 GHz EAB at 7.8 mm thickness, across the C, X, and Ku bands. • The dual-gradient regulation of rheology and dielectric loss enables lightweight, broadband electromagnetic absorption, offering a scalable manufacturing route.
Abstract

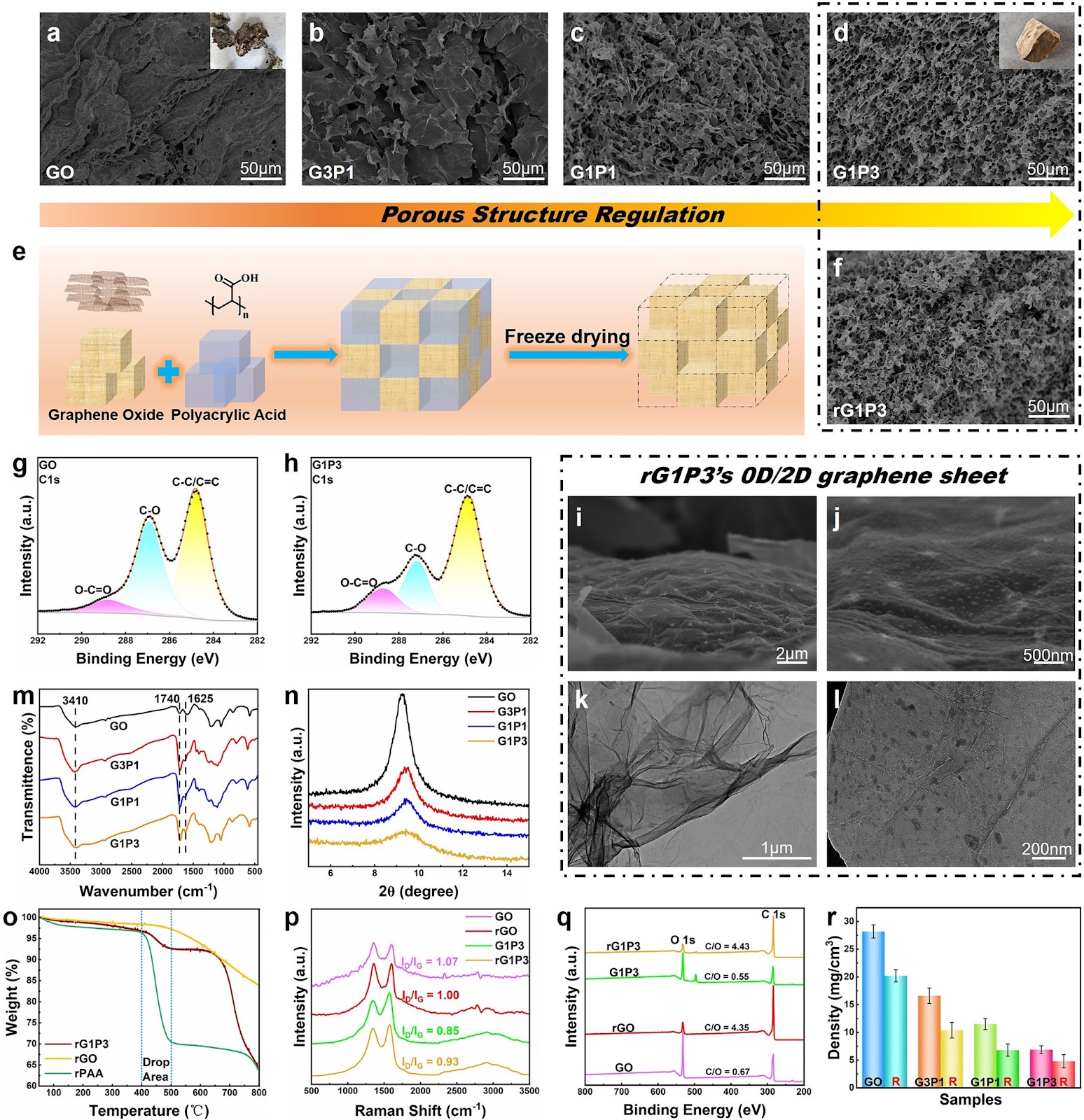

Three-dimensional (3D)-printed graphene aerogels hold promise for electromagnetic wave absorption (EWA) engineering due to its ultralow density, outstanding electromagnetic dissipation with the flexibility and precision of manufacturing strategies. However, their high conductivity causes severe impedance mismatch, limiting EWA performance. 3D printing requirements also constrain the dielectric properties of printable graphene inks, hindering the integration of high-performance absorbers with advanced manufacturing. This study proposes a polyacrylic acid (PAA) gel-mediated 3D porous graphene oxide (GO) aerogel multiscale regulation strategy. Precise gel content control enables dual-gradient tuning of the rheology (Benefiting direct ink writing (DIW)) and dielectric loss (Enhancing EWA) of GO/PAA composites and reduces aerogel density (6.9 mg cm−3 from 28.2 mg cm−3). Thermal reduction decomposes PAA into amorphous carbon nanoparticles anchored on reduced graphene oxide (rGO), enhancing impedance matching and absorption via synergistic 0D/2D interfacial polarization and conductive loss. The optimized rGO/PAA aerogel achieves a minimum reflection loss (RL) of −39.86 dB at 2.5 mm and an effective absorption bandwidth (EAB) of 8.36 GHz (9.64–18 GHz) at 3.2 mm. Combining DIW and this aerogel, we design a metamaterial absorber (MA) with dual material (dielectric loss) and structural gradients. This MA exhibits an ultrawide EAB of 14 GHz (4–18 GHz) with a total thickness of 7.8 mm. This work establishes a coupled design paradigm of “composition-structure-performance,” providing an engineerable solution for developing lightweight, broadband EWA materials.
1. Introduction
The widespread application of fifth-generation (5G) communication technology has intensified the demand for broadband EWA materials, which need to effectively suppress radiation pollution [1, 2] and signal interference to ensure reliable operation of electronic systems [3–5]. Traditional single-layer absorbing materials face inherent physical limitations in achieving broadband absorption due to thickness constraints governed by the quarter-wavelength principle [6–8]. Graphene aerogel [9, 10], as a porous, highly conductive, fluffy lightweight structure constructed from two-dimensional nanosheets [11, 12], facilitates multiple scattering of electromagnetic wave (EMW) within its three-dimensional network and resistive loss along conductive sheets [13–15]. These attributes position it as a high-performance absorber combining low density with strong, broadband absorption capability [16–20]. However, its excessively high intrinsic dielectric constant and dielectric loss often cause severe impedance mismatch, prompting researchers to optimize electrical properties through various modification approaches.
For example: heteroatom doping (Shao et al. [21] achieved ultralight N, S-doped graphene aerogel via pyrolysis of pyrrole and thiourea molecularly cross-linked graphene aerogel, where heteroatom-doped cell walls generated abundant dipole/defect polarization sites synergistically enhancing microwave attenuation); ceramic/graphene composite aerogels (Li et al. [22] developed flexible SiO₂/rGO composite aerogels enabling ultra-wideband absorption with enhanced elasticity); and additional modification strategies including magnetic material/graphene [23], MXene/graphene [24], and polymer/graphene composites [25, 26]. Nevertheless, methods involving increased loading [16, 17, 27, 28] or material compositing [5, 24, 25, 29] significantly diminish the efficacy of intrinsic graphene as a two-dimensional nanomaterial while substantially increasing aerogel density and reducing stability [30], which proves detrimental for high-performance EWA. Furthermore, traditional EMW absorbers fabrication strategies predominantly focus on absorption performance while neglecting the importance of preparation processes [31–33] and production yield for practical EWA materials [34–36].
In recent years, 3D metamaterials have provided outstanding EWA solutions by synergizing intrinsic material properties with advanced structural design, offering new pathways to overcome the limitations of conventional absorbers.
Loading authentic research manuscript (Pages 1–5)...
Xiong Lv, Changfeng Li, Ge Wang, Diana Estevez, Junjie Yang, Qian Chen, Faxiang Qin (2026). Multiscale Design of Dual-Gradient Metamaterials Using Gel-Mediated 3D-Printed Graphene Aerogels for Broadband Electromagnetic Absorption. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-02005-7
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main challenge in using graphene aerogels for electromagnetic wave absorption?
The main challenge is their high conductivity, which causes severe impedance mismatch, limiting their electromagnetic wave absorption performance.
How does the proposed gel-mediated strategy improve the performance of graphene aerogels?
The strategy uses polyacrylic acid (PAA) gel to enable dual-gradient tuning of rheology and dielectric loss, reducing density and enhancing impedance matching and absorption via 0D/2D interfacial polarization and conductive loss.
What are the key performance metrics achieved by the optimized rGO/PAA aerogel?
The optimized aerogel achieves a minimum reflection loss of −39.86 dB at 2.5 mm thickness and an effective absorption bandwidth of 8.36 GHz (9.64–18 GHz) at 3.2 mm thickness.
What is the significance of the metamaterial absorber designed in this study?
The metamaterial absorber combines dual material and structural gradients, achieving an ultra-wide effective absorption bandwidth of 14 GHz (4–18 GHz) with a total thickness of 7.8 mm, covering C, X, and Ku bands.
How does this work contribute to the field of electromagnetic wave absorption?
It establishes a coupled design paradigm of 'composition-structure-performance,' providing an engineerable solution for developing lightweight, broadband electromagnetic wave absorbing materials.
