Open AccessDOI: 10.1007/s40820-025-01756-7Original Research

Multifunctional Organic Materials, Devices, and Mechanisms for Neuroscience, Neuromorphic Computing, and Bioelectronics

Felix L. Hoch¹,Qishen Wang¹,Kian-Guan Lim¹,Desmond K. Loke¹

Singapore University of Technology and Design

Read Executive PreviewQuick FAQ
Multifunctional Organic Materials, Devices, and Mechanisms for Neuroscience, Neuromorphic Computing, and Bioelectronics

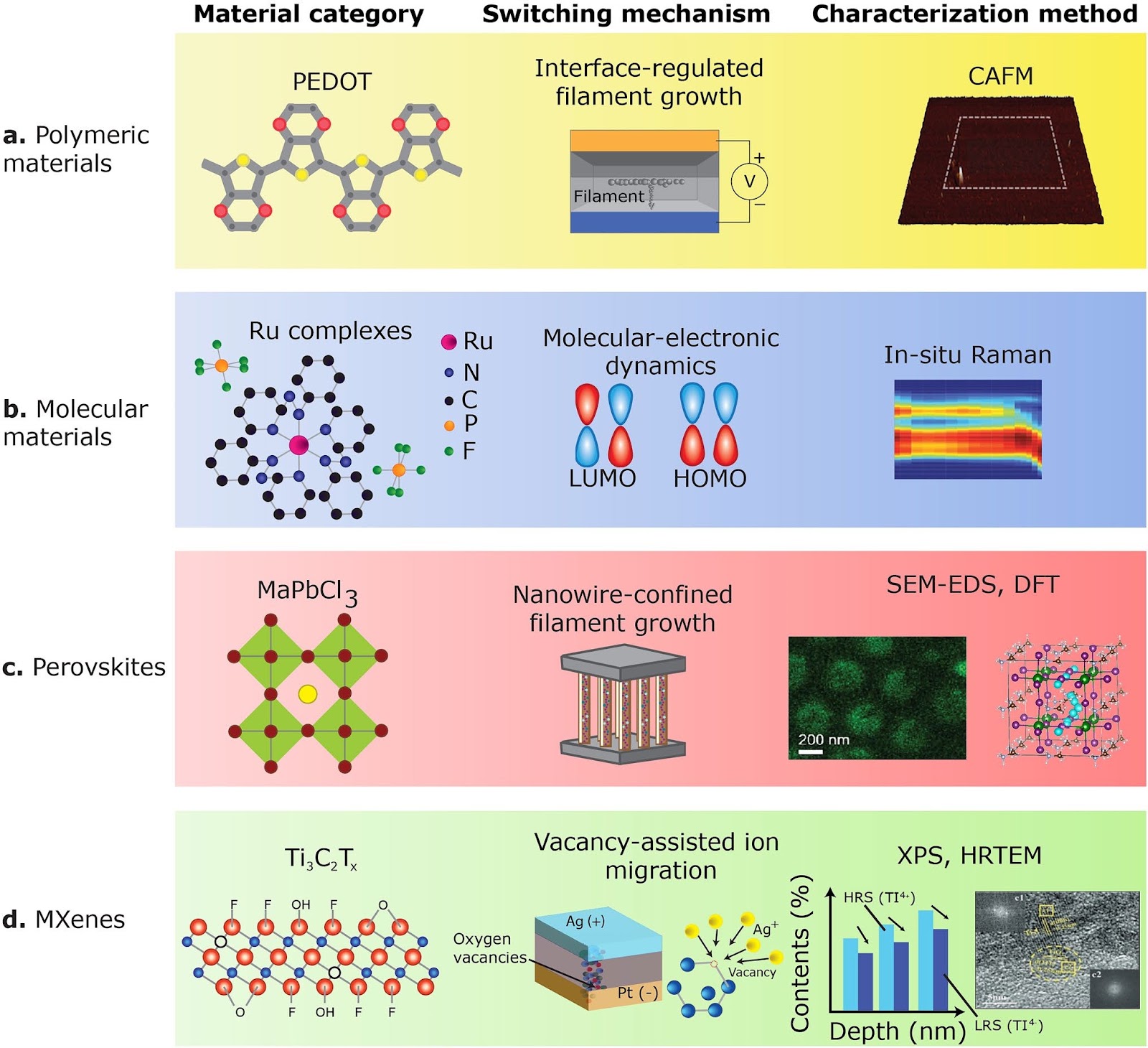

Graphical Abstract / Figure
Published In
Nano-Micro Letters
Published:May 8, 2025Edition:Vol. 17, Issue 1 • pp. 251Citation:Felix L. Hoch et al. (2025), Nano-Micro Letters
Impact FactorPeer-Reviewed Core
Source JournalNano-Micro Letters
Sponsored Research Partner

Key Takeaways & Executive Findings

  • • Organic neuromorphic materials offer affordable, biocompatible, and energy-efficient alternatives to silicon for brain-inspired computing. • The review details four key resistive switching mechanisms: interface-regulated filament growth, molecular-electronic dynamics, nanowire-confined filament growth, and vacancy-assisted ion migration. • Strategies to enhance state retention and conductance adjustment are proposed, addressing challenges in low-power neuromorphic computing. • Applications span biohybrid circuits, event-driven systems, robotics, and intelligent agents, highlighting the integration of AI into everyday activities.
Sponsored Research Highlight

Abstract

Neuromorphic computing has the potential to overcome limitations of traditional silicon technology in machine learning tasks. Recent advancements in large crossbar arrays and silicon-based asynchronous spiking neural networks have led to promising neuromorphic systems. However, developing compact parallel computing technology for integrating artificial neural networks into traditional hardware remains a challenge. Organic computational materials offer affordable, biocompatible neuromorphic devices with exceptional adjustability and energy-efficient switching. Here, the review investigates the advancements made in the development of organic neuromorphic devices. This review explores resistive switching mechanisms such as interface-regulated filament growth, molecular-electronic dynamics, nanowire-confined filament growth, and vacancy-assisted ion migration, while proposing methodologies to enhance state retention and conductance adjustment. The survey examines the challenges faced in implementing low-power neuromorphic computing, e.g., reducing device size and improving switching time. The review analyses the potential of these materials in adjustable, flexible, and low-power consumption applications, viz. biohybrid spiking circuits interacting with biological systems, systems that respond to specific events, robotics, intelligent agents, neuromorphic computing, neuromorphic bioelectronics, neuroscience, and other applications, and prospects of this technology.

1. Introduction

Deep learning and artificial intelligence algorithms are becoming increasingly essential in various applications, despite their similarities to the human brain. These algorithms are executed at a software level and rely on artificial neural networks, which are typically implemented on traditional von Neumann architecture computers [1–3]. The brain’s physical components, consisting of an interconnected and complex neuron system, function efficiently due to synapses’ chemical movements that control signal strength. The Hebbian learning principle posits that concurrently activated neurons create connections, serving as the foundation for memory and learning. This ability to adapt and change is primarily responsible for processing information within the brain, rendering it highly energy efficient compared to conventional computers, particularly in pattern classification and recognition.

Memristive devices, or memristors, are resistive switches with variable yet non-volatile electrical resistivity or optical reflectivity. These devices have been proven to exhibit synaptic functionality resembling Hebbian learning. They generate non-volatile memory arrays, perform basic pattern recognition task, and process information in hardware while consuming low energy. Researchers have demonstrated that neural network algorithms can be integrated into hardware, mimicking the brain’s efficiency and function on a small system [4–6].

To simulate the brain’s parallel operation, a memristive device-based network has to exhibit efficient parallel vector–matrix multiplication, symmetrical and linear programmable conductance states, and low energy consumption [7–9]. These features enable “blind” synaptic weight updates during learning. State-retention time requirements vary depending on the application, but longer times are generally preferred. For continuous learning scenarios, synaptic weights are regularly transferred to external memory, while for train-once inference-only applications, they are stored on-system for an extended period.

SinoTechIntel Interactive Document Reader
Page 1–5 of Preview
100%
Download Full PDF

Loading authentic research manuscript (Pages 1–5)...

Sponsored Research Partner
Cite This Research Paper
Felix L. Hoch, Qishen Wang, Kian-Guan Lim, Desmond K. Loke (2025). Multifunctional Organic Materials, Devices, and Mechanisms for Neuroscience, Neuromorphic Computing, and Bioelectronics. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-01756-7
SinoTechIntel Academic & Legal Disclaimer

Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.

Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.

Frequently Asked Questions

What are organic neuromorphic materials?

Organic neuromorphic materials are carbon-based compounds that can mimic synaptic behavior in artificial neural networks, offering advantages like biocompatibility, tunability, and low-power operation for brain-inspired computing.

What are the key resistive switching mechanisms discussed?

The review covers interface-regulated filament growth, molecular-electronic dynamics, nanowire-confined filament growth, and vacancy-assisted ion migration, each enabling non-volatile memory and synaptic plasticity.

How do organic neuromorphic devices compare to silicon-based ones?

Organic devices are more affordable, biocompatible, and energy-efficient, but face challenges in scaling and switching speed. They are promising for flexible and bio-integrated applications.

What applications can benefit from organic neuromorphic devices?

Applications include neuromorphic computing, neuroscience research, biohybrid circuits, robotics, intelligent agents, and bioelectronics, potentially integrating AI into everyday devices.

What are the main challenges in implementing low-power neuromorphic computing?

Challenges include reducing device size, improving switching time, and enhancing state retention and conductance adjustment to achieve reliable and efficient operation.
