Key Takeaways & Executive Findings
- •• Bi-phase high-entropy composites (BPHEC) with FeCoNiCr0.4Cu0.2 alloy and (FeCoNiCrCu)3O4 oxide are fabricated via low-temperature oxygen bath, enabling precise electromagnetic gene regulation. • The BPHEC achieves ultra-broadband absorption (633 MHz at 5 mm thickness) and a minimum reflection loss of −12.8 dB, with RCS reduction up to 18.34 dB m2 in multilayer designs. • Temperature-stable absorption (593–691 MHz) from −50 to 150 °C, along with high Curie temperature and oxidation resistance, ensures environmental adaptability. • The study elucidates formation and regulation mechanisms, offering a tunable strategy for low-frequency EMW absorption materials.
Abstract

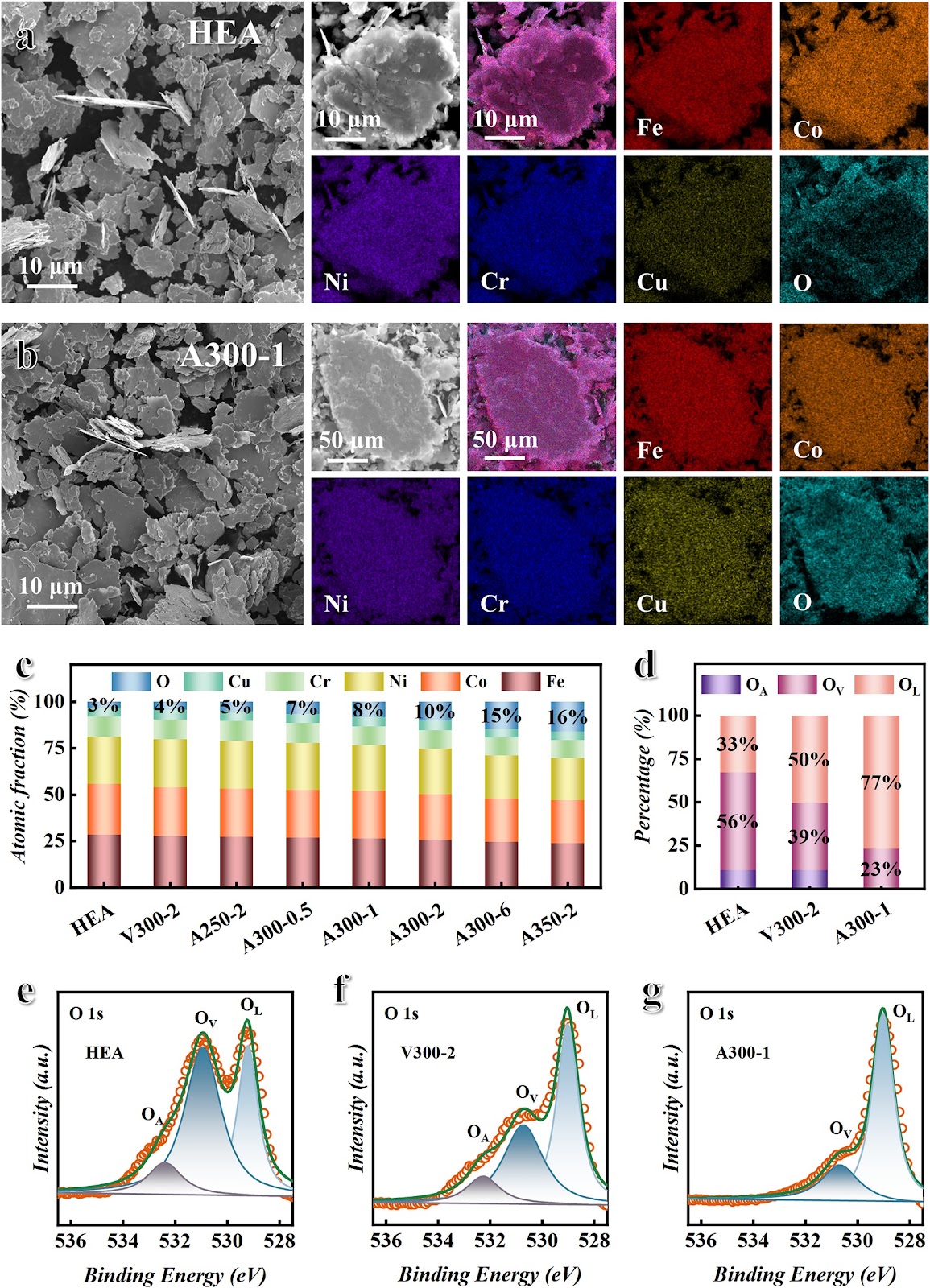

Magnetic absorbers with high permeability have significant advantages in low-frequency and broadband electromagnetic wave (EMW) absorption. However, the insufficient magnetic loss and inherent high conductivity of existing magnetic absorbers limit the further expansion of EMW absorption bandwidth. Herein, the spinel (FeCoNiCrCu)3O4 high-entropy oxides (HEO) are successfully constructed on the surface of FeCoNiCr0.4Cu0.2 high-entropy alloys (HEA) through low-temperature oxygen bath treatment. On the one hand, HEO and HEA have different magnetocrystalline anisotropies, which is conducive to achieving continuous natural resonance to improve magnetic loss. On the other hand, HEO with low conductivity can serve as an impedance matching layer, achieving magneto-electric co-modulation. When the thickness is 5 mm, the minimum reflection loss (RL) value and absorption bandwidth (RL < −5 dB) of bi-phase high-entropy composites (BPHEC) can reach −12.8 dB and 633 MHz, respectively. The RCS reduction value of multilayer sample with impedance gradient characteristic can reach 18.34 dB m2. In addition, the BPHEC also exhibits temperature-stable EMW absorption performance, high Curie temperature, and oxidation resistance. The absorption bandwidth maintains between 593 and 691 MHz from −50 to 150 °C. This work offers a new and tunable strategy toward modulating the electromagnetic genes for temperature-stable ultra-broadband megahertz EMW absorption.
1. Introduction
Low-frequency electromagnetic wave (EMW) absorption materials have wide applications in both civil and military fields, and it is of great significance to strengthen the research of EMW absorption materials in the megahertz (MHz) frequency band [1–5]. As the frequency decreases, the coupling degree between wave-impedance and EMW dissipating ability significantly increases, which puts higher requirements on the electromagnetic parameters of EMW absorption materials [2]. The previous studies have shown that magnetic absorbers with high permeability exhibit strong advantages in low-frequency and broadband EMW absorption [6, 7]. In addition, the complex and variable application environments such as polar region, ocean, and desert put forward higher requirements for the environmental adaptability of EMW absorption materials [8–12].
High-entropy alloys (HEA) are considered to be suitable candidates for low-frequency broadband EMW absorption materials with environmental adaptability due to their high designable freedom in composition, microstructure, and morphology [13, 14]. The flake-shaped FeCoNi-based HEA absorbers prepared by a simple mechanical alloying method exhibit high permeability and strong low-frequency EMW absorption performance [15–17]. Meanwhile, due to the four effects of “high-entropy effect,” “cocktail effect,” “severe lattice distortion effect,” and “sluggish diffusion effect,” the FeCoNi-based HEA absorbers exhibit temperature-stable crystalline structure, high Curie temperature, excellent oxidation resistance, and corrosion resistance [9, 18–20]. However, on the one hand, the insufficient magnetic loss of existing HEA absorbers limits the realization of ideal MHz broadband EMW absorption. On the other hand, impedance mismatch due to the inherent high conductivity of metals can also limit the improvement of EMW absorption performance.
Loading authentic research manuscript (Pages 1–5)...
Xiaoji Liu, Yuping Duan, Nan Wu, Guangming Li, Yuan Guo, Jiangyong Liu, Ning Zhu, Qiang Wang, Lin Wang, Zichen Xu, Hao Wei, Guojun Wang, Zhijia Zhang, Songsong Zhang, Wenjun Zhou, Teng Ma, Tongmin Wang (2025). Modulating Electromagnetic Genes Through Bi-Phase High-Entropy Engineering Toward Temperature-Stable Ultra-Broadband Megahertz Electromagnetic Wave Absorption. Nano-Micro Letters. https://doi.org/10.1007/s40820-024-01638-4
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are bi-phase high-entropy composites (BPHEC) and how are they synthesized?
BPHEC consist of FeCoNiCr0.4Cu0.2 high-entropy alloy (HEA) and (FeCoNiCrCu)3O4 high-entropy oxide (HEO) phases, synthesized via a low-temperature oxygen bath treatment. This method constructs HEO on the HEA surface, enabling precise electromagnetic gene modulation.
What electromagnetic wave absorption performance does BPHEC achieve?
At a thickness of 5 mm, BPHEC achieves a minimum reflection loss of −12.8 dB and an absorption bandwidth (RL < −5 dB) of 633 MHz. Multilayer samples with impedance gradient show RCS reduction up to 18.34 dB m2.
How does BPHEC maintain temperature-stable absorption?
BPHEC exhibits stable absorption bandwidth between 593 and 691 MHz across temperatures from −50 to 150 °C, attributed to high Curie temperature and oxidation resistance, ensuring performance in harsh environments.
What is the significance of 'electromagnetic genes' in this context?
Electromagnetic genes refer to the intrinsic electromagnetic parameters (permeability, permittivity) that determine absorption performance. BPHEC allows precise regulation of these genes through bi-phase engineering, optimizing impedance matching and magnetic loss.
What are the potential applications of this material?
The material is suitable for low-frequency EMW absorption in civil and military applications, including radar stealth, electromagnetic interference shielding, and devices requiring temperature stability in polar, oceanic, or desert environments.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration

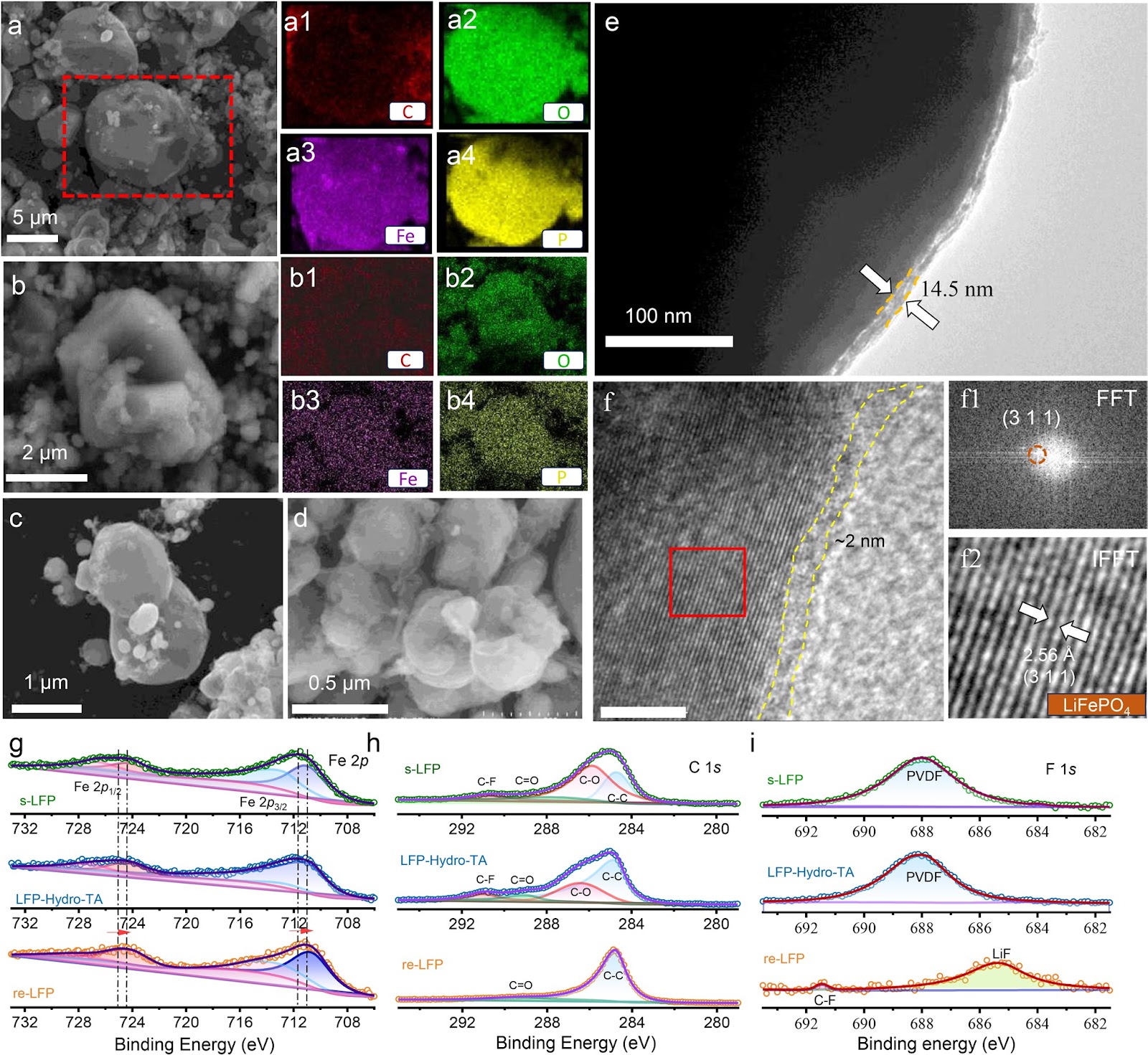

The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties

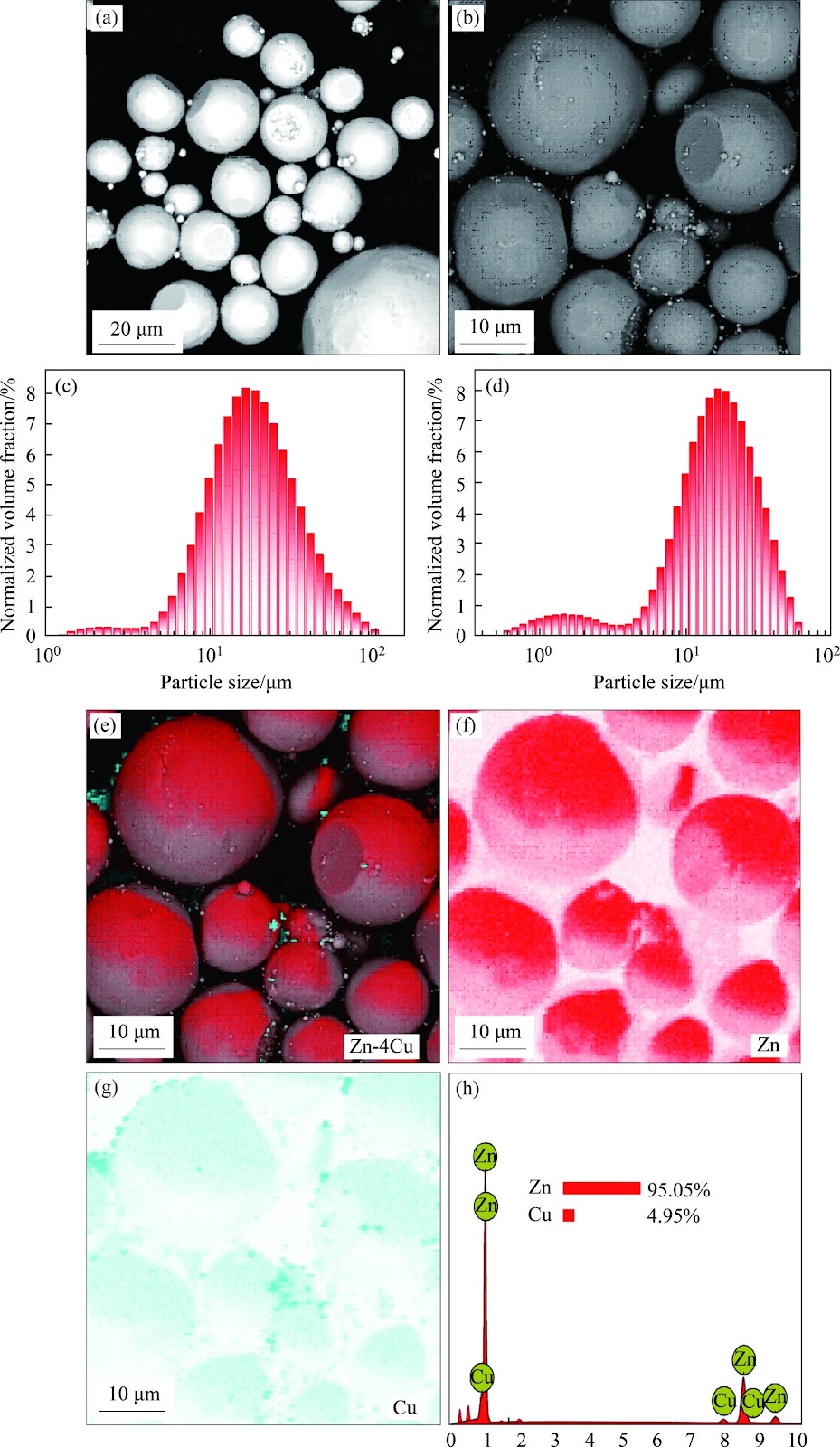

Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
